ArcJoule™ FR Jacket

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Chemical Splash, High Visibility, Breathable, Waterproof, Windproof

Downloads:

Product PDF
Size Chart
Enquire

NASCO ArcWear™ ArcJoule™

Heat barriers are one of the most effective ways to reduce the hazards of thermal energy heat. Heat barriers reflect or absorb heat, reducing the amount of heat that reaches workers. ArcJoule™ is designed to eliminate or minimise serious injury caused by thermal energy heat transferring through PPE materials. ArcJoule™ not only acts as an effective thermal energy heat barrier but also excels at combining recreational comfort with industrial hazard protection. Offering waterproof, windproof and breathable functionality, ArcJoule™ keeps workers safe with high visibility worker conspicuity and protection from the thermal hazards associated with an electric arc flash and hydrocarbon flash fires. ArcJoule™ Protective Outerwear provides protection as tough as the job at hand and is designed for all-day comfort in demanding work environments.

APPLICATION: Electric Utilities, Electrical Switching, Electrical Maintenance, Storm Restoration, Meter Servicing, Telecommunications, CATV.

About ArcJoule™ Customisation

ArcJoule™ Specifications

  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM 2733), High Visibility (ANSI 107, Class 3, Level 2), Breathable (ASTM E96), Waterproof (ASTM D3393), Cold Weather (ASTM F2732).
  • Face Cloth - 60% Modacrylic, 38% Cotton, 2% Antistatic.
  • Moisture Barrier - PTFE.
  • Fabric - 50% Nomex® / 50% FR Rayon.
  • Finished Fabric Weight - 356gsm/10.5oz.
  • Seam Construction - 2 Needle stitched and sealed with Nomex® tape.
  • Colour - Hi Vis: Fluorescent Lime Yellow (FY).
  • Reflective Trim - 3M™ Scotchlite™ 5535 reflective trim.
  • ASTM F1891 Electric Arc - FY ATPV 11.0 cal/cm2, HAF 76.0%, Ebt 33.0 cal/cm2.
  • ASTM F2733 Flash Fire - 2nd Degree 0.0% burn injury, 3rd Degree 6.56% burn injury.
  • NFPA 70E HRC - FY PPE CAT 2.
  • ANSI 107 High Visibility - Fluorescent Lime Yellow 7000 Series are ANSI 107-2015 Class 3 Level 2 compliant.
  • ASTM E96 Breathable Data - 4452 g/m2/24hrs.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.

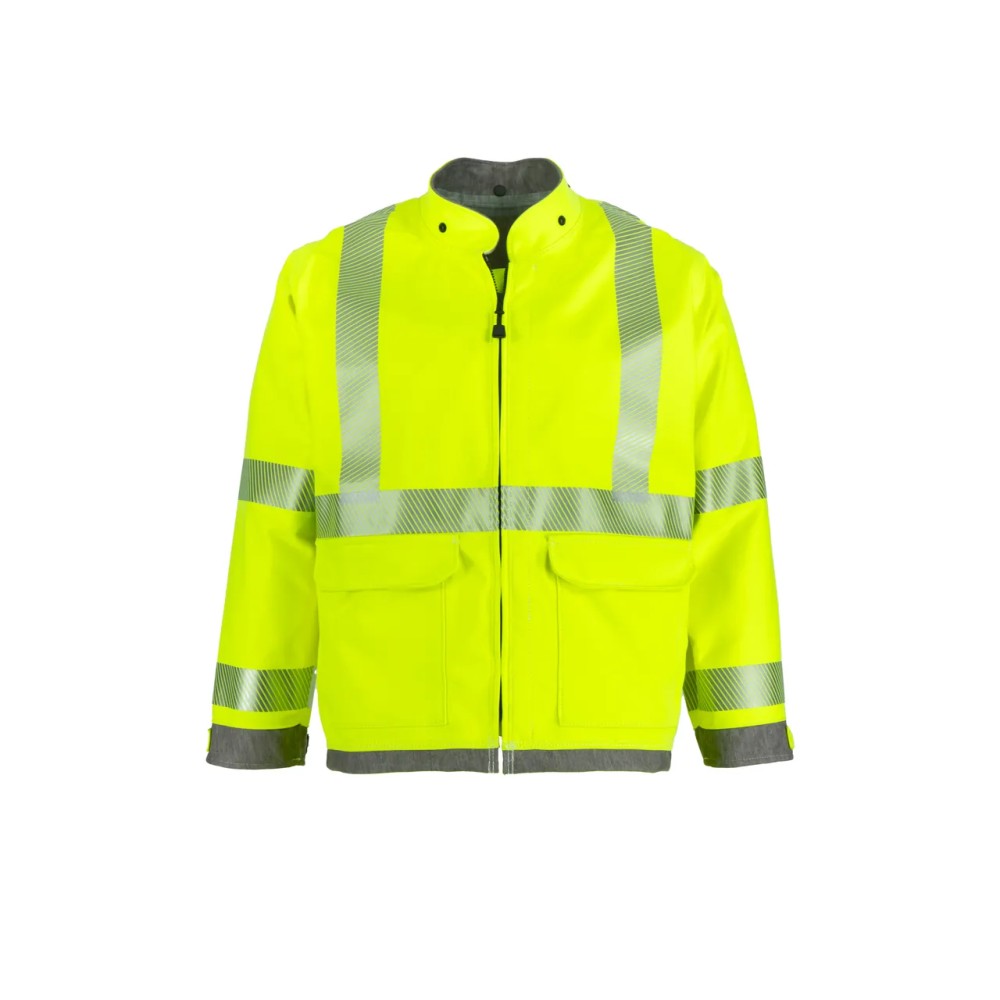

ArcJoule™ Waist Length Jacket Features: SKU 7501JFY102

  • Waist length Jacket Fluorescent Yellow.
  • Packed with Detachable Hood H7500FY.
  • Set with sleeve two-needle stitched and taped seams.
  • Hidden fall protection access in back.
  • Non-conductive zipper front with Velcro® closure fronts and stitched inner fly.
  • Two front patch pockets.
  • Velcro™ tab sleeve adjustment.
  • 3M™ Scotchlite™ 5535 FR Comfort  2" (50mm) reflective trim around chest, over-shoulder harness and around cuffs and biceps.
  • Elastic waist at back with regular hemmed fronts.
  • Electric arc and flash fire. High visibility, waterproof, windproof and breathable.
  • Sizes S to 5XL. Long sizes available - 2" added in the sleeve and body length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.



Also available:

  • 7501CFY102 48" Length Coat Fluorescent Yellow, 2 front patch pockets, collar with hood snaps, zipper front with storm fly, fall protection access, sleeve take-ups, 3M Scotchlite™ 5535 2" reflective trim around chest, over-shoulder harness, around biceps and sleeve cuffs. Packed with Detachable Hood H7500FY.
