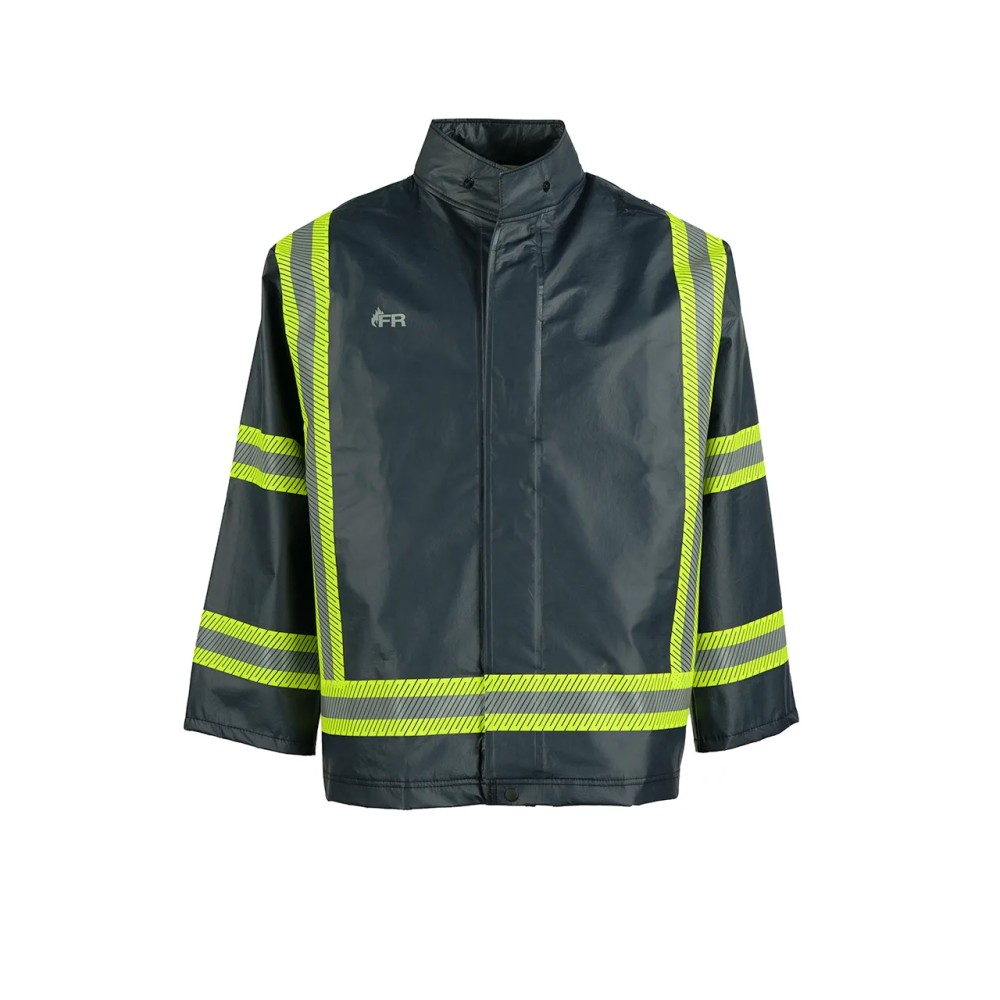

PetroStorm™ PetroWear™ Jacket

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Chemical Splash, Steam And Hot Liquids, Enhanced Visibility, Waterproof

Downloads:

Product PDF
Chemical Data
Size Chart
Enquire

PetroStorm™

PetroStorm™ has been designed to be the lightest weight multi-hazard protective outerwear available. With a full compliment of FR/AR protection capability, PetroStorm™ is ideal for multi-hazard, high-risk environments.

PetroStorm™ excels as a premier FR/AR protective barrier primarily because it combines high-level, multi-hazard protection with an exceptionally lightweight and comfortable design, reducing worker heat stress in demanding environments. It is specifically designed for upstream and downstream gas operations, oil refineries and other high-risk environments where there is risk of injury from electric arc, flash fire, chemical splash and steam and hot liquids. Specialised, breathable composite film with CCT™ Technology ensures improved comfort, reduced heat stress and high-level, multi-hazard protection. CCT™ technology makes PetroStorm™ 60% lighter than comparable PVC multi-hazard protection products. It stays cool in summer and soft in winter.

APPLICATION: Well Servicing, Drilling Rig Operations, SAGD, Heavy Oil, Oil Refining and Processing, Pipeline Construction and Maintenance, Offshore Oil and Gas Drilling, Gas and Oil Extraction, Chemical Processing, Chemical Handling and Transport, Tank Cleaning



Fabric: Nomex® | Kevlar®

Arclin Nomex® is an inherently heat and flame resistant meta-aramid fibre that won't melt, drip or support combustion in air, providing a superior barrier for what's inside from the hazards around it. The unique structure of Nomex® fibre is non-flammable, so performance is built in and can't be washed or worn away. When Nomex® is exposed to intense heat, its fibres thicken and carbonise, absorbing heat energy in the process. The molecular structure of Nomex® not only prevents heat from passing through but also prevents electricity flowing through when exposed to electrical arc. The fibre is also highly resistant to most common acids and alkalis, fluorocarbon refrigerants, transformer oil and silicon.

Arclin Kevlar® is an inherently heat and flame resistant para-aramid synthetic fibre with a molecular structure of many inter-chain bonds that make it incredibly strong. It is best known for its use in ballistic body armour. Kevlar® also has many other applications due to its high tensile strength-to-weight ratio - it is roughly five times stronger than steel on an equal weight basis. Kevlar's® key working principles rely on a combination of advanced molecular engineering and specialised fibre structure, enabling it to absorb, distribute and dissipate high-velocity kinetic energy while also protecting against arc flash and extreme thermal hazards. It does not melt, drip or support combustion. Kevlar's® molecular structure allows it to maintain structural integrity and protect wearers at temperatures up to 450°C (842°F).

Moisture Barrier: Composite Film w/ CCT™ Technology

Composite film fabric with CCT Technology™ is a specialised material used in high-performance protective solutions designed primarily to reduce heat stress while providing multi-hazard protection. The material offers significant weight reduction allowing PetroWear™ to be 60% lighter than the lightest alternative arc rated products.

About PetroStorm™ Customisation

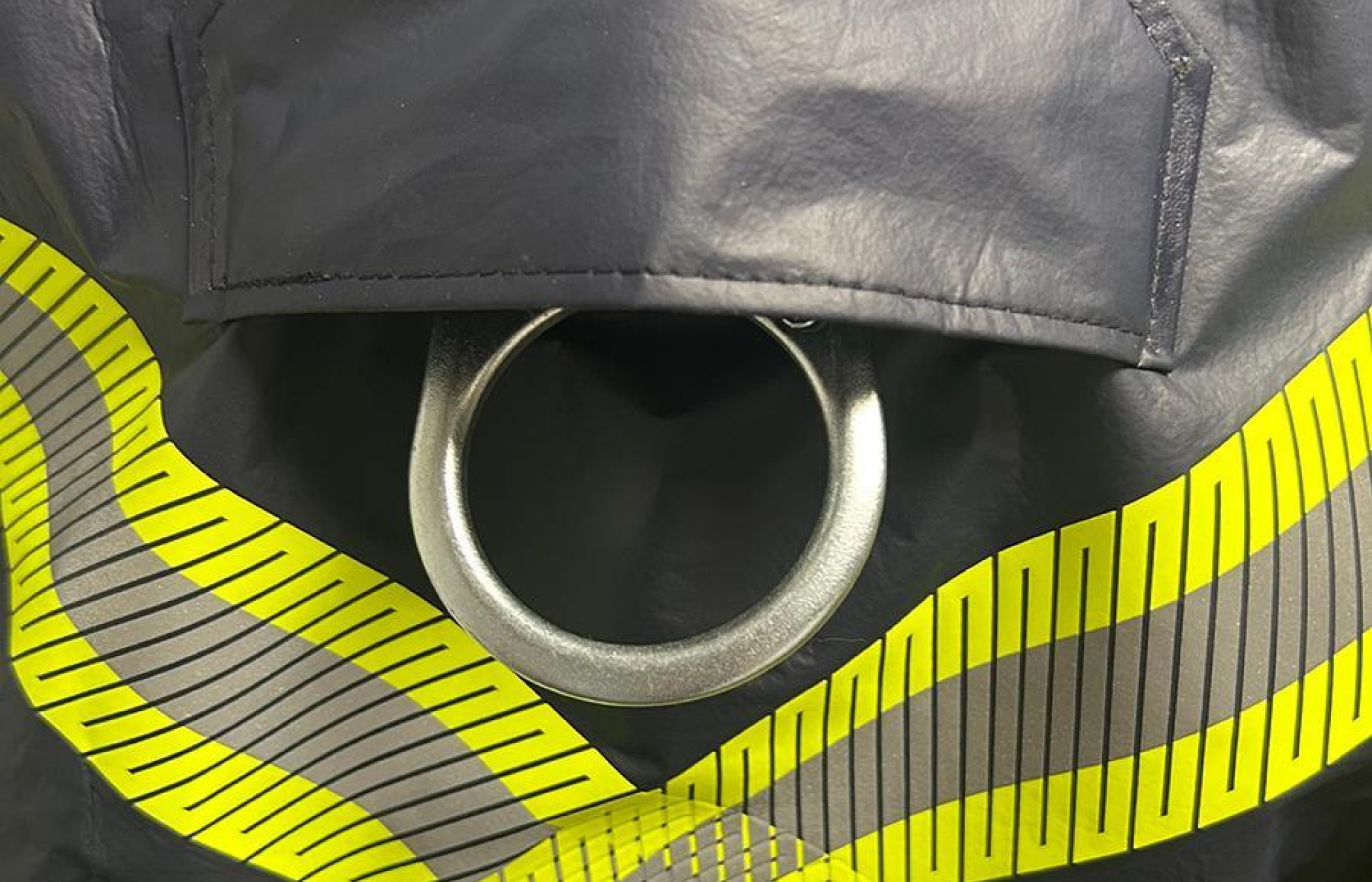

Rear Fall Protection Access | 3M™ Scotchlite™ 5637 Triple Reflective Trim (1801JN125)

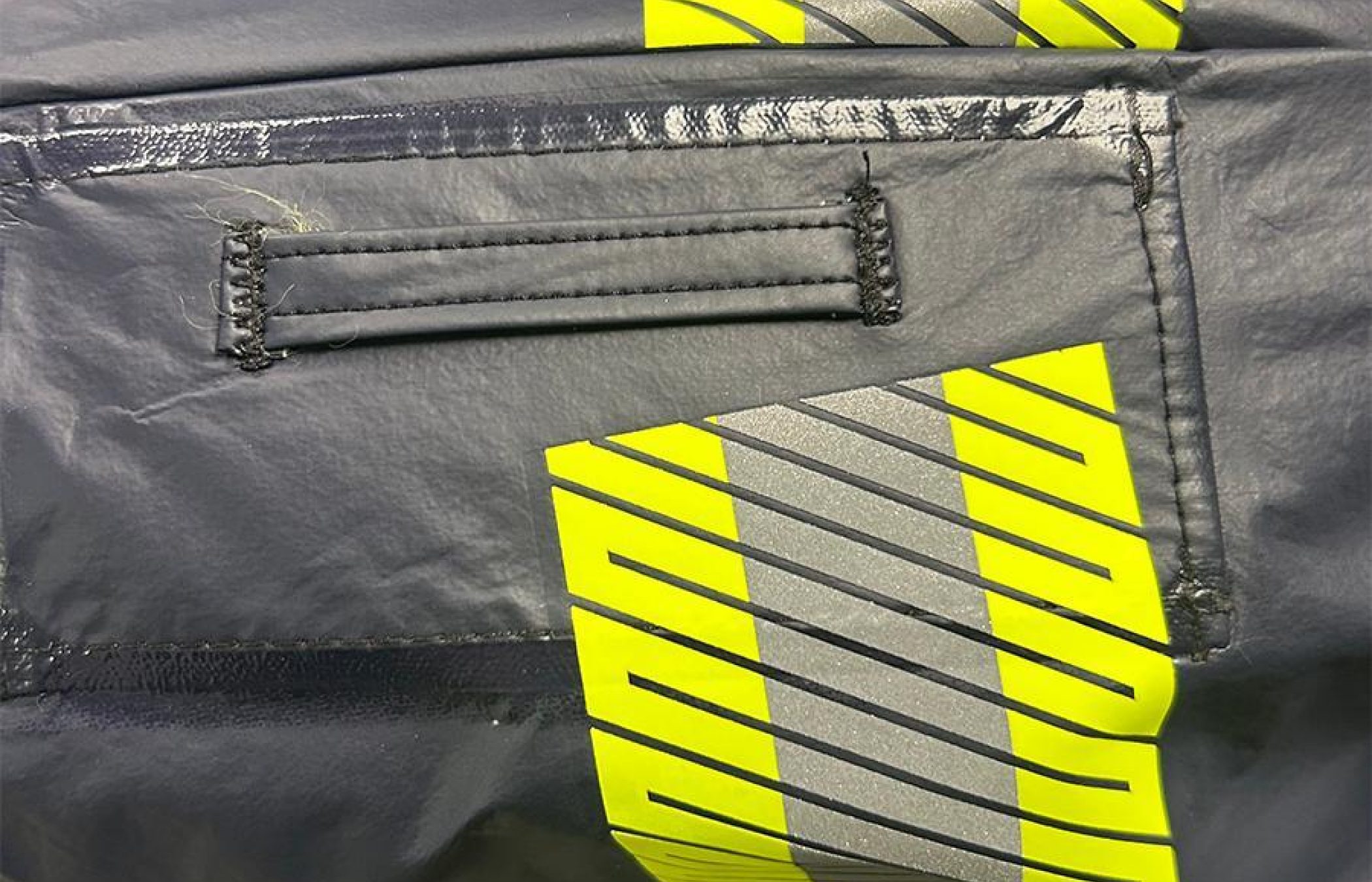

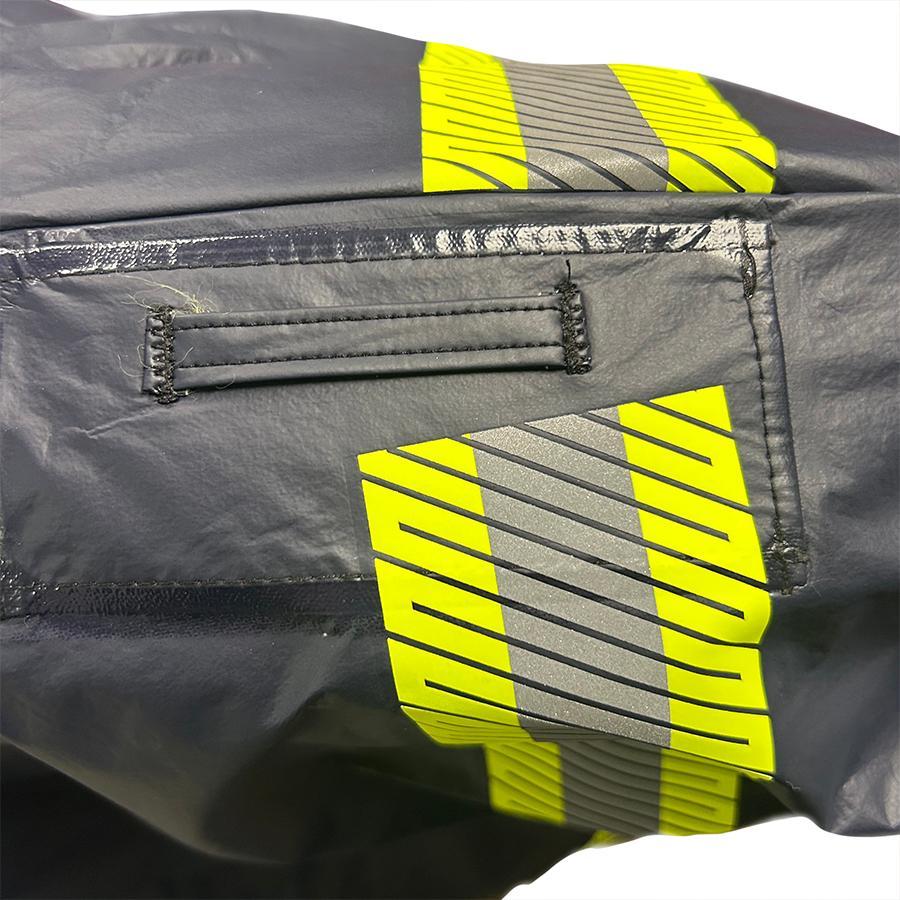

Shoulder Mounted Gas Monitor Tab (1801JN125)

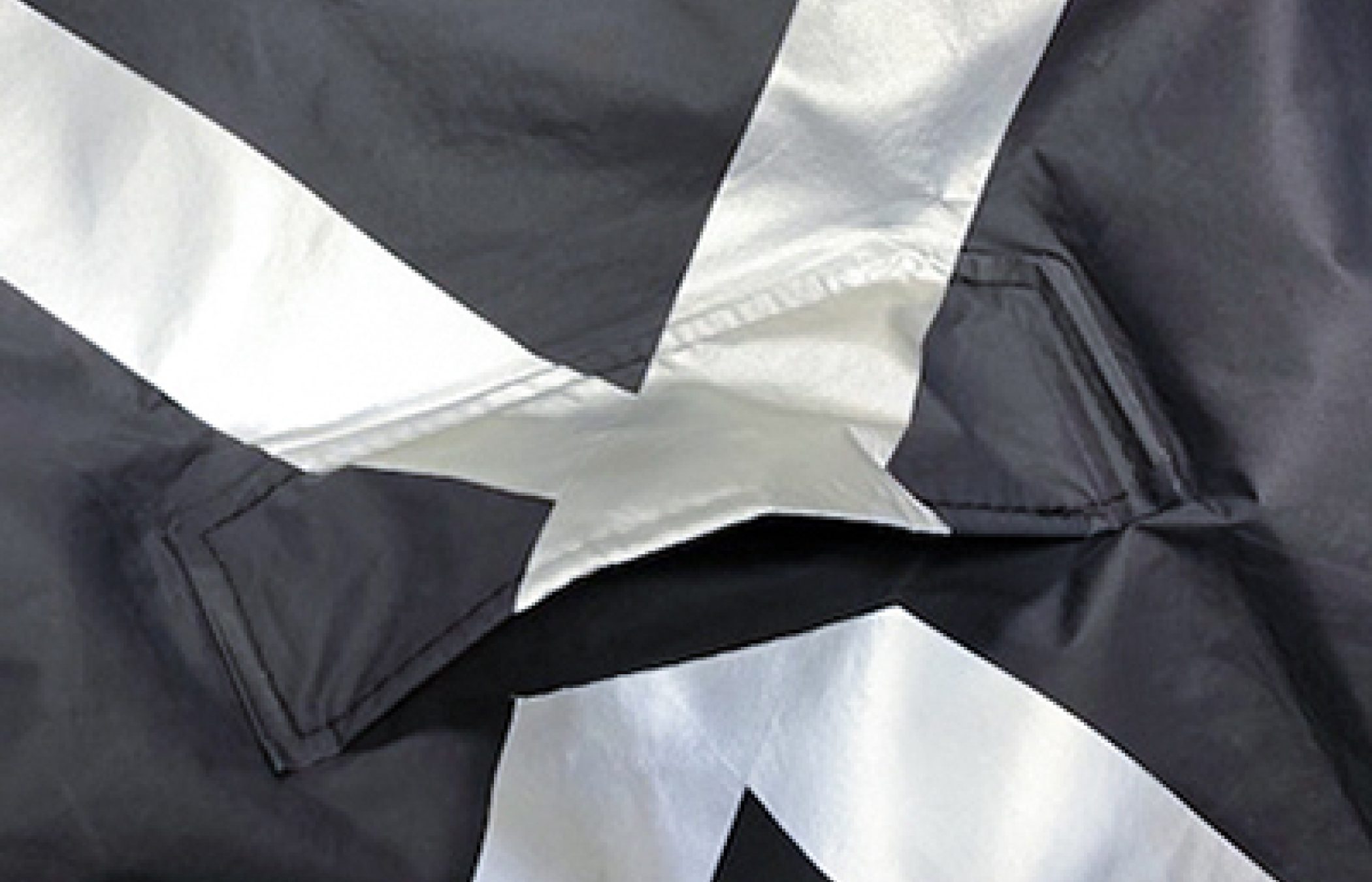

3M™ Scotchlite™ Silver Reflective Trim X on Back (CSA Z96) (1801JN110)

  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM F2733, NFPA 2112), Chemical Splash (ASTM F903), Steam and Hot Liquids (CGSB 155.20).
  • Fabric - Nomex®, Kevlar®.
  • Chemical/Moisture Barrier - Composite film with CCT™ Technology.
  • Finished Fabric Weight - 170gsm/5.0oz.
  • Colour - Navy (N).
  • Reflective Trim - 3M™ Scotchlite™ 5637 Fluorescent Lime-Yellow/Silver triple or Silver reflective trim.
  • ASTM F1891 Electric Arc - ATPV 16.0 cal/cm2.
  • NFPA 70E HRC - NFPA 70E CAT 2.
  • ASTM F2733 Flash Fire - Total body burn injury 23.8%.
  • ASTM F903 Chemical Splash - Pass.
  • Steam Protection - Pass.
  • Hot Liquids - Pass.
  • High Visibility - ANSI/ISEA Type O, Class 1 and CSA Z96.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.
  • SKU: 1801JN125 - 1800 Series Navy (N)
  • Reflective triple trim material.
  • Storm fly front.
  • Non-conductive zipper closure with hidden snap closure over flap.
  • Collar with hood snaps for attachment of optional H1800N detachable hood.
  • Half-elastic waist.
  • Adjustable snap take-up tabs at sleeve cuff.
  • 2 Patch pockets with laps.
  • Fall protection access in back.
  • High Visibility 3M™ Scotchlite™ 5637 triple reflective trim on front, over each shoulder and around waist, 'X' on the back and encircling each wrist and bicep. Complies with ANSI/ISEA 107 Type O, Class 1 and CSA Z96.
  • Gas monitor badge left upper chest.
  • Electric arc, flash fire, chemical splash, steam and hot liquid protection. Waterproof, windproof and enhanced high visibility.
  • Sizes: S to 5XL. Long sizes available - 2" added in the sleeve and body length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
  • SKU: 1801JN110 - Waist Length Jacket, Navy with storm fly front, non-conductive zipper closure with hidden snap closure over flap, collar with hood snaps, half-elastic waist, adjustable take up tabs at sleeve cuff, 2 patch pockets with laps, fall protection access in back, 3M™ Scotchlite™ silver reflective trim on front, over each shoulder, around wrist, 'X' on the back and encircling each wrist, gas monitor badge left upper chest. (matches Bib Style Trouser 1801TN101).
  • SKU: 1801JN120 - Waist Length Jacket, Navy with storm fly front, non-conductive zipper closure with hidden snap closure over flap, collar with hood snaps, half elastic waist, adjustable take up tabs at sleeve cuff, fall protection access in back, (wo/ 3M™ Scotchlite™ silver reflective trim), gas monitor badge left upper chest (matches Bib Style Trouser 1801TN120).

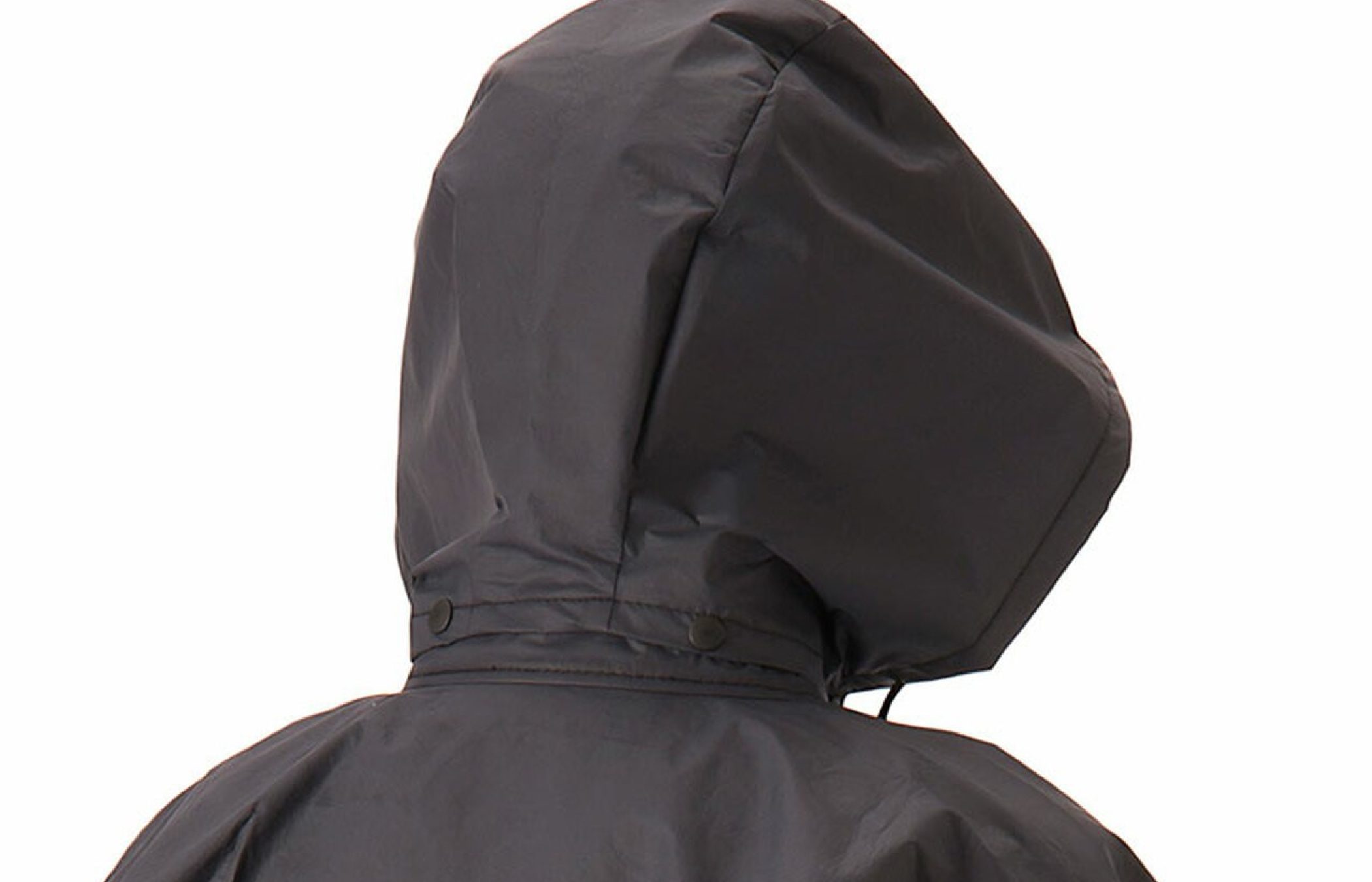

  • SKU: H1800N 3 piece detachable Hood with 4 snap attachment.
  • Differences: 1801JN125 Vs 1801JN110 and 1801JN120 - 1801JN110 has silver reflective trim | 1801JN120 has no reflective trim and no patch pockets.
  • Electric arc, flash fire, chemical splash, steam and hot liquid protection. Waterproof, windproof and enhanced high visibility.
  • Sizes: S to 5XL. Long sizes available - 2" added in the sleeve and body length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
