ArcJoule Trouser

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Chemical Splash, High Visibility, Breathable, Waterproof, Windproof

NASCO ARCWEAR ARCJOULE

Heat barriers are one of the most effective ways to reduce the hazards of thermal energy heat. Heat barriers reflect or absorb heat, reducing the amount of heat that reaches workers. ArcJoule™ is designed to eliminate or minimise serious injury caused by thermal energy heat transferring through PPE materials. ArcJoule™ not only acts as an effective thermal energy heat barrier but also excels at combining recreational comfort with industrial hazard protection. Offering waterproof, windproof and breathable functionality, ArcJoule™ keeps workers safe with high visibility worker conspicuity and protection from the thermal hazards associated with an electric arc flash and hydrocarbon flash fires. ArcJoule™ Protective Outerwear provides protection as tough as the job at hand and is designed for all-day comfort in demanding work environments.

APPLICATION: Gas and Electric Utility Transmission and Distribution, Electrical Switching, Electrical Maintenance, Storm Restoration, Meter Servicing, Telecommunications, CATV.

NASCO ARCJOULE SPECIFICATIONS



  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM 2733), High Visibility (ANSI 107, Class 3, Level 2), Breathable (ASTM E96), Waterproof (ASTM D3393), Cold Weather (ASTM F2732).
  • Face Cloth - 60% Modacrylic, 38% Cotton, 2% Antistatic.
  • Moisture Barrier - PTFE.
  • Fabric - Modacrylic / Cotton; Nomex® / FR Rayon.
  • Finished Fabric Weight - 356gsm/10.5oz.
  • Seam Construction - 2 Needle stitched and sealed with Nomex® tape.
  • Colour - Hi Vis: Fluorescent Lime Yellow (FY).
  • Reflective Trim - 3MScotchlite 5535 reflective trim.
  • ASTM F1891 Electric Arc - FY ATPV 11.0 cal/cm2, HAF 76.0%, Ebt 33.0 cal/cm2.
  • ASTM F2733 Flash Fire - 2nd Degree 0.0% burn injury, 3rd Degree 6.56% burn injury.
  • NFPA 70E HRC - FY PPE CAT 2.
  • ANSI 107 High Visibility - Fluorescent Lime Yellow 7000 Series are ANSI 107-2015 Class 3 Level 2 compliant.
  • ASTM E96 Breathable Data - 4452 g/m2/24hrs.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M Scotchlite™ reflective material.

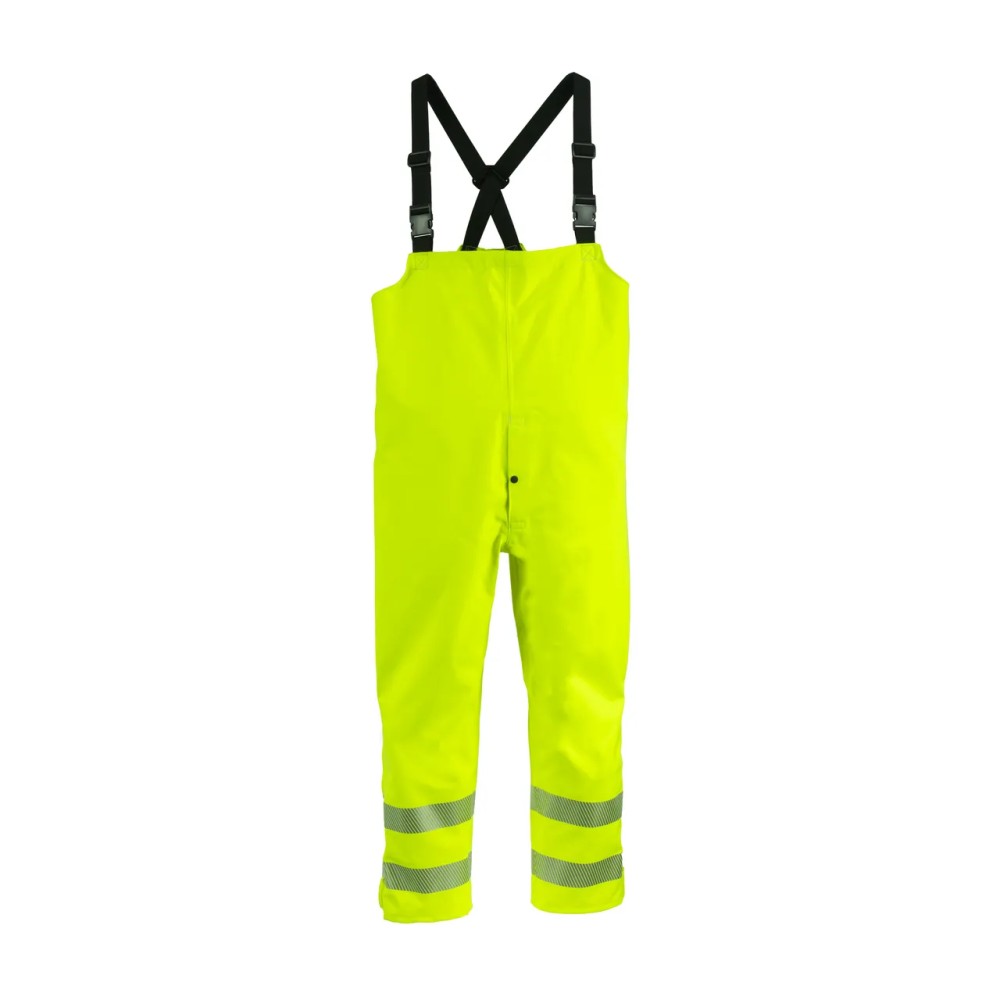

NASCO ARCJOULE BIB STYLE TROUSER



  • SKU: 7501TFY102.
  • Fly front Bib style Trouser.
  • 2 needle stitched and taped seams.
  • Side take up adjustments with deluxe tabs.
  • Non-conductive leg zippers with underfly and zipper hood. Allows for easy Donning and Doffing.
  • Take up tabs at bottom of cuffs.
  • Heavy duty FR black elastic suspenders with quick release buckles.
  • 3M Scotchlite 5535 FR Comfort 2" (50mm) reflective trim at calf and ankles.
  • Electric arc, flash fire and static electricity protection. High visibility, waterproof, windproof and breathable.
  • Sizes S to 5XL. Long sizes available - 2" added in the body and inseam length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
