Arc Flash Wear
Arc Flash

Omega FR

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Chemical Splash, Steam And Hot Liquids, High Visibility, Waterproof, Windproof, Breathable

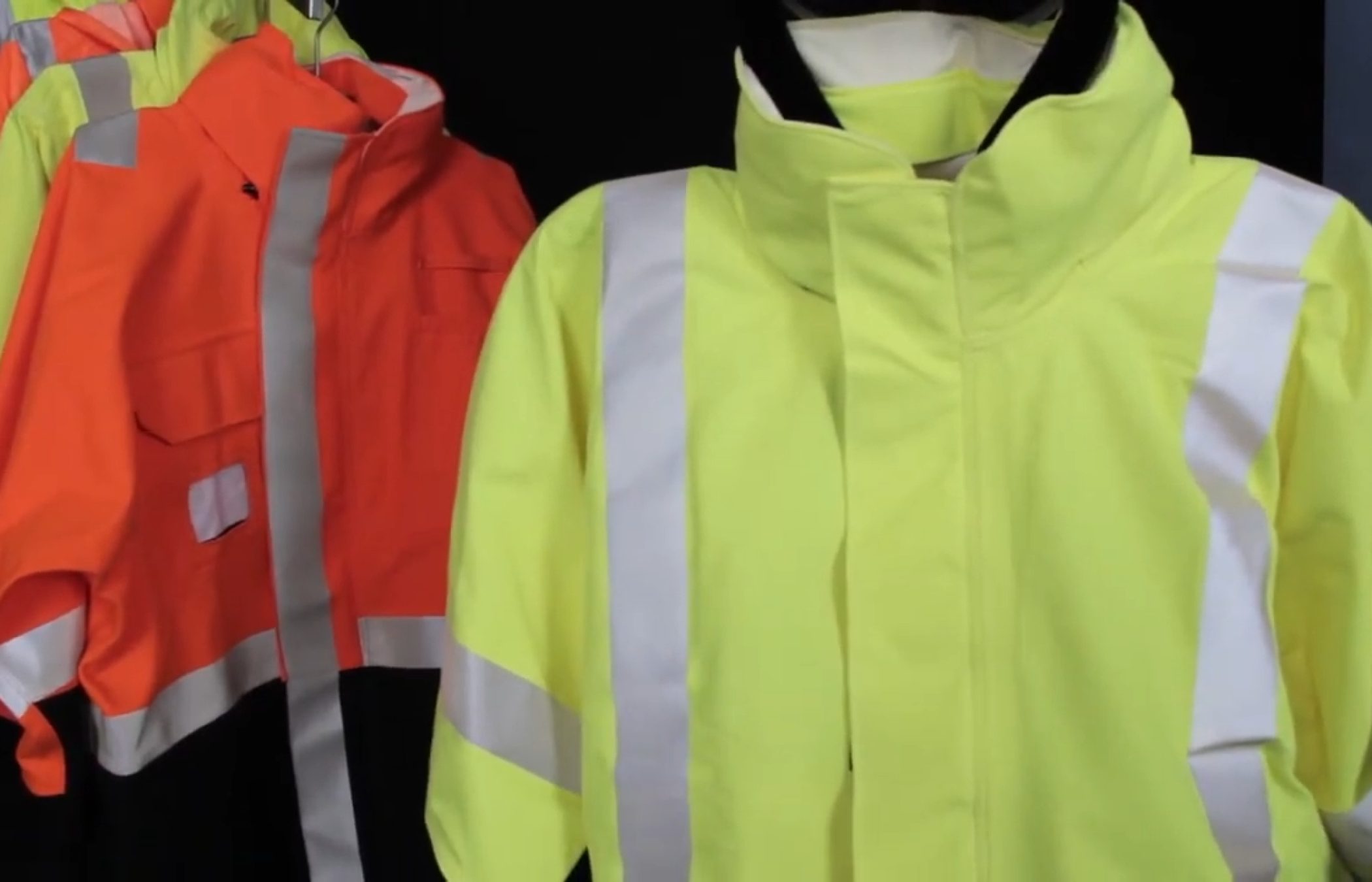

NASCO ARCWEAR™ OMEGA FR™

Omega FR™ is the first waterproof, windproof and breathable outerwear product that combines high visibility worker conspicuity with protection from the thermal hazards associated with electric arc and hydrocarbon flash fires. Intended for use by the oil and gas industry, Omega FR™ is designed for today's multi-hazard rugged work environments.

With an available Polartec® FR Hi Vis and Polartec® FR Nomex® fleece liner option, Omega FR™ replaces the need for several forms of outerwear.



NASCO ARCWEAR™ OMEGA FR™ SERIES

The table below summarises Omega FR's ATPV, NFPA 70E PPE Category (HRC), Heat Attenuation Factor (the amount of heat blocked by the fabric), Energy Break-open Threshold (the incident energy of the material that results in a 50% probability of break-open) and ANSI 107 High Visibility Class.



SERIES

BRAND

COLOUR

ATPV CAL/CM2

NFPA 70E CAT

HAF %

Ebt CAL/CM2

ANSI 107  CLASS



5000

Omega FR™

Fluorescent Yellow

10.7

2

81

35

3

5000

Omega FR™

Fluorescent Orange

11.8

2

83

36

3

5000

Omega FR™

Navy

9.7

2

76.8

> 27







FABRIC SPECIFICATIONS

  • Fabric - Omega FR™ Outer Shell: Nomex® Knit Inside.
  • Moisture Barrier - PTFE.
  • Finished Weight - 305gsm/9.0oz.
  • Seam Construction - 2 Needled Stitched and Sealed with Nomex® Tape.

HOW OMEGA FR PROTECTS

  • Electric Arc
  • Flash Fire
  • Chemical Splash
  • Steam and Hot Liquids
  • High Visibility
  • Waterproof
  • Windproof
  • Breathable

NASCO ARCWEAR™ OMEGA FR™ - INHERENTLY POWERED BY NOMEX®
