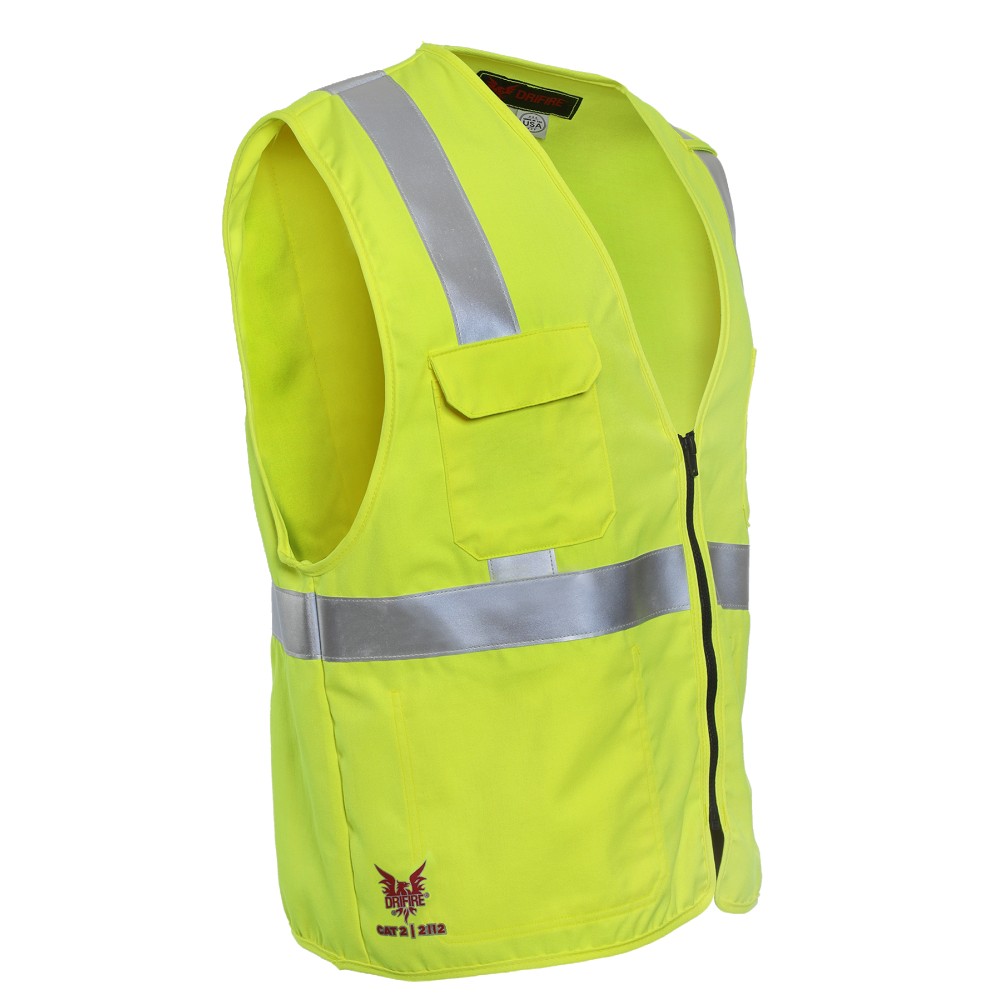

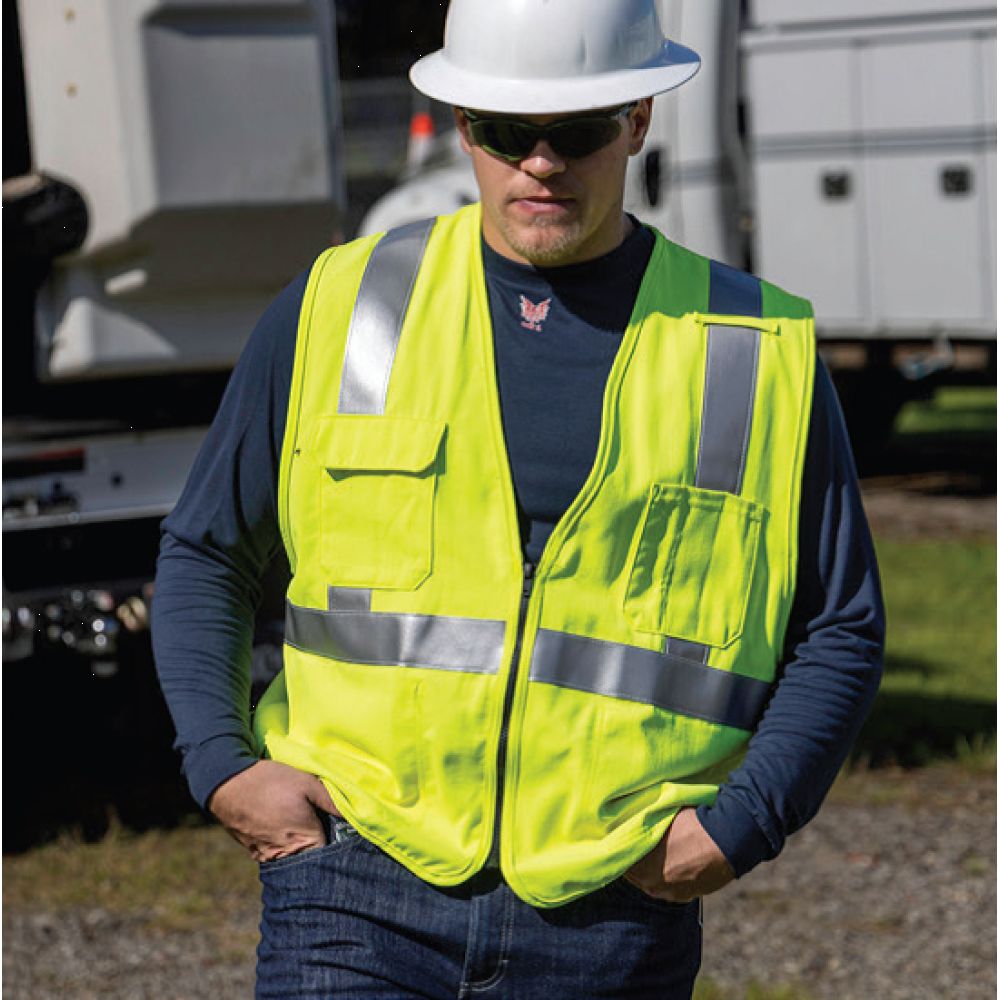

DRIFIRE® FR/AR Hi Vis Twill Deluxe Class 2 Vest

Premium Dual-Hazard FR/AR Hi Vis Protection: Arc Flash, Flash Fire, High Visibility, Breathable. Fluorescent Yellow Westex® DH 6.5oz/220gsm - 8.9 CAL | CAT 2

Enquire

Since 1935, National Safety Apparel has been a leader in delivering advanced safety solutions for workers in high heat and industrial environments. NSA's extensive range of USA-made PPE includes protective workwear for workers facing extreme heat, arc flash, flash fire, molten metal, cut and abrasion hazards. Whether in foundries, mills or industrial manufacturing, NSA solutions are designed to safeguard workers in the toughest environments.

DRIFIRE® high-performance FR/AR workwear is built for those who demand both comfort and protection in tough environments. With innovative designs and advanced fabric technology, DRIFIRE® workwear works as hard as you do.

The same technology that keeps American troops safe abroad protects workers around the globe, helping workers to perform the most hazardous tasks with confidence. DRIFIRE® is mission-driven and performance-obsessed, delivering workwear that supports workers every step of the way.

APPLICATION: Arc Flash, Flash Fire, High-Risk Industrial, High Visibility Environments.

About DRIFIRE® FR/AR Hi Vis Product PDF NSA Measurement Guide

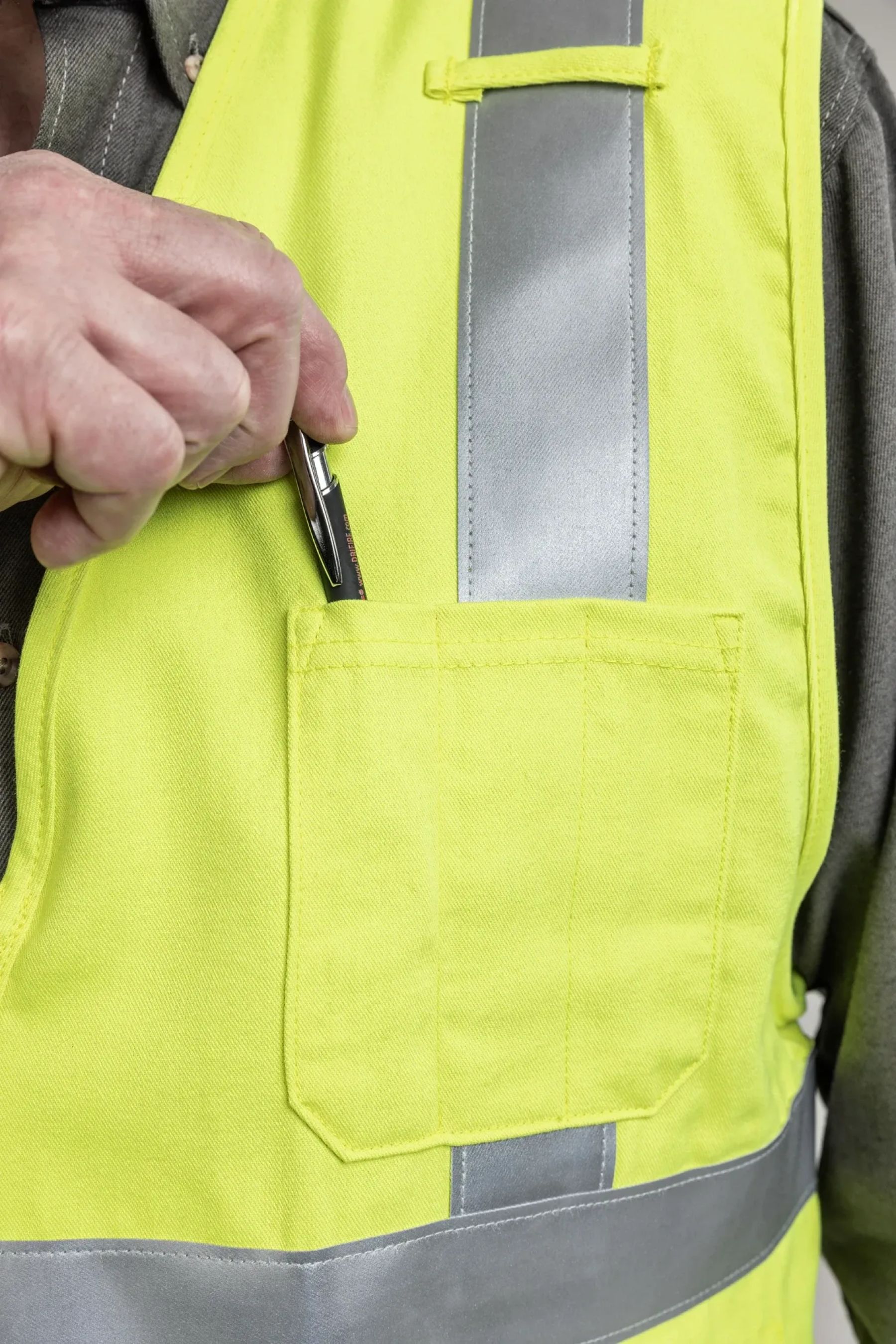

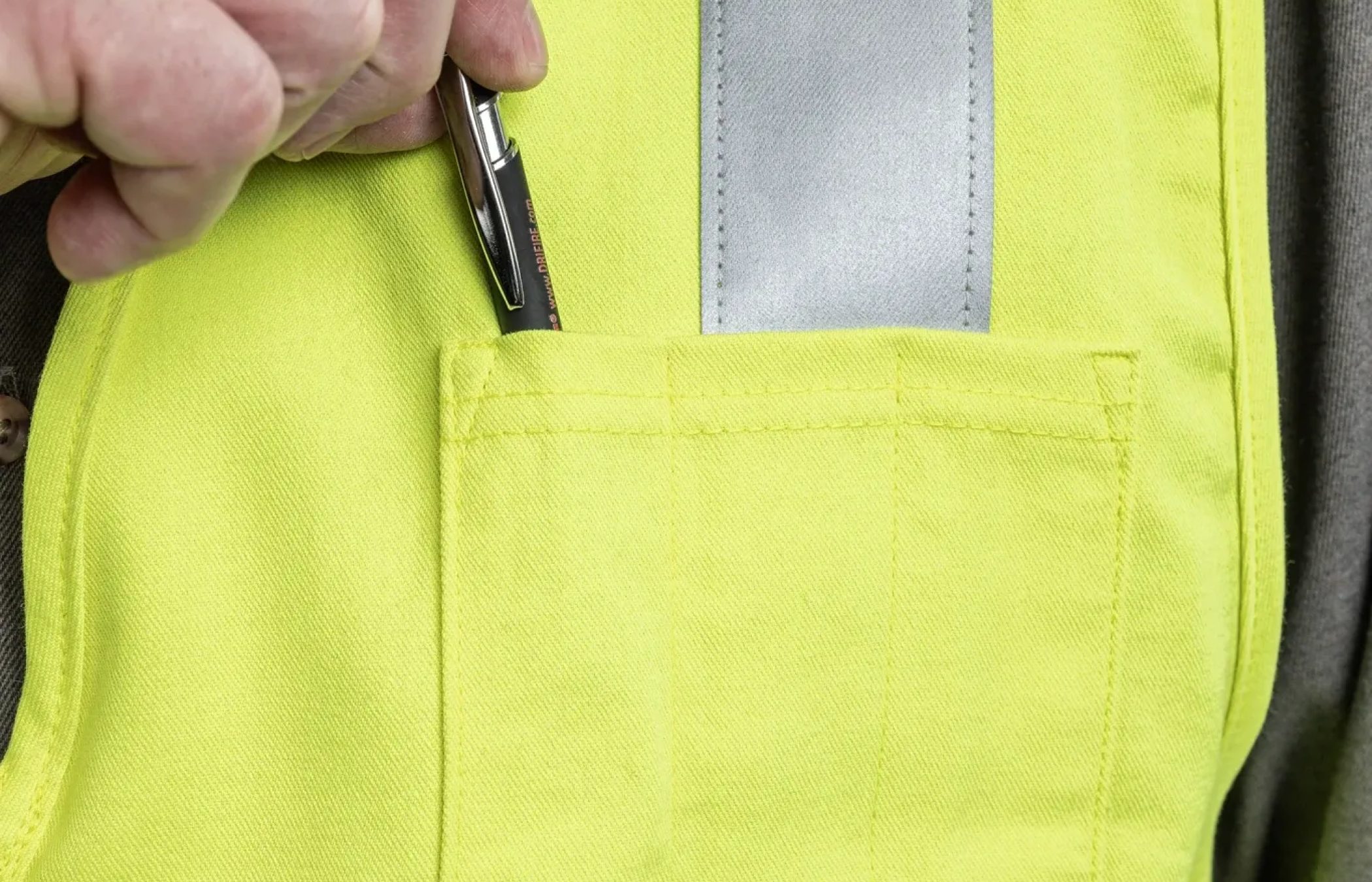

LHS Chest Pen Pocket

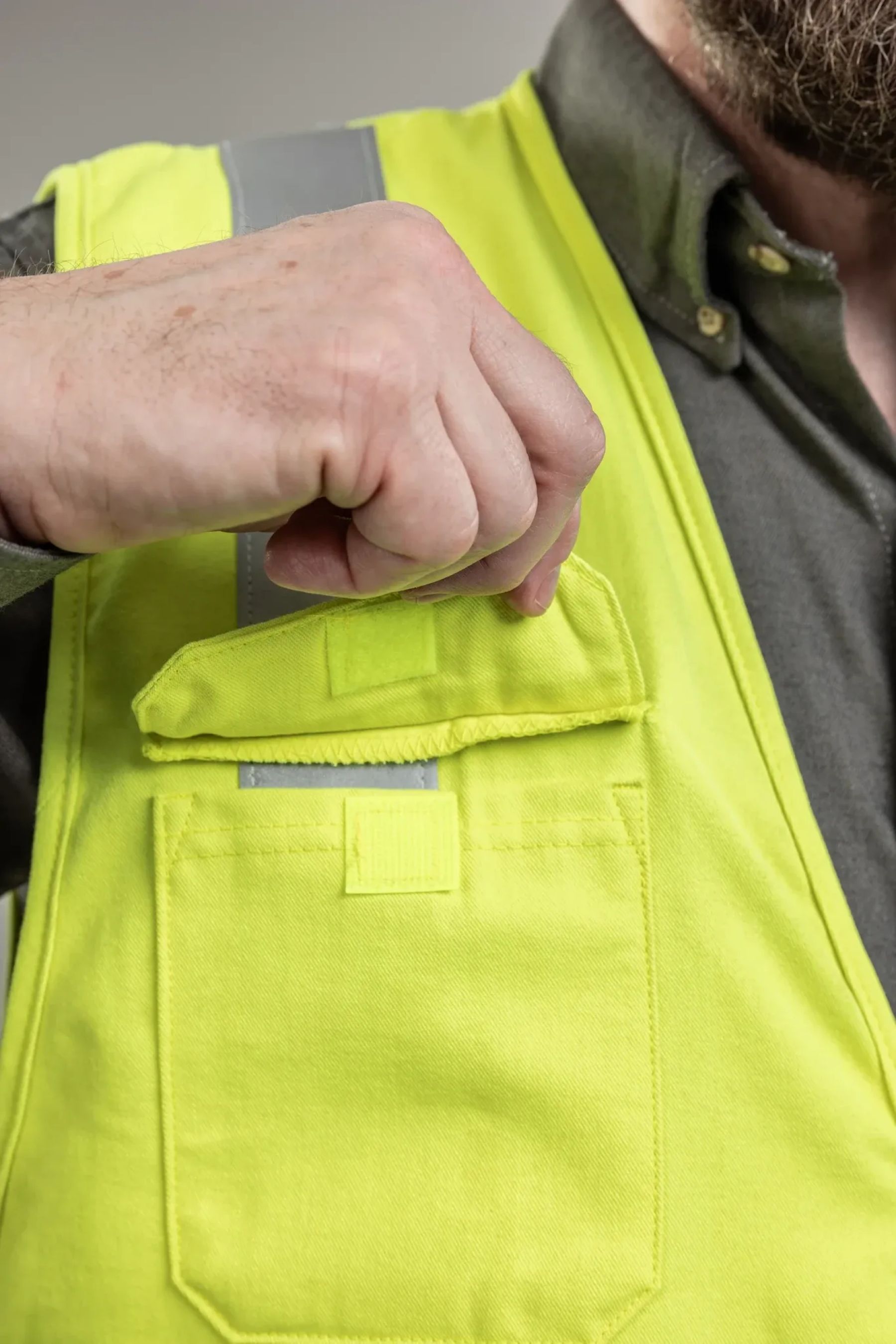

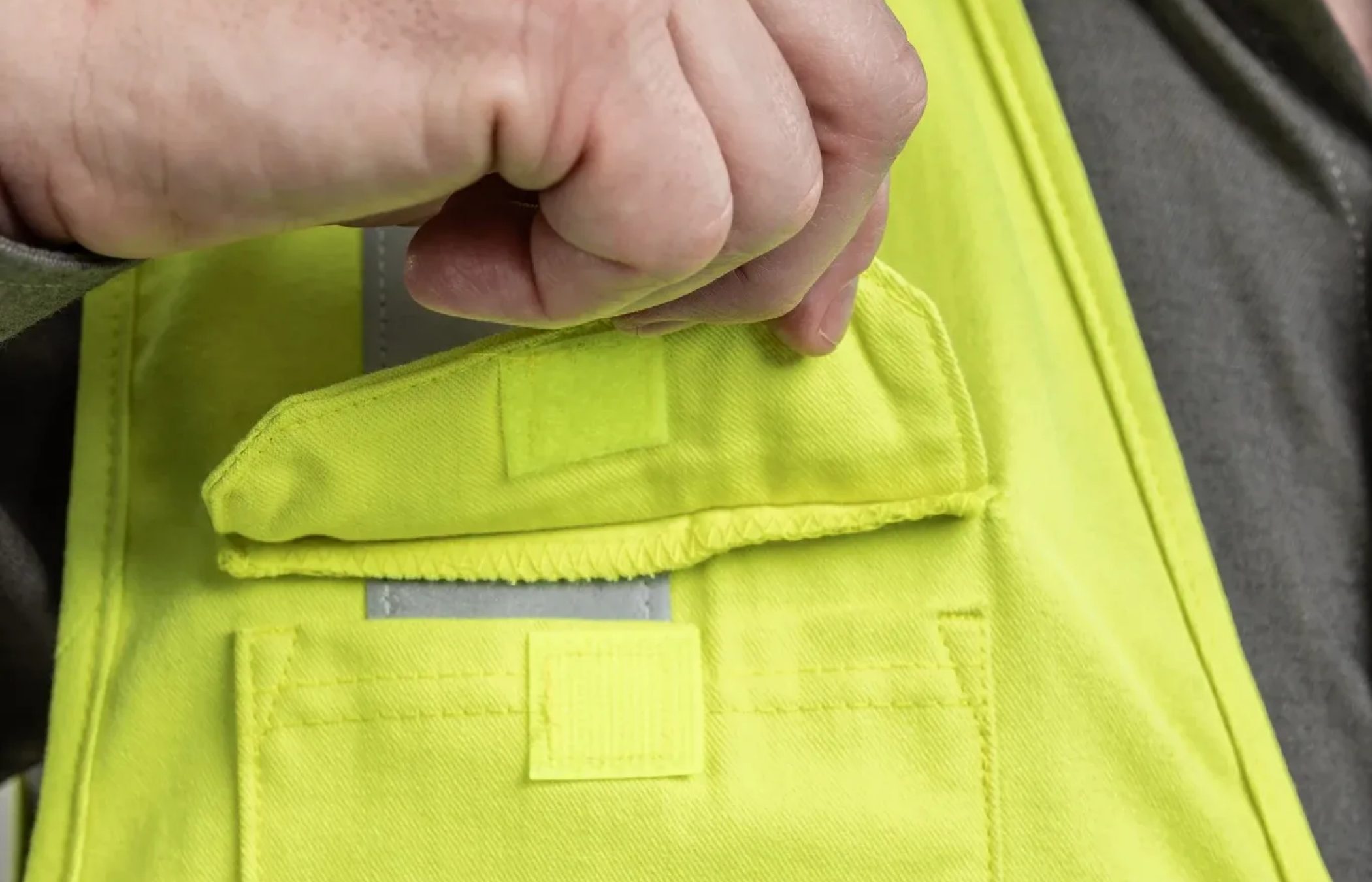

RHS Chest Storage Pocket w/ Velcro® Tab Closure

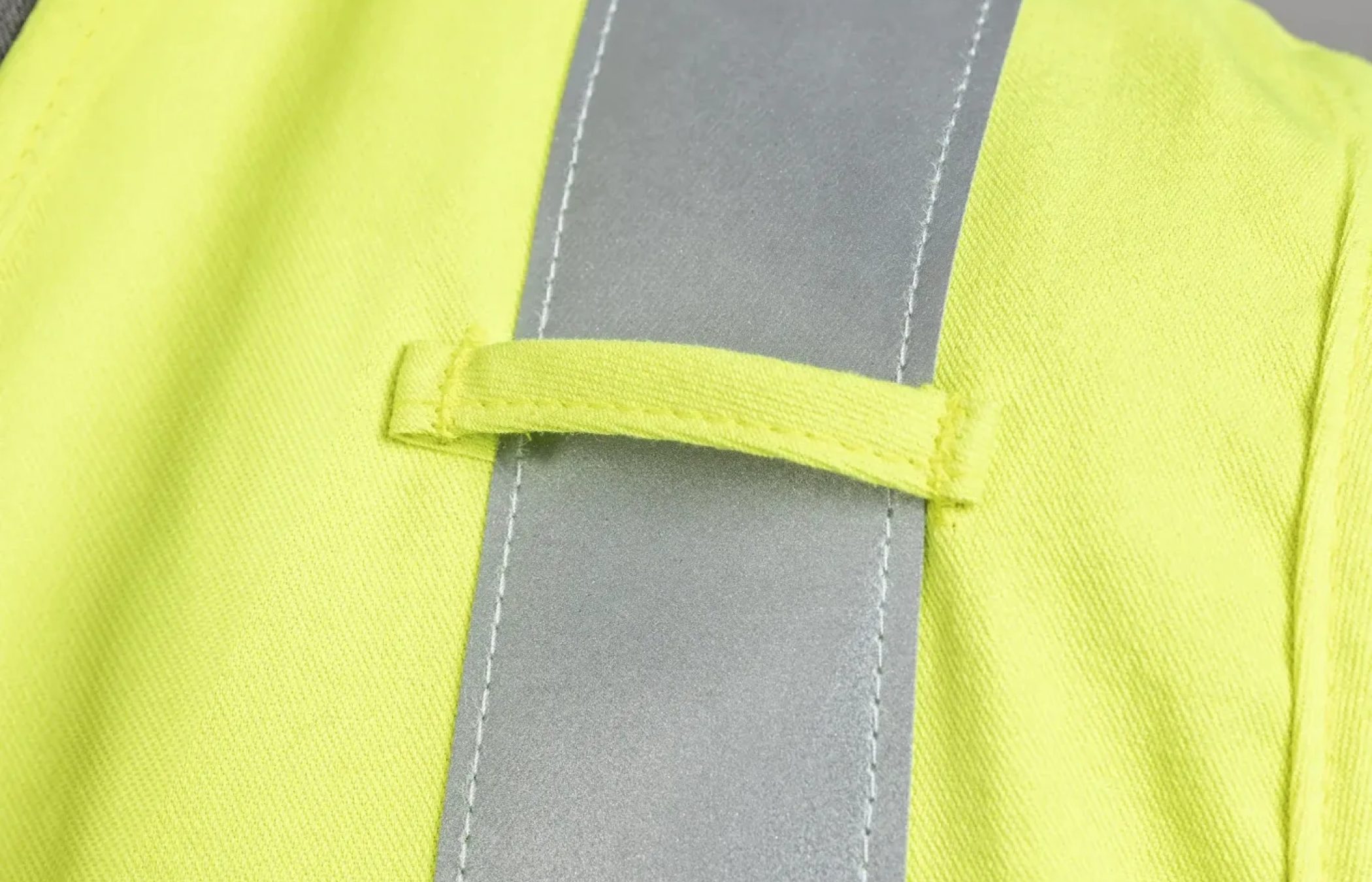

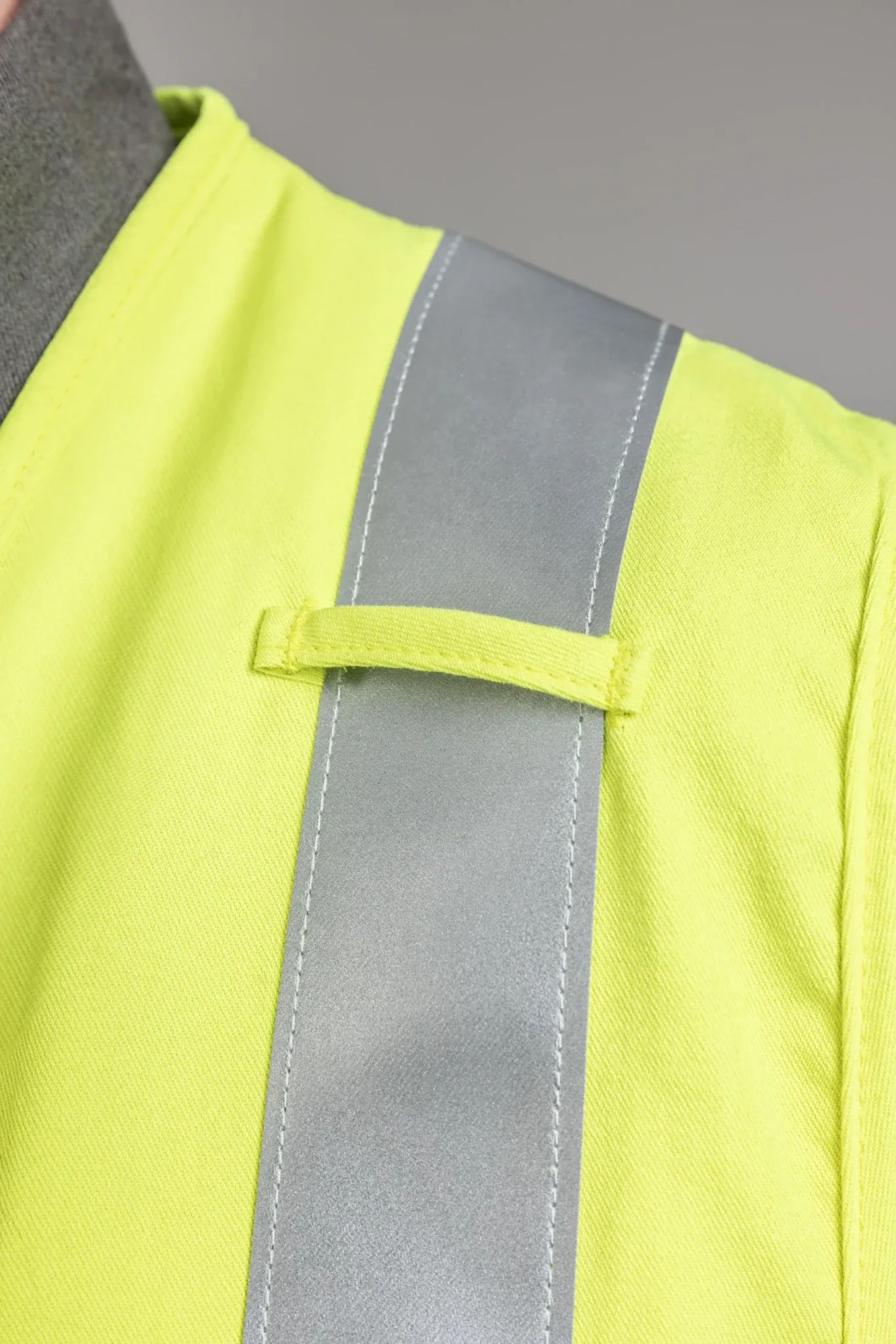

LHS Shoulder Mic Clip

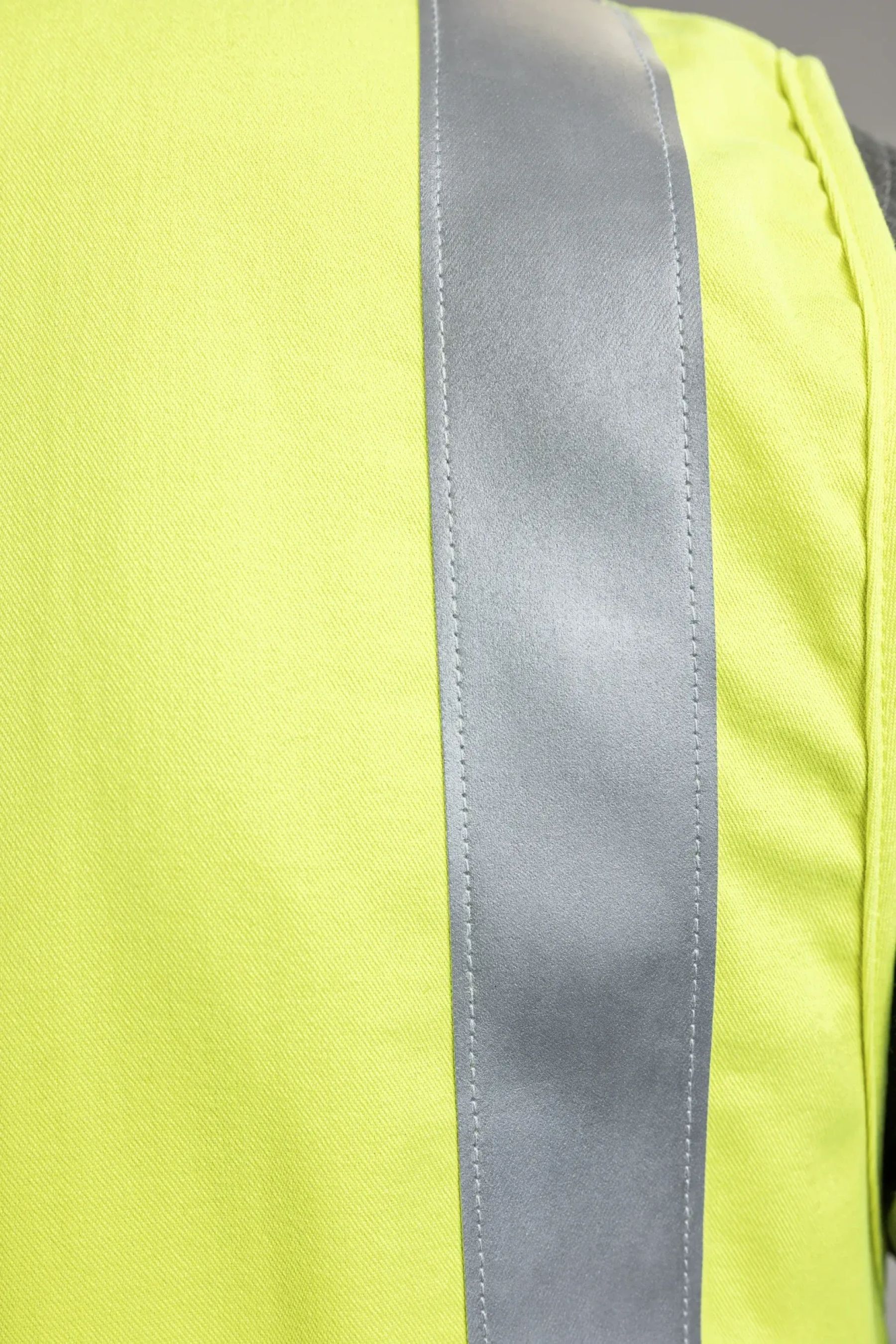

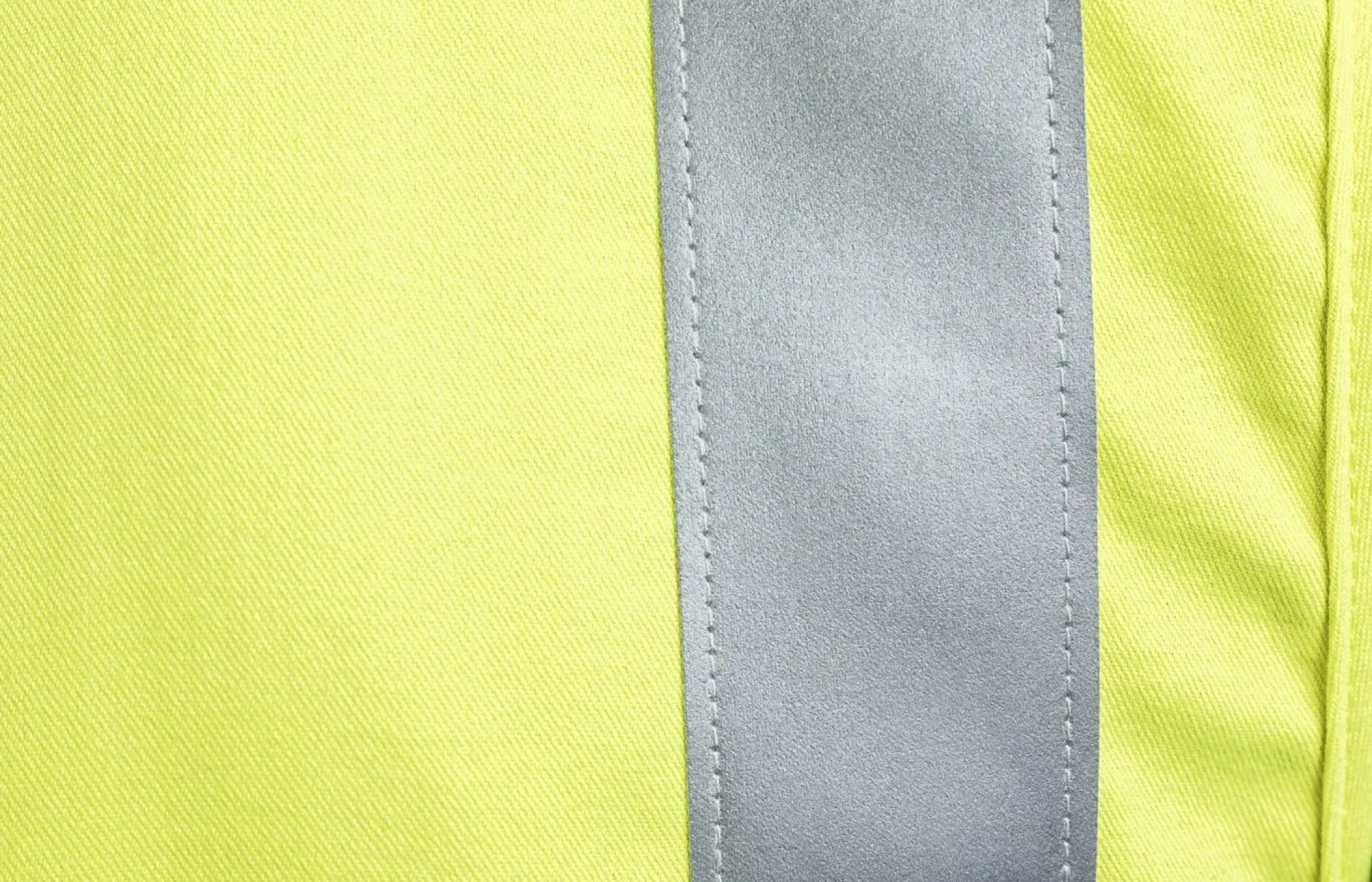

3M™ Scotchlite™ Silver Reflective Trim

Westex® DH (6.0oz / 220gsm)

Westex® DH is certified NFPA 2112 and NFPA 70E, making it an excellent choice for arc flash and flash fire protection. With its uniquely woven blend, Westex® DH provides outstanding breathability and optimised moisture management to keep workers cooler, drier and more comfortable. Westex® DH also retains an excellent after-wash appearance, with a low propensity for pilling and is ANSI 107 (High Visibility) certified. When recommended laundering guidelines are followed, Westex® DH provides consistent FR/AR protection over the life of the garment.

Composition: TENCEL™ Lyocell / Modacrylic / Aramid



Fabric FR/AR properties are not visible, so you must verify the performance of your FR/AR apparel. Having an FR/AR daily work wear program that meets NFPA 70E and/or is certified to NFPA 2112 is a necessary starting point, but there is a vast disparity between fabrics that comply with NFPA 70E and NFPA 2112. For example, since all fabrics with less than 50% body burn can be certified to NFPA 2112, it is important to know the actual body burn percentage of the ASTM F1930 test.

Westex® DH is certified to NFPA 2112 providing 8.8% - 35.3% total body burn (respective to the specific weight) under the ASTM F1930 test. In addition, Westex® DH 6.5oz/220gsm is certified NFPA 70E with an ATPV of 8.9 cal/cm2.

View more NSA Hi Vis FR/AR Vest Apparel by downloading the NSA 2026 Catalogue (Refer pages 43 to 44).

Download NSA Catalogue

Description - Lightweight and breathable, the DRIFIRE® FR/AR Hi Vis Twill Deluxe Vest combines dual-hazard protection with everyday comfort. Designed for visibility and function, it features moisture-wicking fabric, reflective trim and practical storage for enhanced on-the-job functionality.

  • NFPA 70E for Arc Flash, UL Certified to NFPA 2112 for Flash Fire, High Visibility ANSI/ISEA Type R Class 2, ASTM F1506 for Arc Flash, CSA Z462 for Arc Flash (Canada), OSHA 1910.269.
  • Fabric – Fluorescent Yellow Westex® DH.
  • Fabric Weight - 6.5oz / 220gsm.
  • ATPV - 8.9 cal/cm2 PPE CAT 2.
  • Colour – Fluorescent Yellow.
  • Product Number: V21TV2Z_ _
  • Dual-hazard protection against arc flash and flash fire.
  • Moisture wicking and breathable.
  • Inherently flame resistant, FR protection will not wash/wear out.
  • Zip front closure and mic-clip.
  • FR 3M™ Scotchlite™ Silver Reflective Trim over shoulders down to lower chest and lower back.
  • Cell phone chest pocket, pencil pocket and two lower inside pockets.
  • Sizes: SM - 3X.
  • MOQ - 10 units (across different sizes to reach MOQ).
  • Read the garment label and launder per instructions on garment label.
  • Machine wash warm on maximum 60°C (140°F). Use mild detergent. Tumble dry on medium setting.
  • DO NOT iron, use chlorine bleach, hydrogen peroxide, fabric softener or starch.
  • Wash according to the instructions above to remove any contaminants in order to maintain fabric performance when the garment becomes soiled with dirt, grease or oils.
  • If contaminants cannot be removed after laundering, it is best to discontinue use of the garment.
