ArcLite™ ArcWear™ Jacket / Coat

Premium Multi-Hazard Outerwear Protection: Electric Arc And Flame, Limited Chemical Splash, High Visibility, Waterproof

Downloads:

Product PDF
Size Chart
Enquire

ArcLite™

For 20 years ArcLite™ has been the standard for electric protective outerwear in the US. Designed specifically for utility workers who may be exposed to electric arcs, ArcLite™ is lighter, softer and more comfortable than other comparable products. With a feature packed design, ArcLite™ is sure to meet the demanding needs of workers exposed to electric arc, flame and intense heat.

ArcLite™ excels as an FR/AR protective barrier because it is specifically designed to act as a last line of defence, preventing melting, dripping or igniting, thereby reducing the severity of potential burn injuries. ArcLite™ combines high-performance, inherently flame resistant fabrics with a lightweight comfortable design specifically tailored for electrical professionals working in extreme high-risk environments.

APPLICATION: Electric Utilities, Electrical Switching, Electrical Maintenance, Storm Restoration, Meter Servicing, Telecommunications, CATV



NOMEX® E89™

Fabric: Nomex® | Kevlar® (Nomex® E89™)

Nomex® E89™ is a blend of Nomex® and Kevlar®. It is a high-performance, non-woven thermal liner material designed for extreme high-risk environments. Nomex® E89™ is used to create lightweight, flexible and breathable moisture barriers and thermal protection layers in professional firefighting garments and arc flash and flame resistant PPE. As a part of a multi-layer system, Nomex® E89™ acts as a thermal barrier trapping air and limiting the transfer of intense heat to the wearer. When exposed to heat, Nomex® fibres carbonise and thicken, forming a protective charred barrier that remains flexible and prevents further heat from penetrating, providing crucial extra seconds of safety. The key working principles of Nomex® and Kevlar® is that they do not melt, drip or sustain combustion in air. Kevlar™ is a high-performance para-aramid fibre known for its exceptional thermal stability, designed to resist extreme heat. It maintains its structural integrity and strength at high temperatures, withstanding heat up to 450°C (842°F) before it begins to decompose.

Moisture Barrier: FR Synthetic Leather PU/PVC

Flame retardant Synthetic Leather, made from Polyurethane (PU) or Polyvinyl Chloride (PVC), offers the combined benefits of enhanced safety, durability and cost-effective design flexibility. These materials are engineered to meet strict safety standards while providing a realistic, animal friendly alternative to genuine leather. The material replicates leather's texture through embossing, using flame retardants to self-extinguish within seconds.

About ArcLite™ Customisation

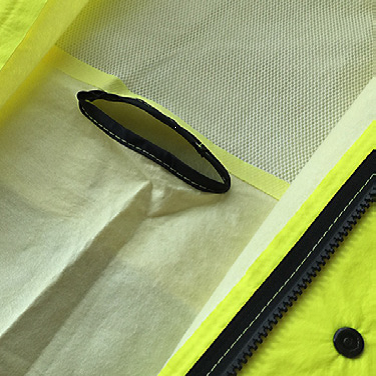

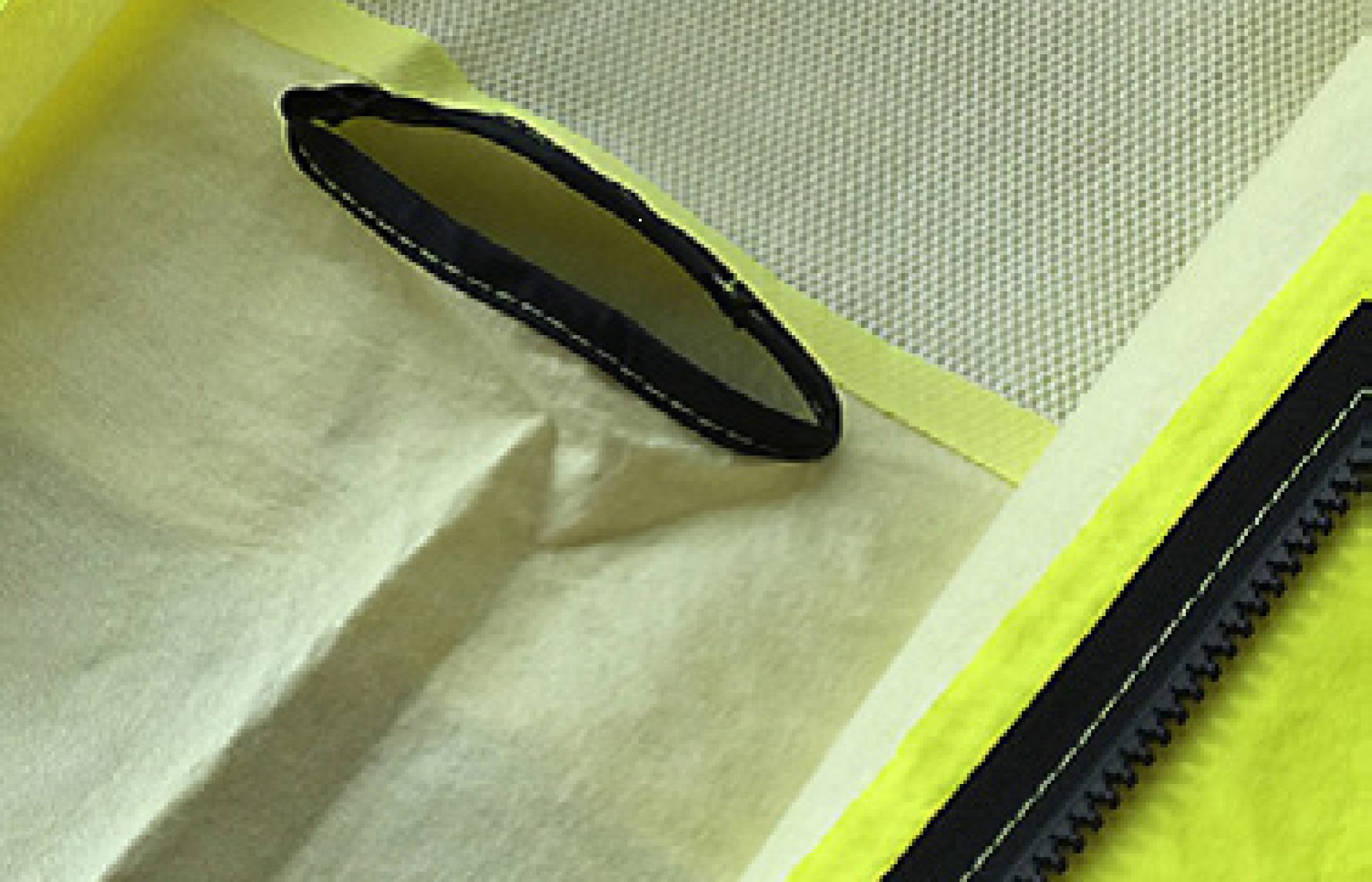

Fall Protection Access w/ Nomex® Mesh Ventilation System

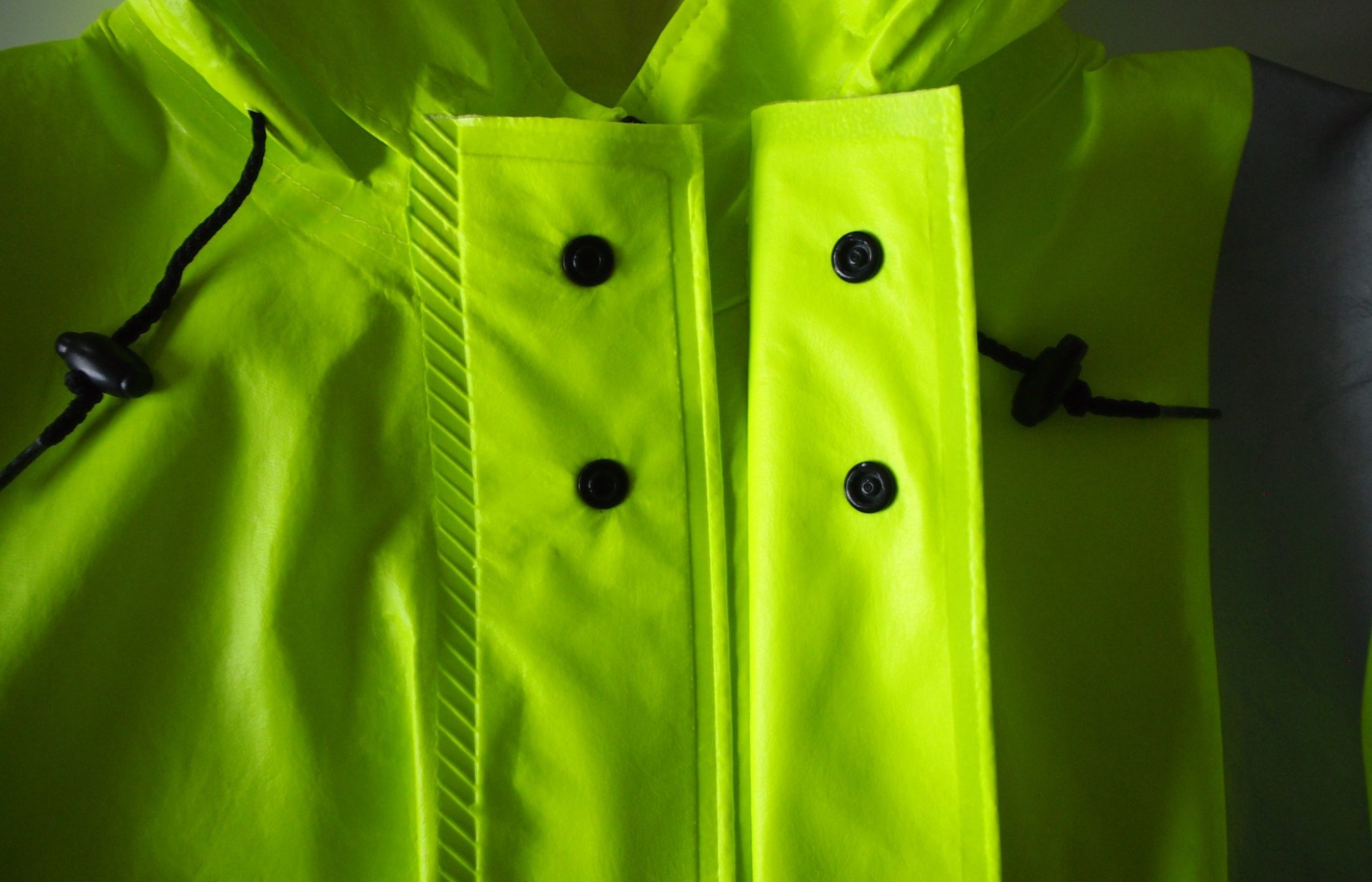

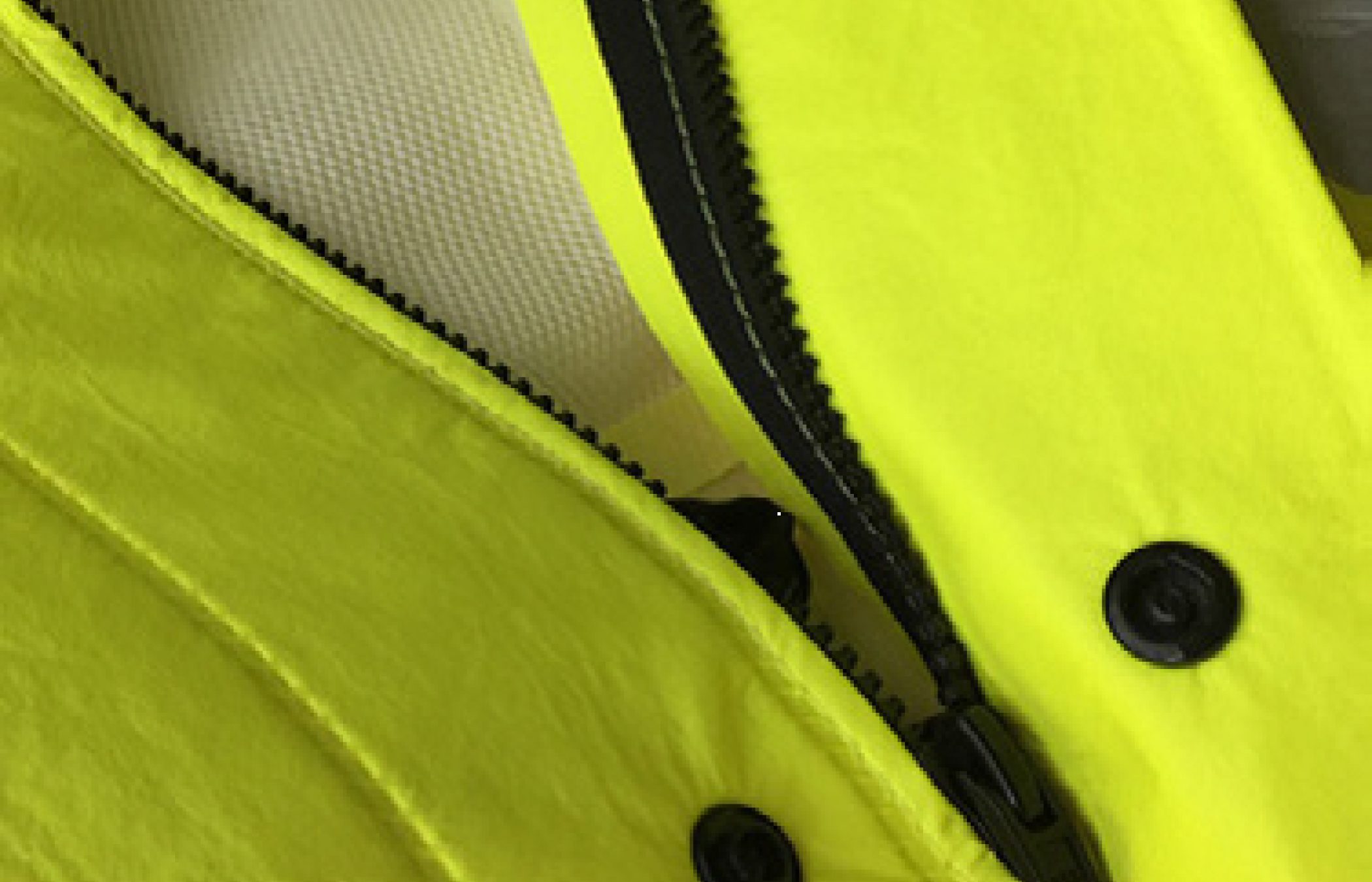

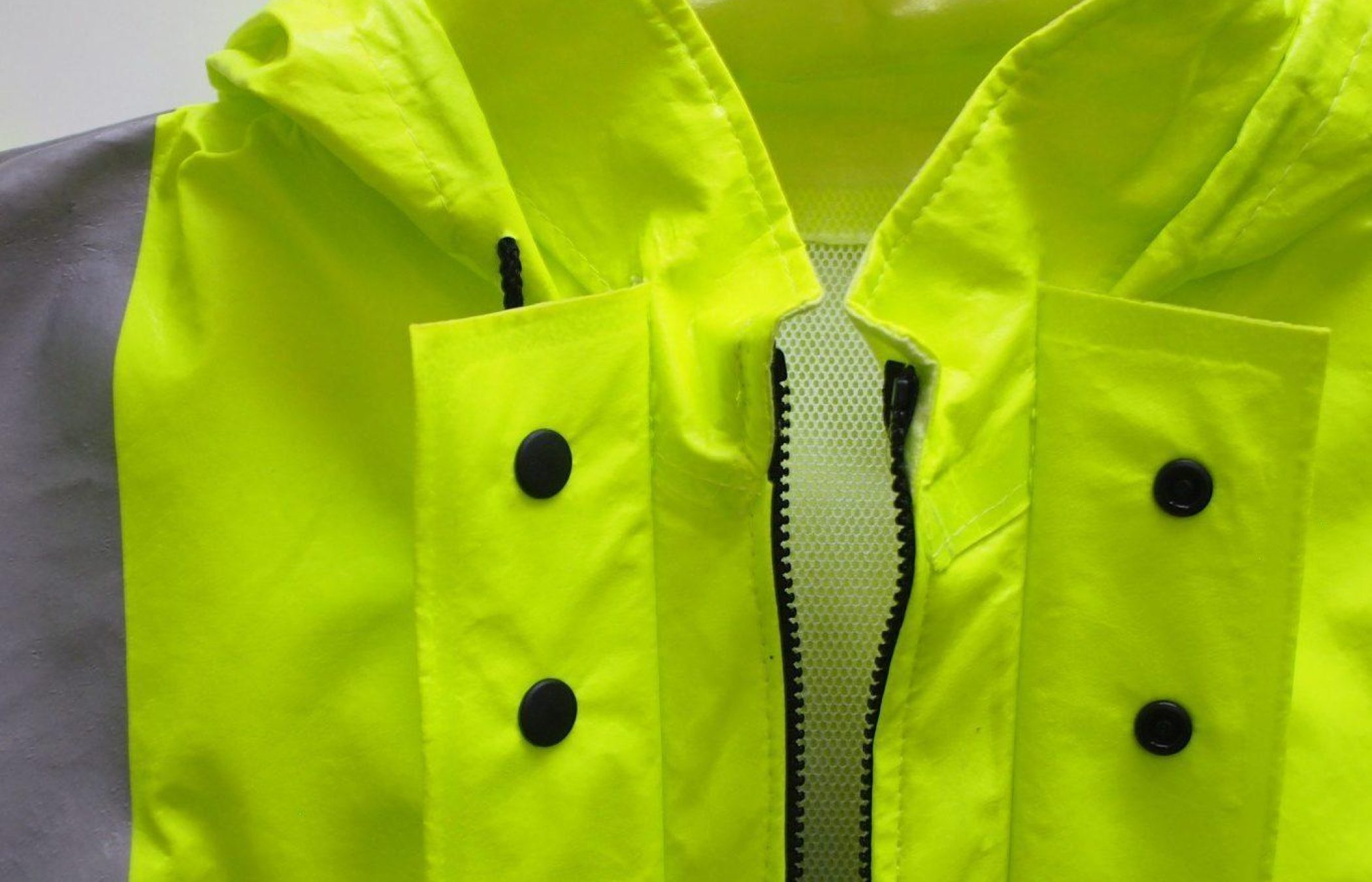

Storm Fly Front w/ Snap Stud Closure

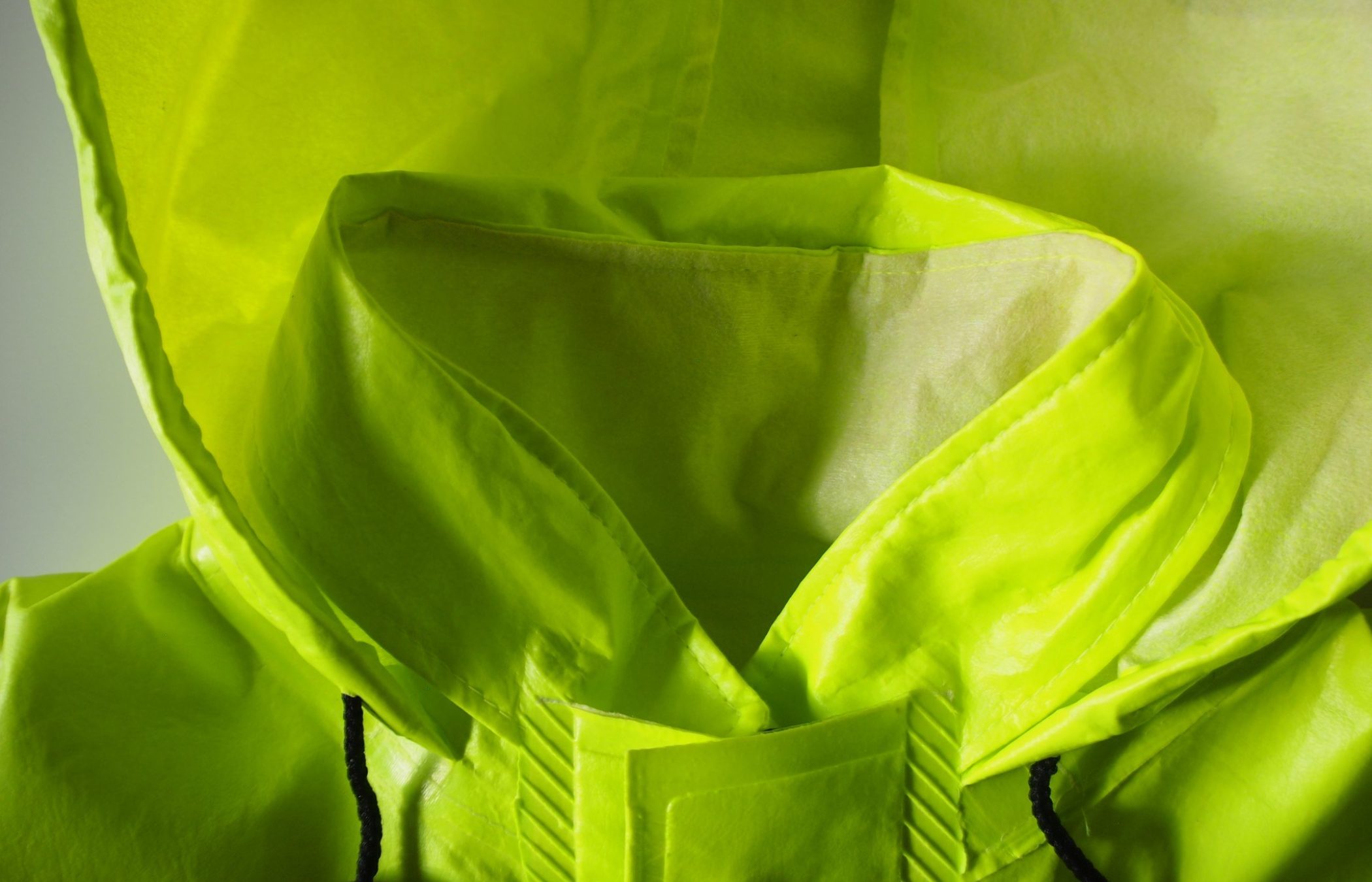

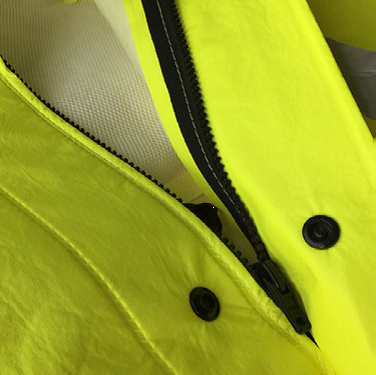

Hood-in-Collar | Non-Conductive Zipper Closure

  • Electric Arc (ASTM F1891, NFPA 70E CAT 1 and 2), High Visibility (ANSI 107, Class 3, Type 2), Waterproof (ASTM D3393), Cold Weather (ASTM F2732), Resistant to most acids, salts and alkalies.
  • Fabric - Nomex® E89, a Nomex® (85%) Kevlar® (15%) Blend.
  • Moisture Barrier - FR Synthetic Leather PU/PVC.
  • Finished Fabric Weight - 271gsm/8.0oz.
  • Seam Construction - Dielectrically welded seams.
  • Colours - Hi Vis: Fluorescent Lime Yellow (FY), Fluorescent Orange (FO). Non-Hi Vis: Yellow (Y), International Orange (BO).
  • Reflective Trim - 3M™ Scotchlite™ 9720 reflective material.
  • ASTM F1891 Electric Arc - FY ATPV 7.2 cal/cm2, HAF 76.3%, Ebt 30.6 cal/cm2 | FO ATPV 7.9 cal/cm2, HAF 78.6%, Ebt 30.6 cal/cm2.
  • ASTM F1891 Electric Arc - Y ATPV 8.1 cal/cm2, HAF 78%, Ebt > 29 cal/cm2 | BO ATPV 6.9 cal/cm2, HAF 74%, Ebt > 31 cal/cm2.
  • NFPA 70E HRC - FY and FO CAT 1.
  • ANSI 107 High Visibility - FY, FO ANSI 107 Class 3, Level 2.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.
  • SKU: 1103JY - 1000 Series Yellow (Y).
  • SKU: 1103JBO - 1000 Series International Orange (BO).
  • SKU: 1503JFY - 1500 Series Hi Vis Fluorescent Yellow (FY).
  • SKU: 1503JFO - 1500 Series Hi Vis Fluorescent Orange (FO).
  • Elastic-half waist at back.
  • 3 Piece hood-in-collar.

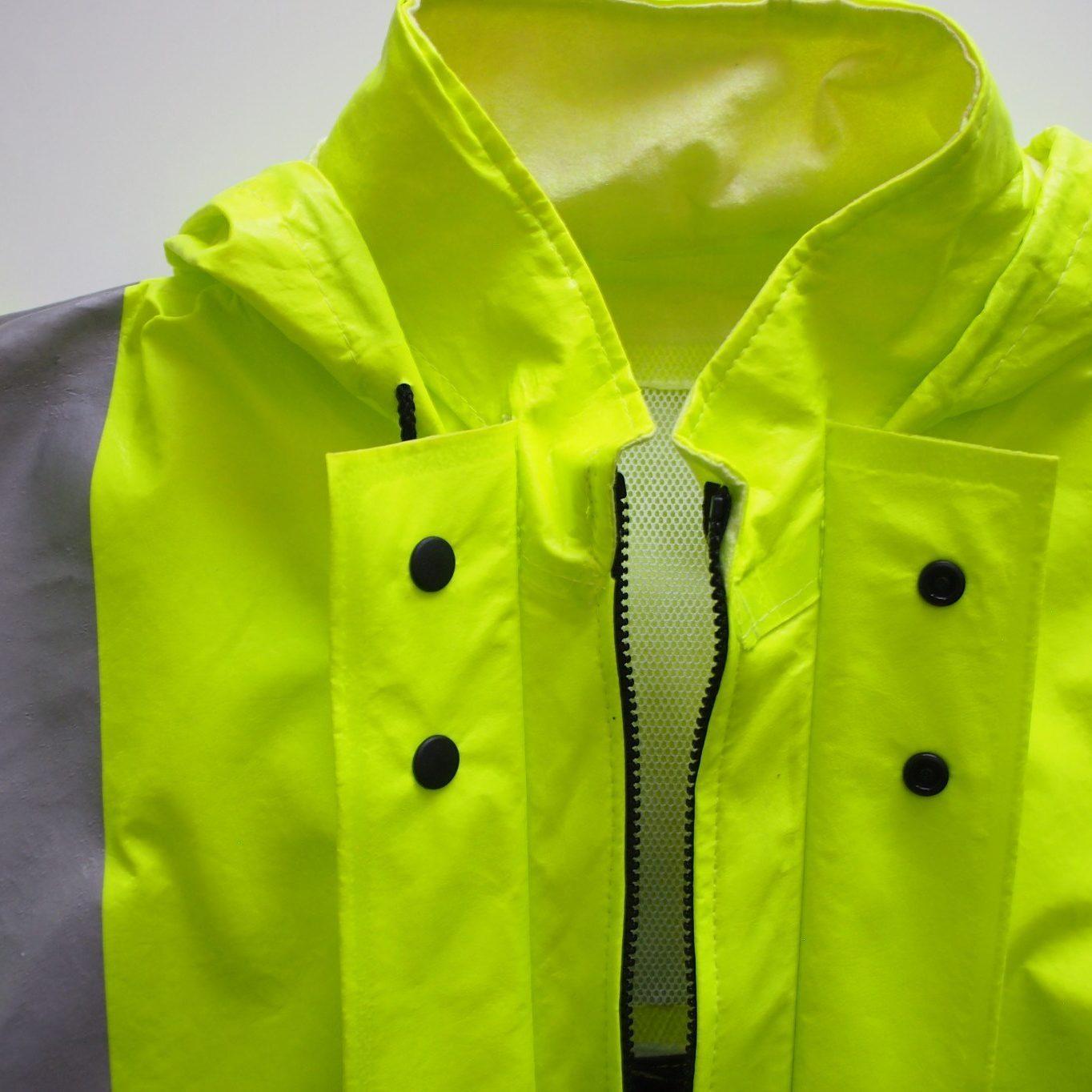

  • Non-conductive zipper front with dual over fly front closure.
  • Nomex® mesh ventilation system in back with integrated fall protection access.
  • Take up snaps.
  • 2 Patch pockets with laps.

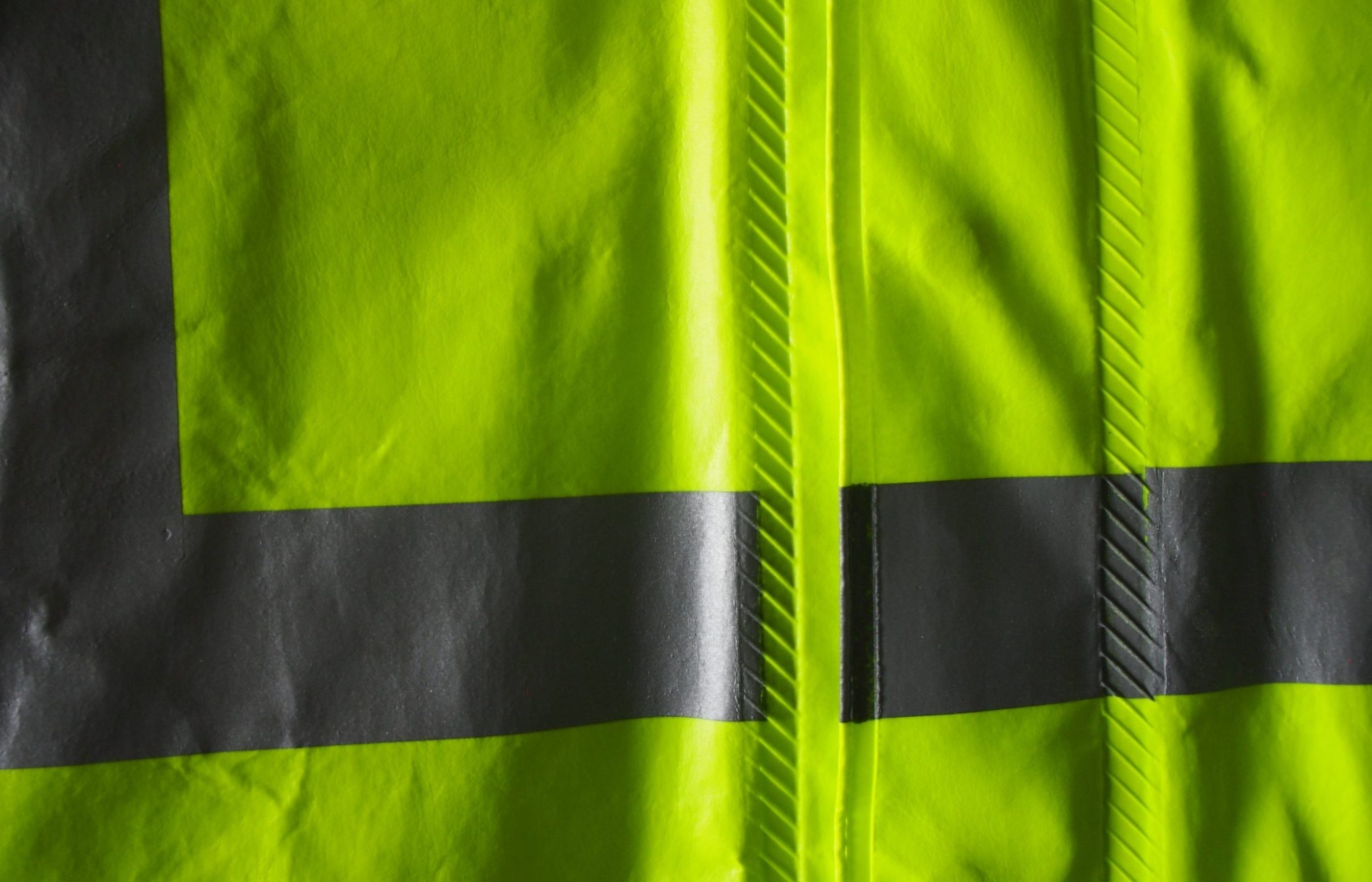

  • 3M™ Scotchlite™ 9720 2" (50mm) reflective trim at biceps, around chest and over shoulder harness.
  • Electric arc and flame protection. High visibility, waterproof and lightweight.
  • Sizes: S to 5XL. Long sizes available - 2" added in the body and sleeve length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
  • SKU: 1103CY - 1000 Series Yellow (Y).
  • SKU: 1103CBO - 1000 Series International Orange (BO).
  • SKU: 1503CFY - 1500 Series Hi Vis Fluorescent Yellow (FY).
  • SKU: 1503CFO - 1500 Series Hi Vis Fluorescent Orange (FO).
  • 3 Piece hood-in-collar.
  • Non-conductive zipper front with dual over fly front closure.
  • Nomex® mesh ventilation system in back with integrated fall protection access.
  • Take up snaps.
  • 2 Patch pockets with laps.
  • 3M™ Scotchlite™ 9720 2" (50mm) reflective trim at biceps, around chest and over shoulder harness.
  • Electric arc and flame protection. High visibility, waterproof and lightweight.
  • Sizes: S to 5XL. Long sizes available - 2" added in the body and sleeve length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
