Rampart FR™ ArcWear™ Jacket

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Static Electricity, High Visibility, Waterproof, Windproof, Breathable

Downloads:

Product PDF
Size Chart
Enquire

Rampart FR™

Designed for long-duration rain events but perfect for every inclement weather condition, the Rampart FR™ system is outstanding protective outerwear. The system combines a breathable moisture management barrier with a moisture management system to engineer comfort from the inside out.

Rampart FR™ excels as a premium FR/AR protective barrier due to its zonal, multi-layer design that combines high-performance arc flash protection, flash fire resistance and superior breathability in a waterproof shell. It is engineered for long-duration, high-risk work, specifically protecting against thermal and static electricity hazards, while offering exceptional comfort. Rampart FR™ combines top-tier, multi-hazard protection with superior breathability, moisture management and durability for long-term, life-cycle use. The Rampart FR™ zonal, multi-layer aspect allows for a tailored approach, using specific materials in different zones to optimise safety and comfort.

APPLICATION: Gas and Electric Distribution and Transmission, Electrical Switching, Electrical Maintenance, Storm Restoration, Meter Servicing, Telecommunications, CATV

ExoGuard



Fabric: ExoGuard

ExoGuard is a high-performance, FR/AR, waterproof and breathable fabric system designed for high-risk, demanding environments where multiple, simultaneous threats can cause severe injuries. It is engineered as a 'premium' multi-hazard solution for long-duration work in foul-weather conditions. ExoGuard's key working principles provide safety through self-extinguishing properties and thermal protection. When exposed to flame or a heat source, the fabric is engineered to cease burning once the ignition source is removed, preventing the flame spreading. Upon contact with heat or flame, ExoGuard forms a protective, carbonaceous char layer that maintains the fabric's integrity, preventing it from breaking open, melting or dripping onto the wearer's skin. The Rampart FR™ zonal, multi-layer system enables fibres such as modacrylics or aramids to be incorporated into the construction so that the flame resistant properties are part of the molecular structure rather than a surface treatment. ExoGuard provides superior thermal insulation and protection from high-energy thermal threats such as arc flash by resisting ignition and limiting heat transmission.

Inner Layer: Polartec® Power Dry®

Polartec® Power Dry® is an all-weather base layer, built to quickly wick moisture away from the skin to outer layers during intense physical activity. A highly breathable and fast-drying fabric, this lightweight bi-component knit material is comfortable next-to-skin, preventing saturation and regulating temperature with efficient moisture management technology. Polartec® Power Dry® is inherently flame resistant, providing arc flash and flash fire resistance that meets NFPA 70E (arc flash) and NFPA 2112 (flash fire) standards.

Moisture Barrier: Composite Breathable Urethane

Composite breathable Urethane moisture barriers are high-performance materials that combine a water resistant, often non-porous (monolithic) polyurethane film supporting fabric layers, designed to stop liquids and water while allowing water vapour to pass through. These systems, frequently used in high-end PPE are known for their combination of durability, flexibility and comfort.

About Rampart FR™ Customisation

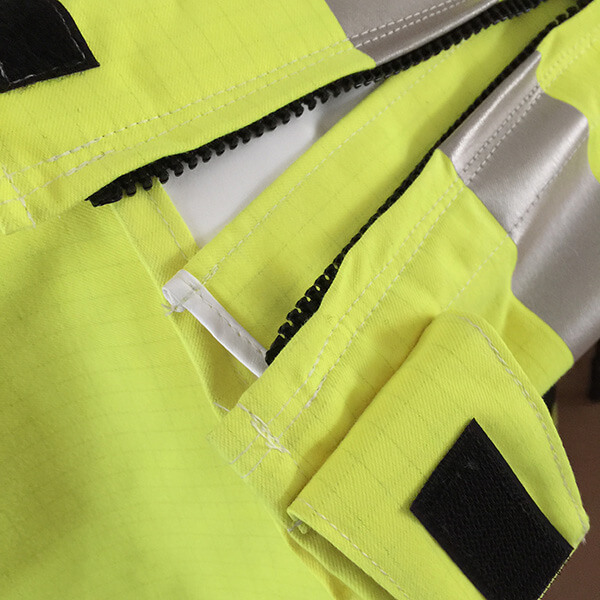

Electrostatic Dissipative Grid Fibre

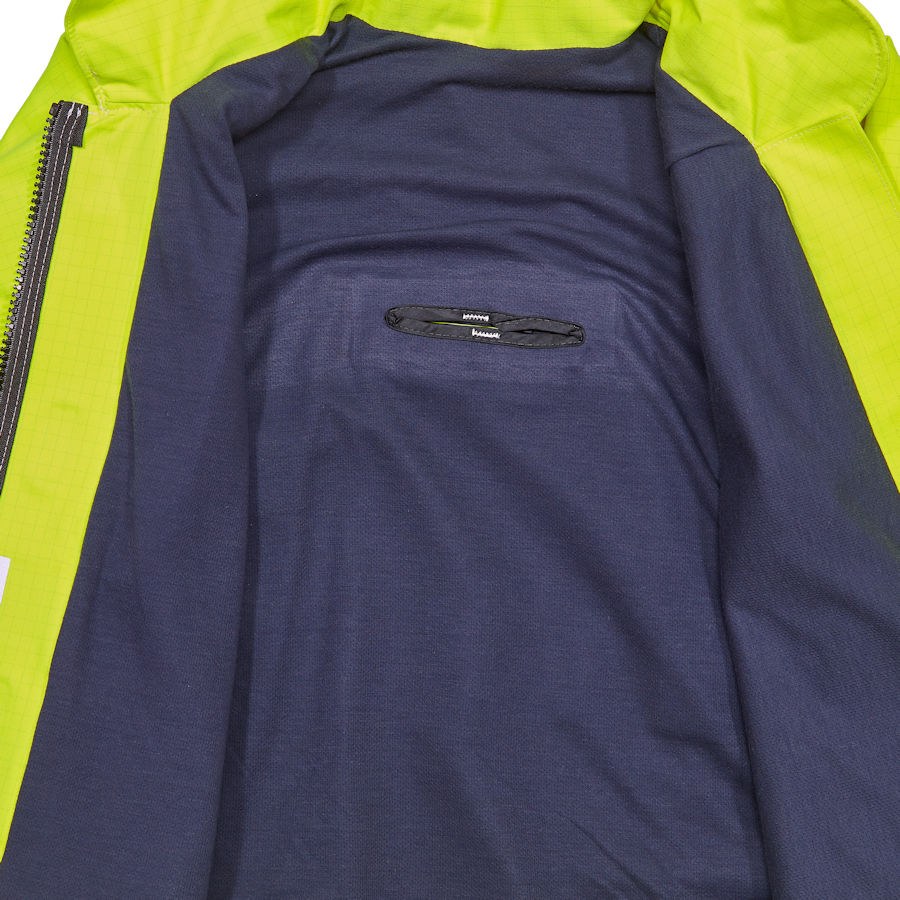

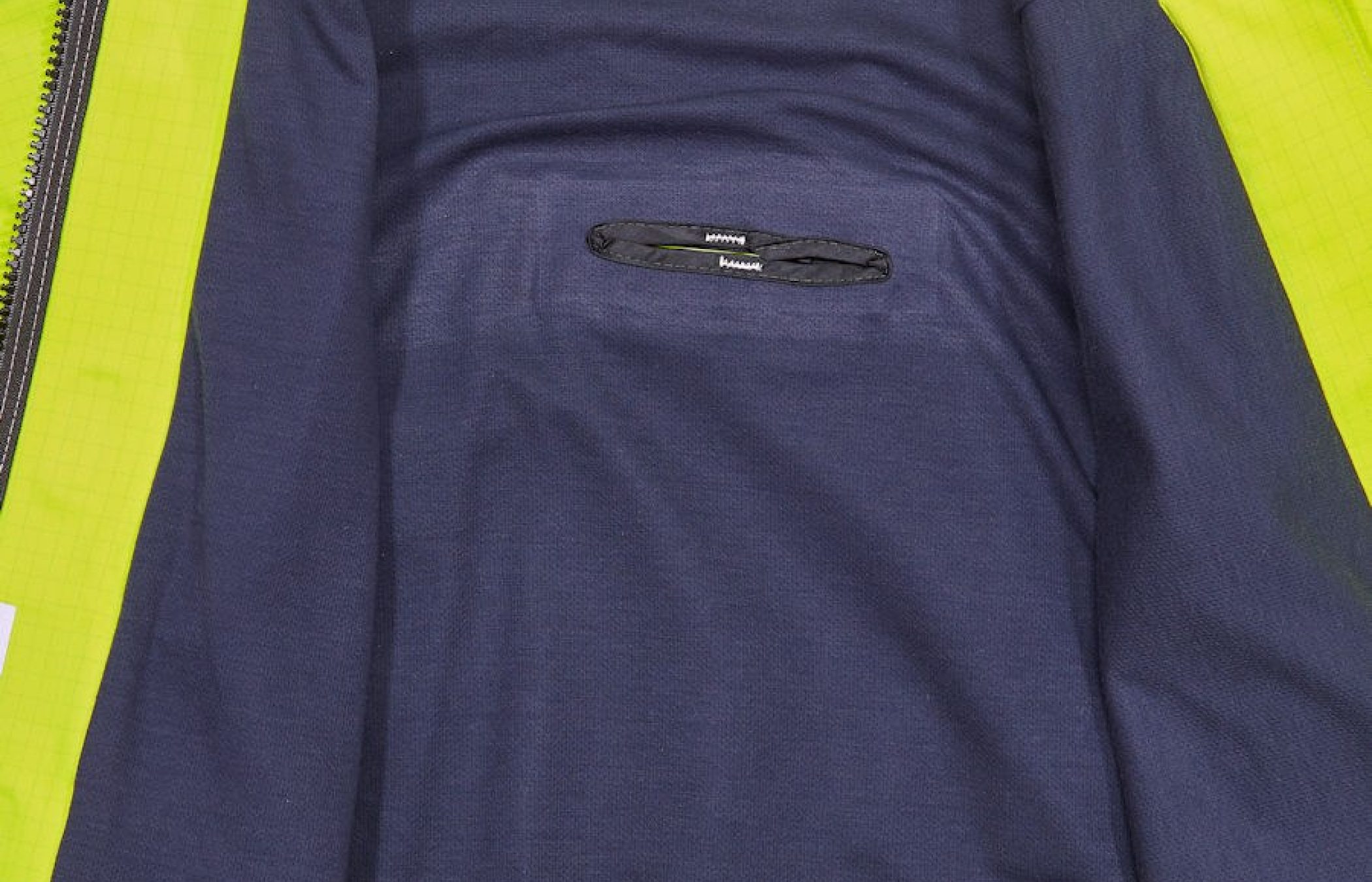

Polartec® Power Dry® Liner | Fall Protection Access

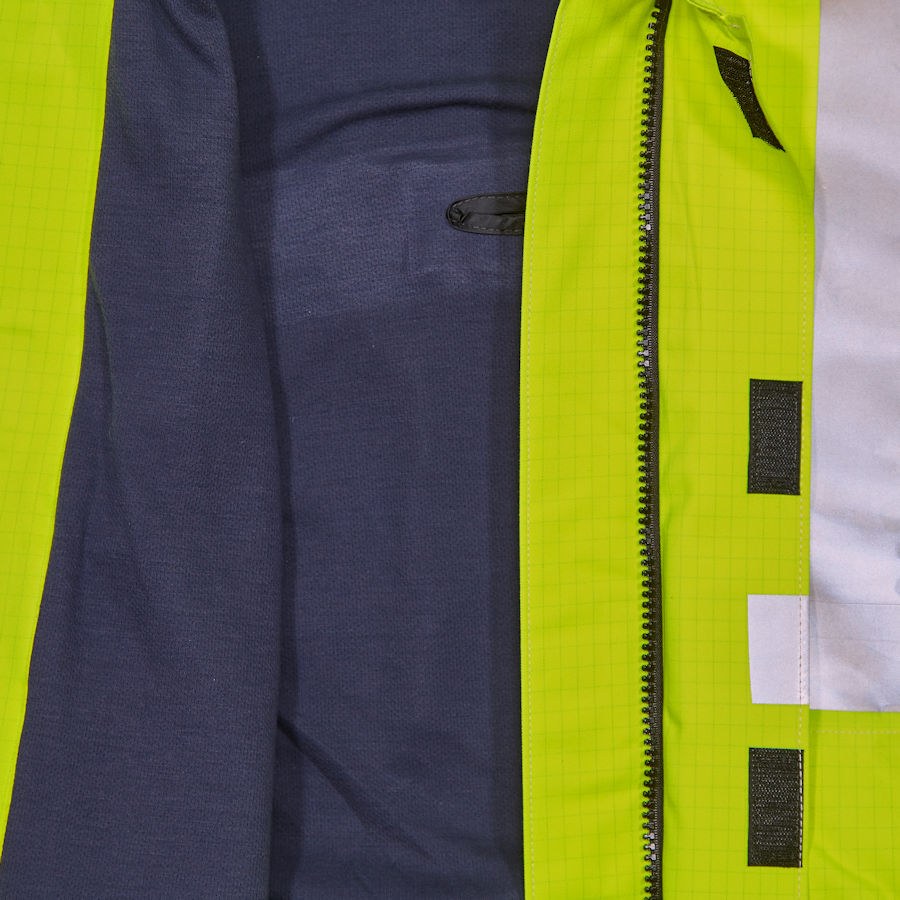

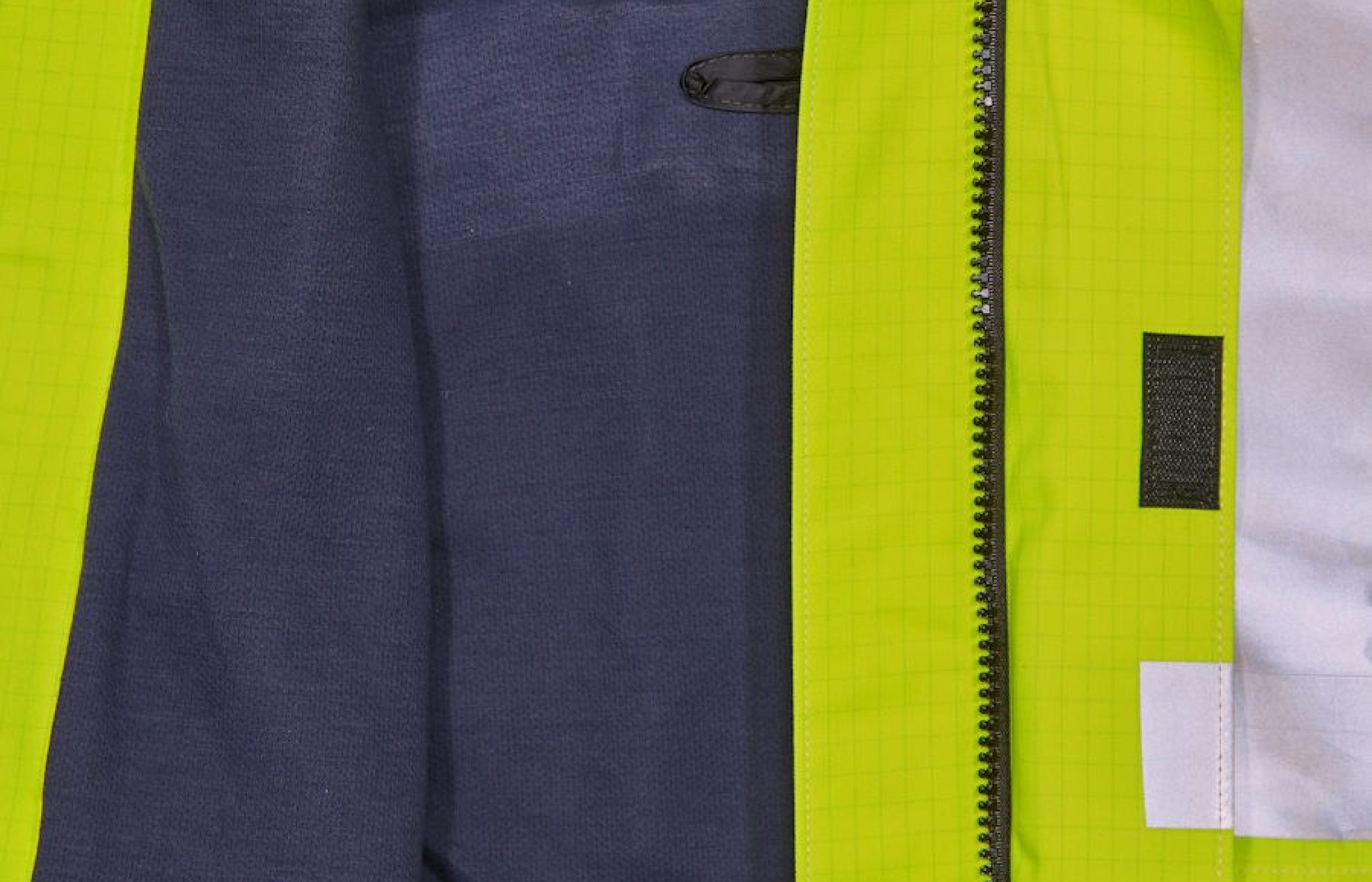

Non-Conductive Zipper Front w/ Stitched Inner Fly

  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM F2733, NFPA 2112), High Visibility (ANSI 107 Class 3, Level 2), Breathable/Comfort (ASTM E96, ASTM F1868), Electrostatic Dissipative Grid/Material.
  • Fabric - ExoGuard 297gsm/8.75oz.
  • Moisture Barrier - Breathable Urethane Composite.
  • Inner Layer - Polartec® Power Dry® 177gsm/5.2oz.
  • Finished Fabric Weight - 473gsm/13.95oz.
  • Colour - Fluorescent Lime Yellow (FY).
  • Reflective Trim - 3M™ Scotchlite™ 9720 reflective material.
  • ASTM F1891 Electric Arc - Single Layer ATPV 13 cal/cm2, With Liner ATPV 22 cal/cm2.
  • NFPA 70E HRC - NFPA 70E CAT 2.
  • ASTM F2733 Flash Fire - Total Body Burn Injury 11.7%, 2nd Degree 4.9%, 3rd Degree 6.8%.
  • ANSI 107 High Visibility - ANSI 107 Class 3, Level 2.
  • ASTM E96/F1868 - Breathable/Comfort.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.
  • SKU: 8503JFY - 8000 Series Fluorescent Lime Yellow (FY).
  • Set with sleeve three-needle stitched and taped seams.
  • Roll down 3 piece hood in collar (Velcro® roll down) with finished hem on hood.
  • Fall protection access in back with welt.
  • Non-conductive zipper front with Velcro® closure fronts and stitched inner fly.
  • Two front inside pockets with facings.
  • 3M™ Scotchlite™ 9720 2" (50mm) reflective trim around chest, biceps and over-shoulder harness.
  • Elastic waist at back with regular hemmed fronts.
  • Sleeve take ups with Velcro tabs®.
  • Anti-wicking at bottom and sleeves attached to permanent liner.
  • Electric arc, flash fire and static electricity protection. High visibility, waterproof, windproof and breathable.
  • Sizes: S to 5XL. Long sizes available - 2" added in the sleeve and body length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
