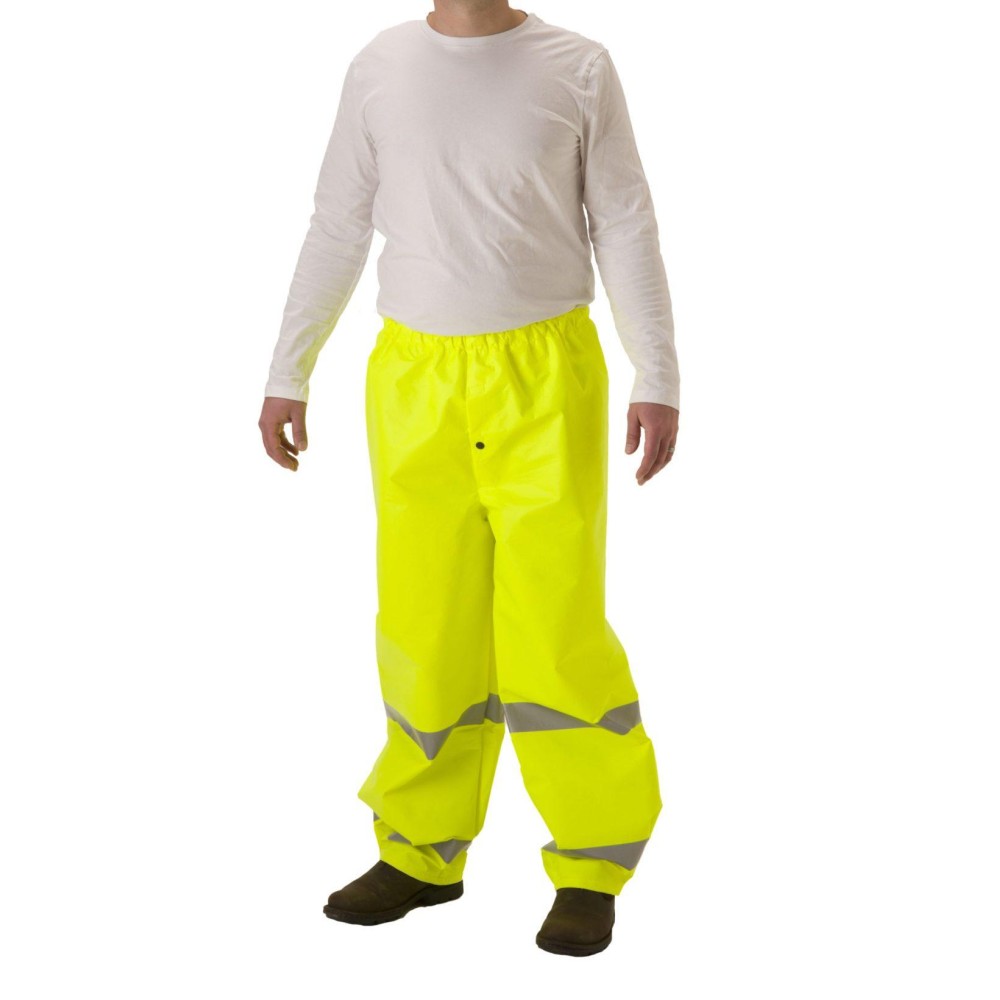

ArcLite Air™ FR Pant / Trouser

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, High Visibility, Waterproof, Windproof

Downloads:

Product PDF
Size Chart
Enquire

NASCO ArcLite Air™

ArcLite Air™ has been designed to be the lightest weight multi-hazard protective outerwear available. With electric arc and flash fire protection capability, ArcLite Air™ is ideal for multi-hazard environments. It offers multi-hazard protection in a comfortable, lightweight, functional design for protection against the harshest workplace hazards. ArcLite Air™ also offers ANSI 107 high visibility compliance.

ArcLite Air™ uses a composite film of CCT™ Technology to make it 40% lighter than the lightest arc rated product on the market. CCT™ Technology eliminates the use of PVC, which stores heat in the summer and causes the wearer to be hot and uncomfortable.

APPLICATION: Gas and Electric Utilities, Electrical Maintenance, Electrical Switching, Storm Restoration,  Telecommunications and CATV, Meter Servicing.

About ArcLite Air™
  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM F2733, NFPA 2112), High Visibility (ANSI 107).
  • Fabric - DuPont™ Nomex®, Kevlar®.
  • Moisture Barrier - Composite film with CCT™ Technology.
  • Finished Fabric Weight - 170gsm/5.0oz.
  • Colours - Fluorescent Yellow (FY), Fluorescent Orange (FO).
  • Reflective Trim - 3M™ Scotchlite™ 8712 reflective trim.
  • ASTM F1891 Electric Arc - Fluorescent Yellow ATPV 9.6 cal/cm2, Fluorescent Orange ATPV 8.3 cal/cm2.
  • NFPA 70E HRC - NFPA 70E CAT 2.
  • ASTM F2733 Flash Fire - Total body burn injury 23.8%.
  • ANSI 107 High Visibility - Class 3, Type R.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.
  • SKU: 1701PFY - 1700 Series Fluorescent Yellow (FY).
  • SKU: 1701PFO - 1700 Series Fluorescent Orange (FO).
  • Fly front with snap closure.
  • 2 Position leg cuff adjusters.

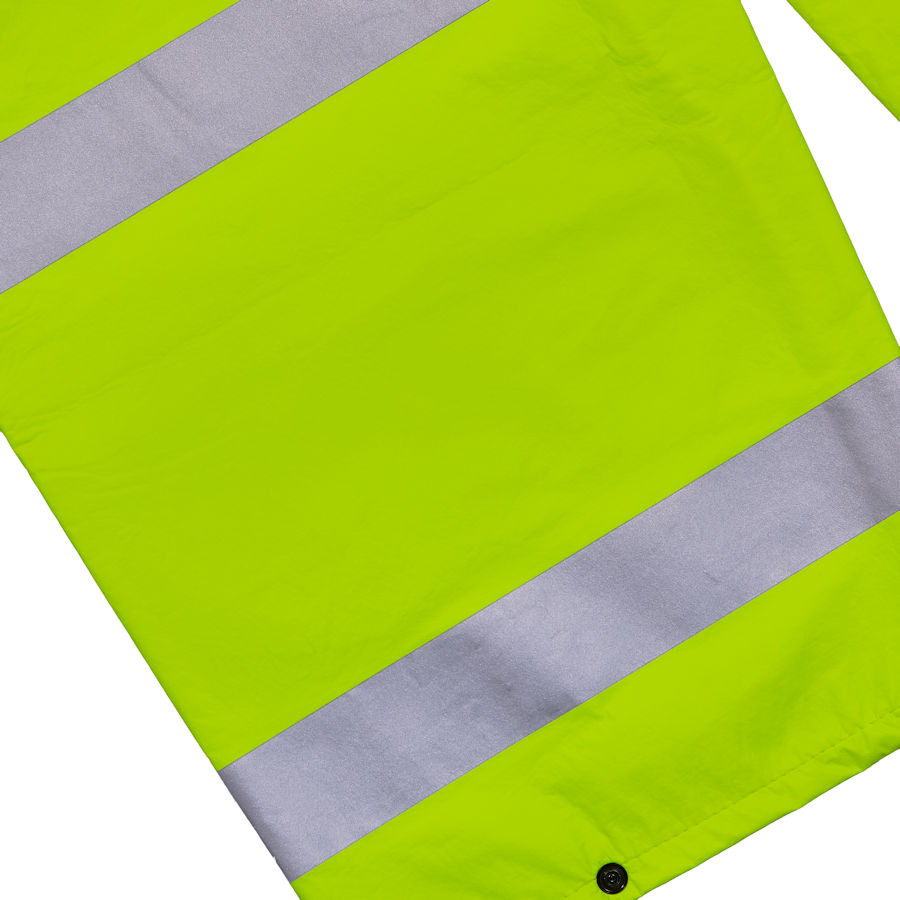

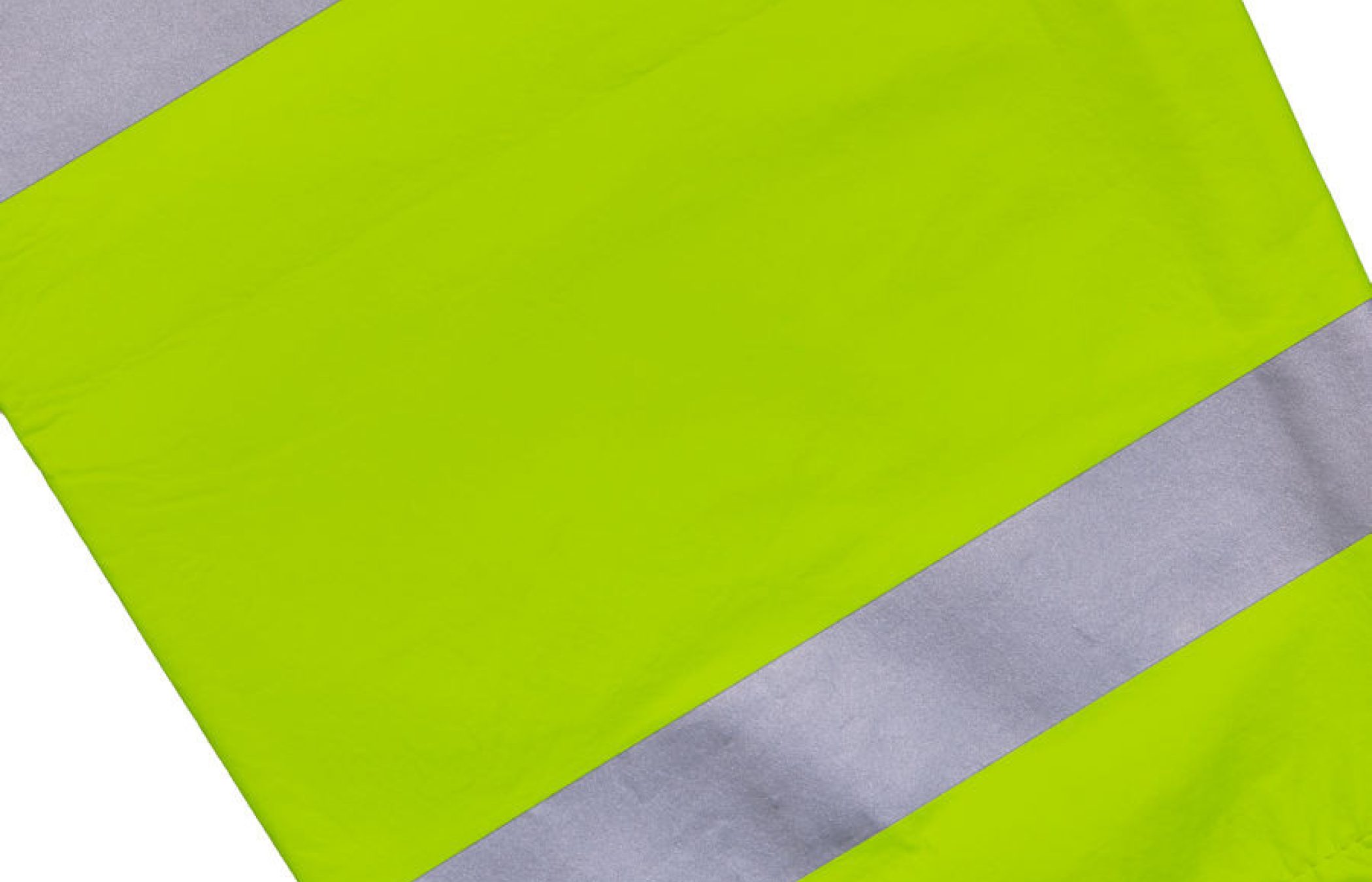

  • 3M™ Scotchlite™ 8712 2" (50mm) reflective trim around calves and knees.
  • Electric arc and flash fire protection. High visibility, waterproof and windproof.
  • Sizes: S to 5XL. Long sizes available - 2" added in the body and inseam length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
  • SKU: 1701TFY - 1700 Series Fluorescent Yellow (FY).
  • SKU: 1701TFO - 1700 Series Fluorescent Orange (FO).
  • Fly front with snap closure.
  • 2 Position leg cuff adjusters.

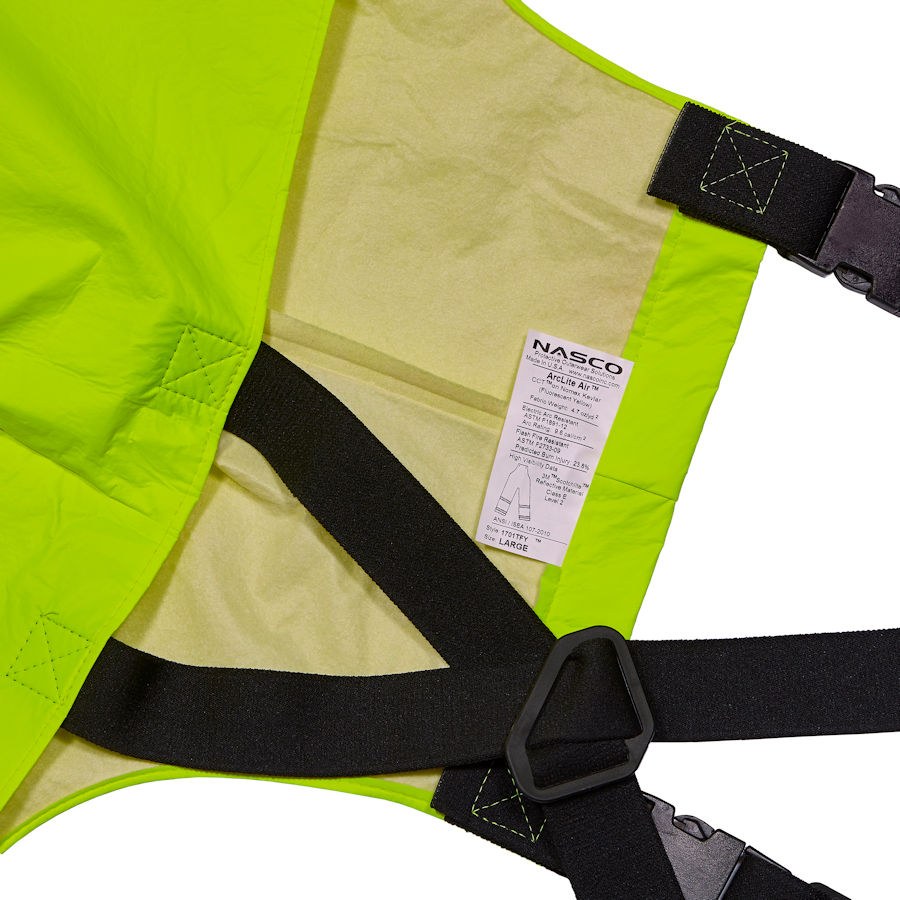

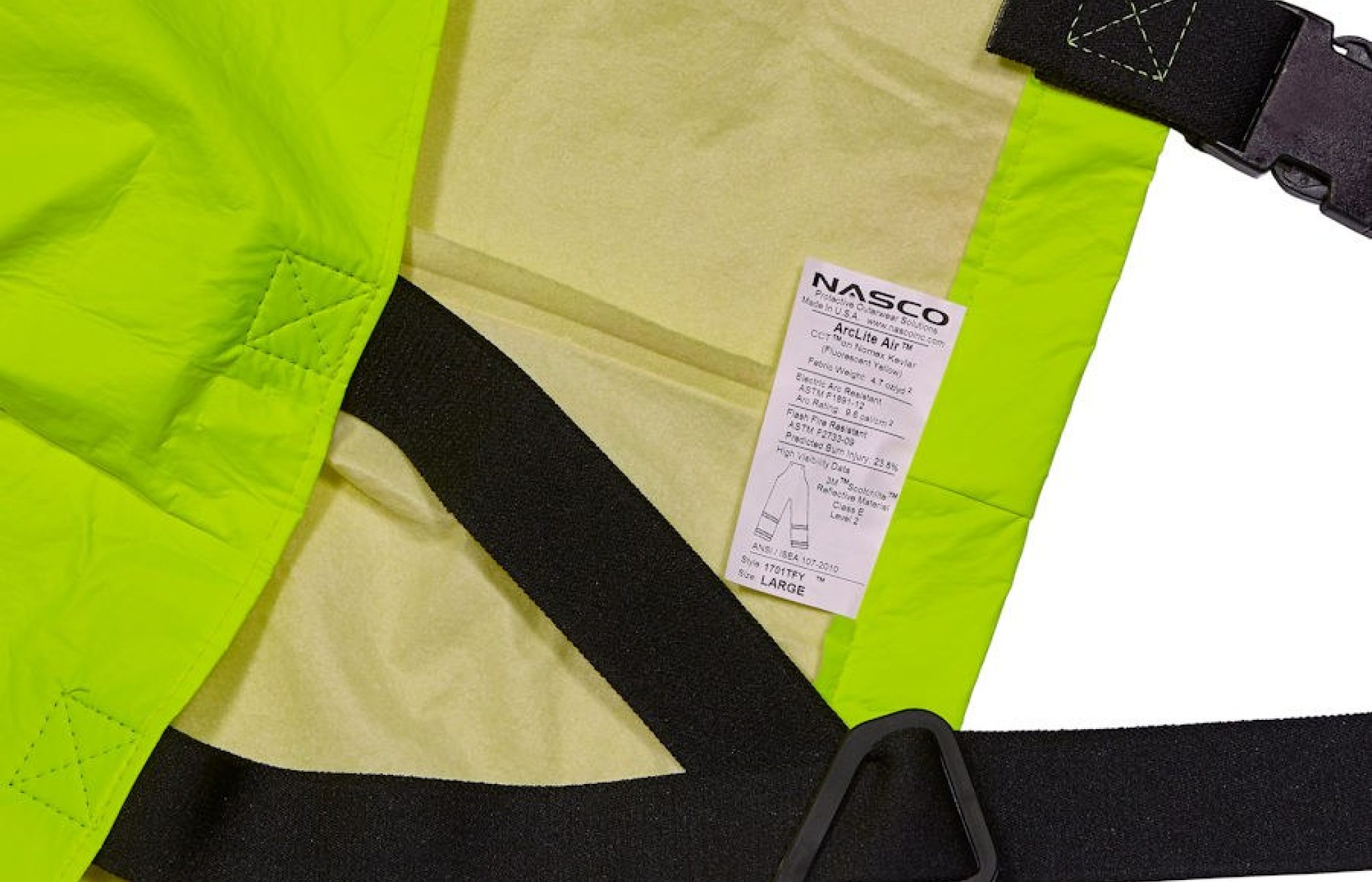

  • Heavy duty FR black suspenders with quick release buckles.
  • 3M™ Scotchlite™ 8712 2" (50mm) reflective trim around calves and knees.
  • Electric arc and flash fire protection. High visibility, waterproof and windproof.
  • Sizes: S to 5XL. Long sizes available - 2" added in the body and inseam length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
