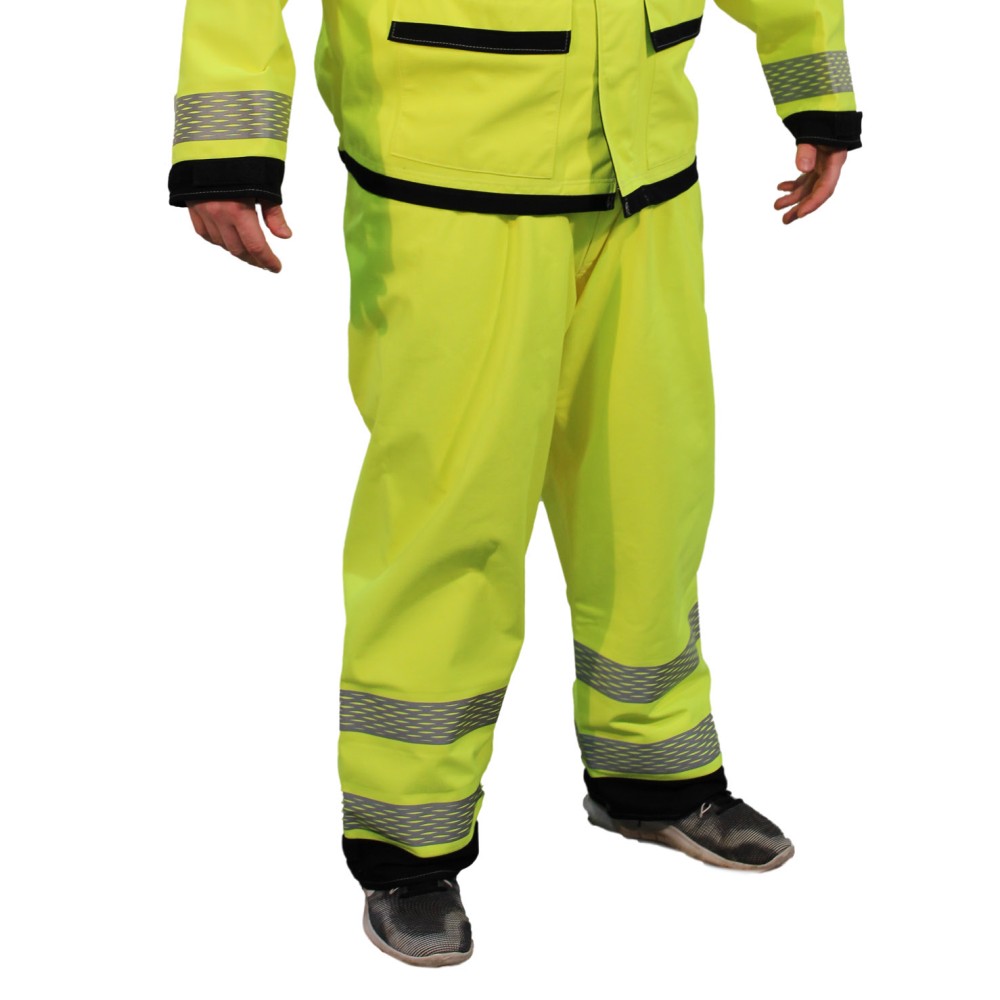

Omega FR™ ArcWear™ Trouser

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Chemical Splash, Steam And Hot Liquids, High Visibility, Waterproof, Windproof, Breathable

Downloads:

Product PDF (ArcWear)
Chemical Data
Size Chart
Enquire

Omega FR™

Omega FR™ is the first outerwear system that combines high visibility worker conspicuity with protection from thermal hazards associated with electric arc and hydrocarbon flash fire. Omega FR™ is designed for today's rugged multi-hazard work environments. The Omega FR™ outer shell system is Omega FR™ Hi Vis and Nomex® IIIA on a PTFE moisture barrier, while an inner layer of Nomex® Jersey Knit provides the wearer with increased thermal protection.

Omega FR™ excels as a protective barrier because it combines waterproof, breathable and lightweight materials to provide, in a single garment, multi-hazard protection: arc flash (ASTM F1891), flash fire (ASTM F2733), chemical splash (ASTM F903) and breathability/comfort (ASTM E96, ASTM F1868). Omega FR™ offers high visibility, comfort and durability while ensuring the fabric self-extinguishes, preventing ignition in harsh, high-risk industrial environments.

APPLICATION: Gas and Electric Utility Distribution and Transmission, Electrical Switching, Electrical Maintenance, Telecommunications, CATV, Storm Restoration, Meter Servicing

Outer Shell: Omega FR™ / Nomex® IIIA

Omega FR™ is a high-performance, waterproof and breathable protective outerwear fabric specifically engineered to protect against multiple hazards simultaneously, including arc flash, flash fire, chemical splash and steam/hot liquid hazards. It is primarily used in rugged work environments and usually incorporates Nomex® fibre technology to ensure the fabric is flame resistant and self-extinguishing. The fabric is designed to not support combustion in air and when exposed to flames it self-extinguishes to minimise burn injuries and limit the flame spread. The blend acts as a barrier against thermal hazards, reducing the rate of heat transfer from conduction, convention and radiation to the wearer's skin, thereby delaying the onset of burns.

Inner Layer: Nomex® Jersey Knit

Nomex® Jersey Knit is a specialised, inherently flame resistant fabric that combines the protective properties of Nomex® aramid fibres with the comfort, flexibility and stretch of a knitted construction. It works through a combination of inherent meta-aramid chemistry (for heat resistance) and a knitted structure (for comfort, breathability and stretch). Nomex® knitted fabric provides permanent flame resistance that does not melt or drip, creating a protective char barrier and dissipating heat while offering flexibility for demanding tasks.

Moisture Barrier: PTFE

PTFE (Polytetrafluoroethylene) provides a high-performance, hydrophobic and extremely chemically inert shield that prevents water intrusion while allowing breathability, making it an ideal protective coating. It has a high melting point and low friction. Fabrics are typically engineered by coating or blending PTFE with other high-performance fibres, such as Nomex® and Kevlar® aramids to create protective workwear for demanding industrial environments, including electrical arc flash hazards.

About Omega FR™



Omega FR™ is designed to offer comprehensive protection against multiple, simultaneous threats. It combines breathability with FR/AR properties to enhance comfort and safety in high-risk environments.



Navy Accents Around Waist and Ankles

Heavy Duty Black FR Suspenders w/ Quick Release Buckles

  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM F2733, NFPA 2112), Chemical Splash (ASTM F903), High Visibility (ANSI 107, Class 3, Type 2), Breathable/Comfort (ASTM E96, ASTM F1868).
  • Fabric - Outer Shell: Omega FR™/Nomex® IIIA, Inside: Nomex® Jersey Knit.
  • Moisture Barrier - PTFE.
  • Finished Fabric Weight - 305gsm/9.0oz.
  • Seam Construction - 2 needle stitched and sealed with Nomex® tape.
  • Colours - Navy and Fluorescent Yellow (NFY), Navy and Fluorescent Orange (NFO).
  • Reflective Trim - 3M™ Scotchlite™ 9720 reflective material.
  • ASTM F1891 Electric Arc - FY ATPV 10.7 cal/cm2, HAF 81%, Ebt 35 cal/cm2 | FO ATPV 11.8 cal/cm2, HAF 83%, Ebt 36 cal/cm2 | Navy ATPV 9.7 cal/cm2, HAF 76.8%, Ebt > 27 cal/cm2.
  • NFPA 70E HRC - NFPA 70E CAT 2.
  • ASTM F2733 Flash Fire - 12.3% Body Burn 3 second test exposure with 2 cal/cm2 / second heat flux.
  • ANSI 107 High Visibility - FY and FO are ANSI 107 Class 3, Level 2. Only FO meets CSA Z96.
  • ASTM E96 - Breathable data 8865 g/m2/24 hrs.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.

SKU: 5501TNFY113

  • Bib Style Trouser, Fluorescent Yellow (FY).
  • Navy colour accents.
  • Fly front.
  • Take-up tabs.
  • 3M™ Scotchlite™ reflective trim CSA Z96 compliant.
  • Trouser match for Fluorescent Yellow Omega FR™ ArcWear™ Jackets 5501JNFY113 and 5501JNFY114.

SKU: 5501TNFO113

  • Bib Style Trouser, Fluorescent Orange (FO).
  • Navy colour accents.
  • Fly front.
  • Take-up tabs.
  • 3M™ Scotchlite™ reflective trim CSA Z96 compliant.
  • Trouser match for Fluorescent Orange Omega FR® ArcWear™ Jackets 5501JNFO115 and 5501JNFO116.

5501TNFY113 / 5501TNFO113

  • Electric arc, flash fire, chemical splash and steam and hot liquid protection.
  • High visibility, stain and soil resistant, waterproof, windproof, lightweight and breathable.
  • Sizes: S to 5XL. Long sizes available - 2" added in the body and inseam length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
