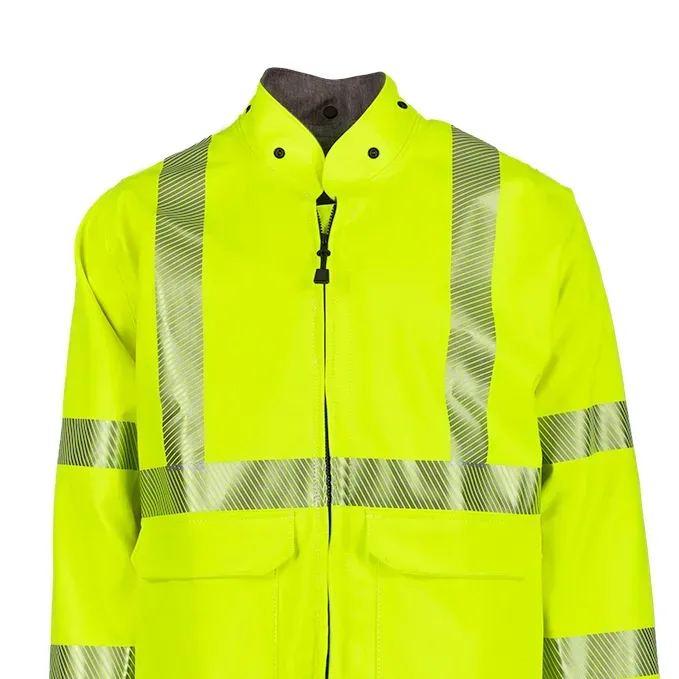

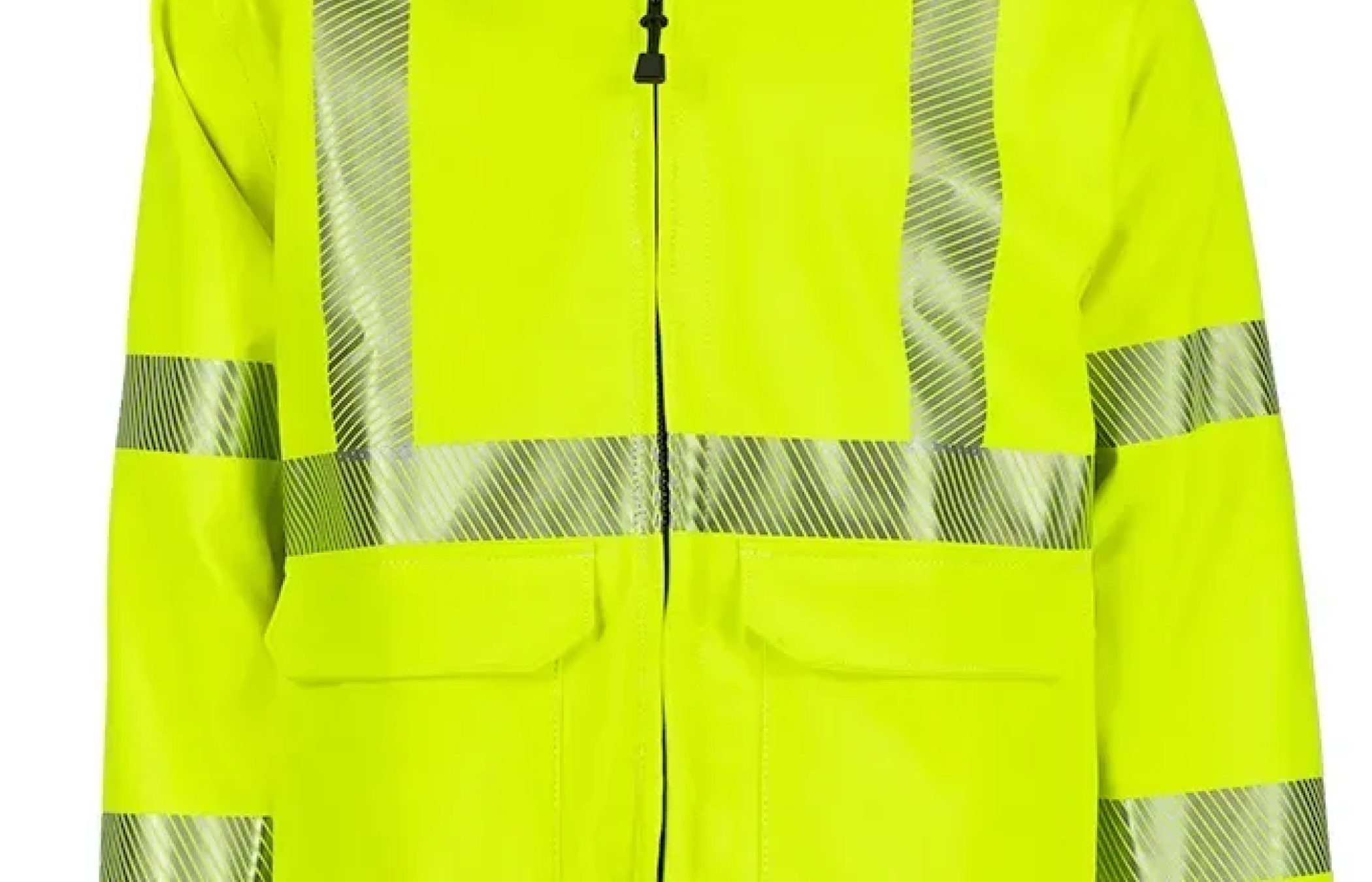

ArcJoule™ ArcWear™ Jacket / Coat

Premium Multi-Hazard Outerwear Protection: Electric Arc, Flash Fire, Chemical Splash, High Visibility, Waterproof, Windproof, Breathable

Downloads:

Product PDF
Size Chart
Enquire

ArcJoule™

ArcJoule™ excels as an FR/AR protective barrier by combining industrial-grade, multi-hazard protection with high-performance, breathable comfort. It is designed to act as a last line of defence for utility, oil and gas and industrial workers, providing a waterproof and windproof barrier against arc flash, hydrocarbon flash fire and chemical splash, while featuring a durable, lightweight design suitable for all-day wear. It is specifically designed for long-term use in harsh environments, featuring advanced materials and superior American-made construction.

APPLICATION: Gas and Electric Utility Transmission and Distribution, Electrical Switching, Electrical Maintenance, Storm Restoration, Meter Servicing, Telecommunications, CATV

Fabric: 50% Nomex® | 50% FR Rayon

A Nomex™/FR Rayon blend is typically used in premium FR/AR protective workwear to balance safety with all-day comfort, providing a superior alternative to heavier, less comfortable materials. While Nomex® is well known for its excellent FR/AR properties, flame resistant Rayon is a semi-synthetic cellulosic fibre designed to provide permanent FR protection while maintaining the soft, breathable comfort of conventional Rayon. When blended, these fibres interact synergistically to form a stable char layer upon exposure to heat. The resulting char barrier acts as a protective shield, limiting oxygen flow to the flame, preventing combustion in the air and reducing heat transmission to the skin.

Face Cloth: Modacrylic | Cotton | Antistatic

A blend of modacrylic, cotton and antistatic fibres combine three distinct properties - inherent flame resistance, natural comfort and electrical conductivity. The blend creates a high-performance fabric that balances safety, comfort and durability. The combination is widely used in PPE for dangerous environments, providing inherent FR/AR properties, moisture management, preventative antistatic properties and high durability. This synergistic combination ensures safety against flame and electrostatic discharge (ESD) while maintaining breathability and comfort for the wearer.

Moisture Barrier: PTFE

PTFE (Polytetrafluoroethylene) provides a high-performance, hydrophobic and extremely chemically inert shield that prevents water intrusion while allowing breathability, making it an ideal protective coating. It has a high melting point and low friction. Fabrics are typically engineered by coating or blending PTFE with other high-performance fibres, such as Nomex® and Kevlar® aramids to create protective workwear for demanding industrial environments, including electrical arc flash hazards.

About ArcJoule™ Customisation

  • PPE CAT 2

  • ATPV 11 CAL

  • Ebt 33 CAL

  • HAF 76%

  • TPBB 2nd Degree 0.0%

  • TPBB 3rd Degree 6.56%

Stud Collar | Non-Conductive Zipper Front Opening

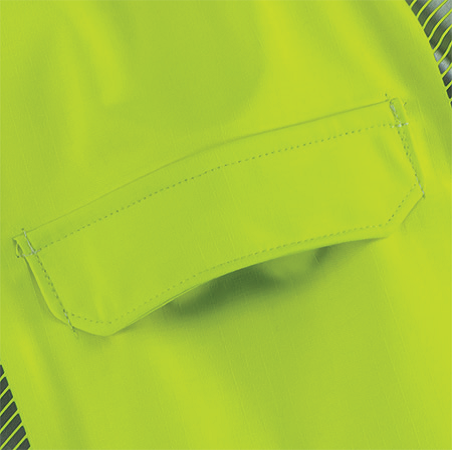

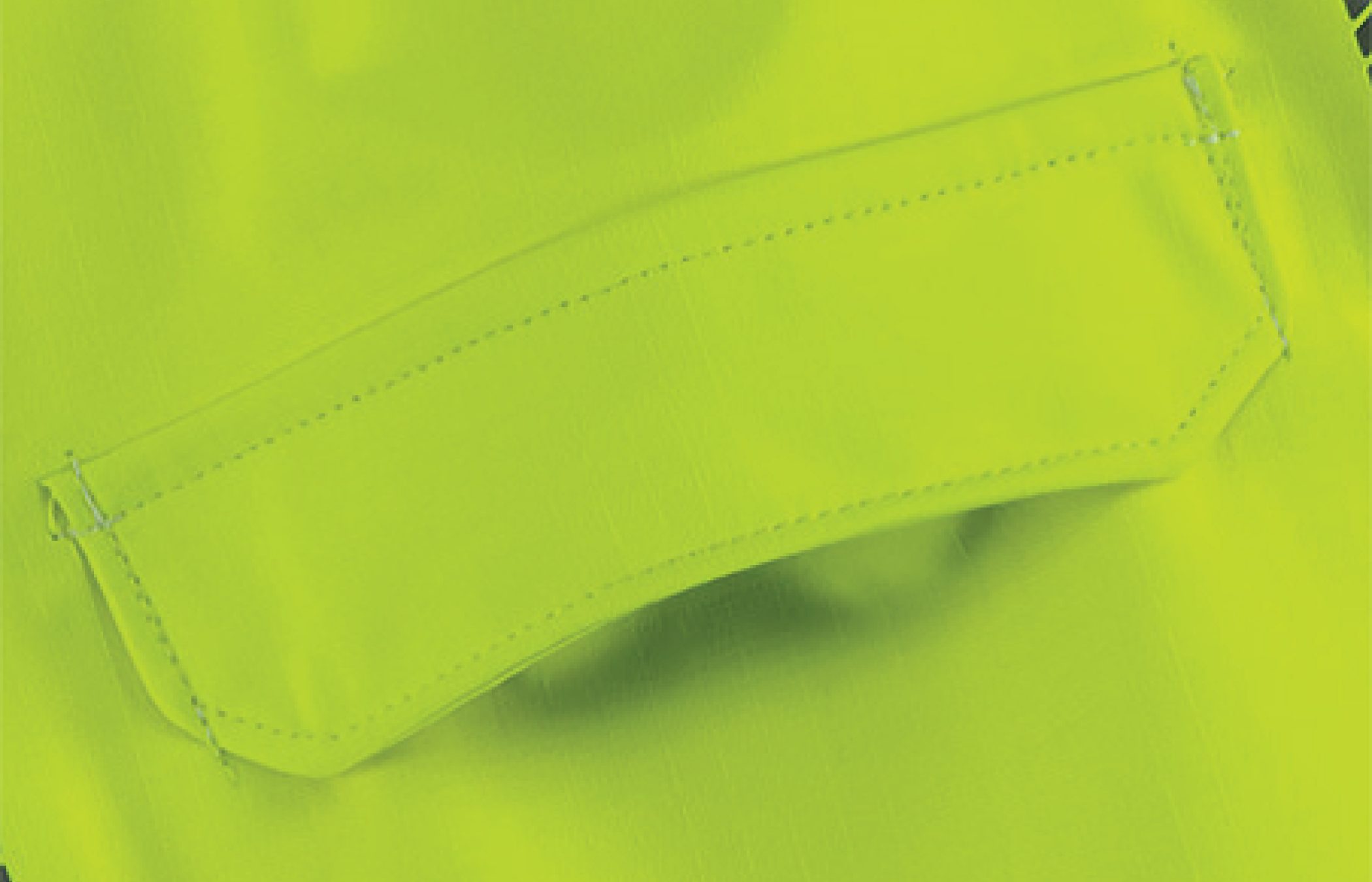

Hidden Fall Protection Access

  • Electric Arc (ASTM F1891, NFPA 70E CAT 2), Flash Fire (ASTM F2733), High Visibility (ANSI 107, Class 3, Level 2), Breathable (ASTM E96), Waterproof (ASTM D3393), Cold Weather (ASTM F2732).
  • Face Cloth - 60% Modacrylic, 38% Cotton, 2% Antistatic.
  • Moisture Barrier - PTFE.
  • Fabric - 50% Nomex® / 50% FR Rayon.
  • Finished Fabric Weight - 356gsm/10.5oz.
  • Seam Construction - 2 Needle stitched and sealed with Nomex® tape.
  • Colour - Hi Vis: Fluorescent Lime Yellow (FY).
  • Reflective Trim - 3M™ Scotchlite™ 5535 reflective trim.
  • ASTM F1891 Electric Arc - FY ATPV 11.0 cal/cm2, HAF 76.0%, Ebt 33.0 cal/cm2.
  • ASTM F2733 Flash Fire - 2nd Degree 0.0% burn injury, 3rd Degree 6.56% burn injury.
  • NFPA 70E HRC - FY PPE CAT 2.
  • ANSI 107 High Visibility - Fluorescent Lime Yellow 7000 Series are ANSI 107-2015 Class 3 Level 2 compliant.
  • ASTM E96 Breathable Data - 4452 g/m2/24hrs.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.
  • SKU: 7501JFY102 - 7000 Series Fluorescent Lime Yellow (FY).
  • Packed with Detachable Hood H7500FY. Collar with hood snaps.
  • Elastic waist at back with regular hemmed fronts.
  • Set with sleeve two-needle stitched and taped seams.
  • Hidden fall protection access in back.
  • Non-conductive zipper front with Velcro® closure fronts and stitched inner fly.
  • Two front patch pockets.
  • Velcro™ tab sleeve adjustment.
  • 3M™ Scotchlite™ 5535 FR Comfort 2" (50mm) reflective trim around chest, over-shoulder harness and around cuffs and biceps.
  • Electric arc flash, flash fire and chemical splash protection. High visibility, waterproof, windproof and breathable.
  • Sizes: S to 5XL. Long sizes available - 2" added in the sleeve and body length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
  • SKU: 7501CFY102 - 7000 Series Fluorescent Lime Yellow (FY).
  • Packed with Detachable Hood H7500FY. Collar with hood snaps.
  • Set with sleeve two-needle stitched and taped seams.
  • Hidden fall protection access in back.
  • Non-conductive zipper front with Velcro® closure fronts and stitched inner fly.
  • Two front patch pockets.
  • Velcro™ tab sleeve adjustment.
  • 3M™ Scotchlite™ 5535 FR Comfort 2" (50mm) reflective trim around chest, over-shoulder harness and around biceps and sleeve cuffs.
  • Electric arc flash, flash fire and chemical splash protection. High visibility, waterproof, windproof and breathable.
  • Sizes: S to 5XL. Long sizes available - 2" added in the sleeve and body length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
