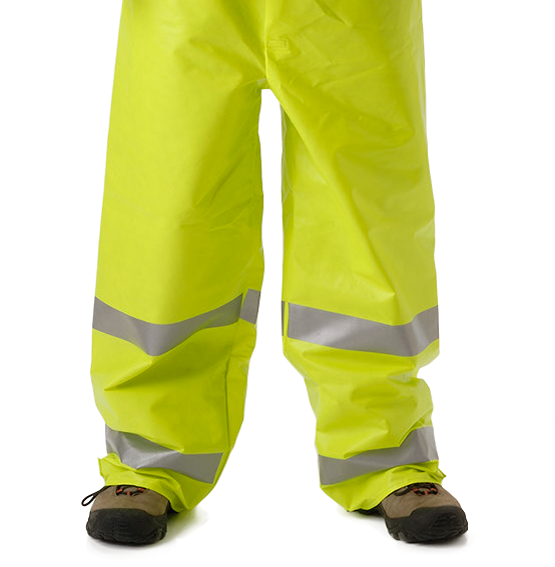

ArcLite™ FR Pant / Trouser

Premium Multi-Hazard Outerwear Protection: Electric Arc And Flame, High Visibility, Waterproof

Downloads:

Product PDF
Size Chart
Enquire

NASCO ArcLite™

For 20 years ArcLite™ has been the standard for electric arc protective outerwear in the US. Designed specifically for utility workers who may be exposed to electric arcs, ArcLite™ is lighter, softer and more comfortable than other comparable products. With a feature packed design, ArcLite™ is sure to meet the demanding needs of workers exposed to electric arc and flame.

APPLICATION: Electric Utilities, Electrical Switching, Electrical Maintenance, Storm Restoration, Meter Servicing, Telecommunications, CATV.

About ArcLite™
  • Electric Arc (ASTM F1891, NFPA 70E CAT 1 and 2), High Visibility (ANSI 107, Class 3, Type 2), Waterproof (ASTM D3393), Cold Weather (ASTM F2732), Resistant to most acids, salts and alkalies.
  • Fabric - Nomex® Kevlar® Blend.
  • Moisture Barrier - FR Synthetic Leather PU/PVC.
  • Finished fabric Weight - 271gsm/8.00oz
  • Seam Construction - Dielectrically welded seams.
  • Colours - Hi Vis: Fluorescent Lime Yellow (FY), Fluorescent Orange (FO). Non-Hi Vis: Yellow (Y), International Orange (BO).
  • Reflective Trim - 3M™ Scotchlite™ 9720 reflective material.
  • ASTM F1891 Electric Arc - FY ATPV 7.2 cal/cm2, HAF 76.3%, Ebt 30.6 cal/cm2 | FO ATPV 7.9 cal/cm2, HAF 78.6%, Ebt 30.6 cal/cm2.
  • ASTM F1891 Electric Arc - Y ATPV 8.1 cal/cm2, HAF 78%, Ebt > 29 cal/cm2 | BO ATPV 6.9 cal/cm2, HAF 74%, Ebt > 31 cal/cm2.
  • NFPA 70E HRC - FY and FO CAT 2.
  • ANSI 107 High Visibility - FY, FO ANSI 107 Class 3, Level 2.
  • Options - NASCO has the ability to create high quality corporate images using ink silk-screening, single and multi-colour heat transfers and reflective logos using 3M™ Scotchlite™ reflective material.
  • SKU: 1101PY - 1000 Series Yellow (Y).
  • SKU: 1101PBO - 1000 Series International Orange (BO).
  • SKU: 1501PFY - 1500 Series Hi Vis Fluorescent Yellow (FY).
  • SKU: 1501PFO - 1500 Series Hi Vis Fluorescent Orange (FO).
  • Elastic waist.
  • Fly front with snap closure.
  • 2 Position leg cuff adjusters.

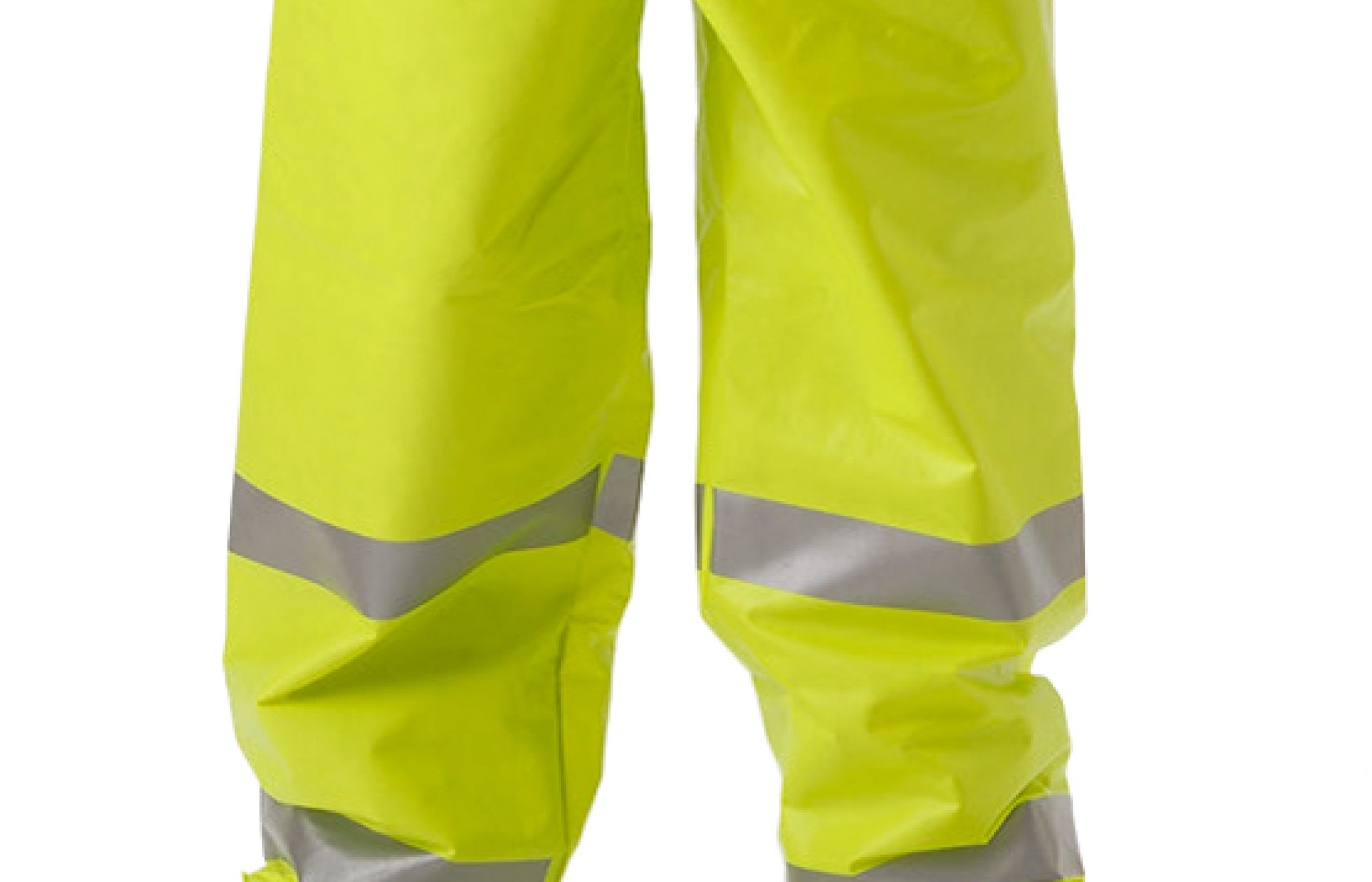

  • 3M™ Scotchlite™ 9720 2" (50mm) reflective trim around calves and knees.
  • Electric arc and flame protection. High visibility, waterproof and lightweight.
  • Sizes: S to 5XL. Long sizes available - 2" added in the body and inseam length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
  • SKU: 1101TY - 1000 Series Yellow (Y).
  • SKU: 1101TBO - 1000 Series International Orange (BO).
  • SKU: 1501TFY - 1500 Series Hi Vis Fluorescent Yellow (FY).
  • SKU: 1501TFO - 1500 Series Hi Vis Fluorescent Orange (FO).

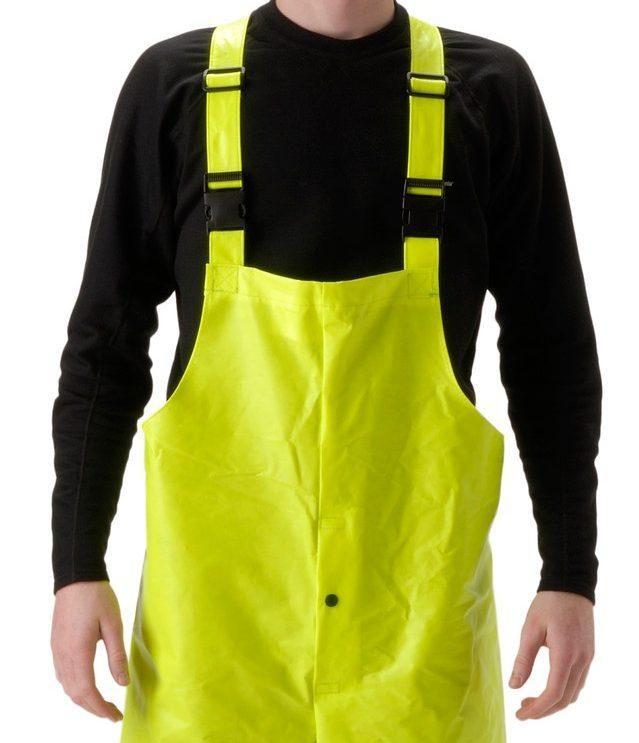

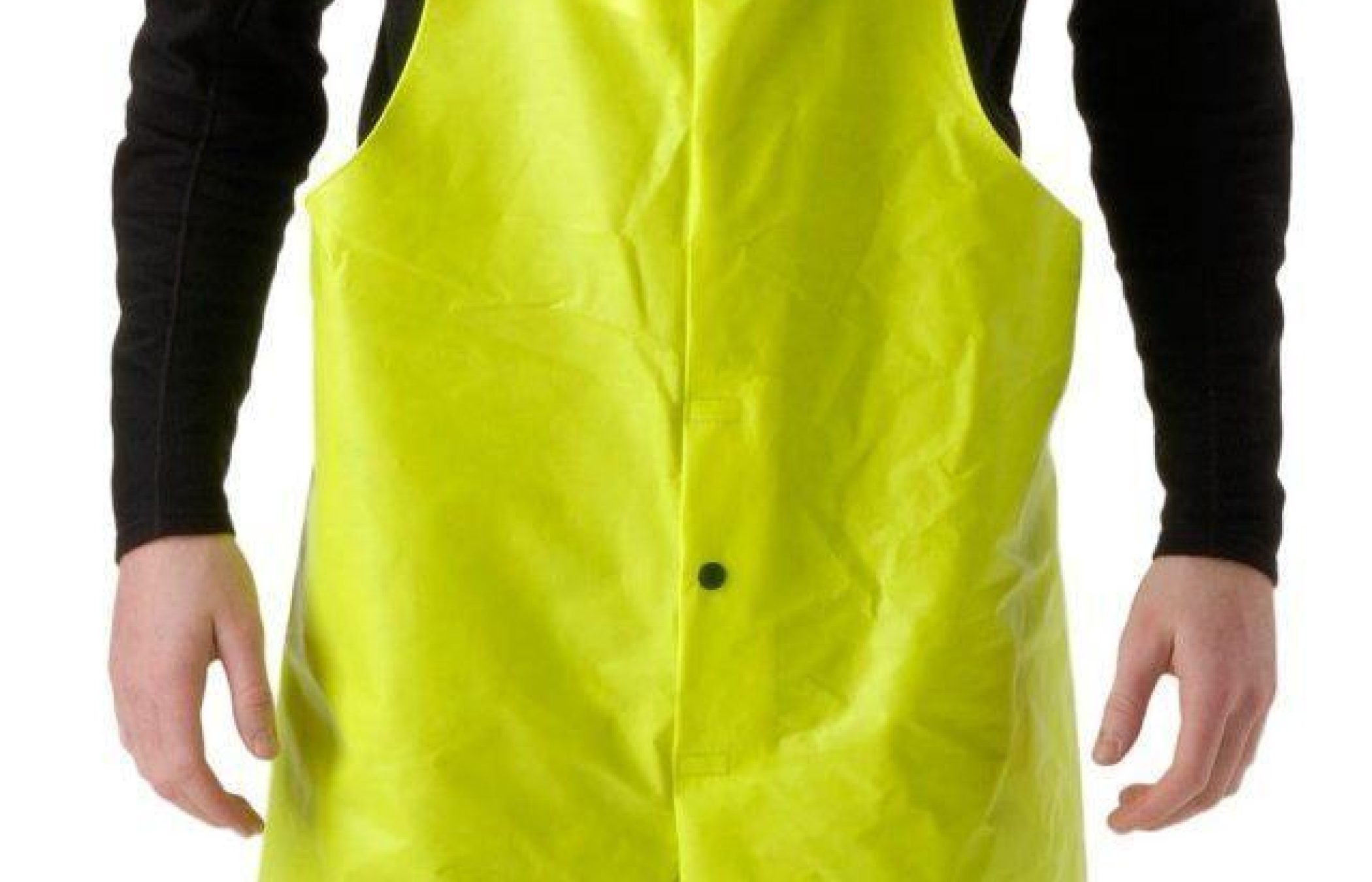

  • Heavy duty FR black elastic suspenders with quick release buckles.
  • Fly front with snap closure.
  • 2 Position leg cuff adjusters.
  • 3M™ Scotchlite™ 9720 2" (50mm) reflective trim around calves and knees.
  • Electric arc and flame protection. High visibility, waterproof and lightweight.
  • Sizes S to 5XL. Long sizes available - 2" added in the body and inseam length.
  • Pricing: S to XL same price, 2XL to 5XL individual pricing.
