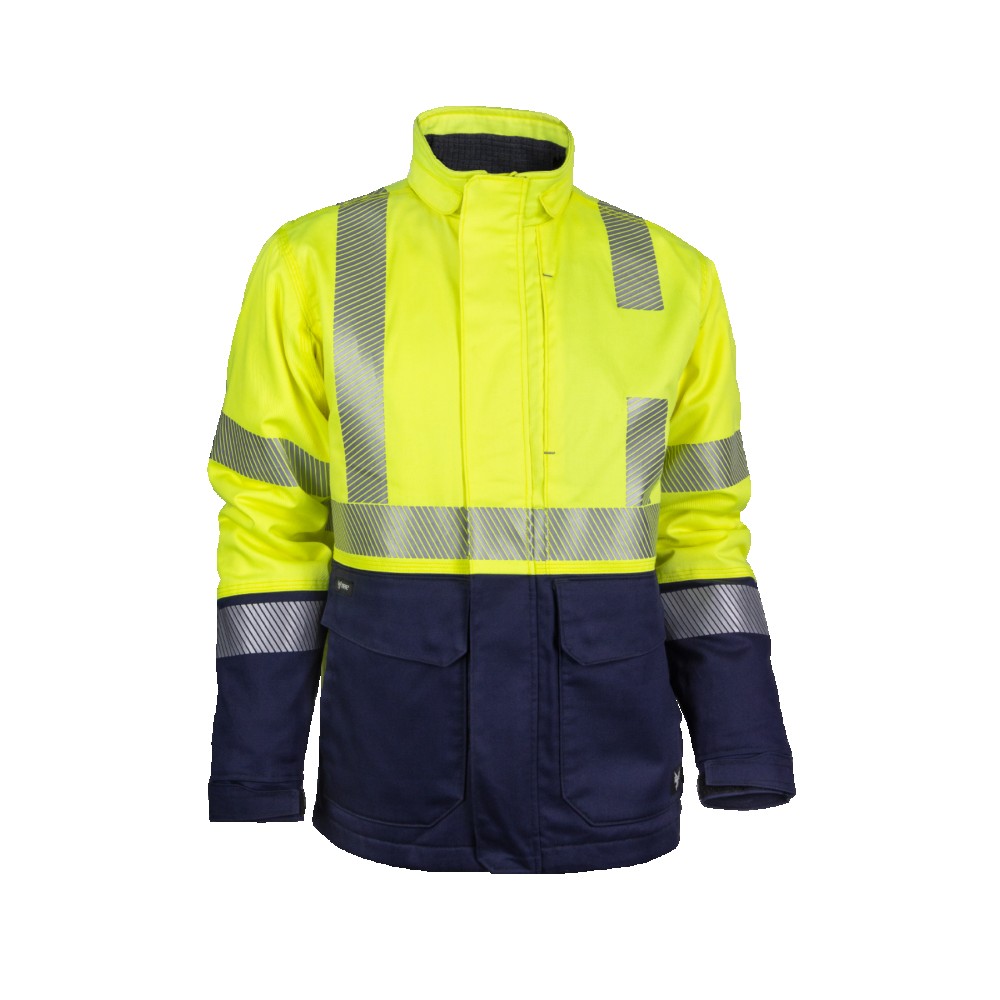

DRIFIRE® FR/AR Hi Vis Insulated Jacket Class 3

Premium FR/AR Dual-Hazard Protection: Arc Flash, Flash Fire, High Visibility, Waterproof, Windproof, Breathable. Fluorescent Yellow/Navy Hi Vis Westex AllOut 8.5oz/288gsm, Durable Duck Cotton/Nylon 11oz/373gsm w/ FR Quilted Liner 10oz/339gsm - 37 CAL | CAT 3

Downloads:

Product PDF
Enquire

Since 1935, National Safety Apparel has been a leader in delivering advanced safety solutions for workers in high heat and industrial environments. NSA's extensive range of USA-made PPE includes protective workwear for workers facing extreme heat, arc flash, flash fire, molten metal, cut and abrasion hazards. Whether in foundries, mills or industrial manufacturing, NSA solutions are designed to safeguard workers in the toughest environments.

DRIFIRE® high-performance FR/AR work wear is built for those who demand both comfort and protection in tough environments. With innovative designs and advanced fabric technology, DRIFIRE® workwear works as hard as you do.

The same technology that keeps American troops safe abroad protects workers around the globe, helping workers to perform the most hazardous tasks with confidence. DRIFIRE® is mission-driven and performance-obsessed, delivering workwear that supports workers every step of the way.

APPLICATION: Arc Flash, Flash Fire, High-Risk Industrial, High Visibility Environments.

About DRIFIRE® FR/AR

Westex AllOut® (8.5oz / 288gsm)

Westex AllOut® is a breathable barrier technology providing protection for intense work environments, while delivering comfort in the most extreme conditions. Designed for inclement weather conditions, Westex AllOut® offers a water and wind resistant technology and eliminates the need for a non-compliant NFPA 2112 vapour barrier. When Westex AllOut® is paired with Westex InsulAir®, ATPV ratings range from CAT 3 to 4. Features include: Highly water and wind resistant | Durable to home laundering | Maintains breathability for comfort | Non-PFAS water repellent finish | Certified NFPA 70E for Arc Flash | Certified NFPA 2112 for Flash Fire.



Durable Duck (11oz / 373gsm)

Westex Durable Duck technology primarily features in lines such as Westex AllOut® and Westex UltraSoft®. It is a high-performance, heavy-duty industrial textile for flame resistant protective Outerwear. Westex Durable Duck technology delivers robust protection for workers working in extreme, high-risk environments. It has an excellent arc flash thermal rating and protects against exposure to flash fire, molten ferrous metal and welding.



Westex InsulAir® (10oz / 339gsm)

Westex InsulAir® offers excellent thermal stability in cold weather. The insulation system is NFPA 2112 certified and guaranteed flame resistant for the life of the garment. When combined with Westex AllOut®, workers stay warm and comfortable even in the harshest cold weather conditions. Westex InsulAir® is the next generation in multi-hazard quilted FR lining. Cold weather Westex InsulAir® and Westex AllOut® layered systems provide NFPA 70E CAT 3 and 4 compliant options

View more NSA FR/AR Hi Vis Outerwear Apparel by downloading the NSA 2026 Catalogue (Refer page 46).

Download NSA Catalogue

Description: This FR/AR insulated Jacket offers high visibility plus arc flash, flash fire, wind and water resistance for superior performance in demanding, tough conditions. The enhanced mobility design features 4-way stretch fleece panels built into the quilted liner to keep workers warm without holding them back.

NFPA 70E Arc Flash, UL Certified NFPA 2112 Flash Fire, ASTM F1506 Flash Fire, High Visibility ANSI/ISEA Type R Class 3, CSA Z462 for Arc Flash (Canada), OSHA 1910.269.

  • Fabric – Fluorescent Yellow / Navy Hi Vis Westex AllOut® 8.5oz / 288gsm | Durable Duck Cotton / Nylon 11oz / 373gsm | FR Quilted Liner 10oz / 339gsm.
  • ATPV - 37 cal/cm2 PPE CAT 3.
  • Colour – Fluorescent Yellow / Navy.
  • Product Number Jacket: JKT-01C3-HV-_ _
  • Product Number Snap On/Off Hood: HOOD-JKTUD-_ _ (Sold separately)
  • Enhanced Visibility: 3M™ Scotchlite™ Reflective Comfort Trim is engineered to provide exceptional visibility in low-light and hazardous environments.
  • Wind Protection: Hi Vis Westex AllOut® material offers premium protection from wind and rain to increase the wearer's comfortability.
  • Enhanced Mobility: Built in panels across the shoulders provide greater movement and flexibility while performing active work.

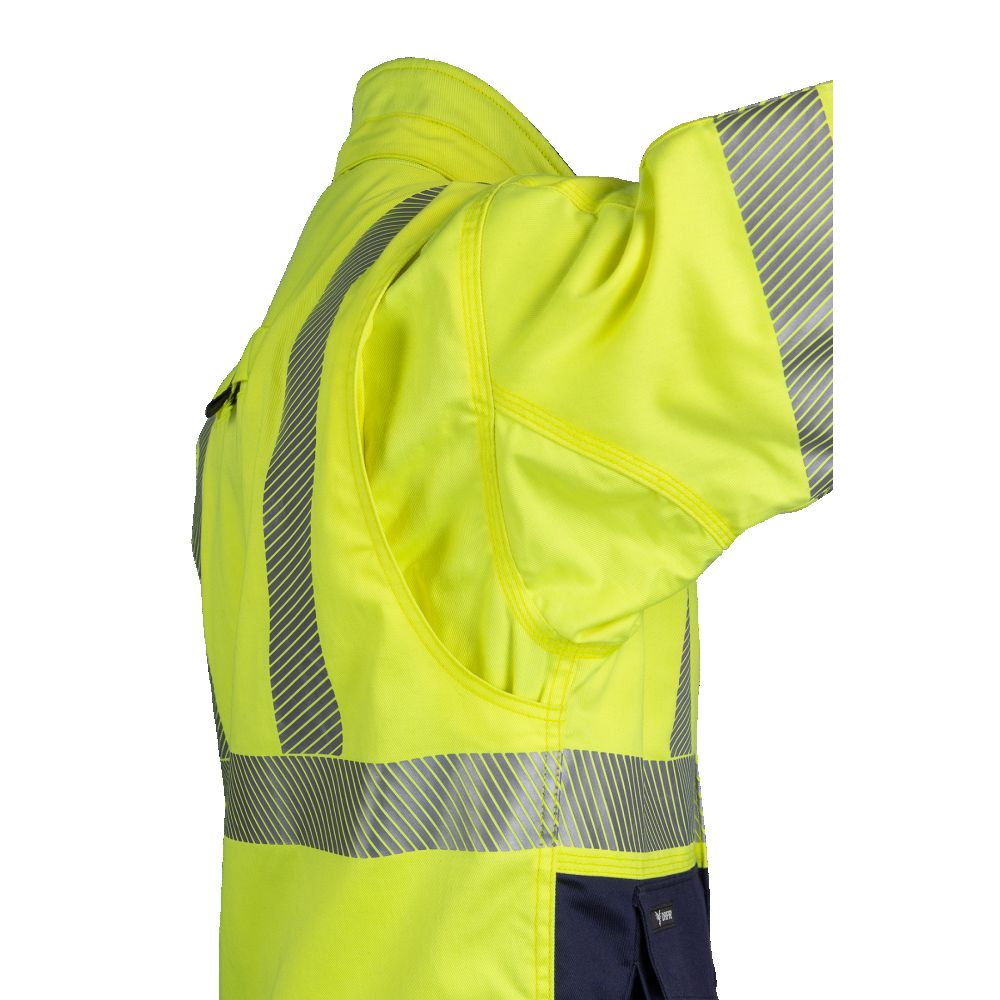

  • Comfort Stretch Underarm: Designed for flexibility, the stretch underarm feature ensures ease of movement when reaching or working overhead.
  • Inside Chest Pocket: The pocket is perfect for storing essentials such as phones, keys and wallets. The internal pocket ensures belongings are secure and always accessible.
  • D-Ring Access: Centre back D-Ring access allows for quick connect to a harness without removing or adjusting clothing.

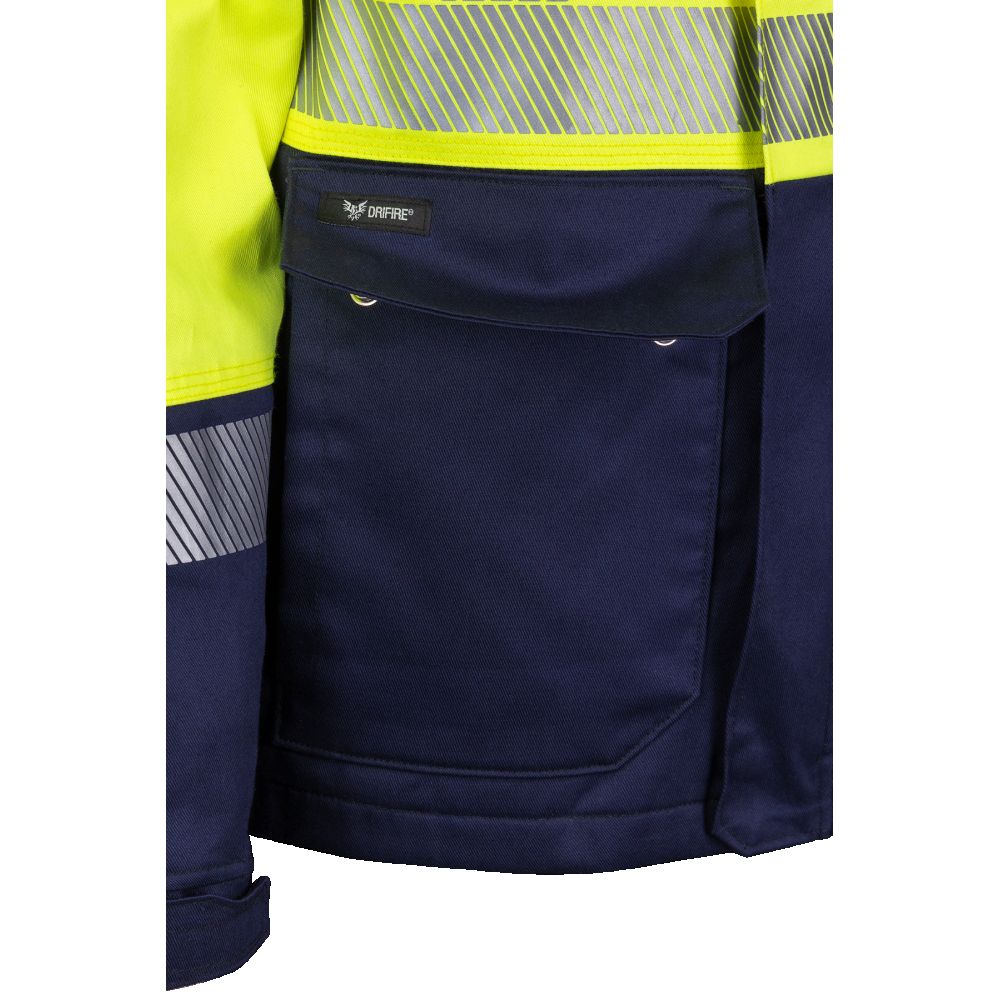

  • Large Front Pockets: Dual entry pockets provide versatile storage, easy access and convenient organisation for tools or essentials.
  • Corporate/Personal Identification: A gap in the segmented trim provides an ideal location for custom branding or corporate logos.
  • Water Resistance: The Durable Water Repellent (DWR) coating on the Jacket's shell adds a water repellent finish, helping shield workers from the elements.

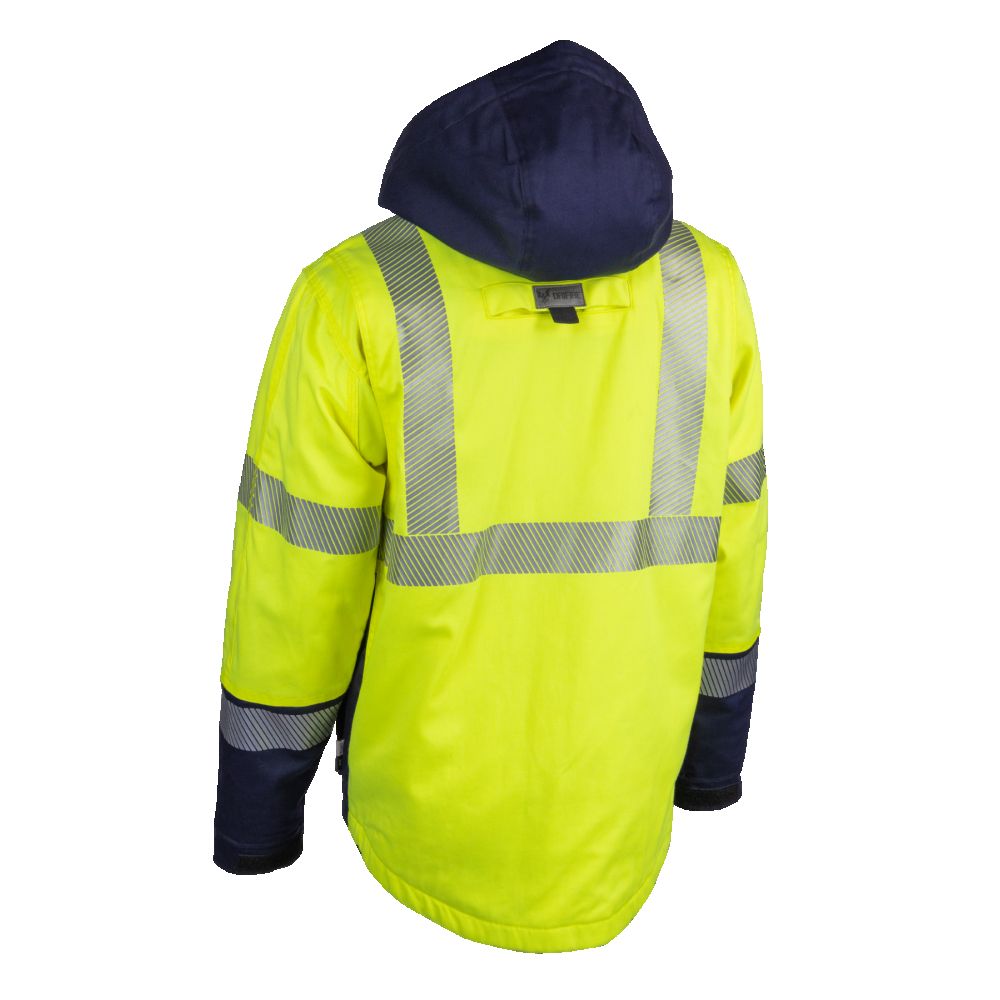

  • Snap On/Off Hood: Designed for versatility. The detachable snap on/off hood is sold separately.
  • Sizes: SM - 5X, RG | MD - 5X TL.
  • MOQ - Subject to Negotiation.
  • Read the garment label and launder per instructions on garment label.
  • Machine wash on a warm setting (maximum 140°F / 60°). Use a mild detergent and tumble dry on a medium setting.
  • DO NOT iron, use chlorine bleach, hydrogen peroxide, fabric softener or starch.
  • Wash according to the instructions above to remove any contaminants in order to maintain fabric performance when the garment becomes soiled with dirt, grease or oils.
  • If contaminants cannot be removed after laundering, it is best to discontinue use of the garment.
