NSA Primary Aluminised OPF Protective Apparel

Primary PPE serves as the first line of defence during hazardous activities such as charging, tapping and pouring in smelters, foundries and steel mills. It is explicitly engineered to be worn over secondary protective clothing to prevent severe burn injuries from massive thermal energy and direct contact with molten aluminium, iron or steel.

National Safety Apparel (NSA) specialised Primary OPF Protective Apparel features aluminised technology designed to shed molten metal splash and reflect radiant heat. In high-heat industrial environments such as foundries and smelting operations, NSA's Primary Aluminised Protective Outerwear garments are specifically designed to withstand significant, direct exposure to molten metal substances, sparks and flame.

NSA's innovative designs offer lightweight comfort without compromising safety. NSA PPE is engineered to shield workers not only from molten metal and radiant heat but also contact heat and cut, puncture and abrasion risks - preventing injuries and reducing heat stress in high-risk environments.

NSA Thermal 11oz/373gsm Aluminised OPF Ripstop Blend Solutions

OPF (Oxidised Polyacrylonitrile) aluminised materials are high-performance thermal fabrics designed for smelters, foundries, welding and metal processing. By combining a heat-reflecting aluminium surface with an inherently fire resistant core, these materials shed molten metal and shield workers from radiant heat up to 1093°C (2000°F). The inherent fireproof properties of the OPF base fabric block direct flames.

The Outer Layer (Aluminium Foil/Coating) acts as a thermal mirror. It is highly effective at deflecting intense radiant heat and prevents hot fluid, sparks and molten metal splashes from sticking to the fabric. Instead, molten metal drops bead up and roll off smoothly.

The Base Cloth (OPF) fibres, are thermally stabilised in a high-temperature oven with air. This oxidation process alters the molecular structure into a stable "ladder" configuration that ensures the fibre cannot burn, melt, soften, or drip even under direct flame exposure.



OPF Core Properties and Benefits



Extreme Thermal Defence: The base material features a remarkably high Limiting Oxygen Index (LOI) of up to 45% to 55% making it completely self-extinguishing and non-combustible in normal atmospheric conditions.

Heat Reflection: The aluminised exterior reflects up to 95% of radiant heat, helping reduce worker heat stress.

Metal Shedding: The smooth aluminium layer prevents molten aluminium, iron and steel from sticking to or burning through the fabric.

No After-Burn: OPF fibres are inherently flame resistant. They will not ignite, melt or continue to burn when removed from the heat source.

Flexibility: Unlike heavy, rigid carbon blends, OPF textiles remain relatively soft and flexible, allowing for better wearer mobility.

Dimensional Stability: OPF retains its physical structure and will not shrink, break open or crack when subjected to extreme heat or thermal shock.

NSA Aluminised OPF Ripstop Blend Solutions

  • Carbon Armour™ Aluminised OPF Ripstop Deluxe Hood

  • Carbon Amour™ Aluminised OPF Ripstop Jacket

  • Carbon Amour™ Deluxe High Heat Gloves

  • Carbon Amour™ Aluminised OPF Ripstop Leggings

Product PDF Size Chart

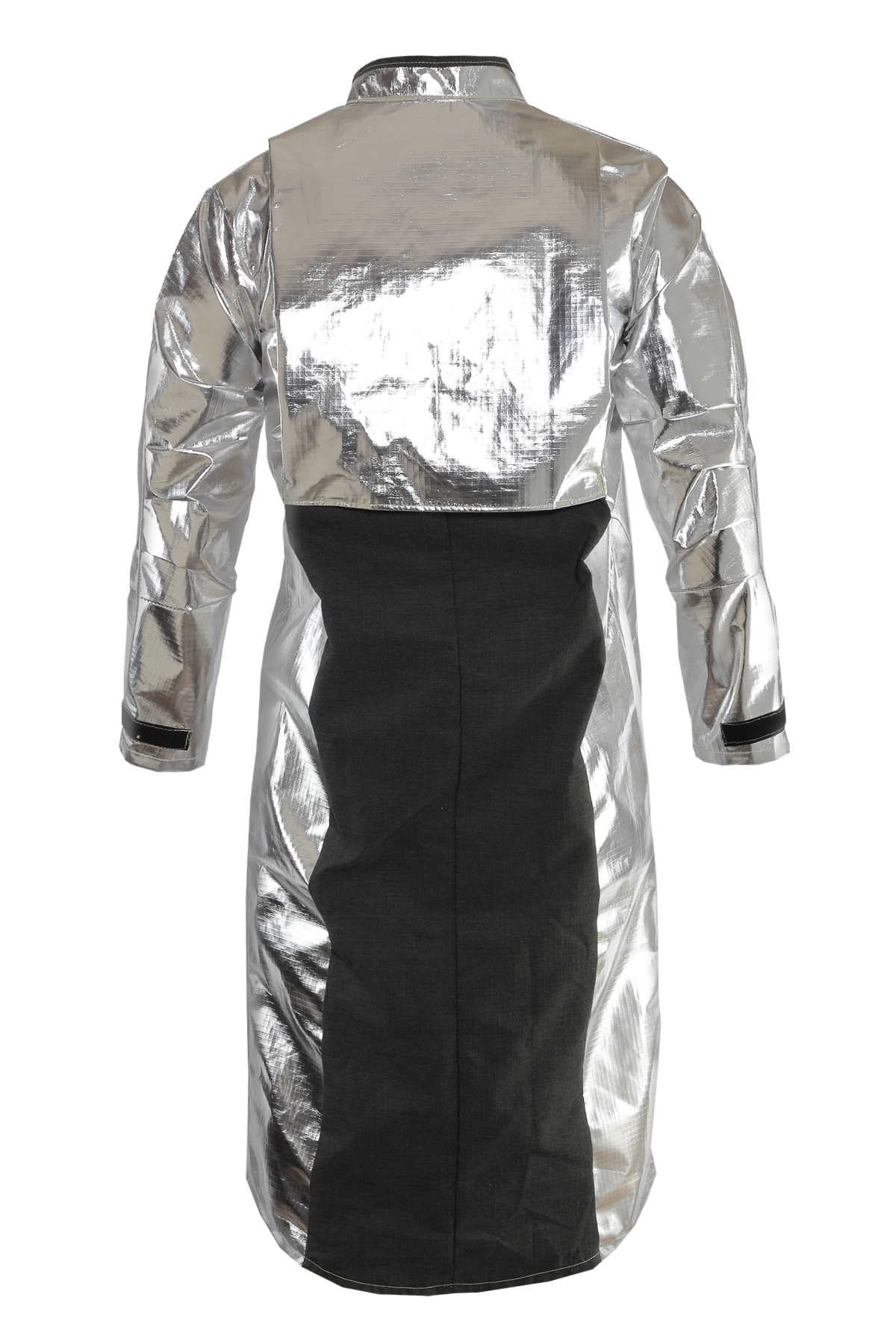

NSA Carbon Amour™ Aluminised OPF Ripstop Blend 50" Long Jacket w/ Vented Action Back for Extended Movement, Comfort and Airflow.

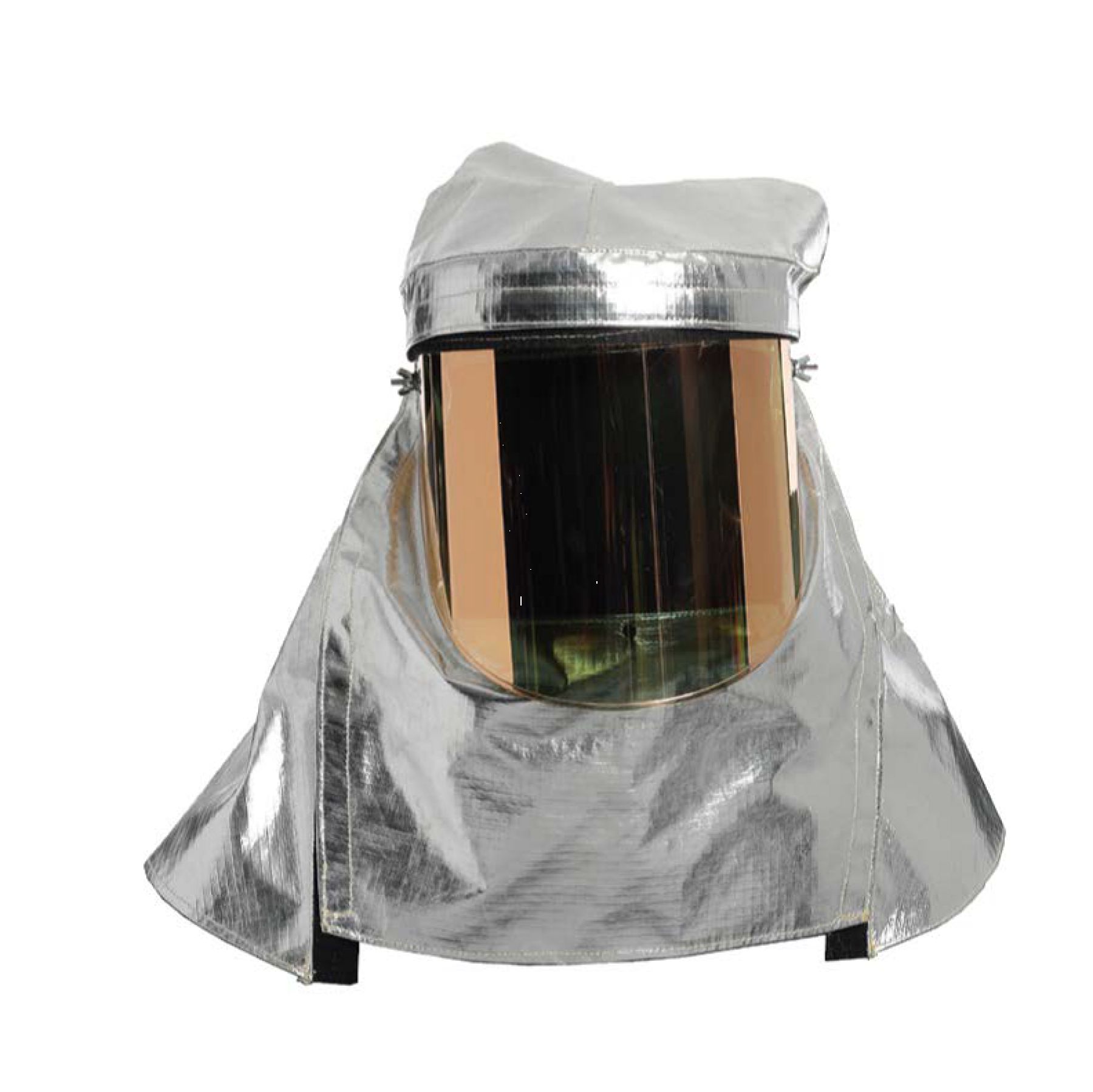

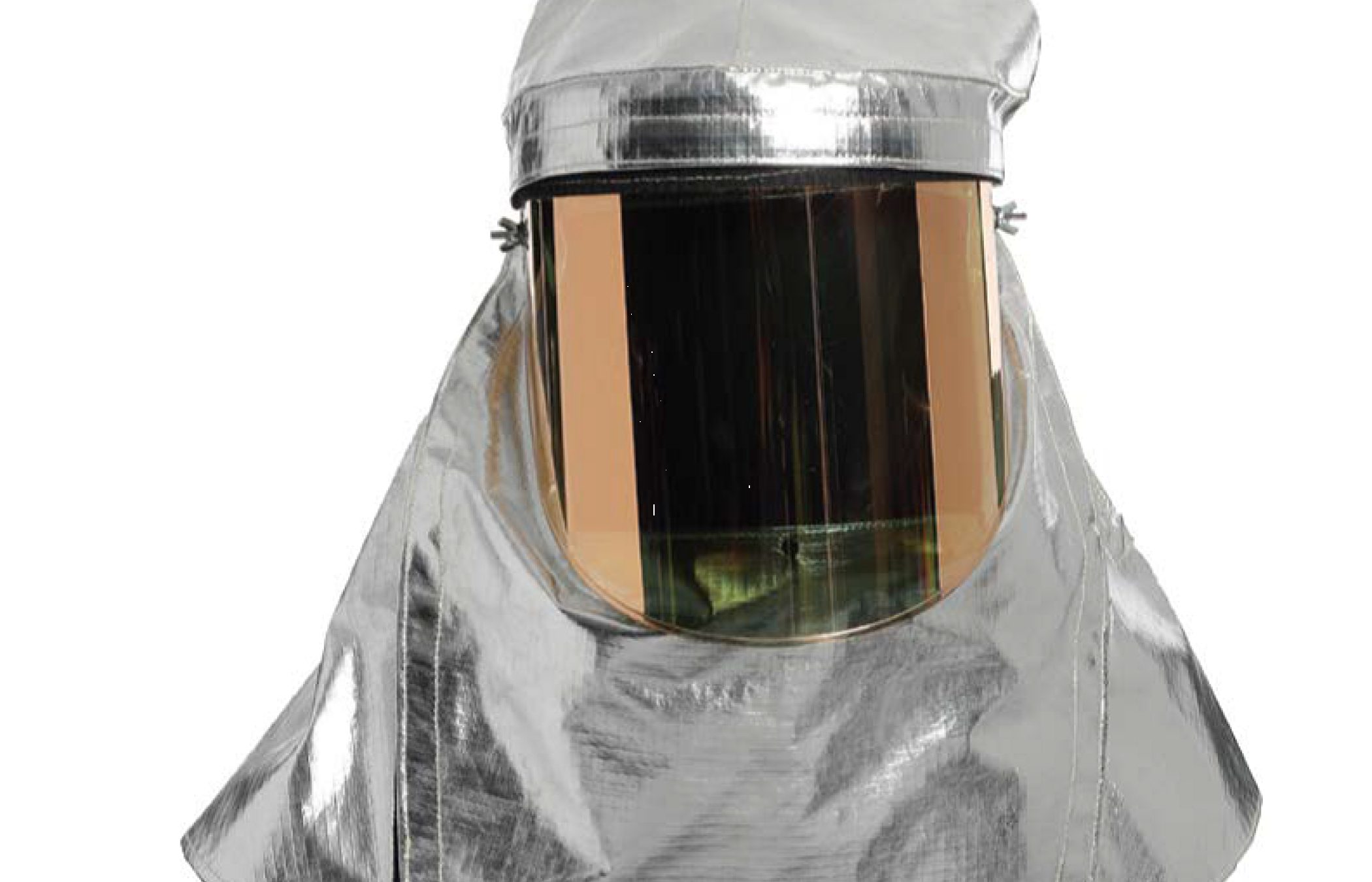

NSA Carbon Armour™ Aluminised OPF Ripstop Deluxe Hood

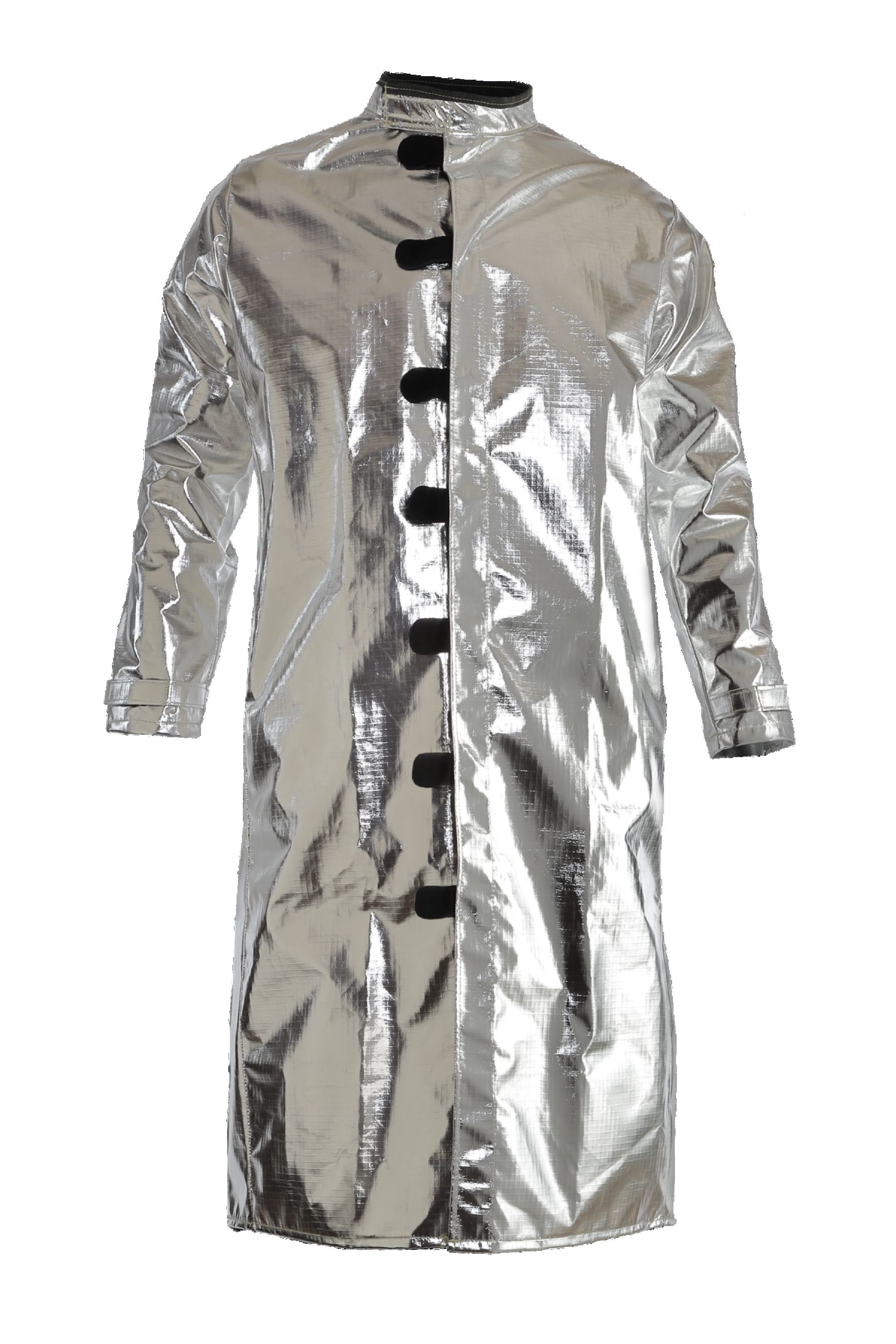

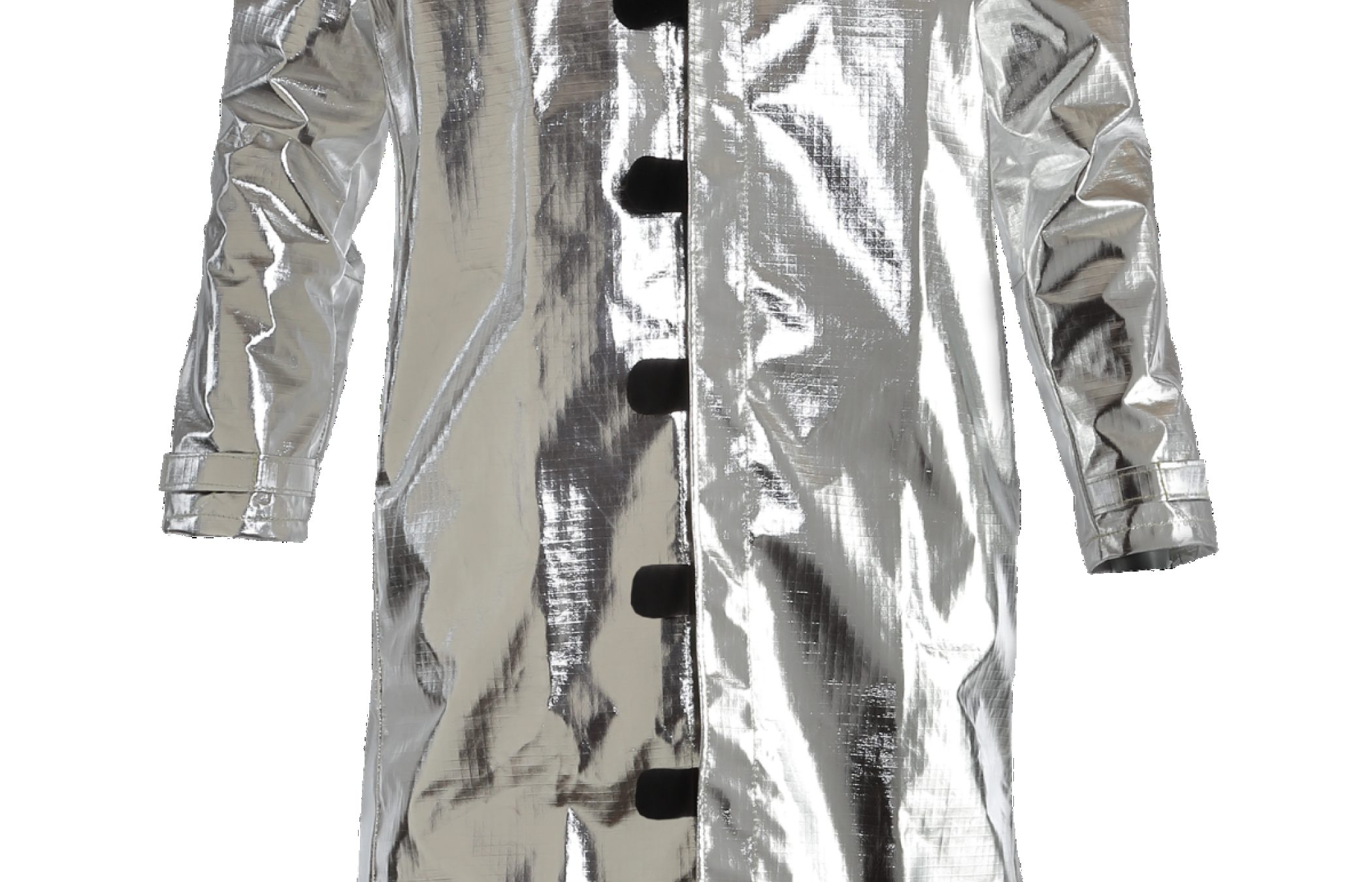

NSA Carbon Armour™ Aluminised OPF Ripstop 50" Long Jacket (Front)

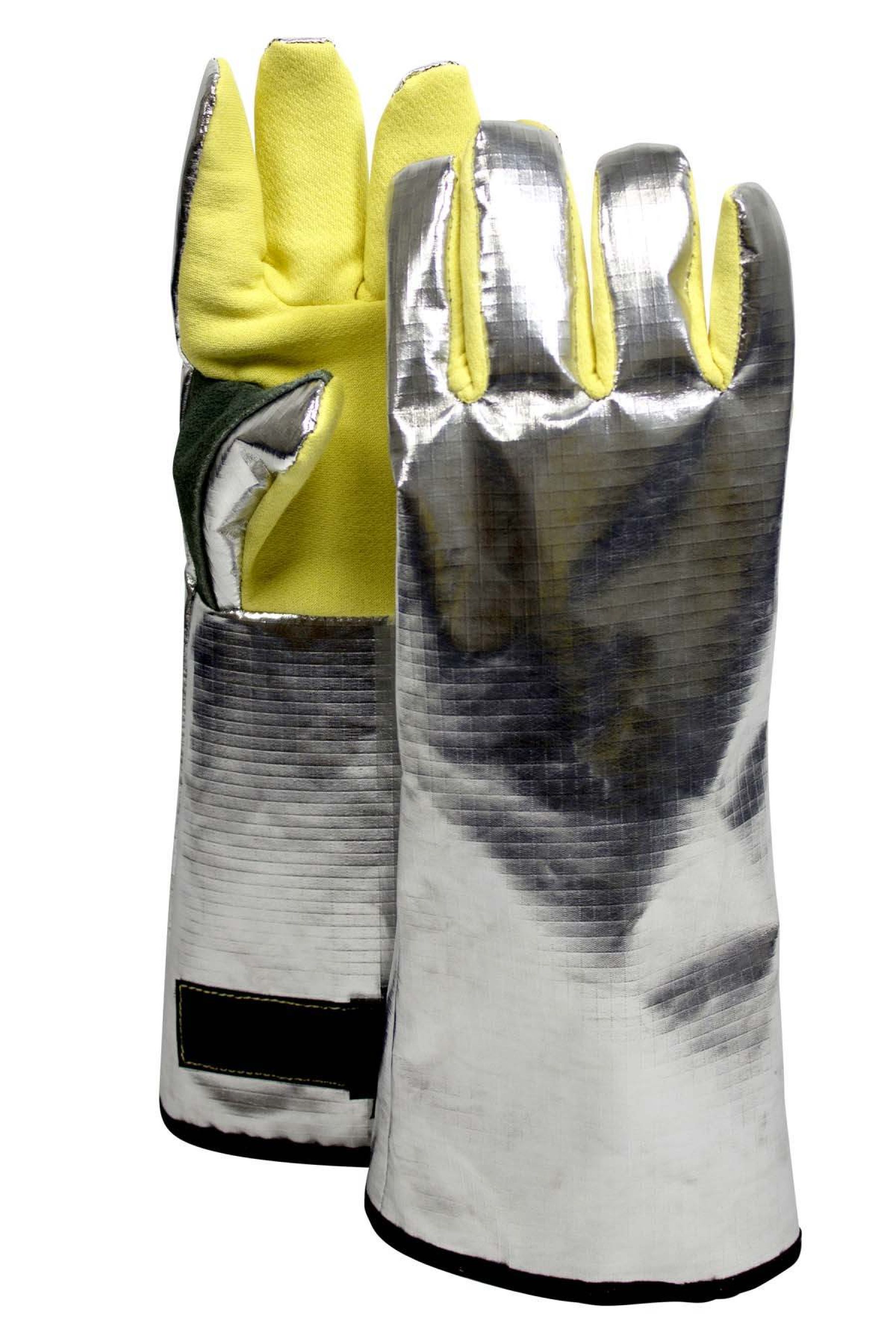

NSA Carbon Armour™ Deluxe High Heat Gloves

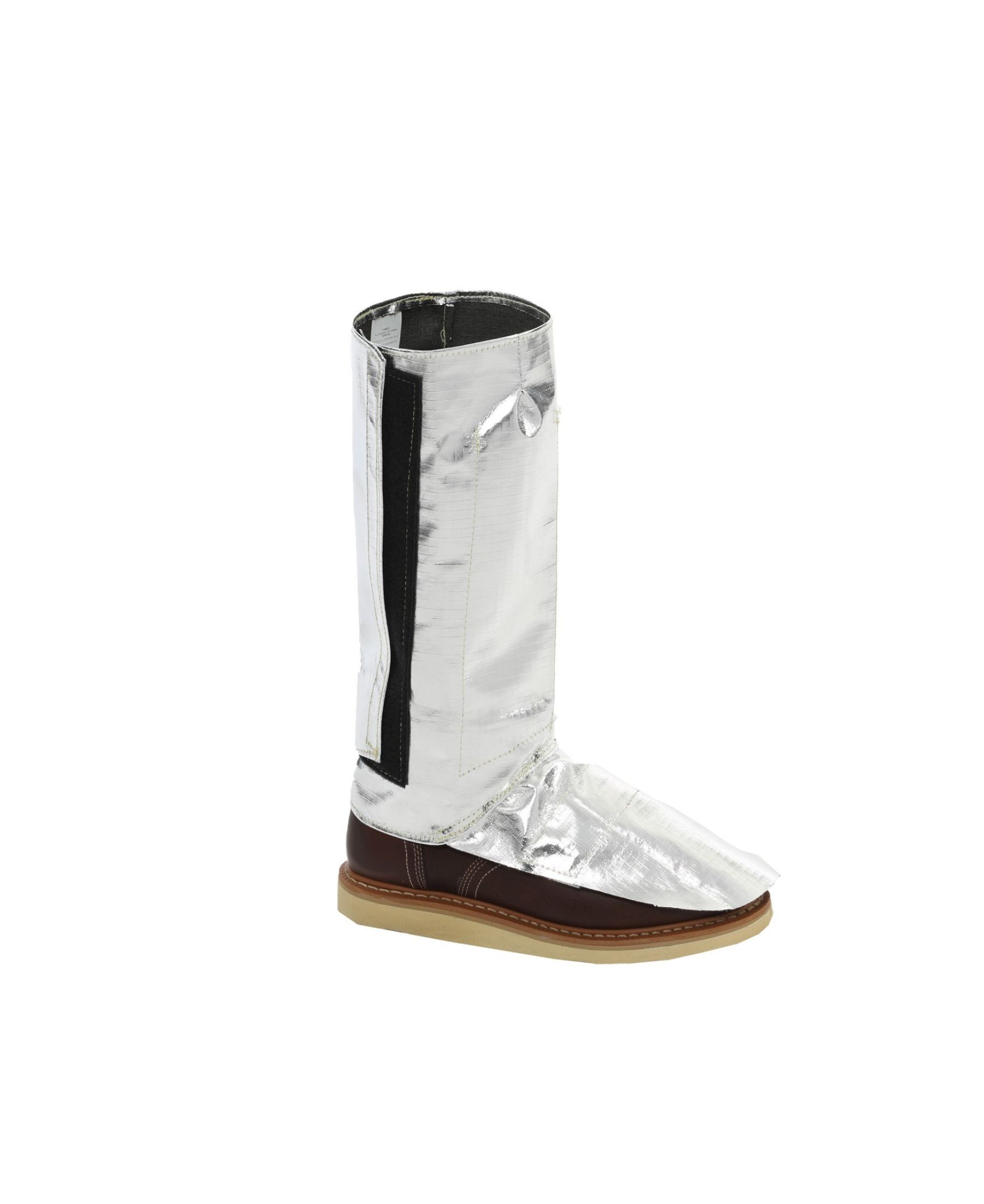

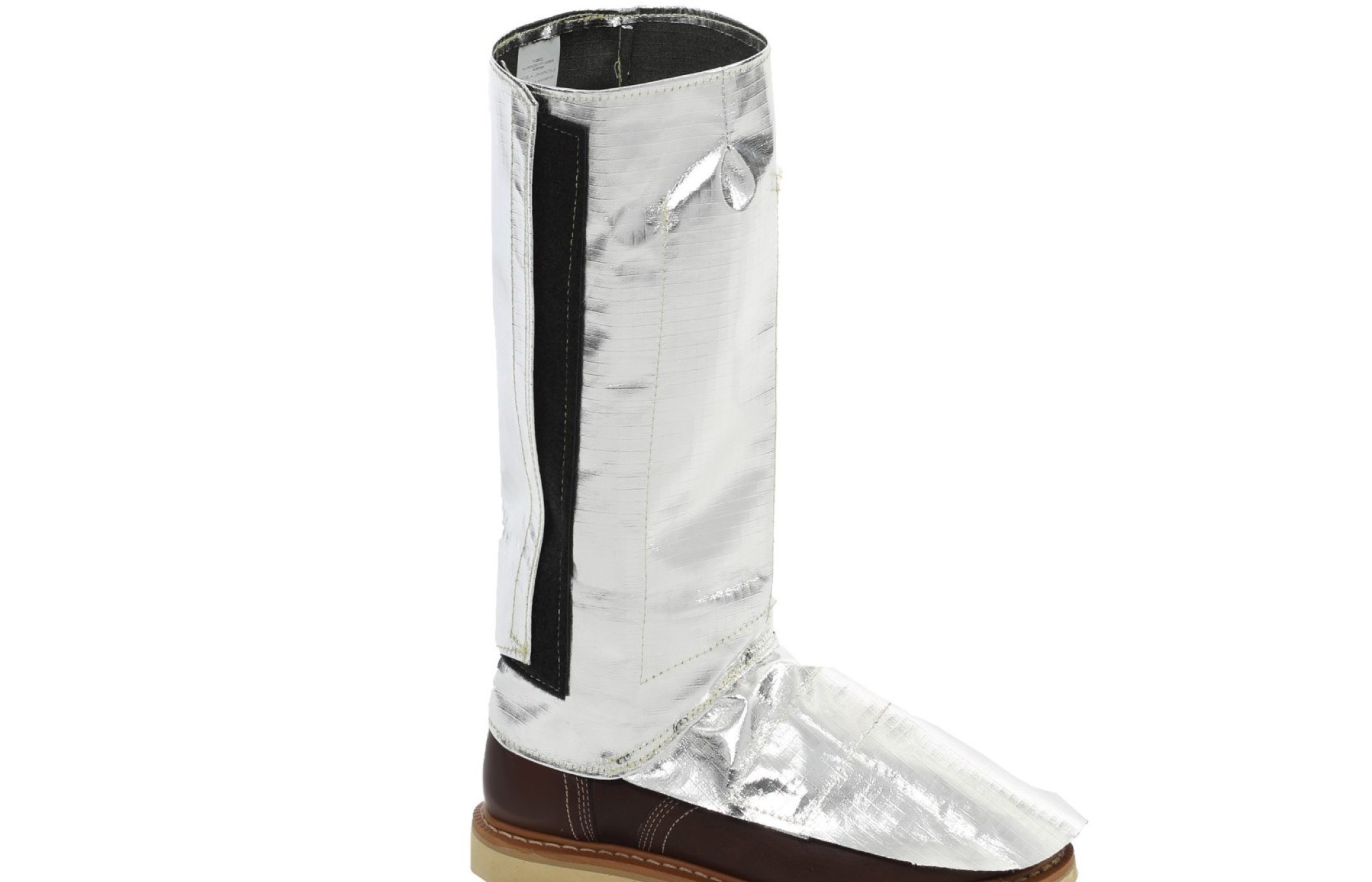

NSA Carbon Armour™ Aluminised OPF Ripstop Leggings

PRODUCT INFORMATION

  • Product Number: H15H5GOLD.
  • Sizes: One Size Fits Most.
  • Material: 11oz/373gsm Aluminised OPF-Carbon Rip-Stop Blend.
  • Lightweight comfort without sacrificing protection.
  • Protection from radiant heat, sparks and molten metal splash hazards.
  • Premium Gold face shield reflects extreme radiant heat and visible/infrared light.
  • Gold coating is protected by hard polycarbonate exterior to resist damage from abrasion.
  • Face shield flips up for access to air when not working in the hazard zone.
  • Universal headgear attaches to front brim hard hats (hard hat sold separately).

COMPLIANCE

  • ASTM F955 for Molten Splash.
  • ASTM F1939 for Radiant Heat.
  • ANSI/ISEA Z87.1 (Impact rating Z87+).

PRODUCT INFORMATION

  • Product Number: NXJH5--(insert size)50 (50" Length).
  • Sizes: MD-3X, RG (Additional sizes available on request).
  • Material: 11oz/373gsm Aluminised OPF-Carbon Rip-Stop Blend.
  • Lightweight comfort without sacrificing protection.
  • Protection from radiant heat, sparks and molten metal splash hazards.
  • Articulated elbow for freedom of movement.
  • Ventilated action back for extended movement, comfort and airflow.
  • Underarm gusset for added mobility.
  • Contoured tail hem for extended lower back coverage.
  • Snap front closure with leather pull tabs for ease of use with gloves

COMPLIANCE

  • ASTM F955 for Molten Splash.
  • ASTM F1939 for Radiant Heat.

PRODUCT INFORMATION

  • Product Number: G04H5VB17.
  • Sizes: 17" Length. (Additional sizes available on request).
  • Material: 11oz/373gsm Aluminised OPF-Carbon Rip-Stop Blend.
  • Lightweight comfort without sacrificing protection.
  • The Carbon Armour™ Deluxe High Heat Glove offers multi-threat high heat hand protection for workers exposed to molten metals and high heat.
  • Provides both high heat and cut protection.
  • 600°F (315°C) contact heat protection 22.9 seconds to second degree burn.
  • Flexible Aramid palm for high dexterity.
  • Aluminised back provides radiant heat and molten metal protection.
  • Soft Wool lining provides thermal insulation.
  • Winged thumb with leather patch.
  • Hook and loop adjustment at cuff.

COMPLIANCE

  • ANSI/ISEA F1060 Heat Level 5.
  • ASTM F2992 Cut Level A4.
  • ASTM F955 for Molten Splash.
  • ASTM F1939 for Radiant Heat.

PRODUCT INFORMATION

  • Product Number: L05H5H5VCFS- - (insert size).
  • Sizes: LG-XL.
  • Material: 11oz/373gsm Aluminised OPF-Carbon Rip-Stop Blend.
  • FR hook and loop closure.
  • Aluminised foot flap with soft steel.
  • Fits over work boot.
  • Protection from radiant heat, sparks and molten metal splash hazards.
  • Includes fibre stays in shin pocket for added stability.
  • Lightweight comfort without sacrificing protection.

COMPLIANCE

  • ASTM F955 for Molten Splash.
  • ASTM F1939 for Radiant Heat.

Carbon Armour™ Aluminised OPF Ripstop Product Care

  • Read the garment label and launder per the instructions on the garment label,
  • DO NOT dry clean or machine wash. DO NOT store garments wet or with any chemical contamination. DO NOT clean with any compounds containing ammonia chlorine or other oxidising or abrasive agents.
  • Gently wipe clean with a soft cloth and mild soap. Rinse thoroughly. Dry garments by hanging in well vented, shaded areas.
  • The outer shell of these aluminised garments contain a highly reflective surface and it is extremely important that this surface is clean so that it can perform at peak efficiency.
  • Wash according to the instructions above to remove any contaminants in order to maintain fabric performance when the garment becomes soiled with dirt, grease and oils.
