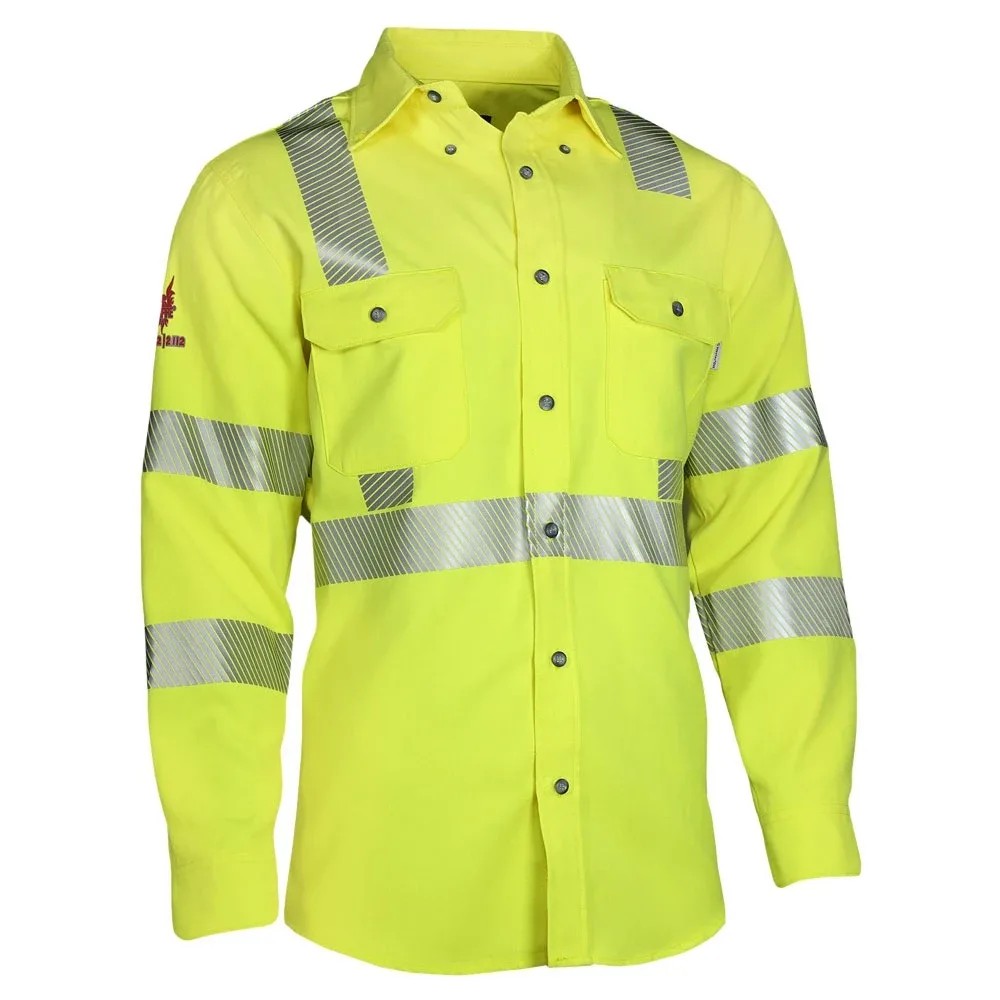

DRIFIRE® FR/AR Hi Vis Vented Shirt Class 3

Premium Multi-Hazard FR/AR Protection: Arc Flash, Flash Fire, High Visibility, Breathable

Downloads:

Product PDF
Size Chart
Enquire

Since 1935, National Safety Apparel has been a leader in delivering advanced safety solutions for workers in high heat and industrial environments. NSA's extensive range of USA-made PPE includes protective workwear for workers facing extreme heat, arc flash, flash fire, molten metal, cut and abrasion hazards. Whether in foundries, mills or industrial manufacturing, NSA solutions are designed to safeguard workers in the toughest environments.

DRIFIRE® high-performance FR/AR work wear is built for those who demand both comfort and protection in tough environments. With innovative designs and advanced fabric technology, DRIFIRE® workwear works as hard as you do.

The same technology that keeps American troops safe abroad protects workers around the globe, helping workers to perform the most hazardous tasks with confidence. DRIFIRE® is mission-driven and performance-obsessed, delivering workwear that supports workers every step of the way.

APPLICATION: Arc Flash, Flash Fire, High-Risk Industrial, High Visibility Environments.

About DRIFIRE® FR/AR

Westex® DH 6.5oz / 220gsm

Westex® DH is NFPA 2112 certified and NFPA 70E compliant, making it an excellent choice for arc flash and flash fire protection. With its uniquely woven blend, Westex® DH provides outstanding breathability and optimised moisture management to keep workers cooler, drier and more comfortable. Westex® DH also retains an excellent after-wash appearance, with a low propensity for pilling and is ANSI 107 (High Visibility) certified. When recommended laundering guidelines are followed, Westex® DH provides consistent FR/AR protection over the life of the garment.



Fabric FR/AR qualities are not visible, so you must verify the performance of your FR/AR apparel. Having an FR/AR daily work wear program that meets NFPA 70E and/or is certified to NFPA 2112 is a necessary starting point, but there is a vast disparity between products that comply with NFPA 2112 and NFPA 70E. For example, since all fabrics with less than 50% body burn can be certified to NFPA 2112, it is important to know the actual body burn percentage of the ASTM F1930 test. Westex® DH is certified to NFPA 2112, providing 8.8% - 35.3% total body burn (respective to the specific fabric weight) under the ASTM F1930 test. Westex® DH has an ATPV rating of 8.9 cal/cm2.

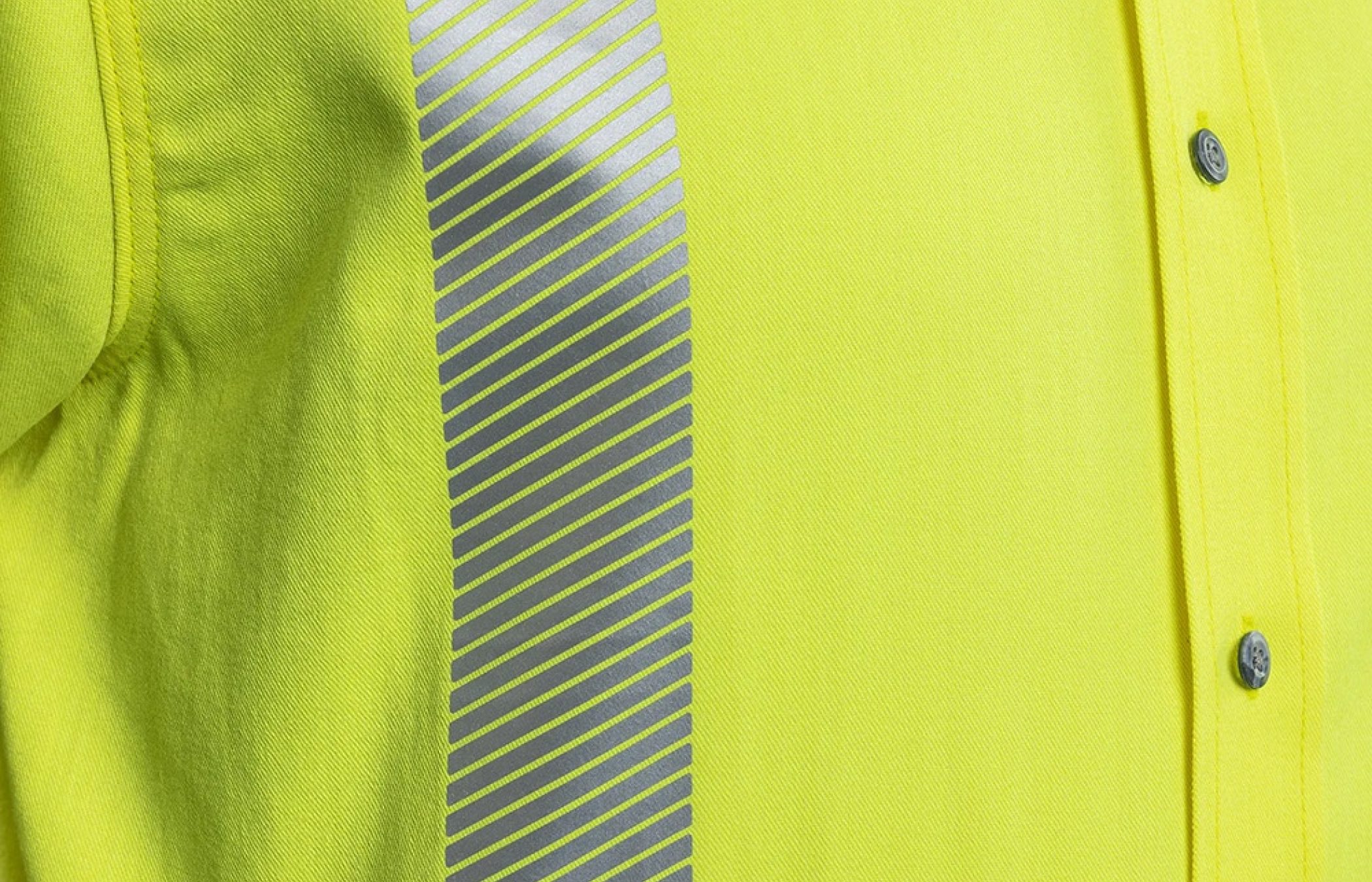

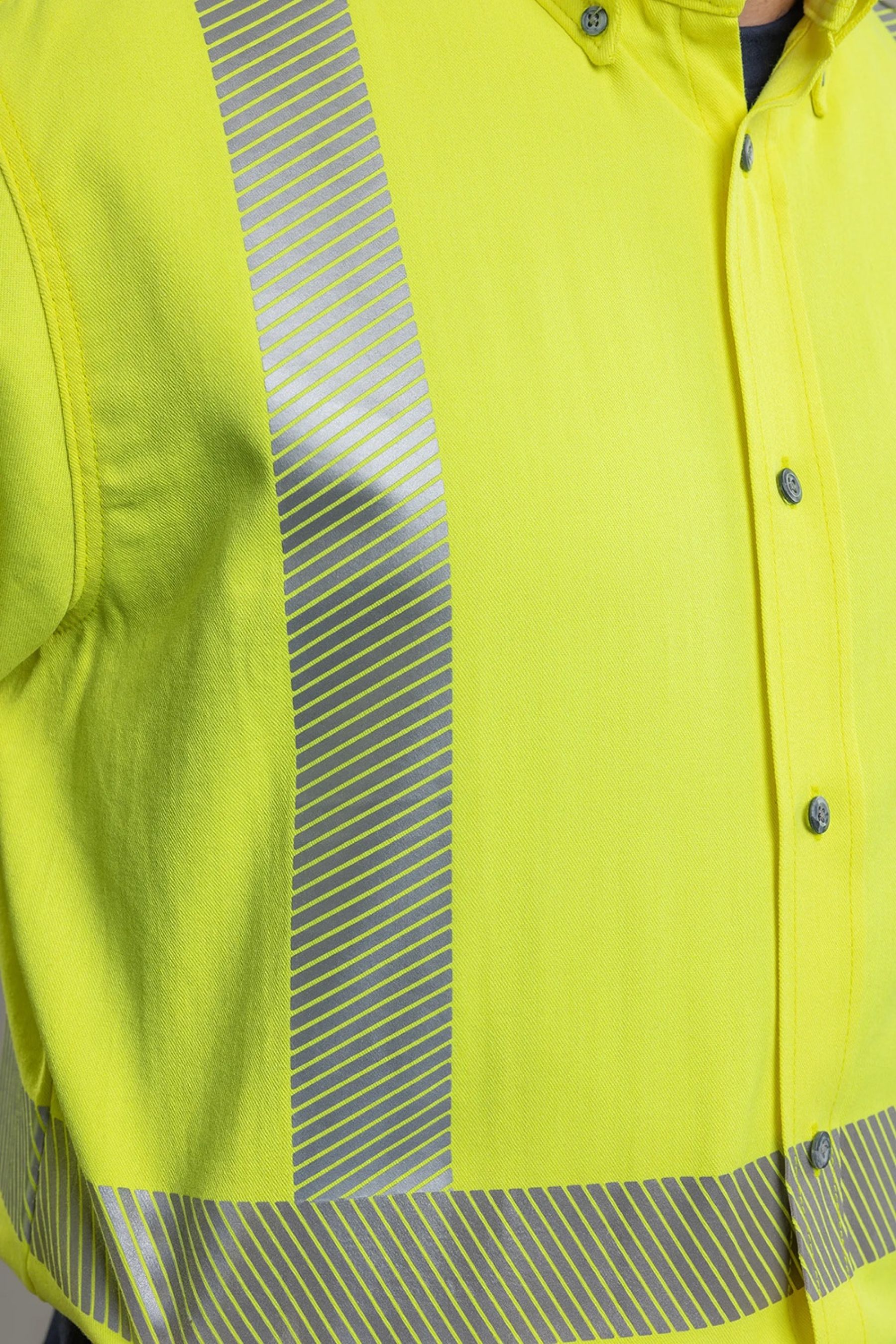

Button Down Front Closure

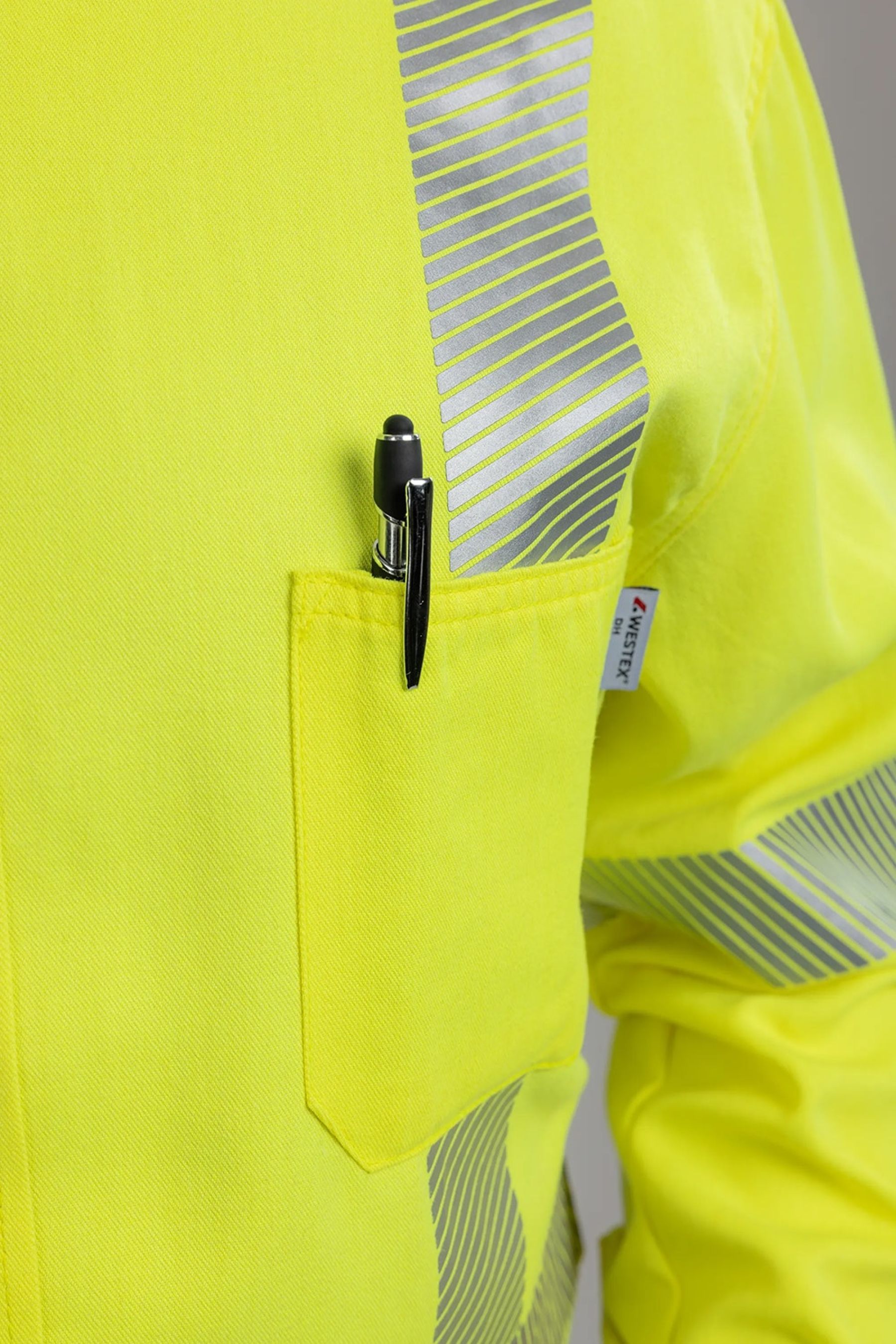

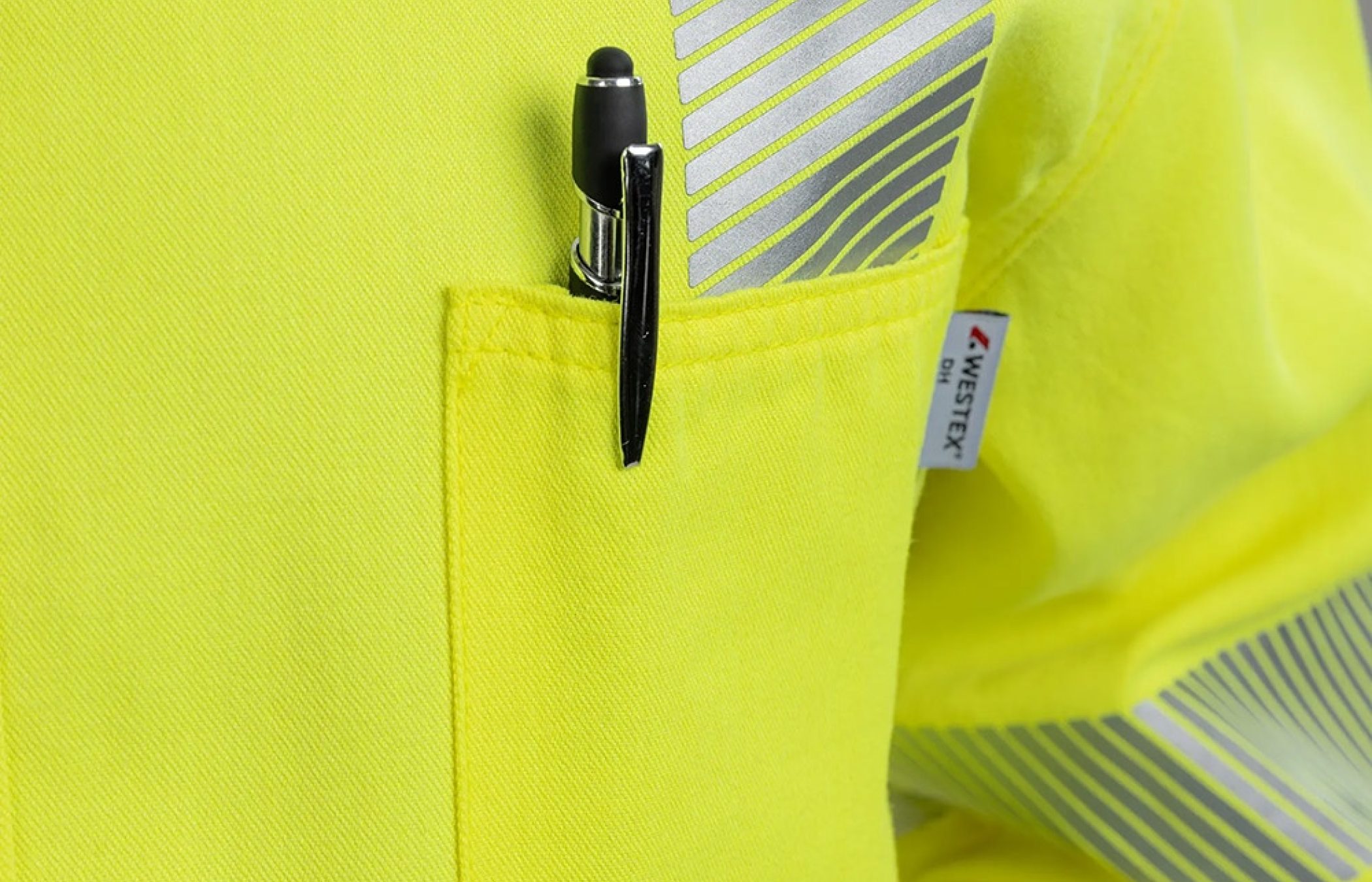

Left Chest Pocket w/ Pen Holder

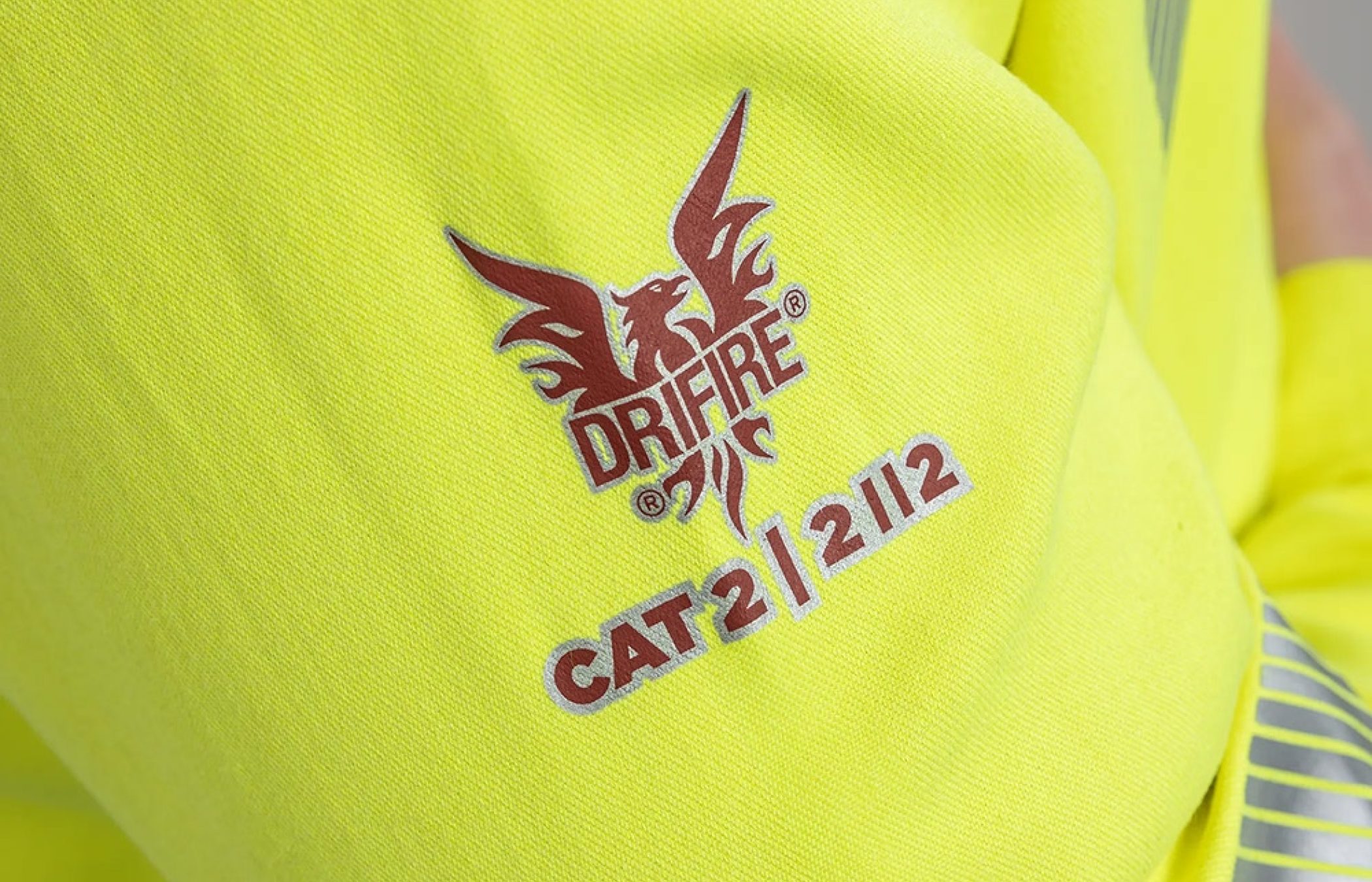

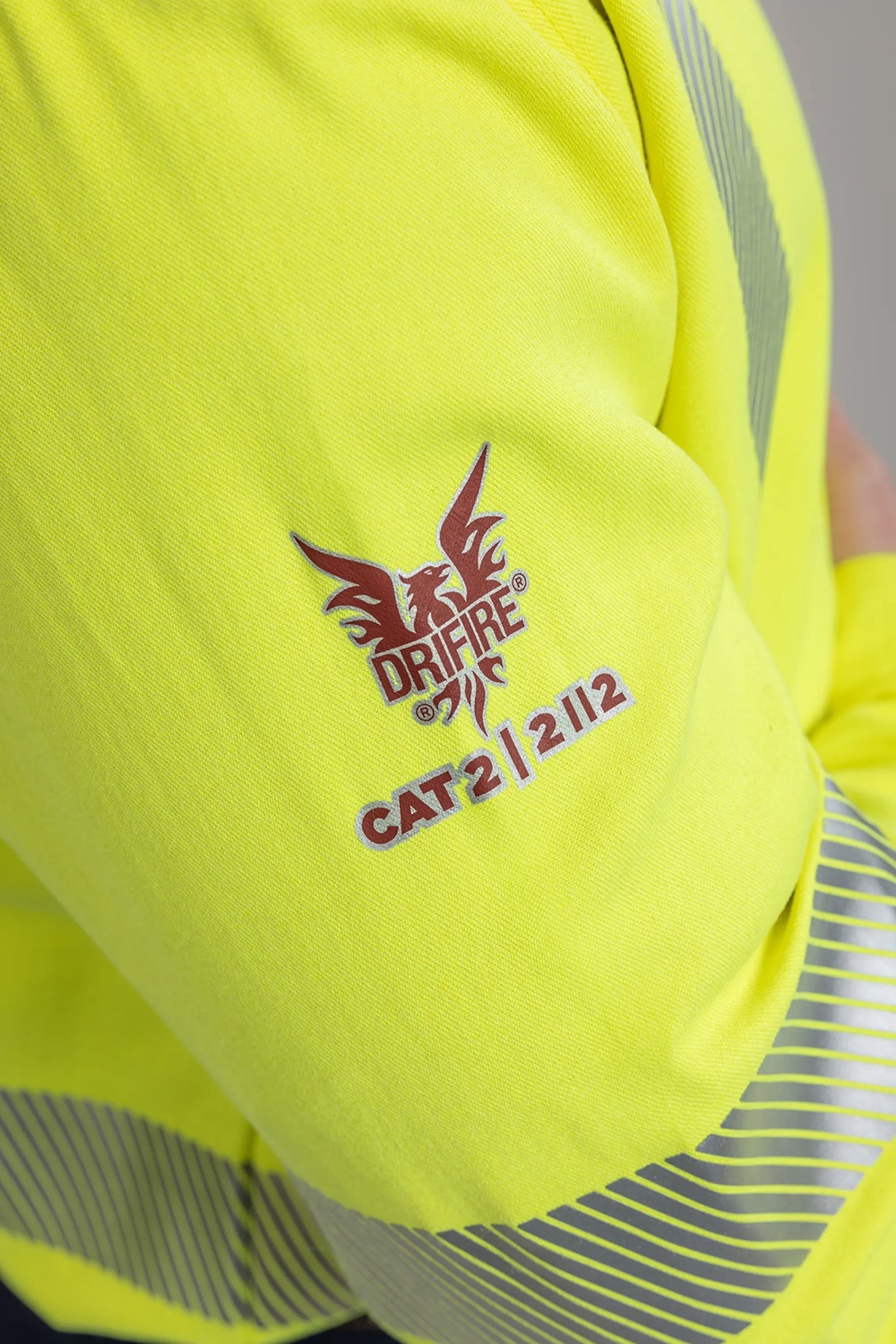

NFPA 70E PPE CAT 2 and NFPA 2112 Certified Protection

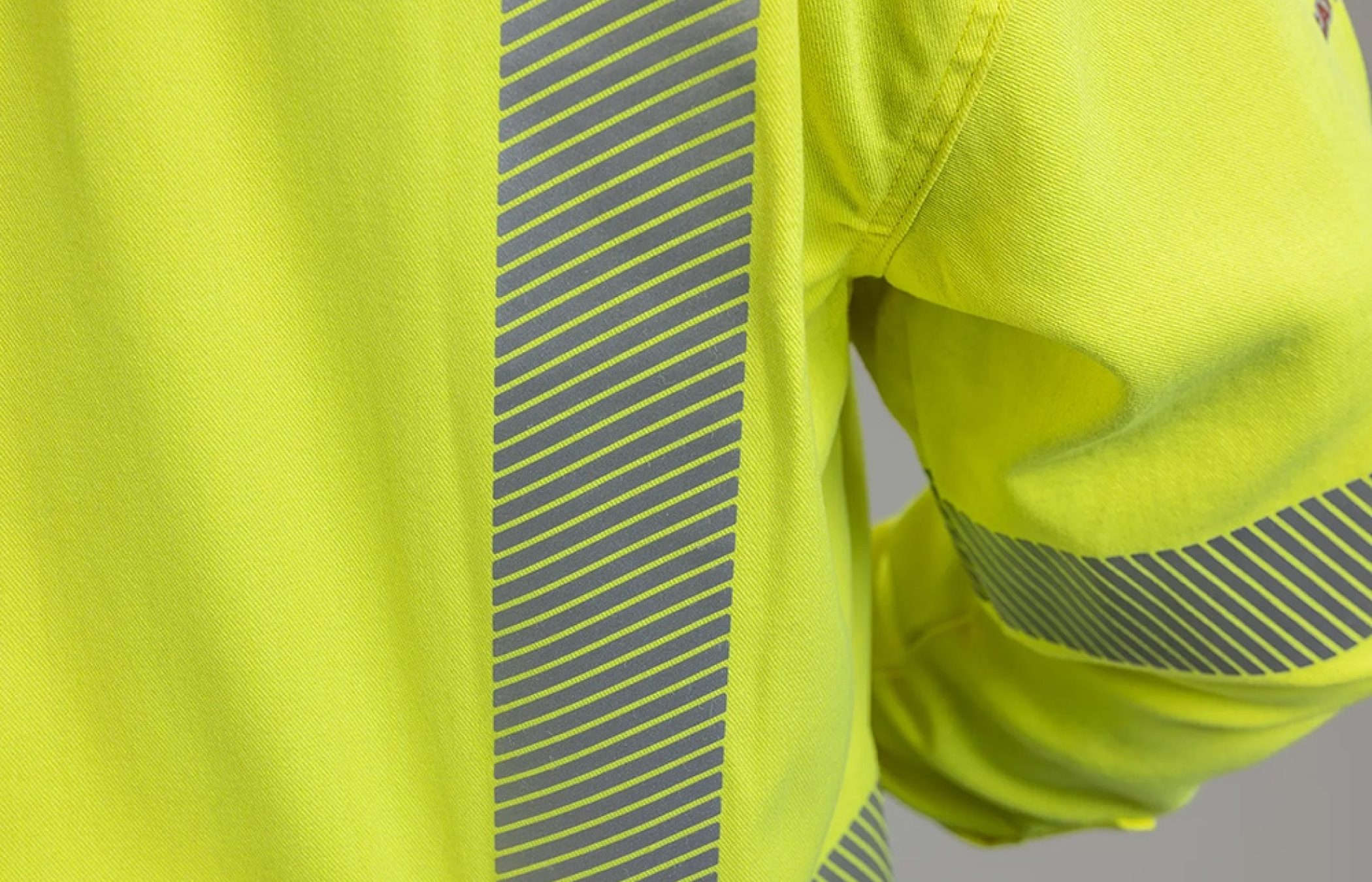

3M™ Scotchlite™ Reflective Comfort Trim

View more NSA Hi Vis FR/AR Work Apparel by downloading the NSA 2026 Catalogue (Refer pages 36 to 46).

Download NSA Catalogue

Description - High Visibility Class 3 protection with DRIFIRE® FR/AR technology, built for comfort, durability and performance. Featuring soft, moisture wicking and breathable Westex® DH fabric and 3M® Scotchlite® FR Reflective Comfort Trim to help keep workers cool, visible and ready to perform the tasks at hand.

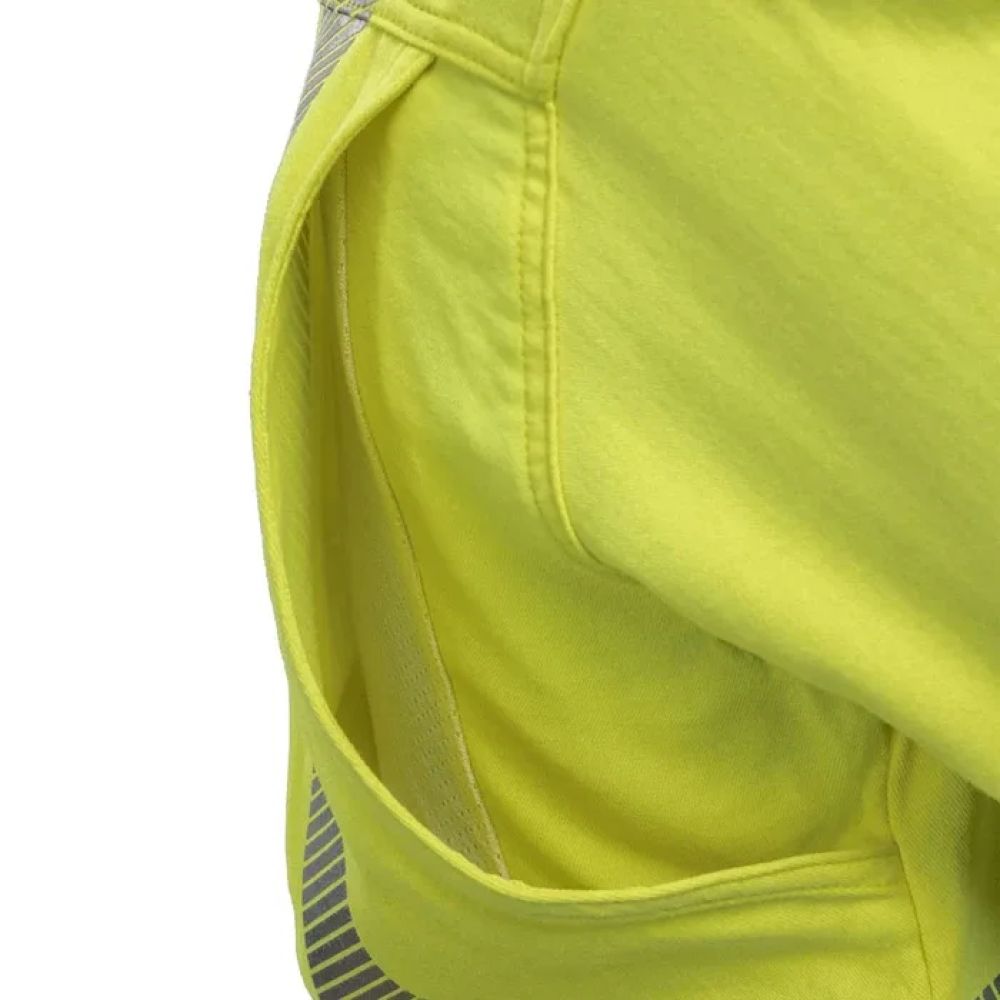

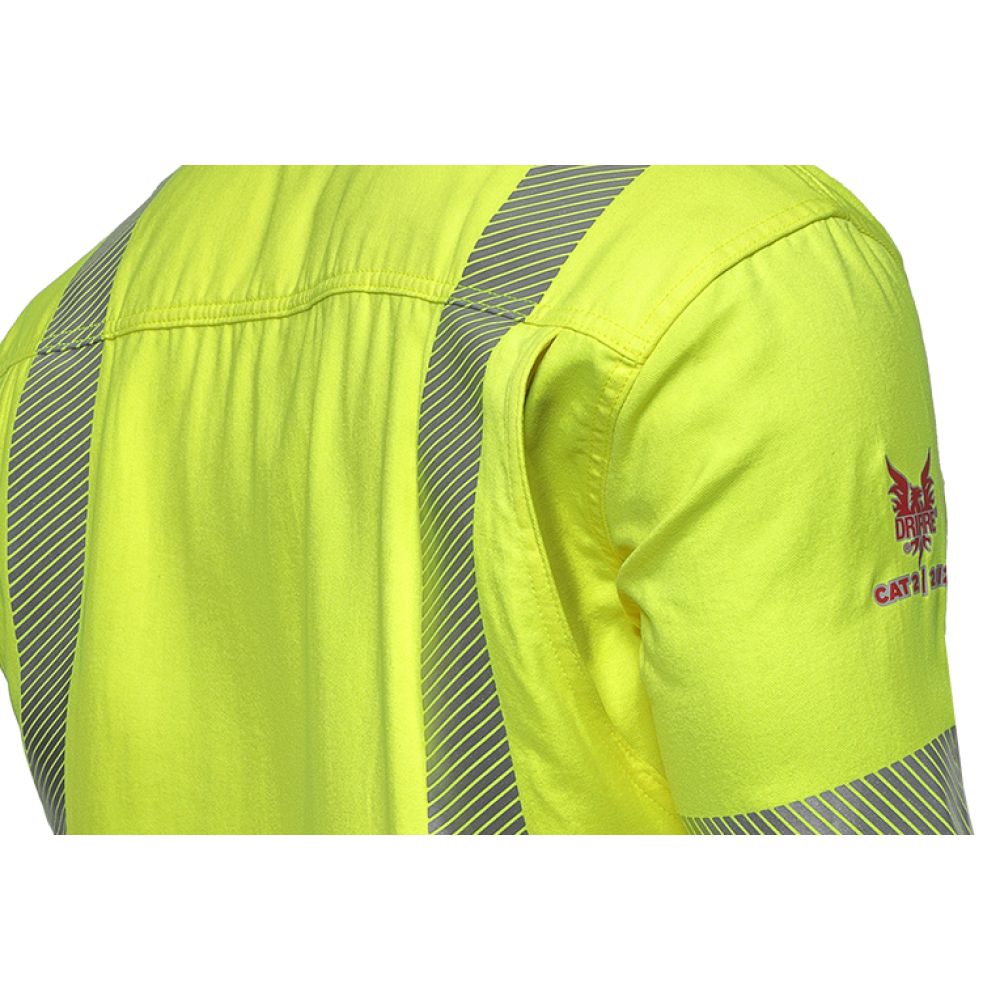

The DRIFIRE® vented Shirt provides a unique blend of comfort and professional appearance. The vent technology enhances range of motion and greatly improves breathability of the Shirt.

  • NFPA 70E for Arc Flash, UL Certified to NFPA 2112 for Flash Fire, High Visibility ANSI/ISEA Type R Class 3, ASTM F1506 for Arc Flash, CSA Z462 for Arc Flash (Canada), OSHA 1910.269.
  • Material – Fluorescent Yellow Westex® DH.
  • Fabric Weight - Fluorescent Yellow 6.5oz/220gsm.
  • ATPV - 8.9 cal/cm2 PPE CAT 2.
  • Colour – Fluorescent Yellow.
  • Product Number: SHRTVTGVC3----.

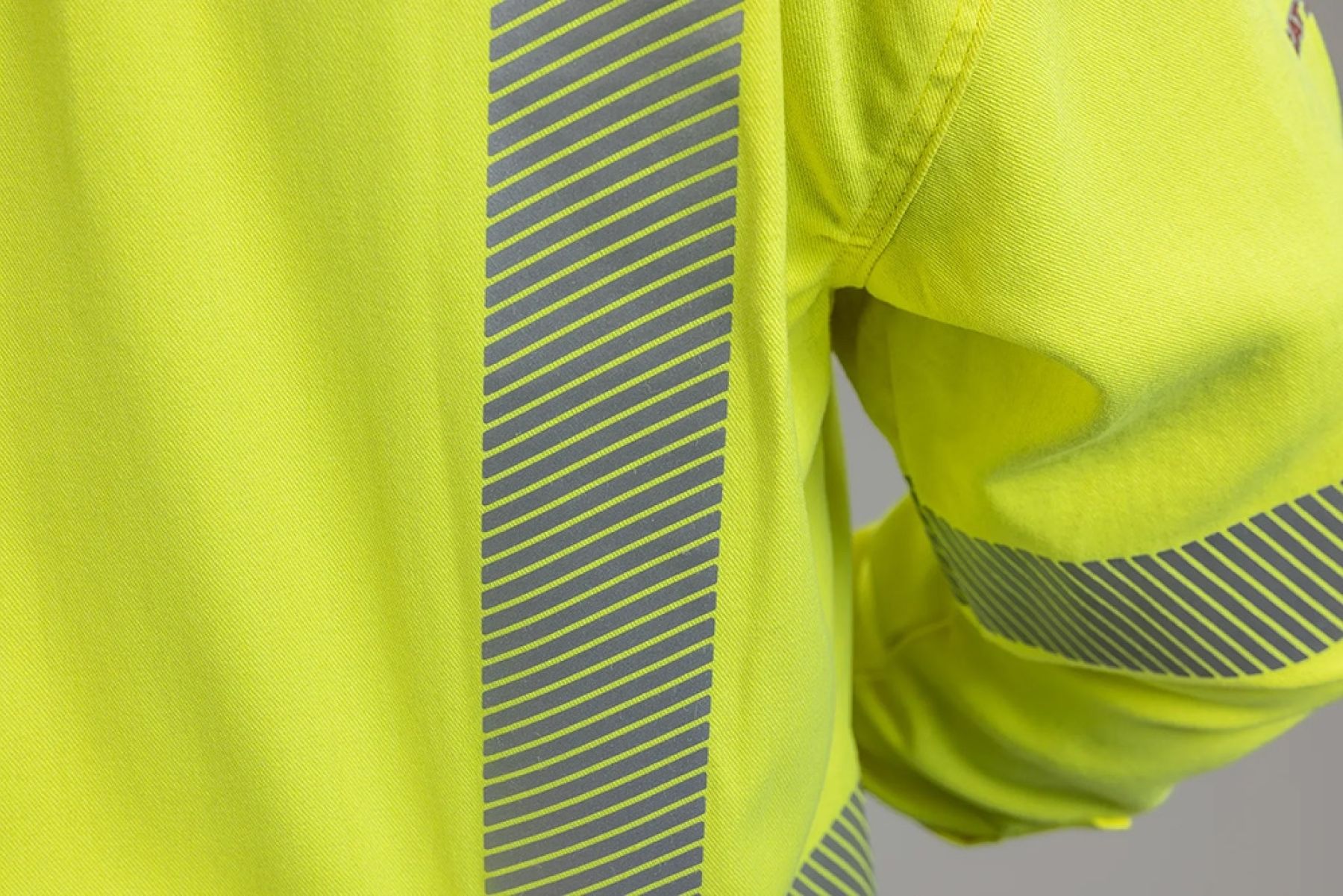

  • FR 3M™ Scotchlite™ Reflective Comfort Trim over shoulders and down chest front and back, around biceps with double hoops around lower chest and waist.
  • Premium two needle construction and anti-wrinkle technology in collar, flaps, centre front and cuffs for professional appearance.
  • Soft, super stretch mesh provides higher comfort and mobility.
  • Dual utility ports on flaps for accessories (PVD, gas monitor, flashlight).
  • Button down collar.
  • Adjustable 2-button cuff closure.
  • Two chest pockets with button down flaps, left pocket with pen holder.
  • Moisture wicking and breathable fabric for improved comfort.
  • Non-restricting cut for easy range motion.
  • Dual hazard protection against arc flash and flash fire.
  • Sizes: SM to 3X (RG), MD to 3X (TL).
  • MOQ - 10 units (across different sizes to reach MOQ).
  • Read the garment label and launder per instructions on garment label.
  • Machine wash warm on maximum 60°C (140°F). Use mild detergent. Tumble dry on medium setting.
  • DO NOT iron, use chlorine bleach, hydrogen peroxide, fabric softener or starch.
  • Wash according to the instructions above to remove any contaminants in order to maintain fabric performance when the garment becomes soiled with dirt, grease or oils.
  • If contaminants cannot be removed after laundering, it is best to discontinue use of the garment.
