DRIFIRE® FR/AR Deluxe Insulated and Unlined Bib Overalls

Premium Dual-Hazard FR/AR Protection: Arc Flash, Flash Fire, Breathable, Exceptional Durability. 100% FR Cotton Duck 13oz/440gsm , DWR With Quilted Liner 10.5oz/356gsm (and without Quilted Liner) - 16 CAL | CAT 2.

Downloads:

Product PDF
Enquire

Since 1935, National Safety Apparel has been a leader in delivering advanced safety solutions for workers in high heat and industrial environments. NSA's extensive range of USA-made PPE includes protective workwear for workers facing extreme heat, arc flash, flash fire, molten metal, cut and abrasion hazards. Whether in foundries, mills or industrial manufacturing, NSA solutions are designed to safeguard workers in the toughest environments.

DRIFIRE® high-performance FR/AR work wear is built for those who demand both comfort and protection in tough environments. With innovative designs and advanced fabric technology, DRIFIRE® workwear works as hard as you do.

The same technology that keeps American troops safe abroad protects workers around the globe, helping workers to perform the most hazardous tasks with confidence. DRIFIRE® is mission-driven and performance-obsessed, delivering workwear that supports workers every step of the way.

APPLICATION: Arc Flash, Flash Fire, High-Risk Industrial Environments.

About DRIFIRE® FR/AR

DRIFIRE® FR/AR Deluxe Unlined Bib Overall

Match the DRIFIRE® Deluxe Insulated and Deluxe Unlined Bib Overalls with the DRIFIRE® FR/AR Insulated Jacket

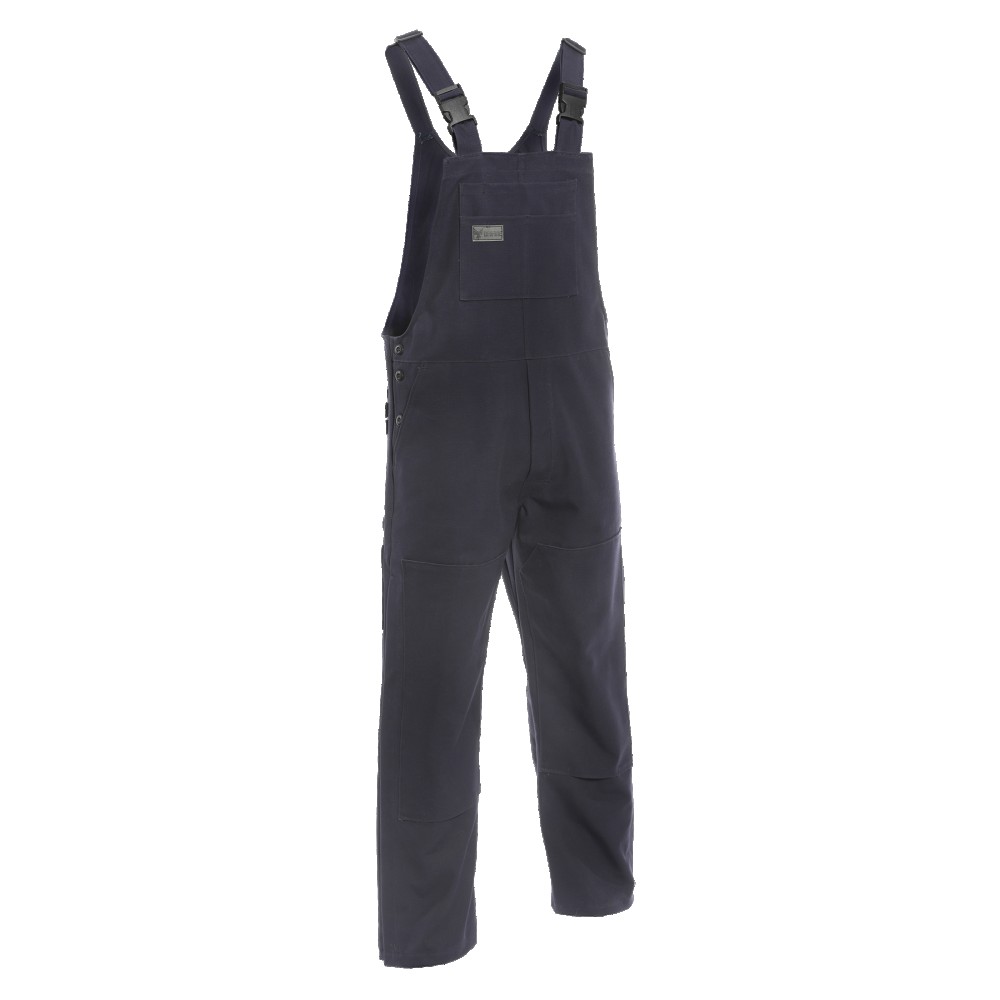

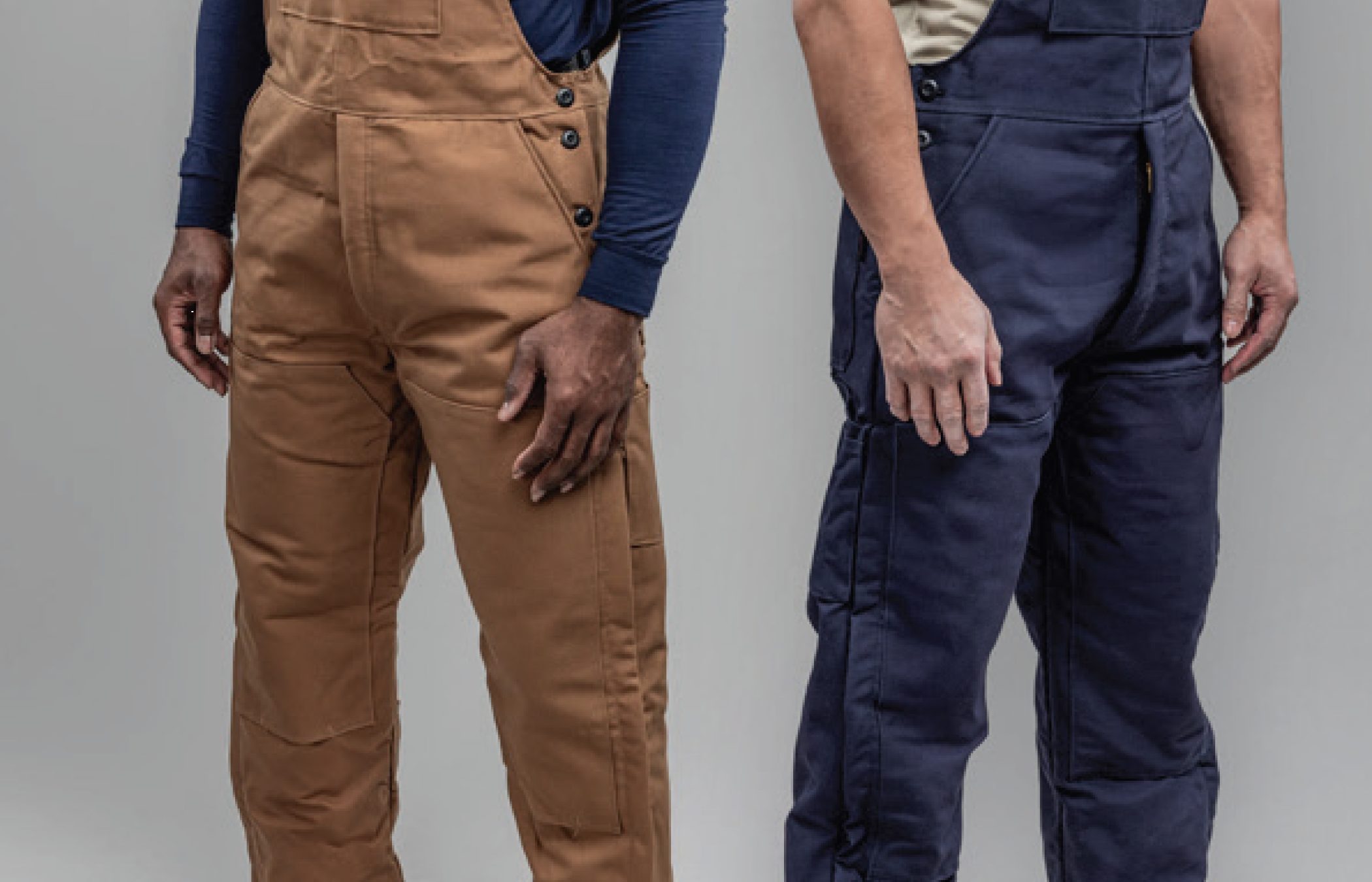

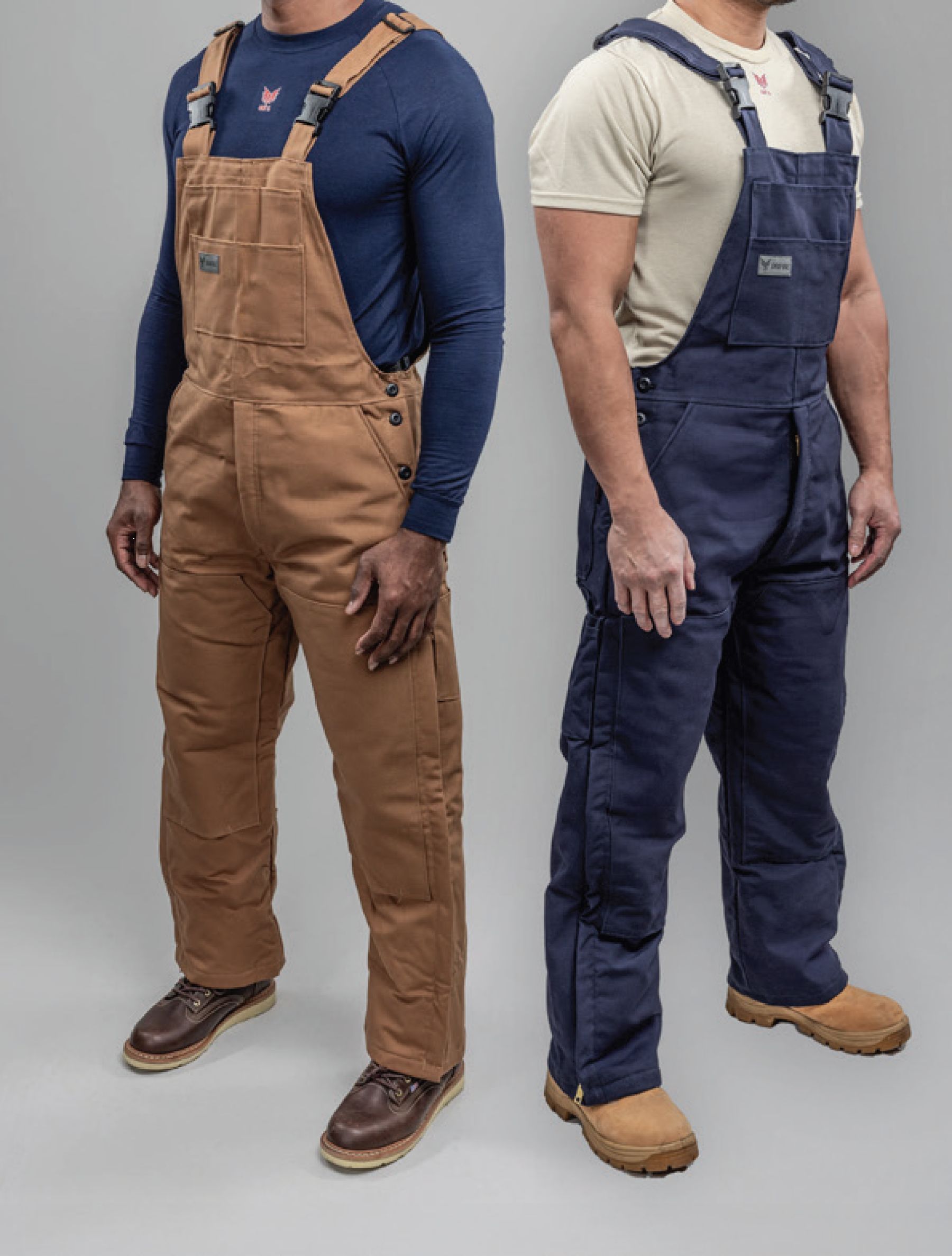

DRIFIRE® FR/AR Deluxe Insulated / Unlined Bib Navy and Brown

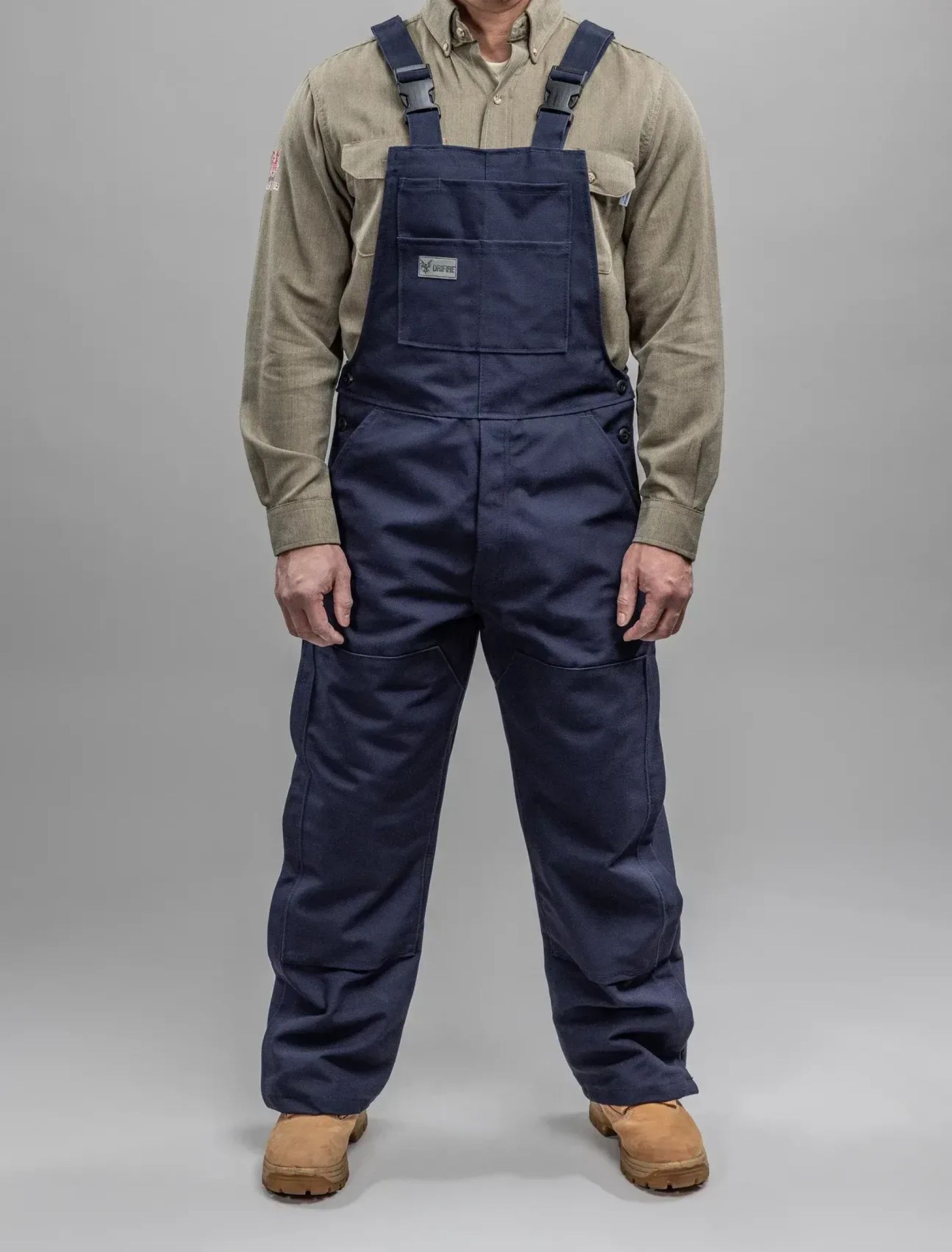

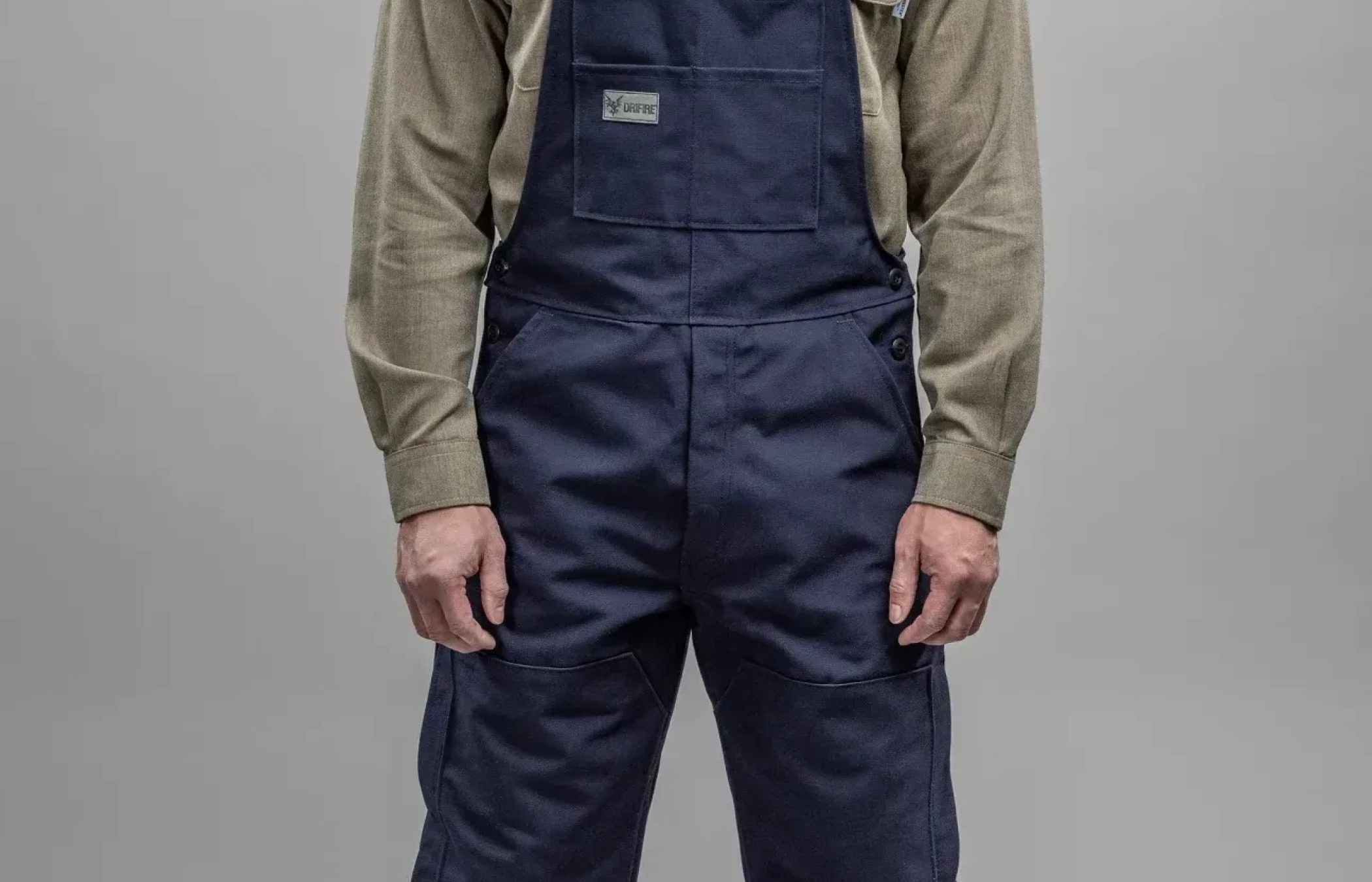

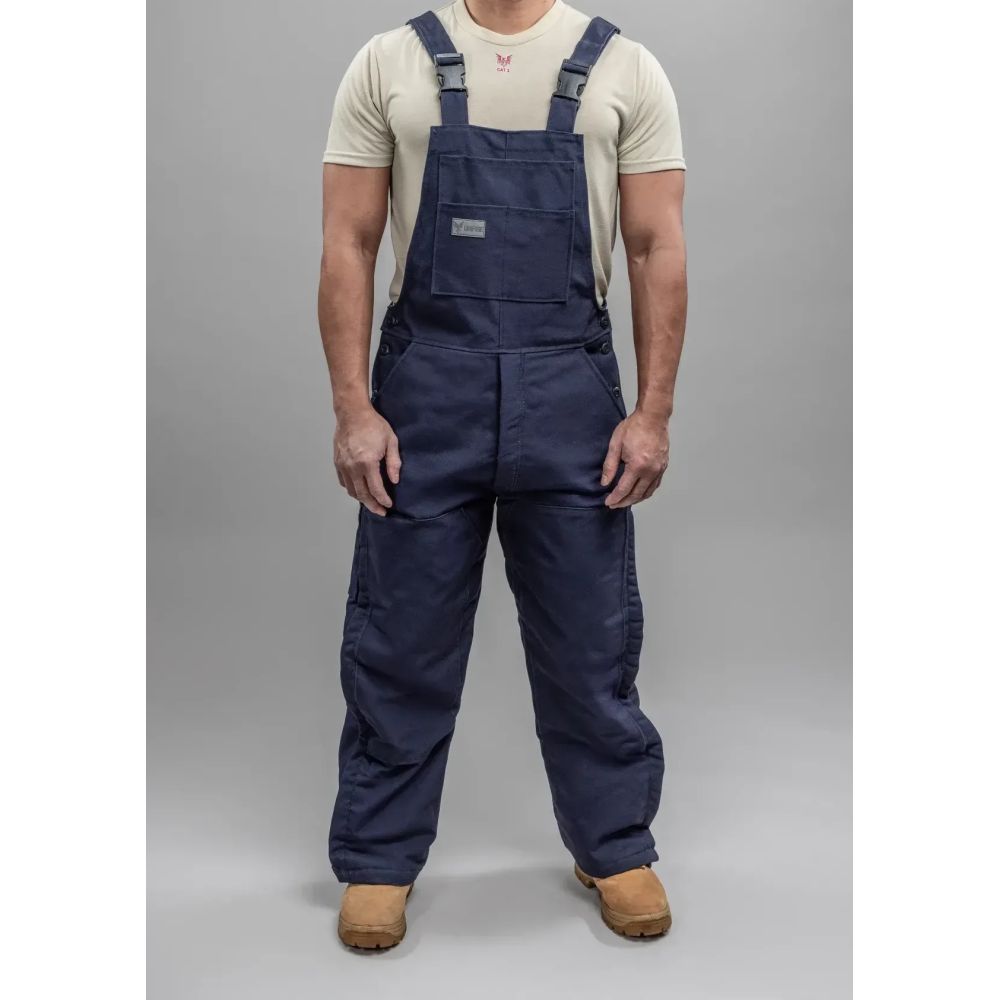

DRIFIRE® FR/AR Deluxe Unlined Bib Front

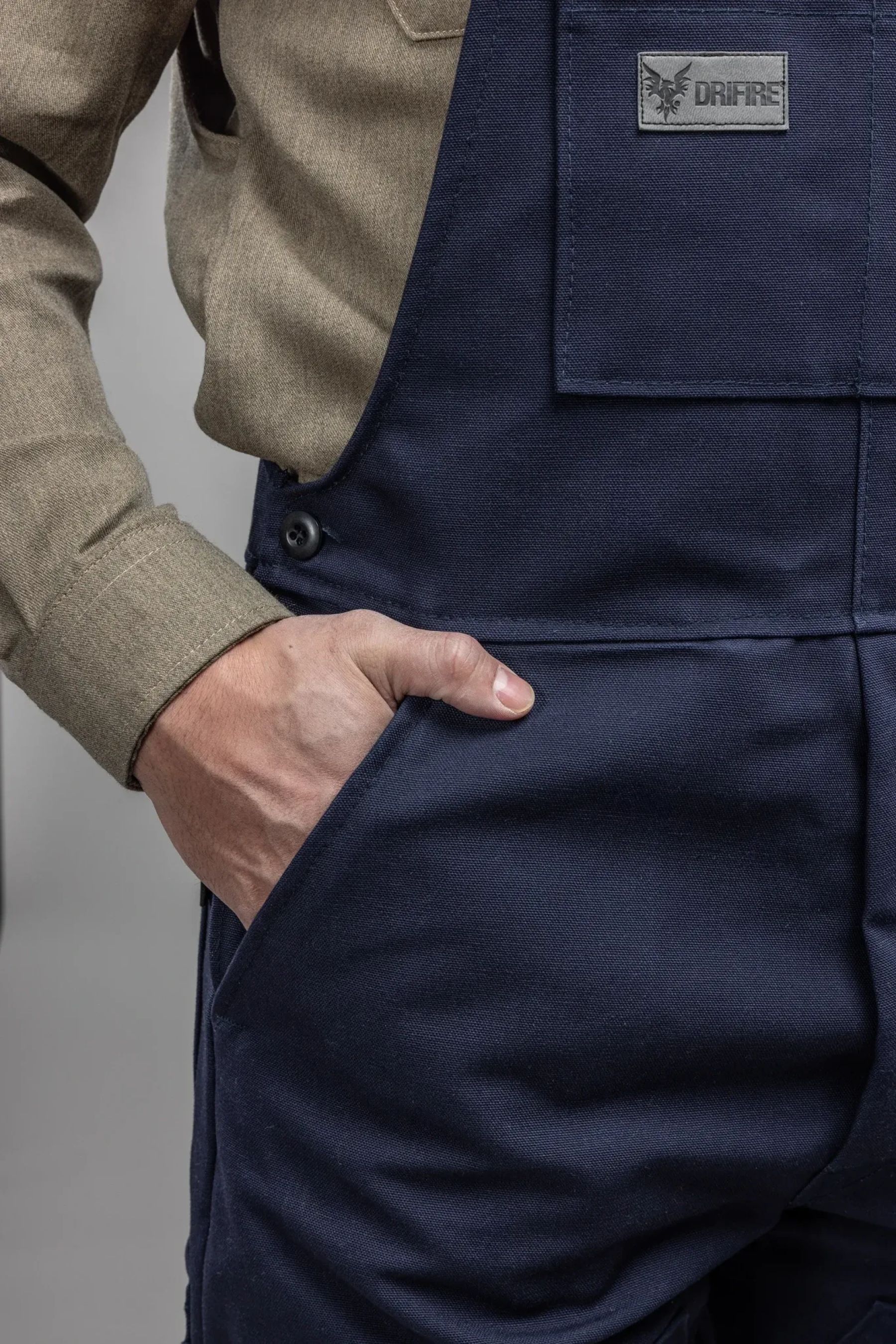

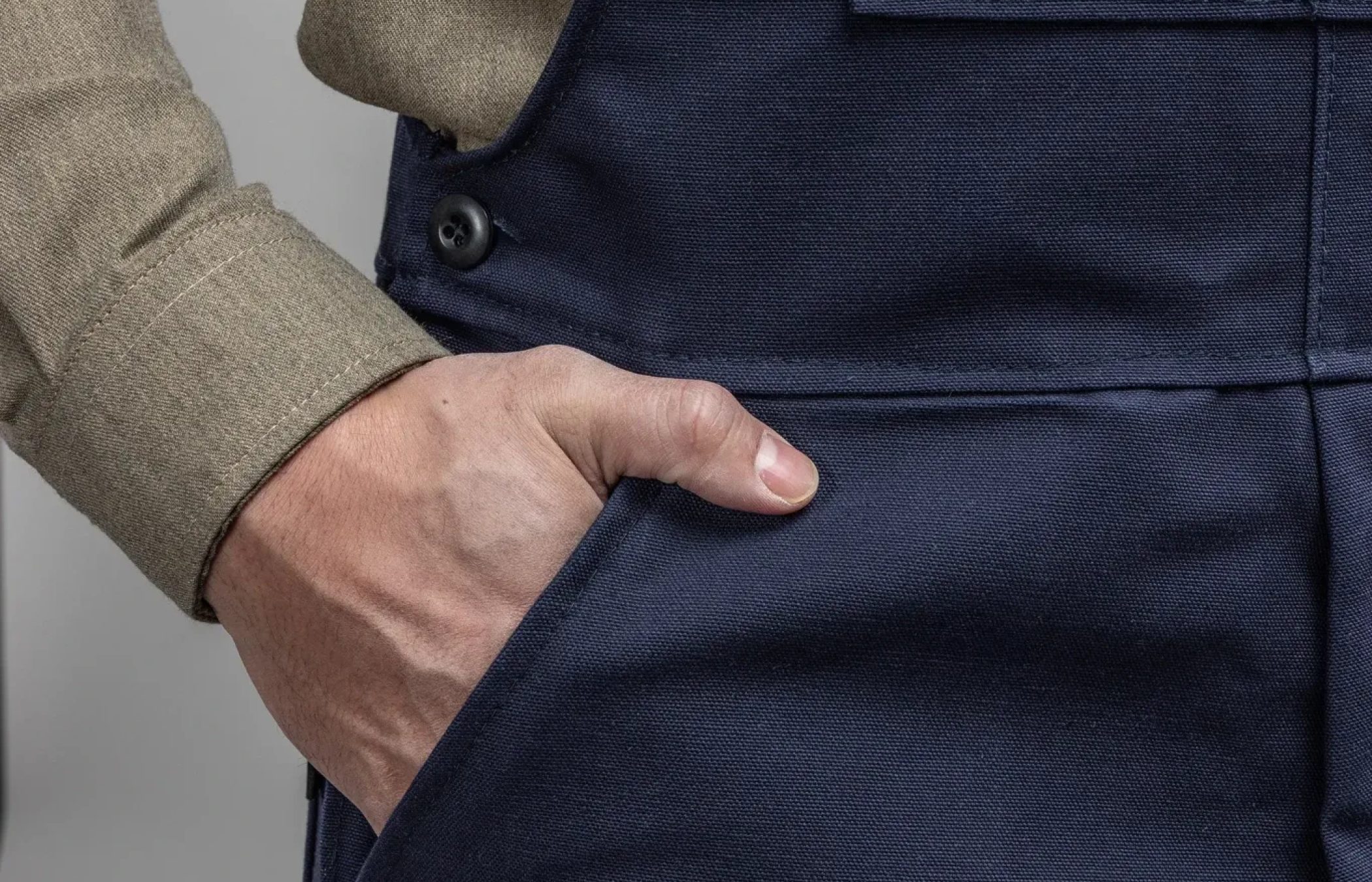

DRIFIRE® FR/AR Deluxe Unlined Bib Side Pockets

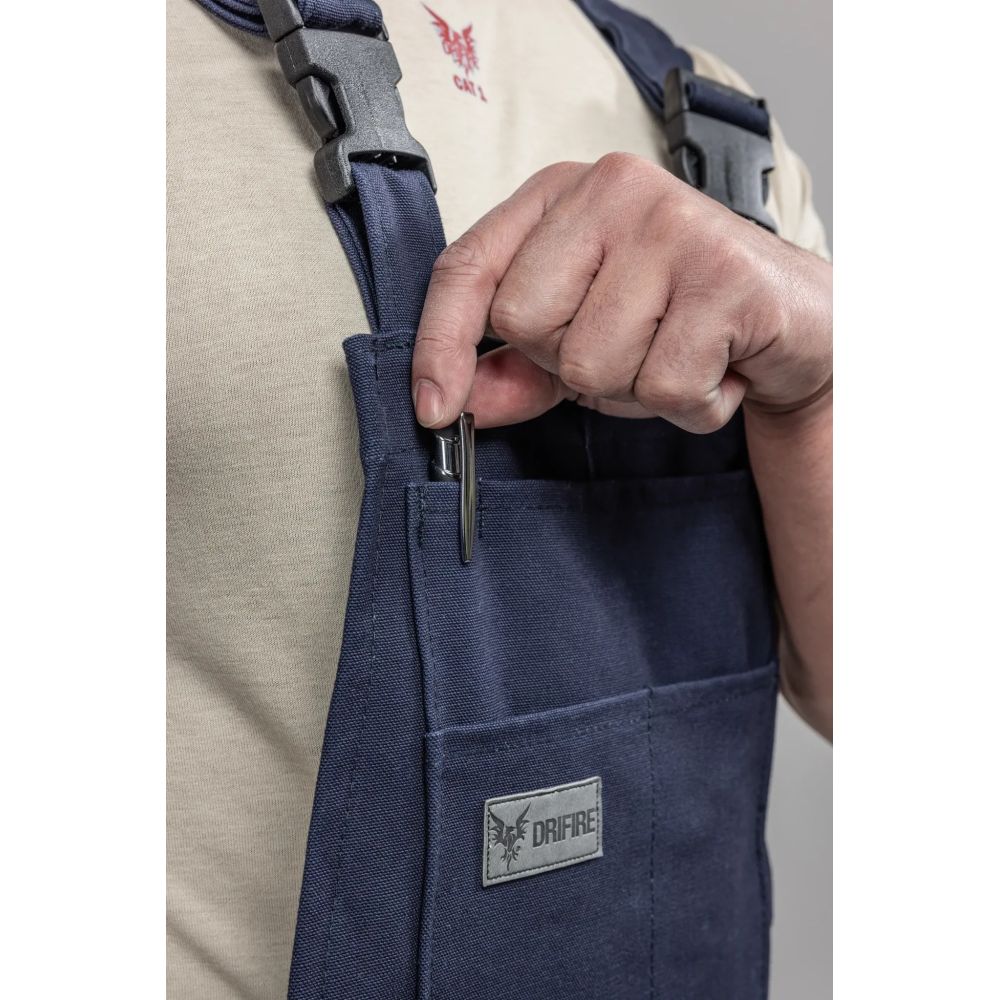

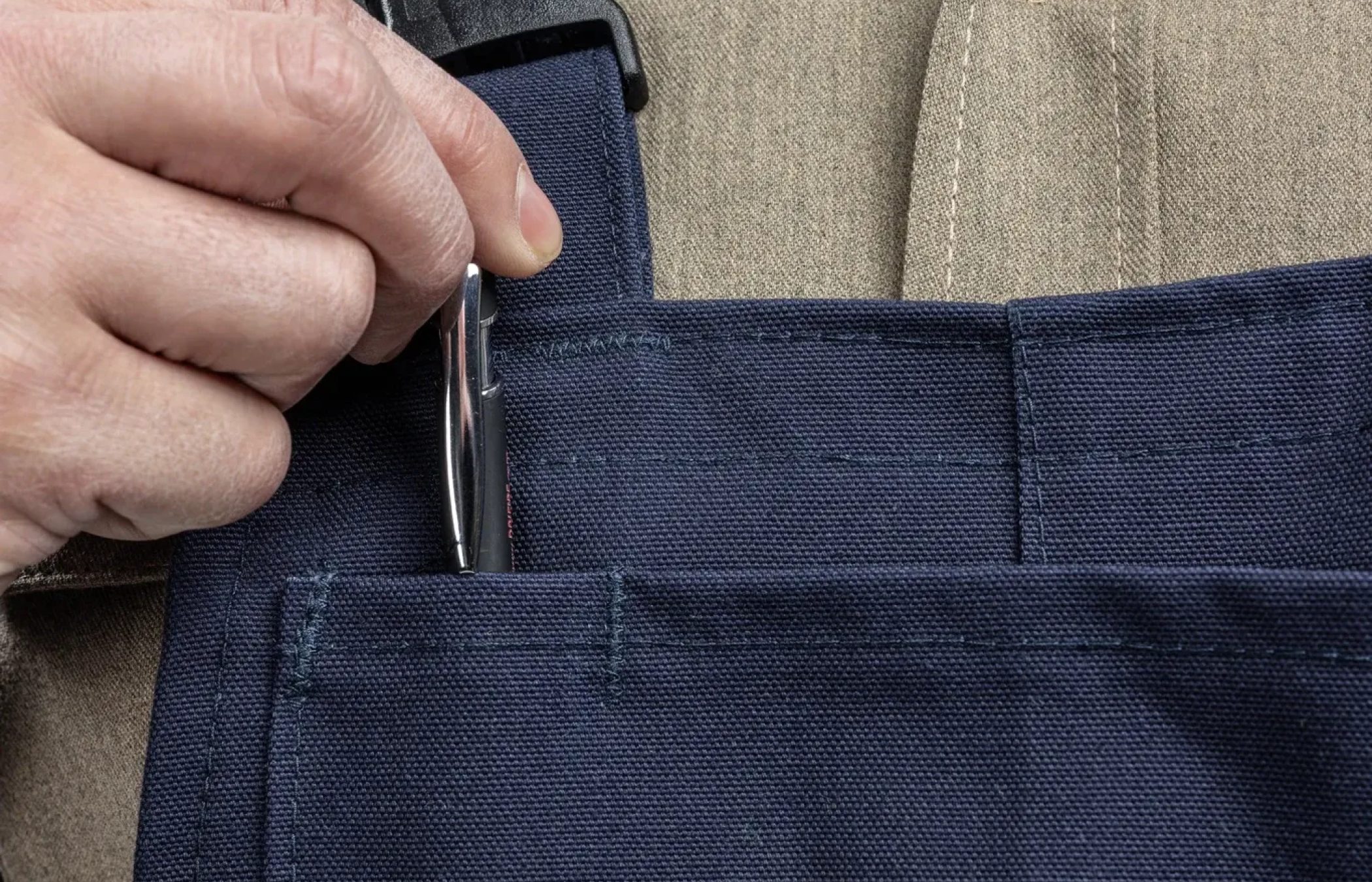

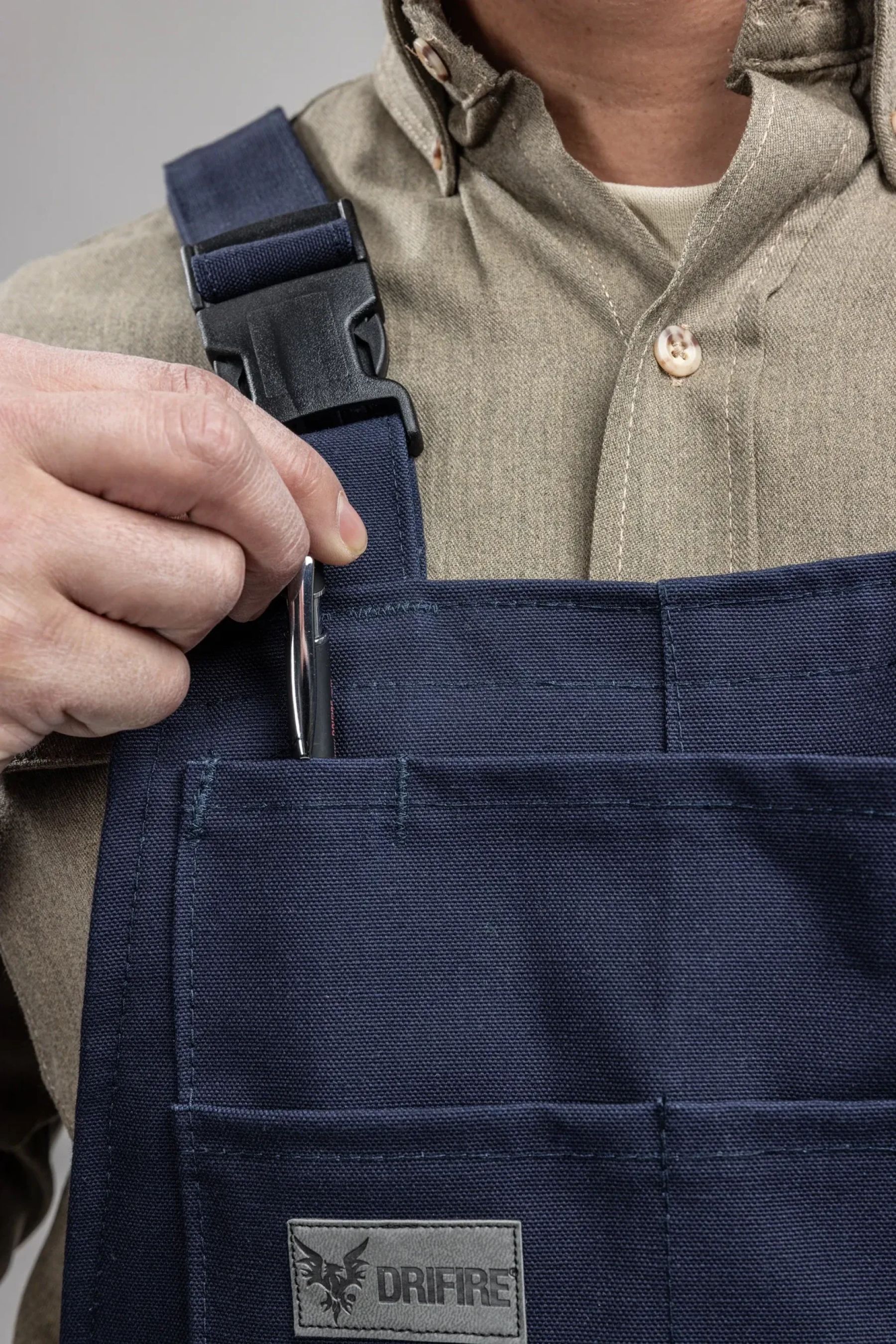

DRIFIRE® FR/AR Deluxe Unlined Bib Front Pockets

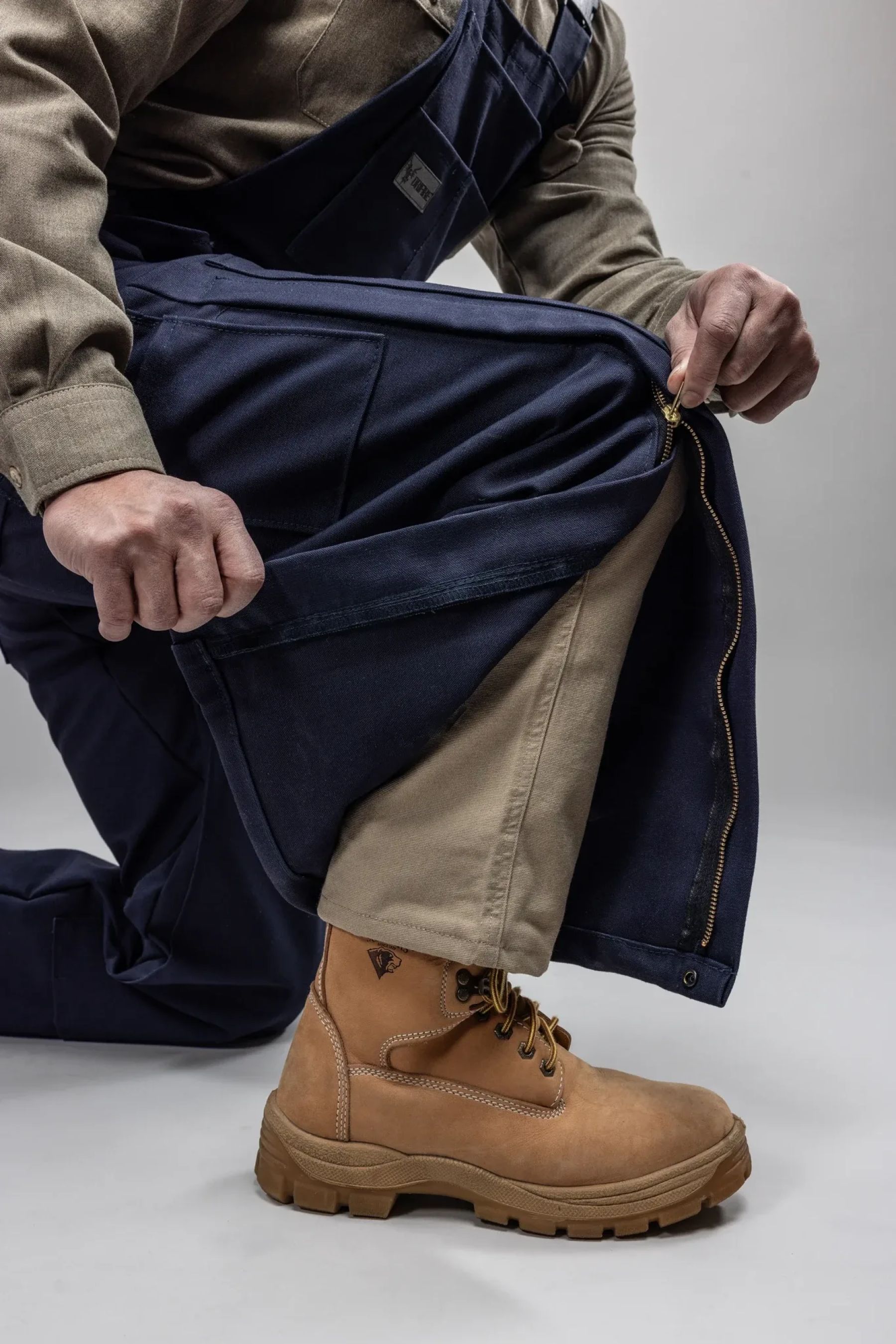

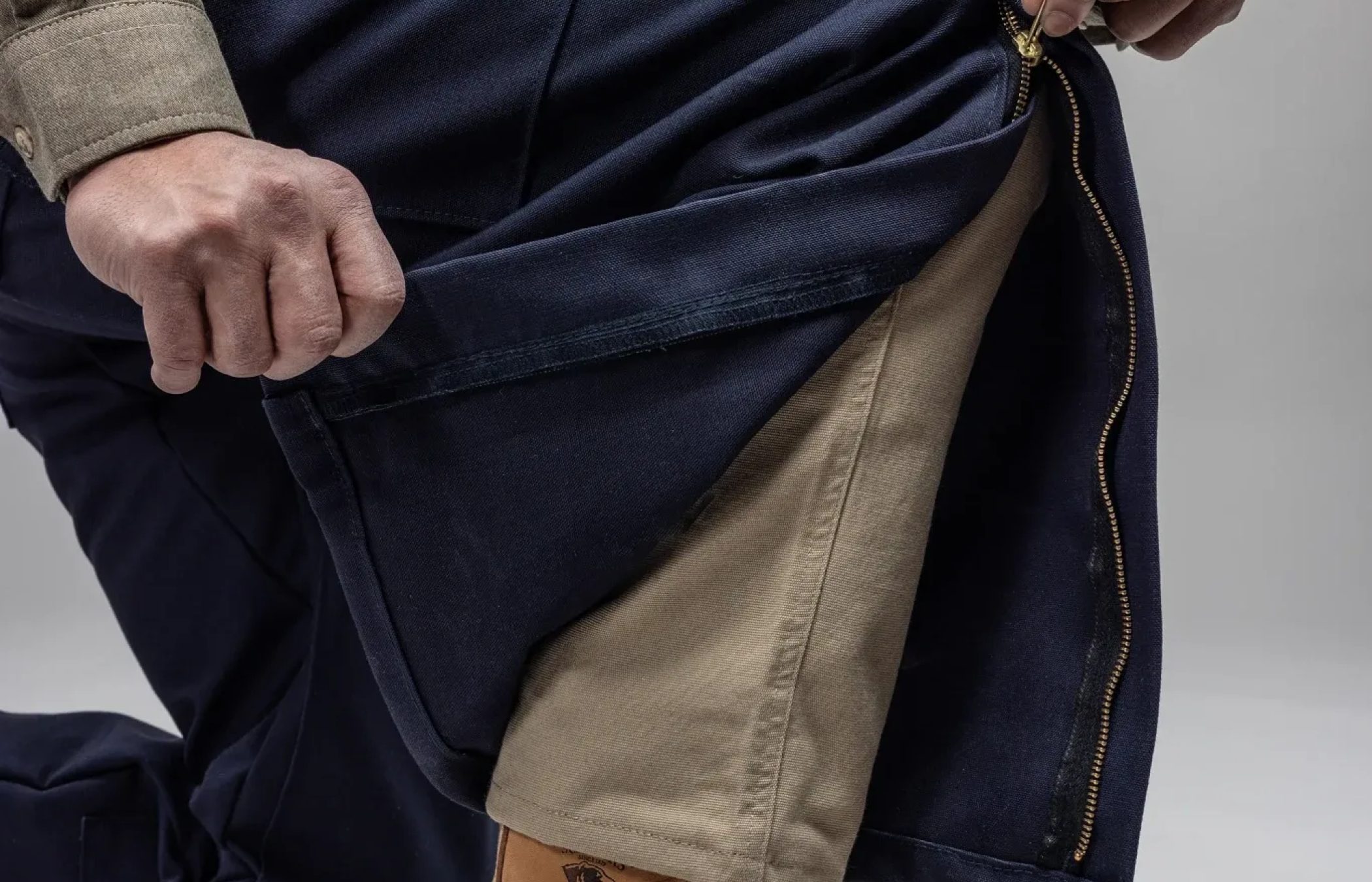

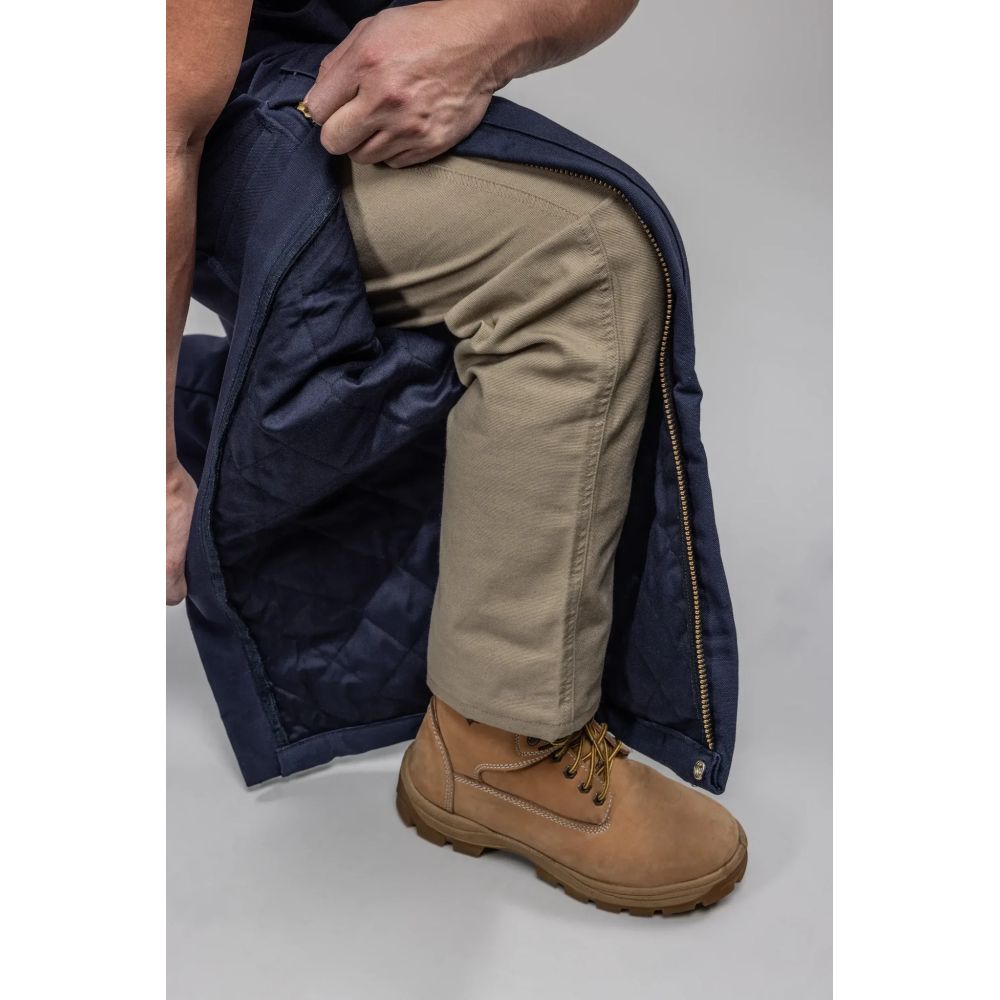

DRIFIRE® FR/AR Deluxe Unlined Bib 26" Leg Zippers

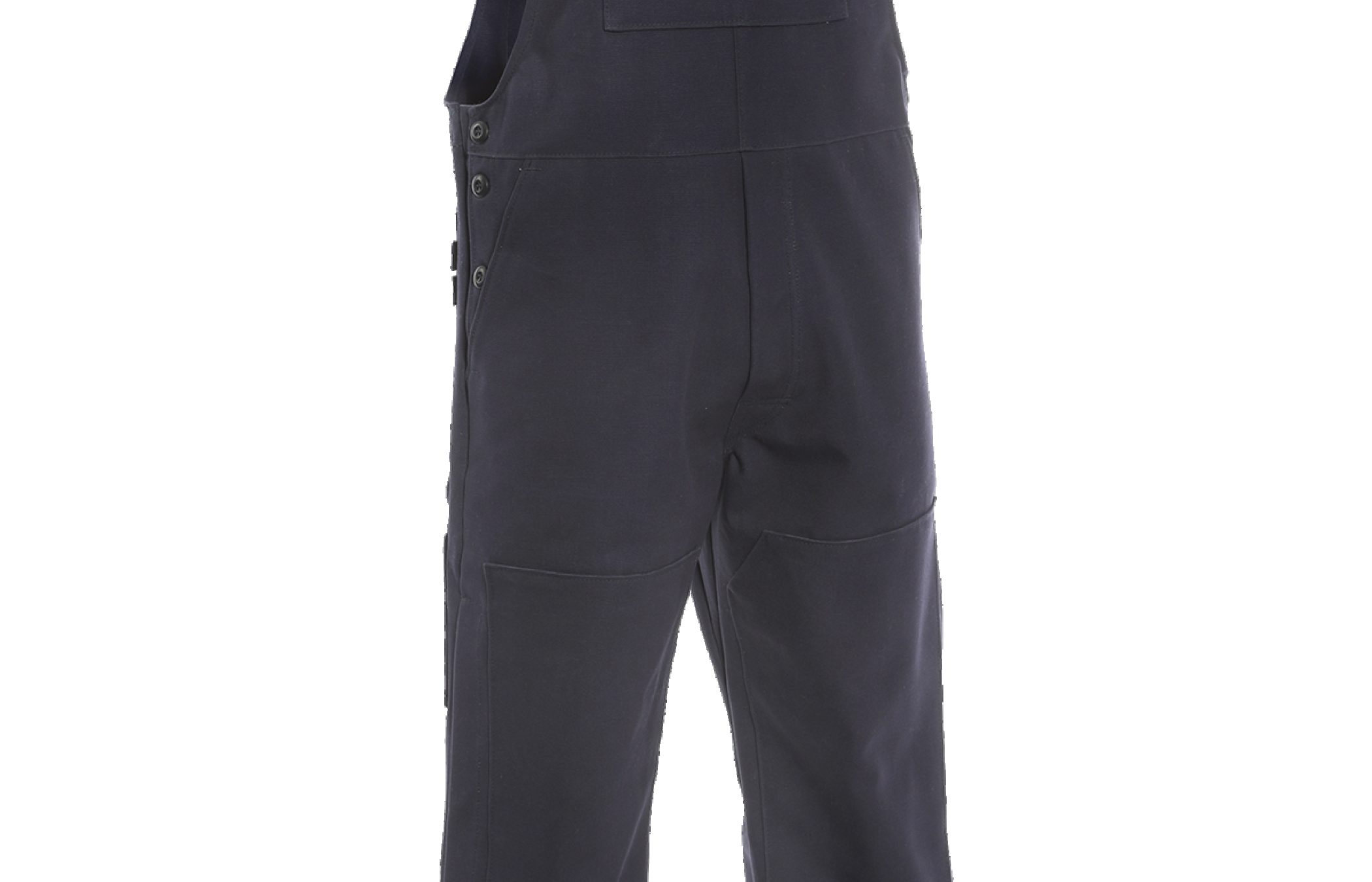

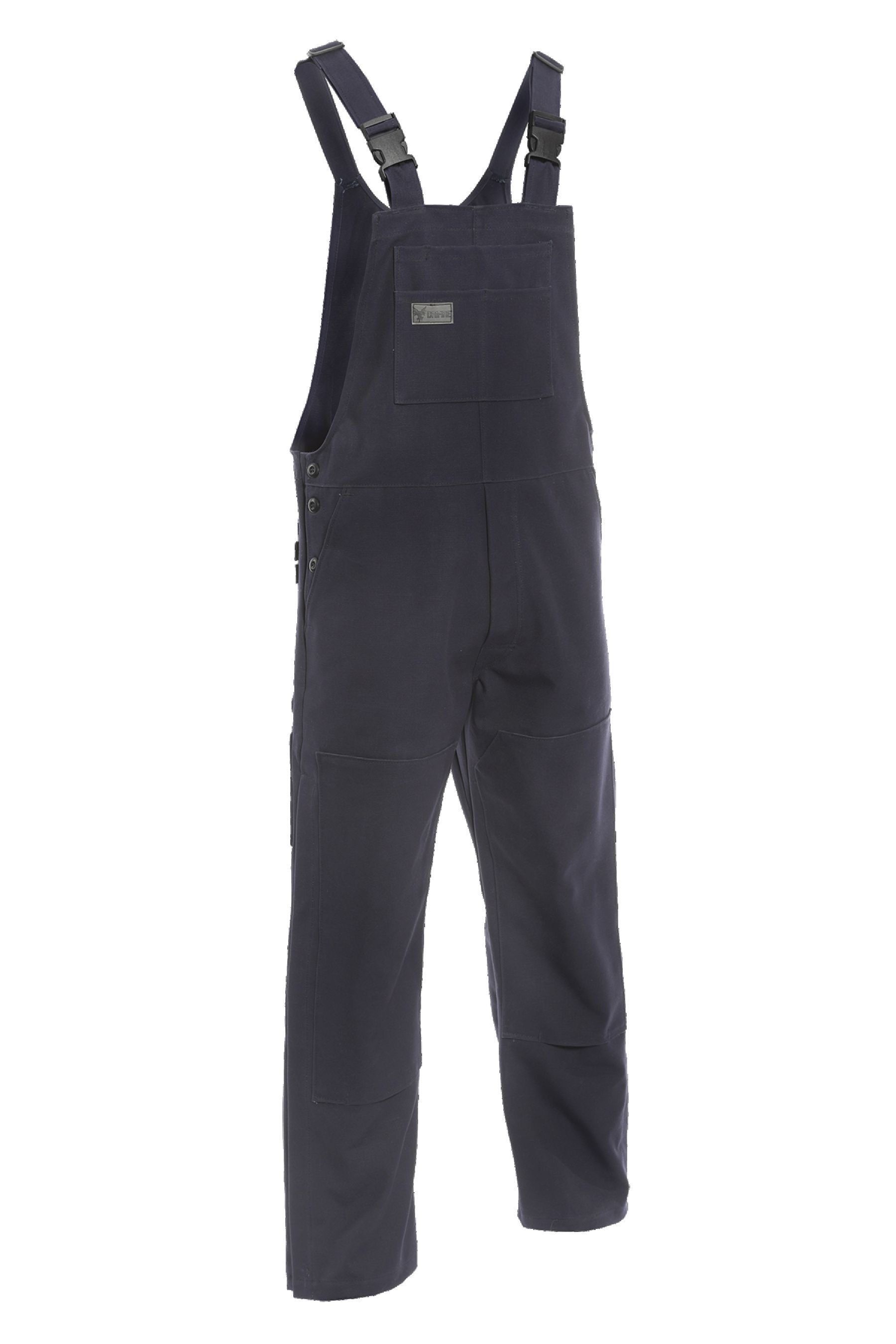

DRIFIRE® FR/AR Deluxe Unlined Bib

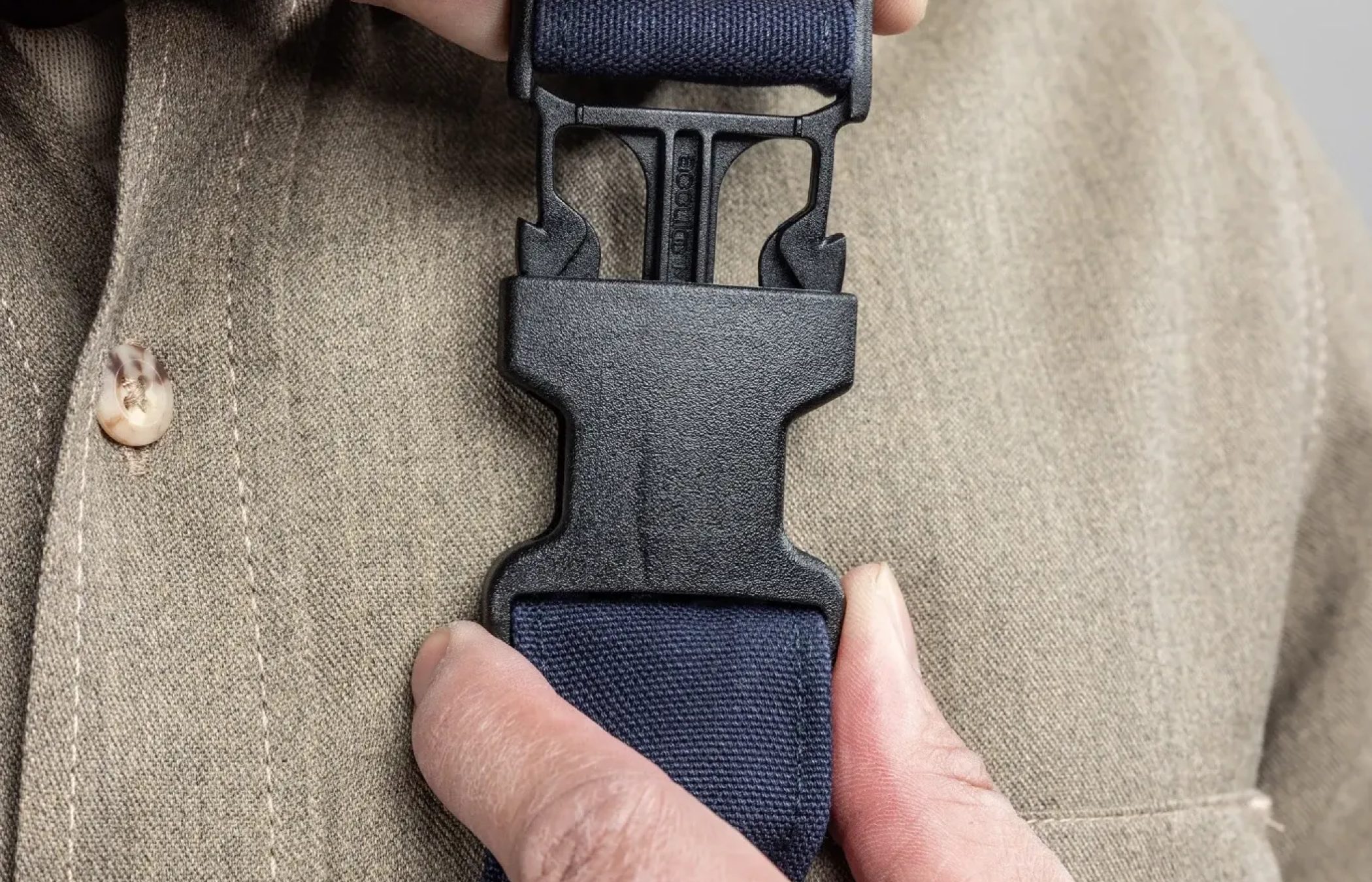

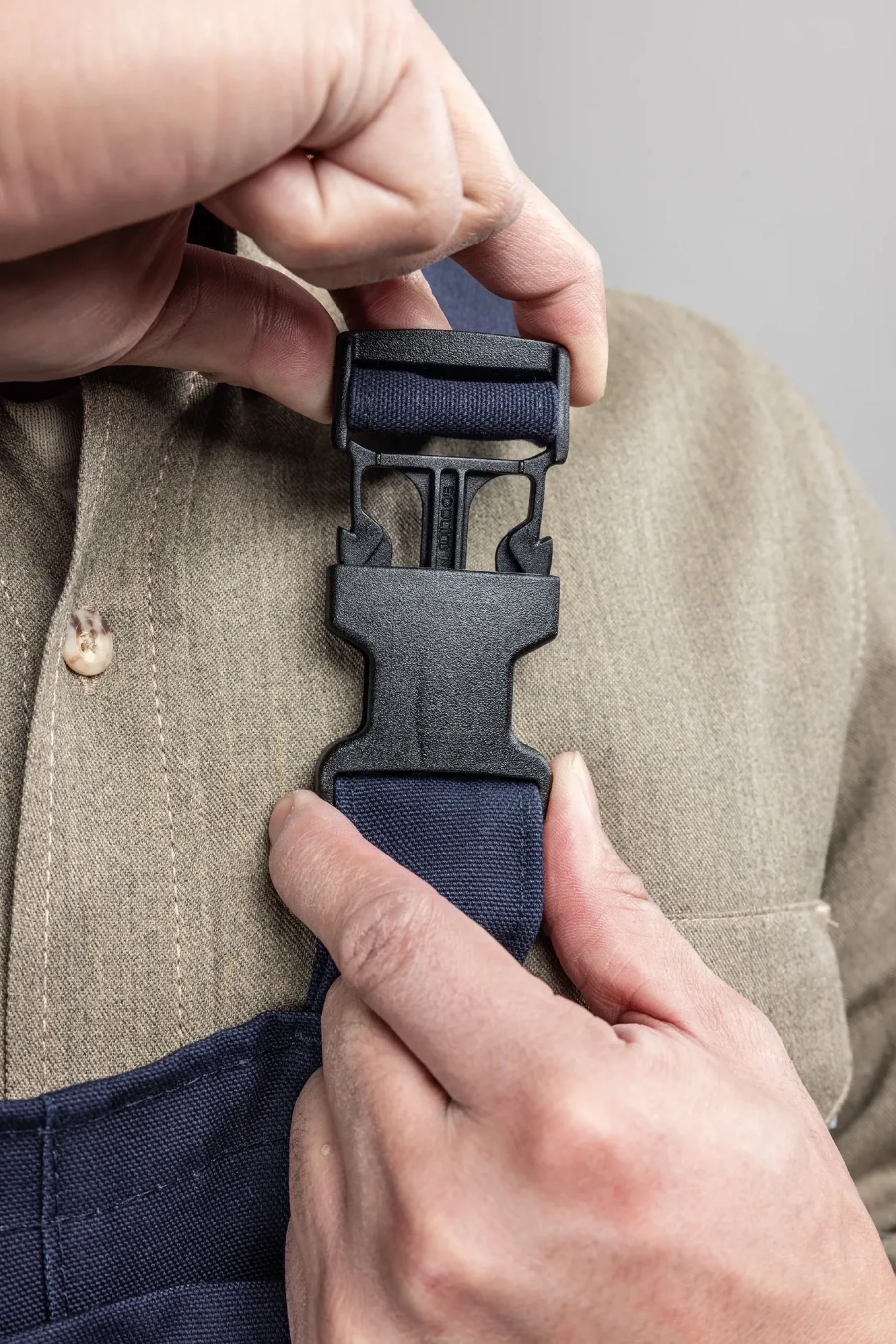

DRIFIRE® FR/AR Deluxe Unlined Bib Quick Disconnect Buckles

100% FR Cotton Duck, DWR with Quilted Liner (13oz/440gsm | 10.5oz/356gsm)

On its own, a single layer of 13oz FR Cotton Duck provides an ATPV of around 16 cal/cm2. This means it protects against incident thermal energy levels far exceeding the standard 8 cal/cm2 minimum threshold required for NFPA 70E Category 2 compliance. The fabric is engineered to meet NFPA 2112 flash fire certification standards. This guarantees that the fabric will not ignite, melt or continue to burn once the flame source is removed, significantly lowering body burn percentages.

100% Cotton Duck Is a heavy, tightly woven fabric known for its exceptional durability and snag resistance. The Durable Water Repellent (DWR)  finish applied to the outer shell causes water to bead up and roll off.

Key Advantages

  • High Arc Thermal Performance: The 13oz weight is heavy enough to achieve substantial stand alone arc ratings, easily reaching CAT 2 and higher (when paired with other FR/AR fabrics).
  • Char Formation: Upon contact with intense heat, the treated natural Cotton fibres rapidly carbonise to form a thick, protective ash layer. This layer acts as a thermal barrier, blocking heat transfer to the wearer's skin.
  • No Melting or Molten Dripping. Secondary burns are eliminated - the fabric does not melt and fuse to the wearer's skin when exposed to extreme heat.
  • Slag and Spark Shedding: The tight, smooth Duck weave naturally deflects welding sparks, hot embers and minor molten metal splashes, preventing the heat from burning through the garment.

View more NSA FR/AR Work Apparel by downloading the NSA 2026 Catalogue (Refer page 32).

Download NSA Catalogue

The DRIFIRE® FR/AR Deluxe Insulated Bib Overall is dual certified to protect against arc flash and flash fire hazards. The water repellent Duck helps shed moisture while the lightweight quilted Liner keeps you warm. This Bib Overall features convenient disconnect adjustable buckles at each shoulder strap and 26" zipper calf closure for easy boot entry and also features plenty of pockets to carry what you need close at hand.

The DRIFIRE® FR/AR Deluxe Unlined Bib Overall (without the Quilt Liner) is your go-to in durability and functionality. Features include ten different pockets, double chap front for extra durability, plus openings to insert knee pads. Quick disconnect straps and extra long FR leg zippers make this Bib Overall easy to get on, even without taking off your boots.

Both Bib Overall types provide exceptional NFPA 70E arc flash and NFPA 2112 flash fire protection.

  • NFPA 70E for Arc Flash, UL Certified to NFPA 2112 for Flash Fire, ASTM F1506 for Arc Flash, CSA Z462 for Arc Flash (Canada), OSHA 1910.269.
  • Fabric (with Quilted Liner) – 100% FR Cotton Duck, DWR with Quilted Liner.
  • Fabric (without Quilted Liner) - 100% FR Cotton Duck, DWR.
  • Fabric Weight (with Quilted Liner) - 13.0oz / 440gsm | 10.5 / 356gsm.
  • Fabric Weight (without Quilted Liner) - 13.0oz / 440gsm.
  • ATPV - 16.0 cal/cm2 PPE CAT 2.
  • Colours – Navy, Brown.
  • Product Numbers (Insulated Bib Overall)
  • BIB6DNVQ2_ _X_ _ (Navy)
    BIB6DCMQ2_ _X _ _ (Brown)
  • Product Numbers (Unlined Bib Overall)
  • BIB6DNV_ _X_ _ (Navy)
  • BIB6DCM_ _X_ _ (Brown)

Features of Both Types

  • Concealed heavy duty snap fly closure.
  • 26" covered FR leg zipper closure for easy boot entry.
  • Double bib pockets.
  • Two back patch pockets.
  • Two tool pockets on sides.

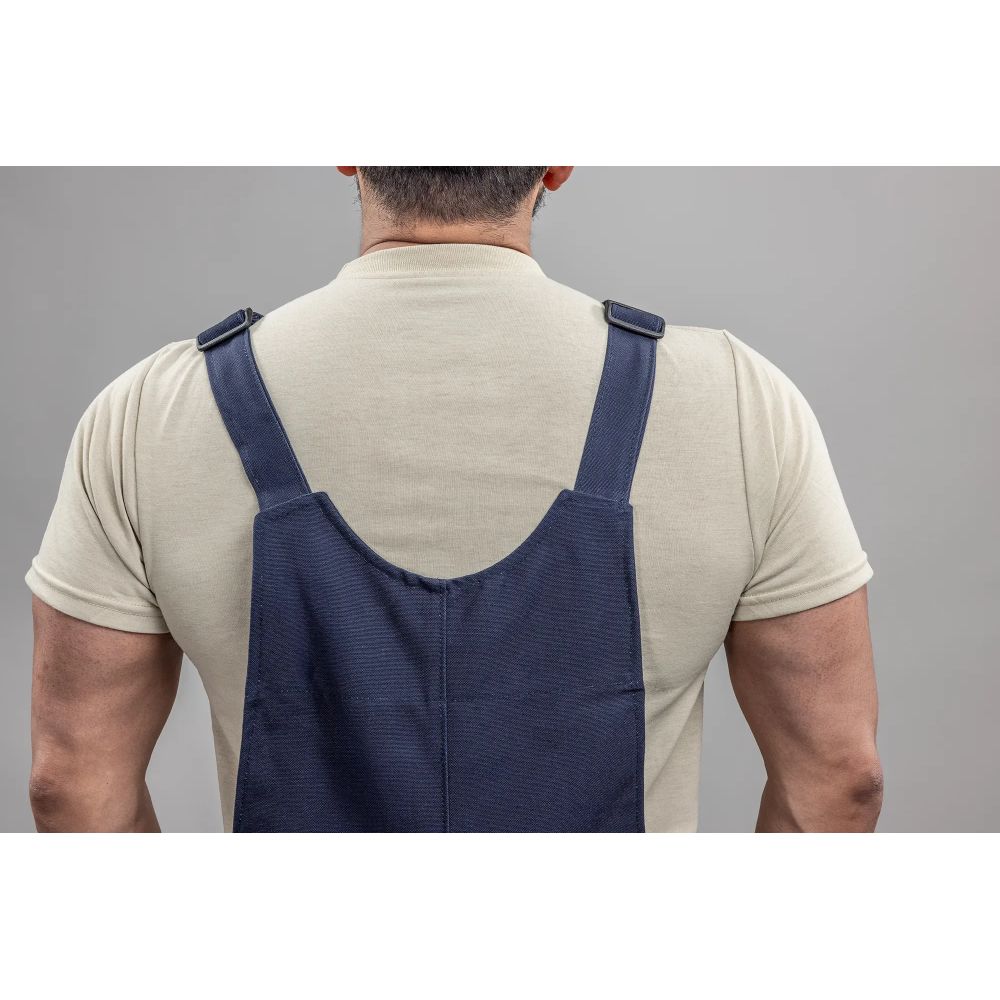

  • Quick disconnect adjustable buckles at each shoulder strap.
  • Double chap front with opening to insert knee pads.
  • Features waistline sizing for a more comfortable custom fit.
  • Dual-hazard protection against arc flash and flash fire.
  • Sizes (Insulated Bib Overall): Waist 30" - 44" / 76cms - 112cms | Inseam 30" - 32" / 76cms - 81cms (Additional sizes available on request).
  • Sizes (Unlined Bib Overall): Waist 30" - 40" / 76cms - 102cms | Inseam 30" - 32" / 76cms - 81cms.
  • MOQ - 10 units Insulated Bib Overall - 10 units Unlined Bib Overall (across different sizes to reach MOQ).
  • Read the garment label and launder per instructions on garment label.
  • Machine wash warm on maximum 60°C (140°F). Use mild detergent. Tumble dry on medium setting.
  • DO NOT iron, use chlorine bleach, hydrogen peroxide, fabric softener or starch.
  • Wash according to the instructions above to remove any contaminants in order to maintain fabric performance when the garment becomes soiled with dirt, grease or oils.
  • If contaminants cannot be removed after laundering, it is best to discontinue use of the garment.
