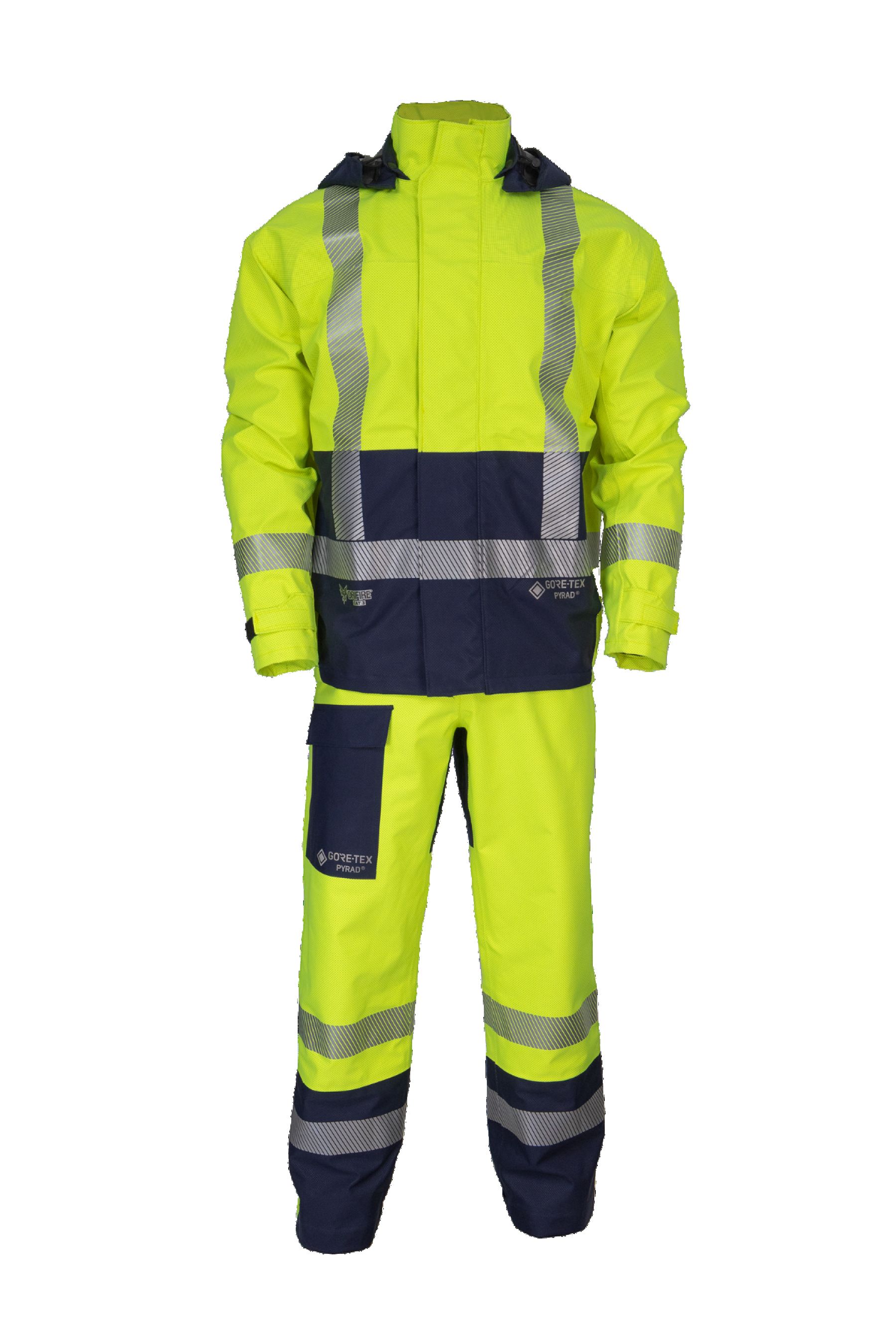

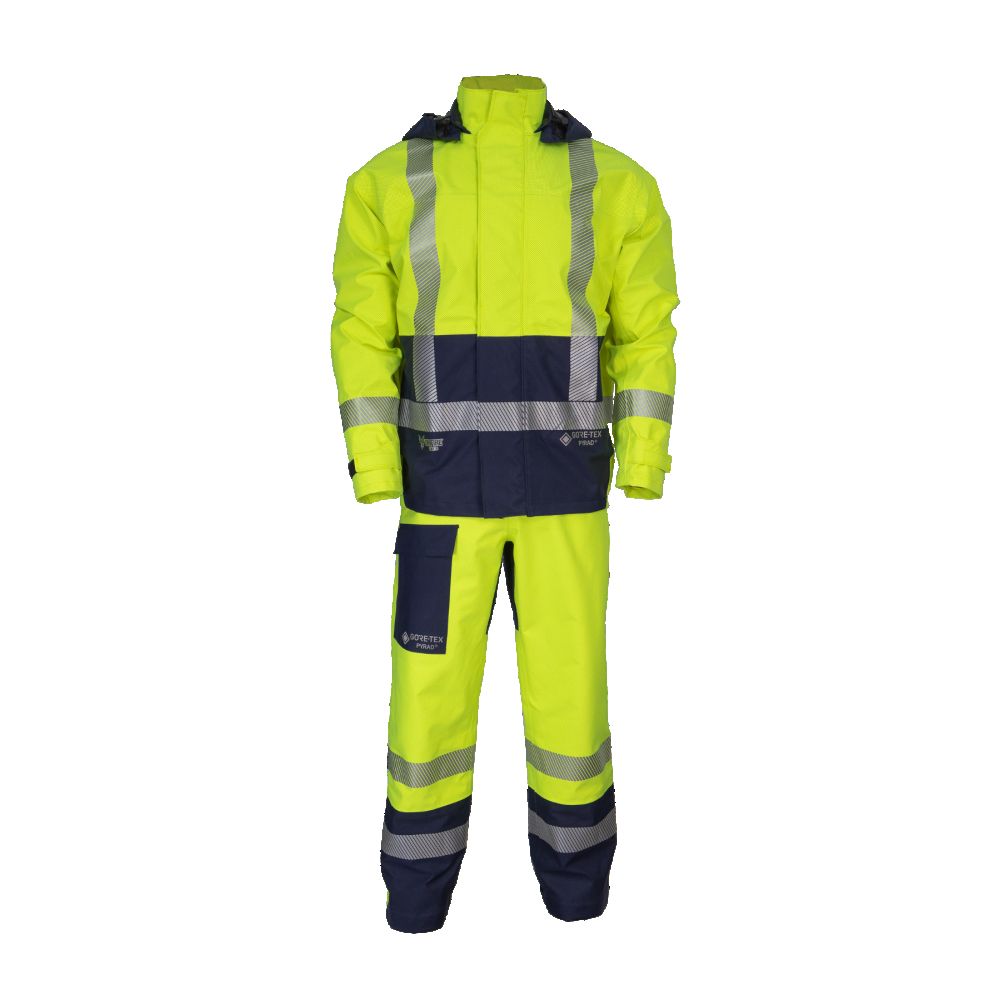

DRIFIRE® FR/AR DuoStorm Jacket Class 3

Premium FR/AR Dual-Hazard Protection: Arc Flash, Flash Fire, High Visibility, Waterproof, Windproof, Breathable. Fluorescent Yellow/Navy 2-Layer GORE-TEX PYRAD® Fabric 7oz/237gsm - 30 CAL

Downloads:

Since 1935, National Safety Apparel has been a leader in delivering advanced safety solutions for workers in high heat and industrial environments. NSA's extensive range of USA-made PPE includes protective workwear for workers facing extreme heat, arc flash, flash fire, molten metal, cut and abrasion hazards. Whether in foundries, mills or industrial manufacturing, NSA solutions are designed to safeguard workers in the toughest environments.

DRIFIRE® high-performance FR/AR work wear is built for those who demand both comfort and protection in tough environments. With innovative designs and advanced fabric technology, DRIFIRE® workwear works as hard as you do.

The same technology that keeps American troops safe abroad protects workers around the globe, helping workers to perform the most hazardous tasks with confidence. DRIFIRE® is mission-driven and performance-obsessed, delivering workwear that supports workers every step of the way.

APPLICATION: Arc Flash, Flash Fire, High-Risk Industrial, High Visibility Environments.

DRIFIRE® FR/AR DuoStorm Bib Class E

GORE-TEX PYRAD® Technology for Burn Protection in Situations Involving Heat and Flame Exposure

Garments designed with GORE-TEX PYRAD® product technology provide heat, flame and flash fire protection for defence personnel and industrial workers. The antistatic fabric also helps to protect against arc flash incidents. This versatile technology offers the durable waterproofness, windproofness and breathability you would expect of GORE-TEX products and provides some of the lightest weight, less bulky garments on the market.

After extensive testing, development and research in their state-of-the-art lab, Gore developed a wearer-approved portfolio of GORE-TEX PYRAD® fabrics that go beyond existing standards of protection. They've been designed with those who rely on them in mind: adapting to their needs and with their safety as the highest priority.

Thermal Protective Performance (TPP) / Other



Arc Flash

When combined with additional arc rated product technology, the wearer is protected with the best-in-class arc rating Category 3.

Flash Fire

The flame retardant fabric stops propagation by forming a carbonaceous char with the textile, reducing heat transfer to the skin.

Durably Waterproof

2-Layer GORE-TEX PYRAD® product technology is durably waterproof, windproof and breathable - so work can continue, even in the rain.

Lightweight

2-Layer GORE-TEX PYRAD® product technology offers lighter weight solutions compared to traditional flame retardant fabrics.

View more NSA FR/AR Hi Vis Rain Gear and Outerwear Apparel by downloading the NSA 2026 Catalogue (Refer pages 48 to 52).

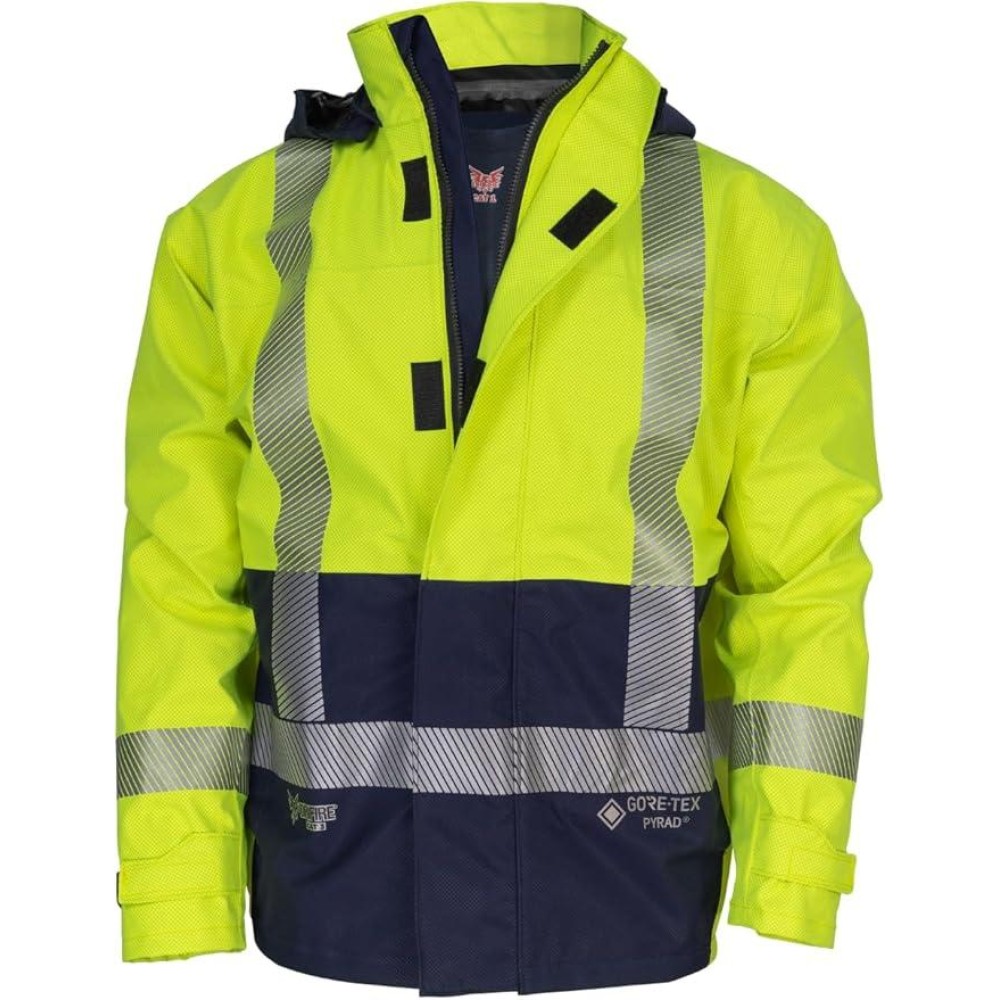

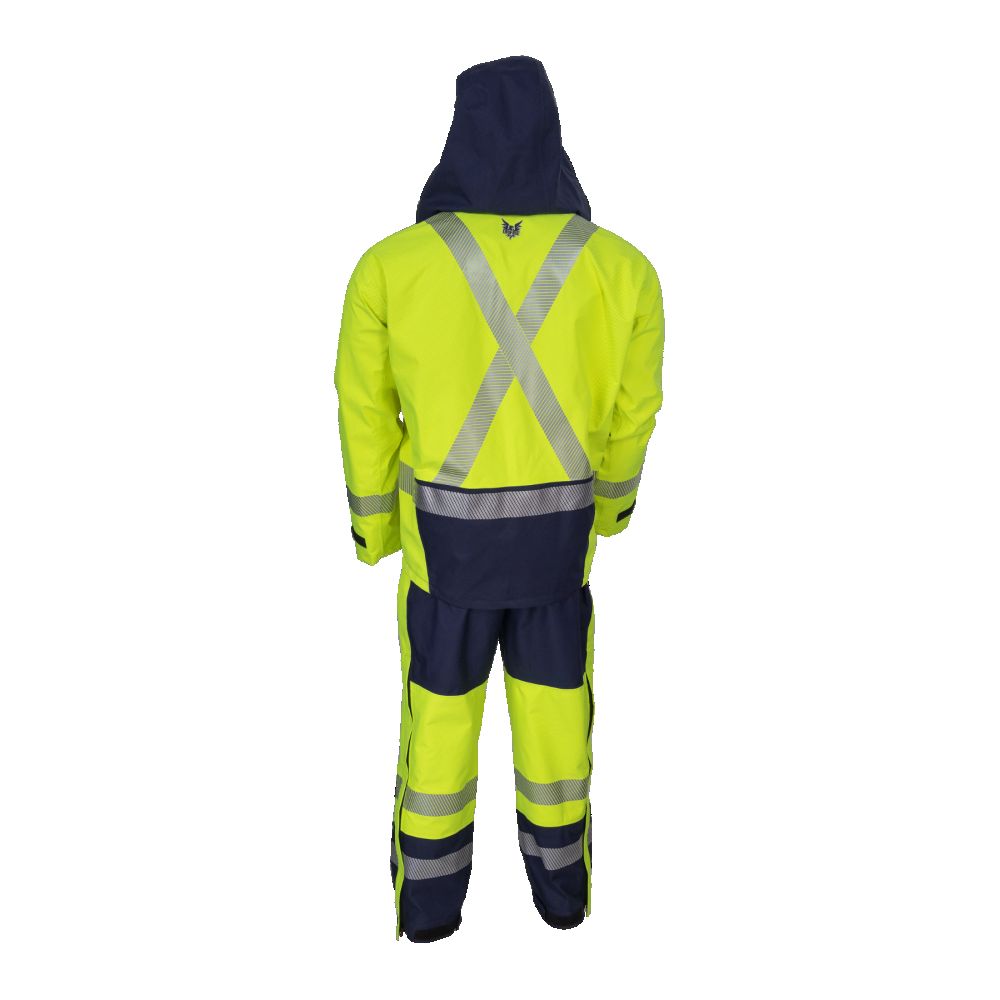

Jacket Description: Engineered for foul weather conditions, the DRIFIRE® FR/AR DuoStorm Jacket features 3M™ Scotchlite™ Segmented Silver Reflective Trim in an X-back configuration for enhanced visibility in low-light environments. Durable 2-Layer GORE-TEX PYRAD® fabric delivers CAT 3 thermal hazard protection together with superior windproof and waterproof protection to keep workers dry, safe and focused on the job.

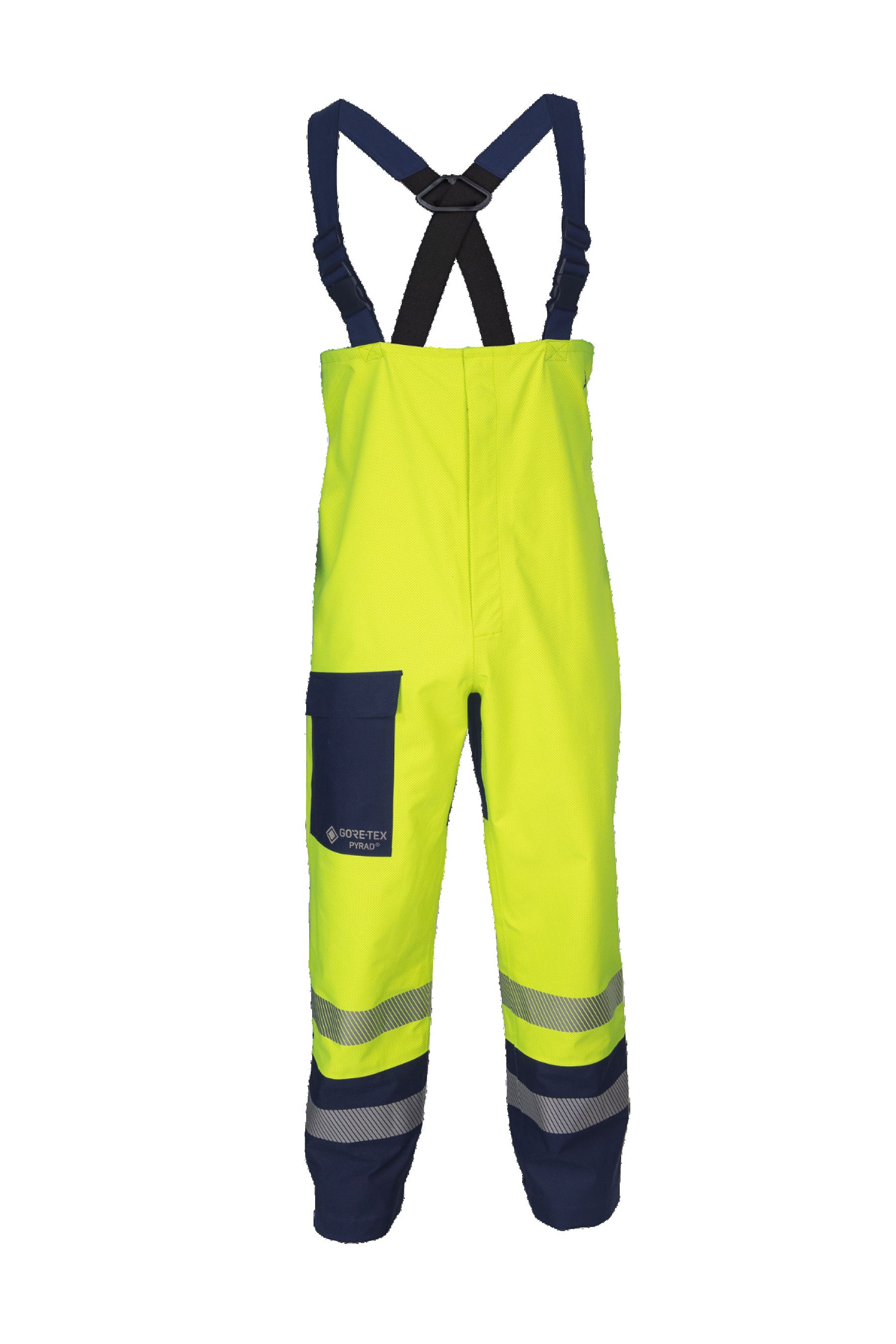

Bib Description: The DRIFIRE® FR/AR DuoStorm Bib combines flame resistant and arc flash protection with durable weatherproof performance to keep workers safe, dry and visible in harsh conditions. Engineered with 2-Layer GORE-TEX PYRAD® fabric for reliable waterproofing and wind resistance, it also features enhanced visibility, an ergonomic design and a flexible fit for superior comfort and mobility on the job.

 ASTM F2733 Arc Flash, ASTM F1891 Flash Fire, High Visibility ANSI/ISEA Type R Class 3 (Jacket), High Visibility ANSI/ISEA Class E (Bib), CSA Z462 for Arc Flash (Canada), CSA Z96, OSHA 1910.269.

  • Fabric – 2-Layer GORE-TEX PYRAD®.
  • Fabric Weight - 7oz / 237gsm.
  • ATPV - 30 cal/cm2 PPE CAT 3.
  • Colour – Fluorescent Yellow / Navy.
  • Product Number: FR2LG2-JACK-YN-_ _

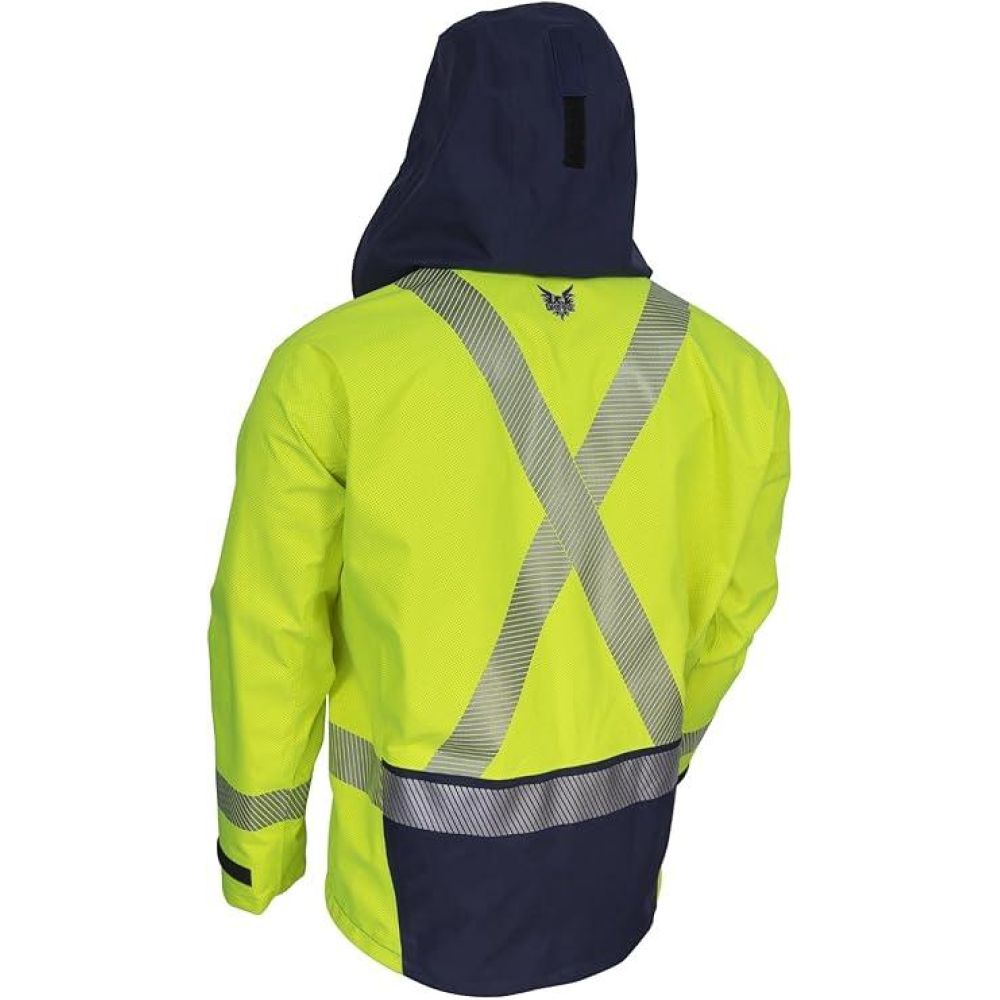

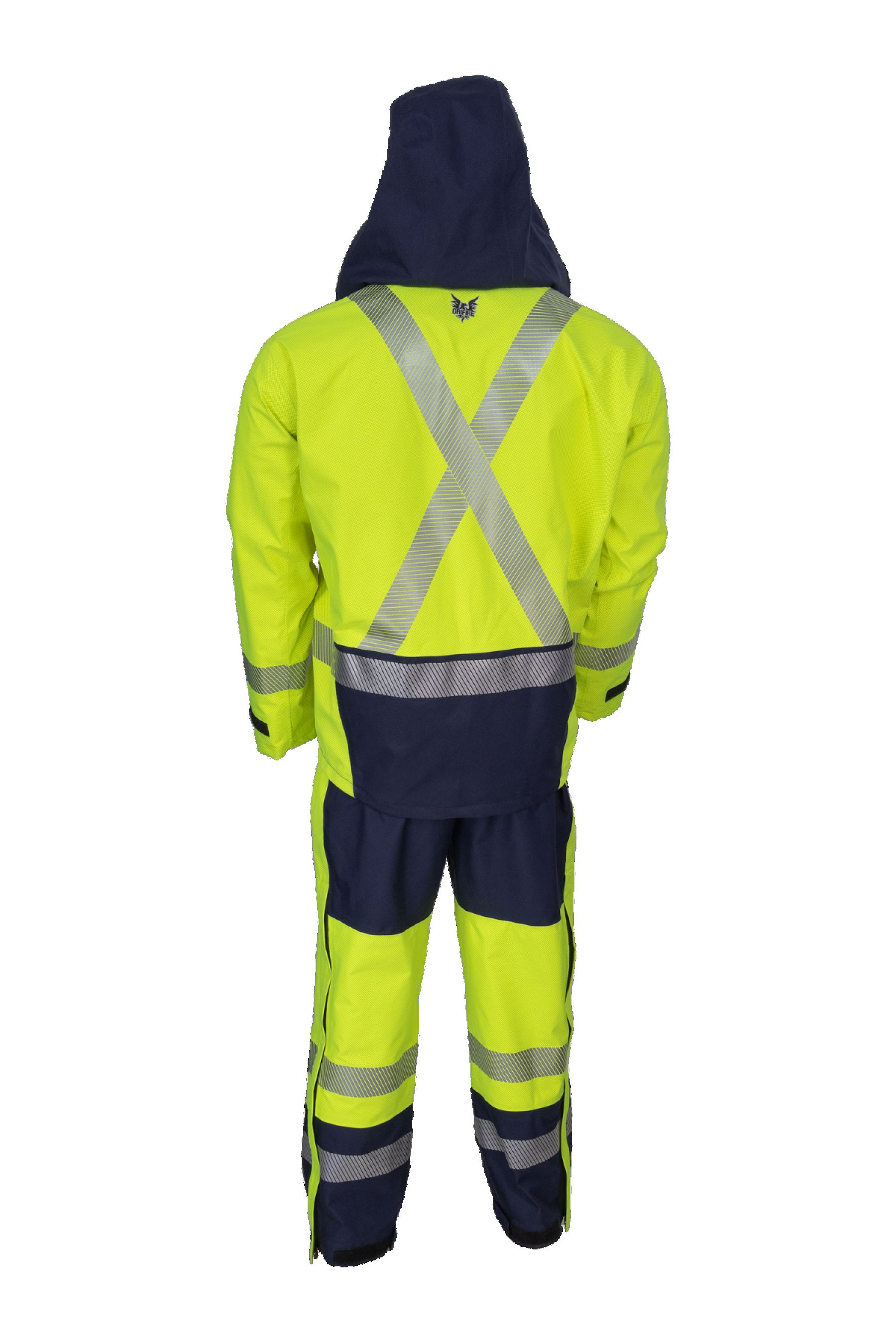

  • Enhanced Visibility: 3M™ Scotchlite™ Silver Segmented Reflective Trim forms an X-back. The front features trim over the shoulders, down each side to the waist, and around the waist (front and Back) and forearms. The configuration is engineered to provide exceptional high visibility in low-light environments.
  • Storm Resistance: 2-Layer GORE-TEX PYRAD® fabric provides lightweight, breathable and durable arc flash, flash fire and foul weather protection helping keep the wearer safe, dry and comfortable while working outdoors.
  • Adjustable Wrist Tabs: Positioned two inches below the wrist point, these tabs make it easy to customise the cuff fit for comfort and functionality.

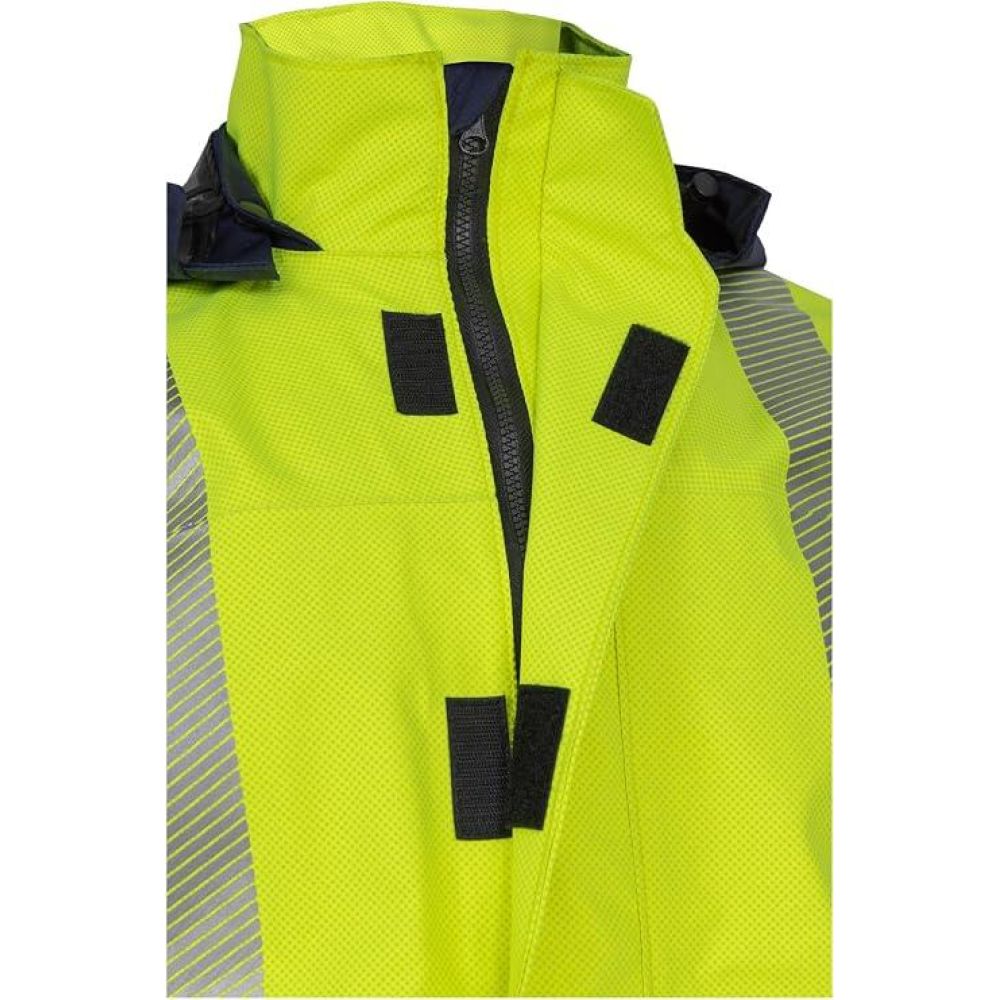

  • Improved Fit: The Jacket's angled hemline provides a tapered silhouette that helps reduce the risk of snagging, while a lowered designed collar minimises skin irritation and chafing.

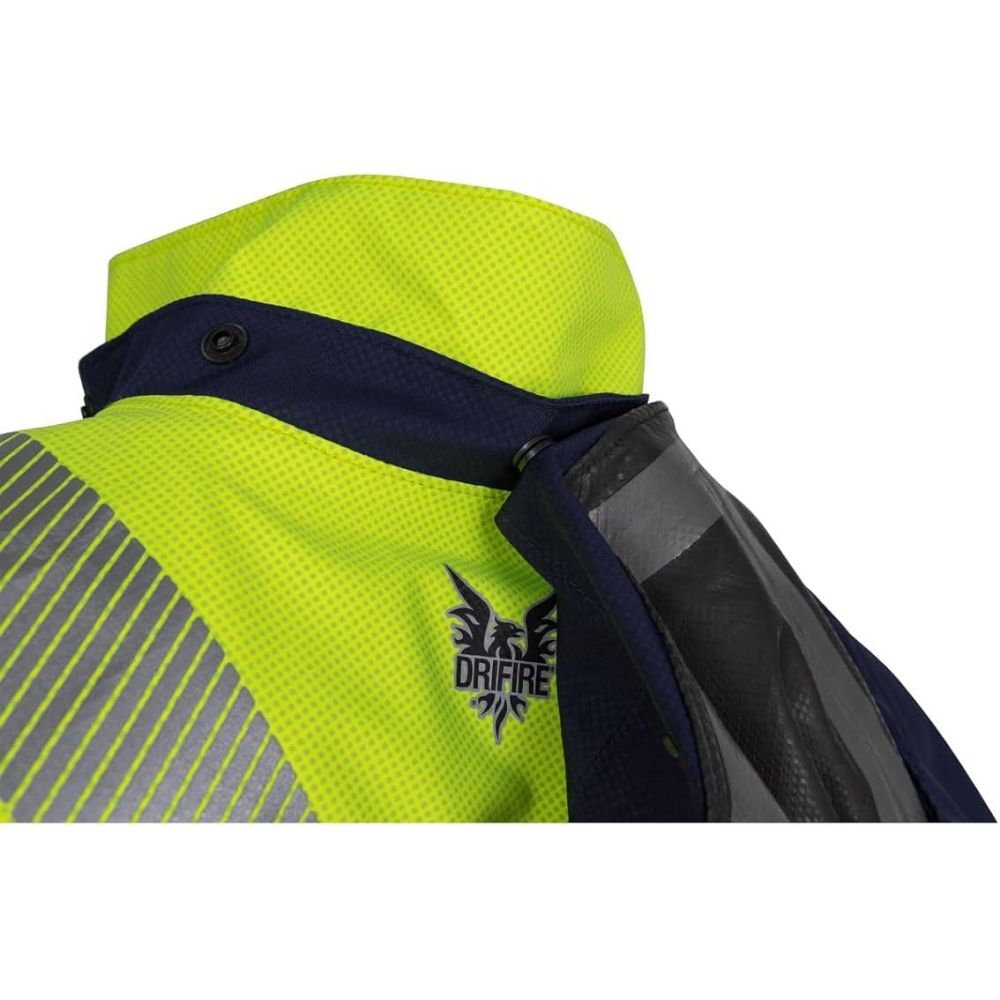

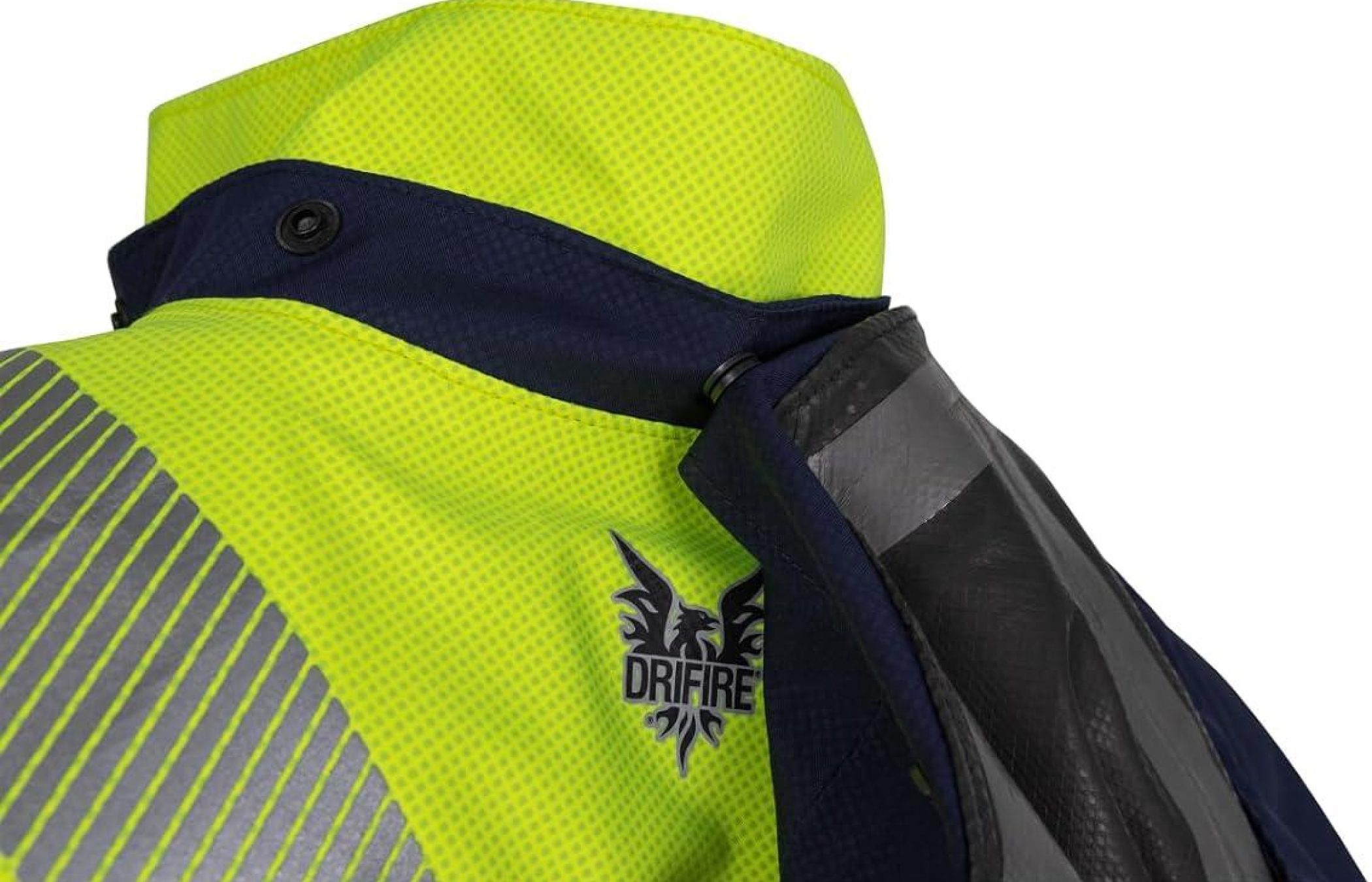

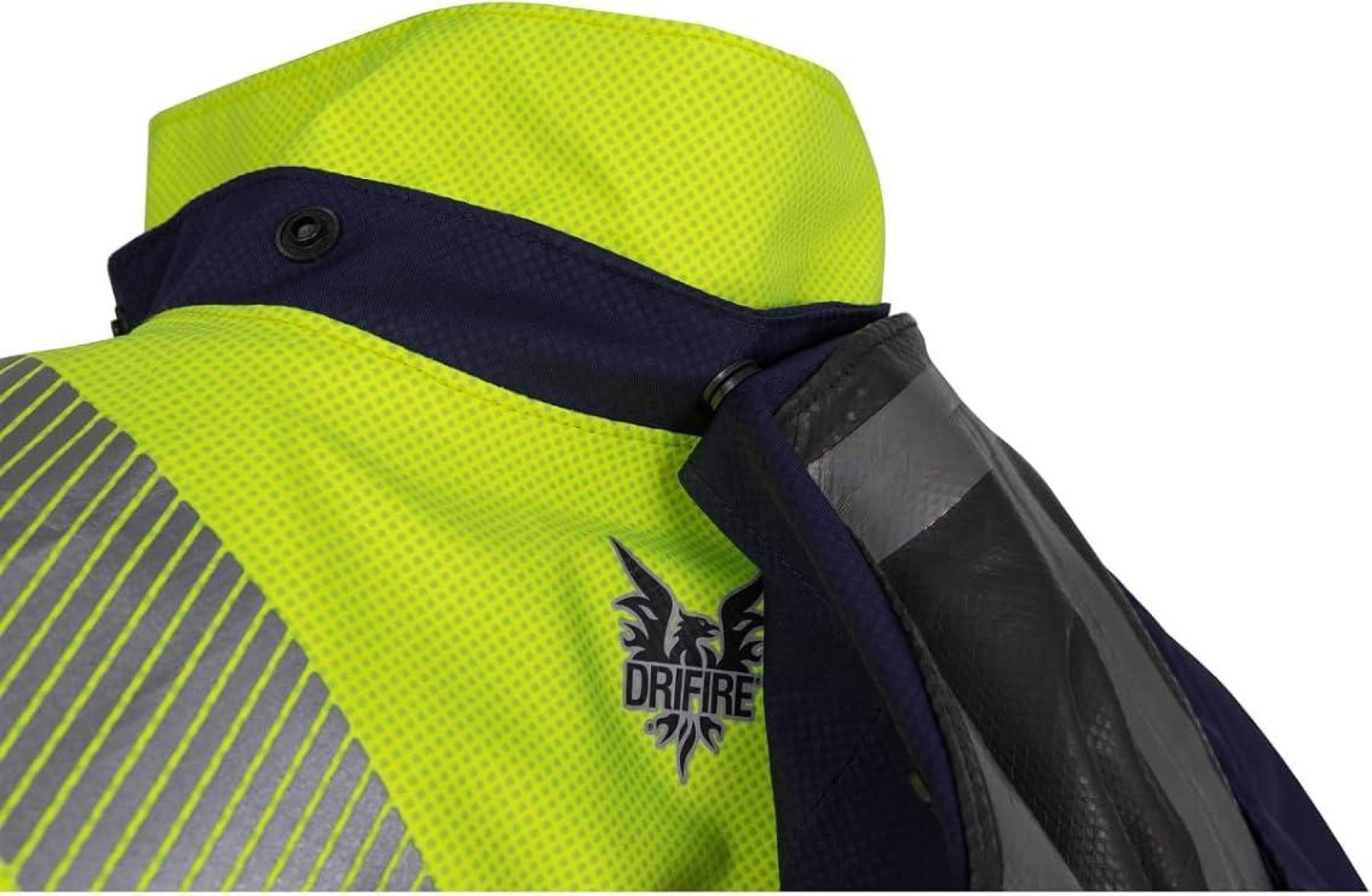

  • Versatile Hood: The Jacket hood is easily removed using snap fasteners, giving the wearer the option to remove the hood when it is not needed. There is a hook and loop tab for adjusting how the hood fits the head.

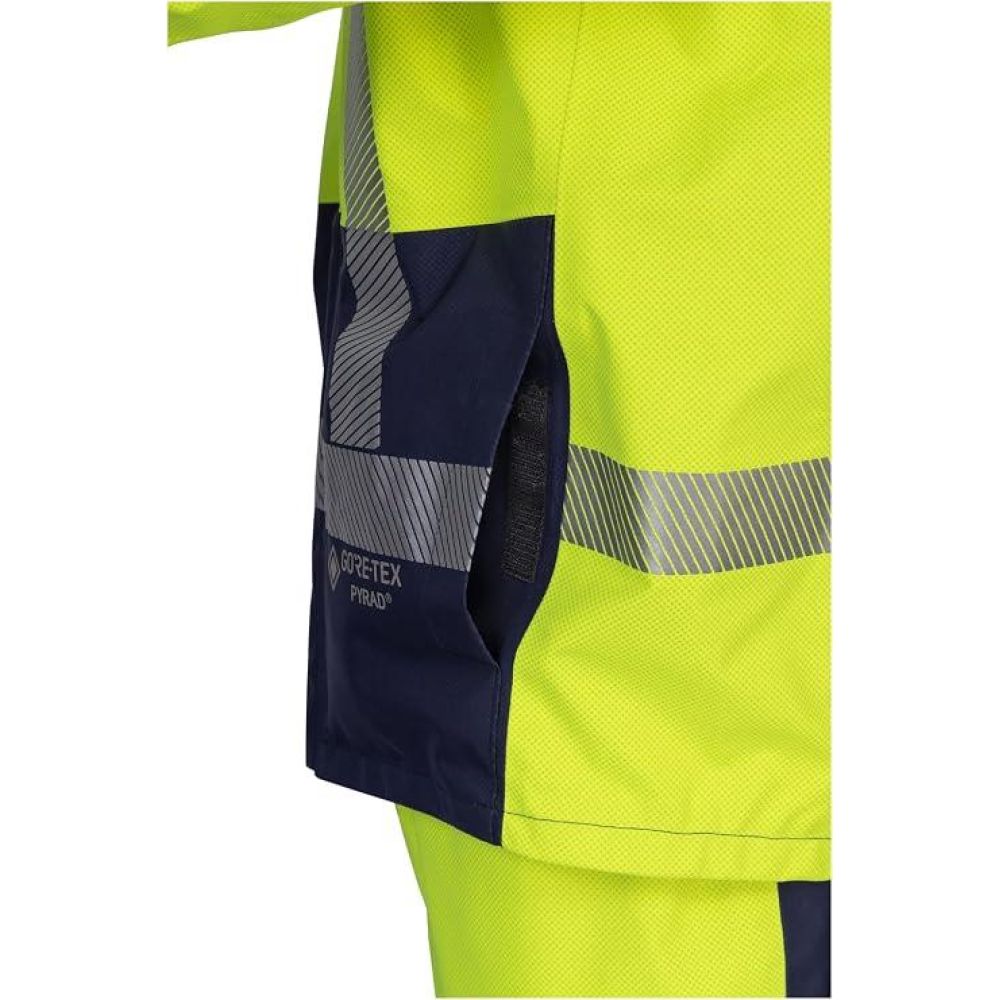

  • Secure Storage: Side-entry pockets with hook and hoop closures provide a reliable way to keep essentials secure and within easy reach.
  • Sizes: SM - 3X, RG | MD - TL.
  • MOQ - Subject to Negotiation.
  • Product Number FR2LG2-BIB-YN-_ _
  • Enhanced Visibility: 3M™ Scotchlite™ Silver Segmented Trim encircles the calves and ankles to provide increased visibility in low-light and hazardous environments.
  • Storm Resistance: 2-Layer GORE-TEX PYRAD® fabric provides lightweight, breathable and durable protection against elements such as rain and wind, helping keep the wearer dry and comfortable while working outdoors.

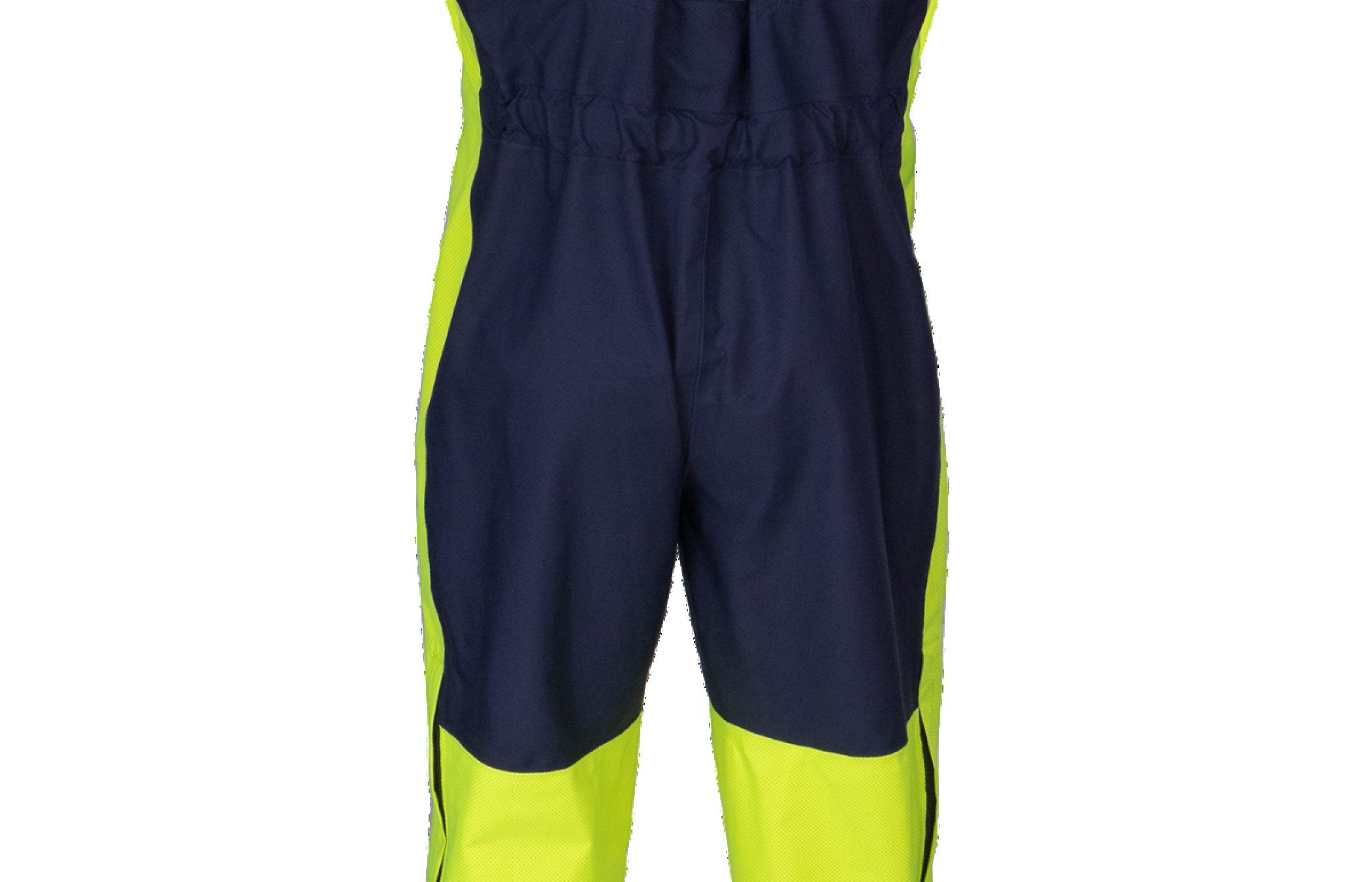

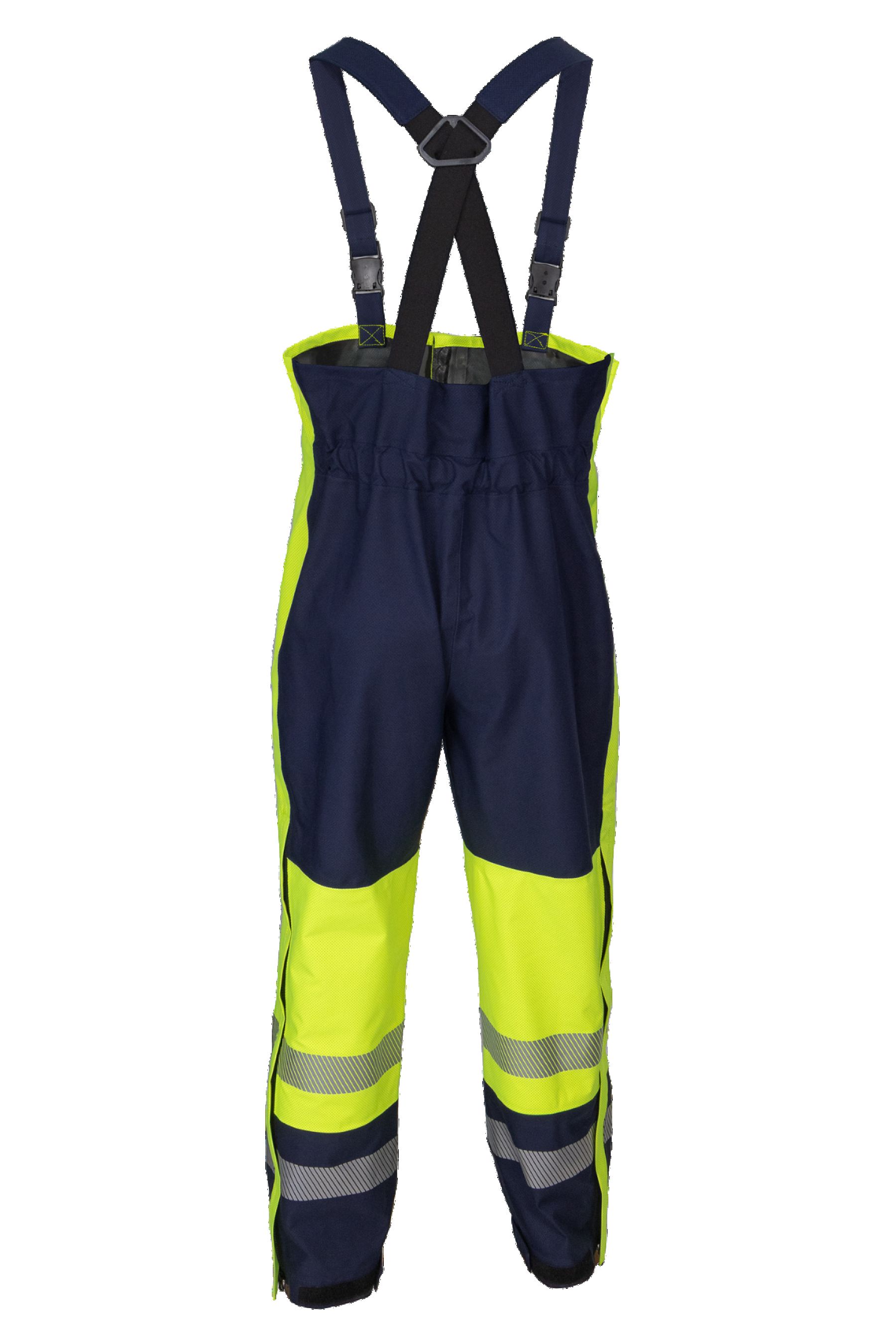

  • Increased Mobility: High-waisted elastic back allows for greater range of motion by flexing with the wearer's movements while also improving fit when worn over layered garments, reducing bulk and restriction.

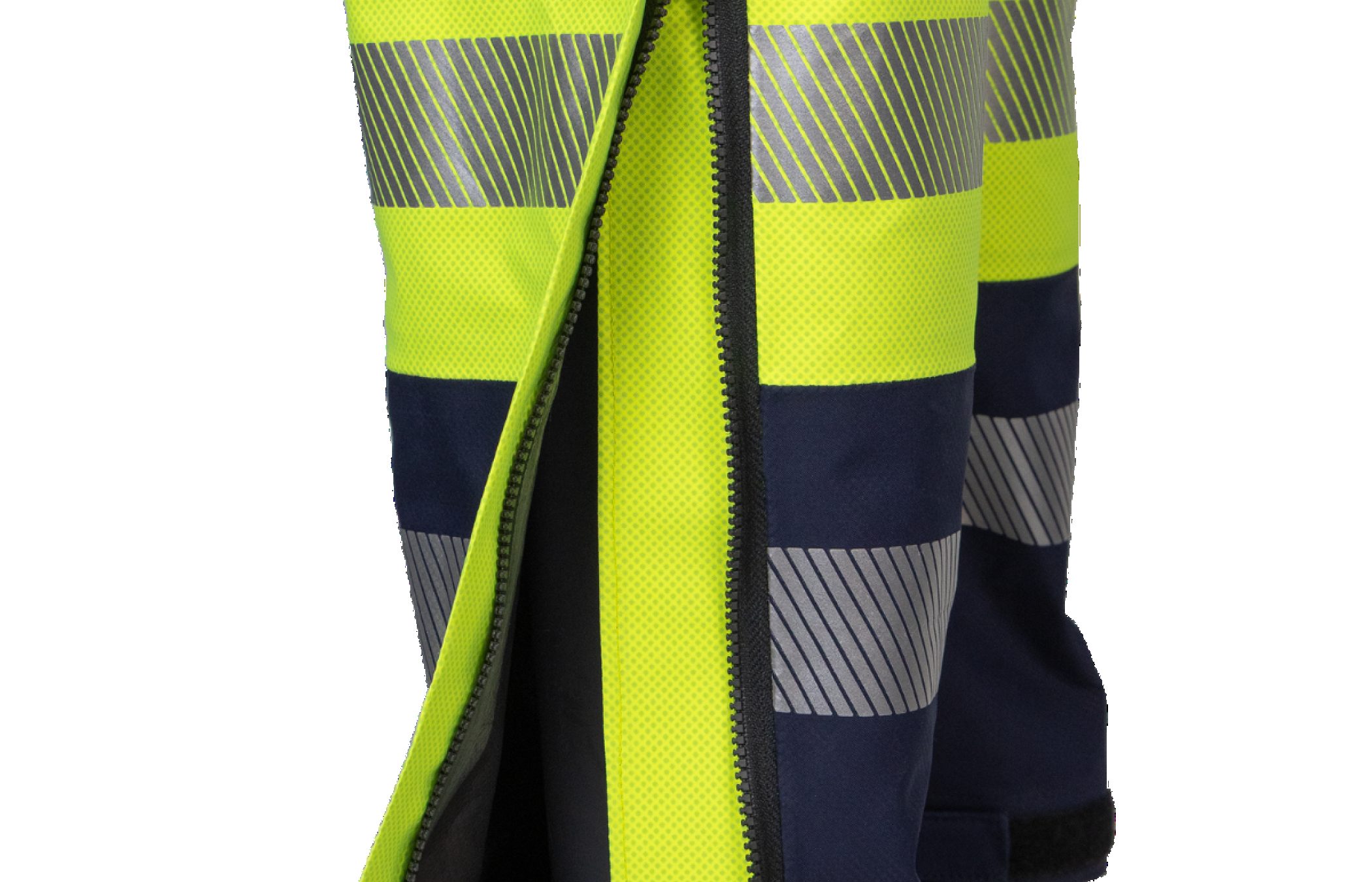

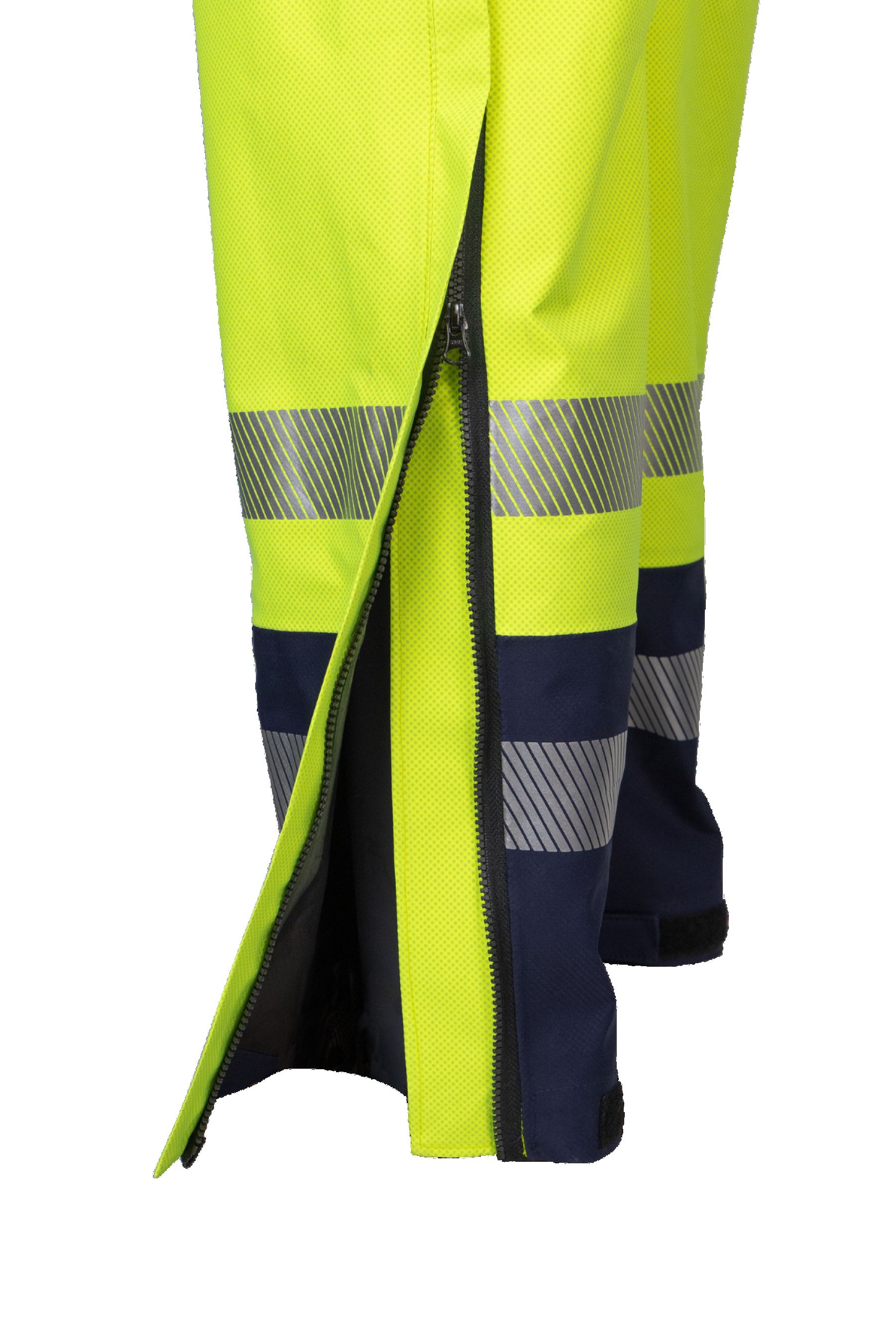

  • Easy Donning and Doffing: Equipped with 25" side-seam leg zippers, this design provides a generous leg opening, reducing the need to remove footwear and allowing for quick, convenient on/off.

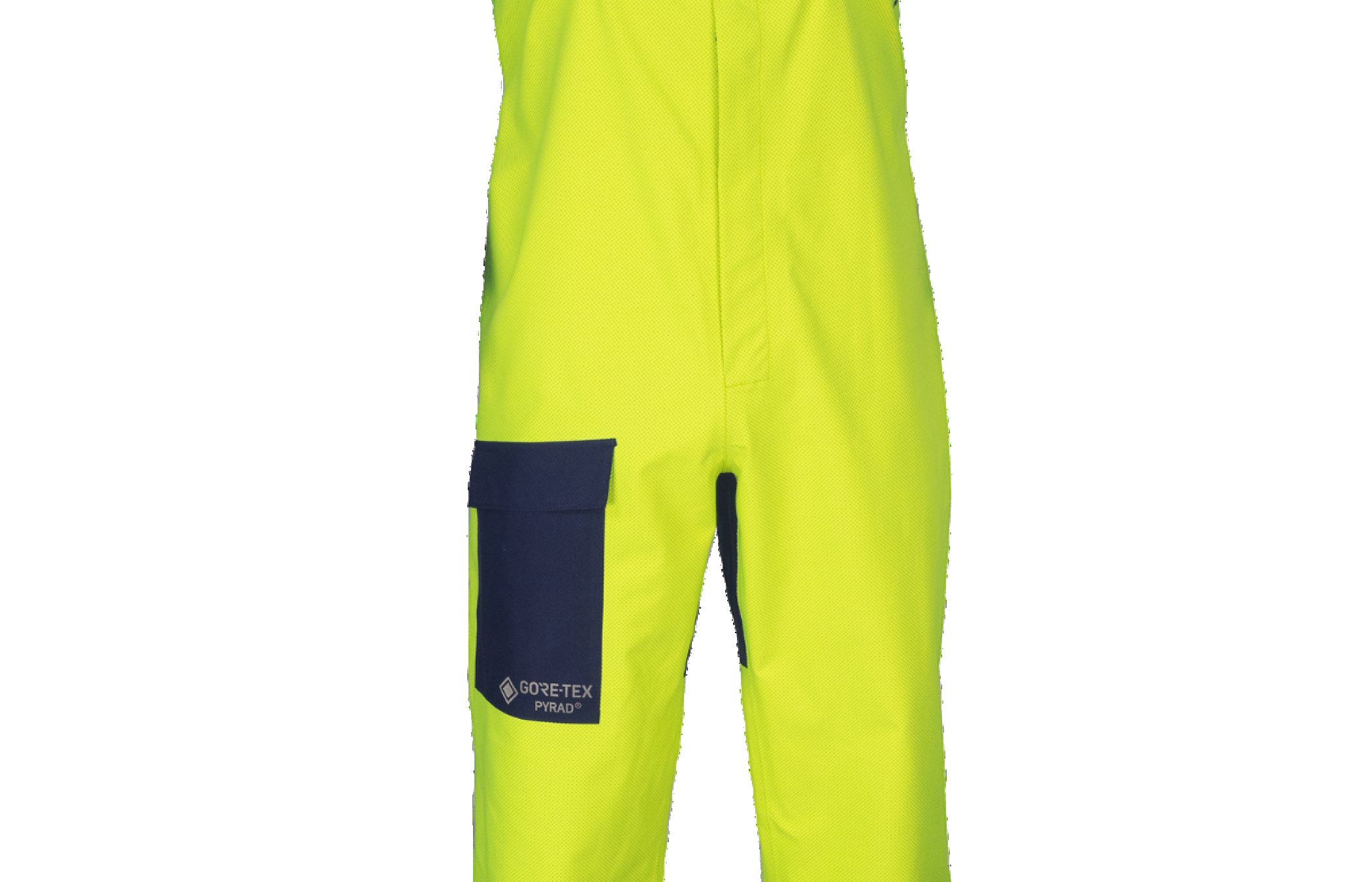

  • Suspenders: Equipped with heavy duty flex fit, quick release shoulder suspenders.

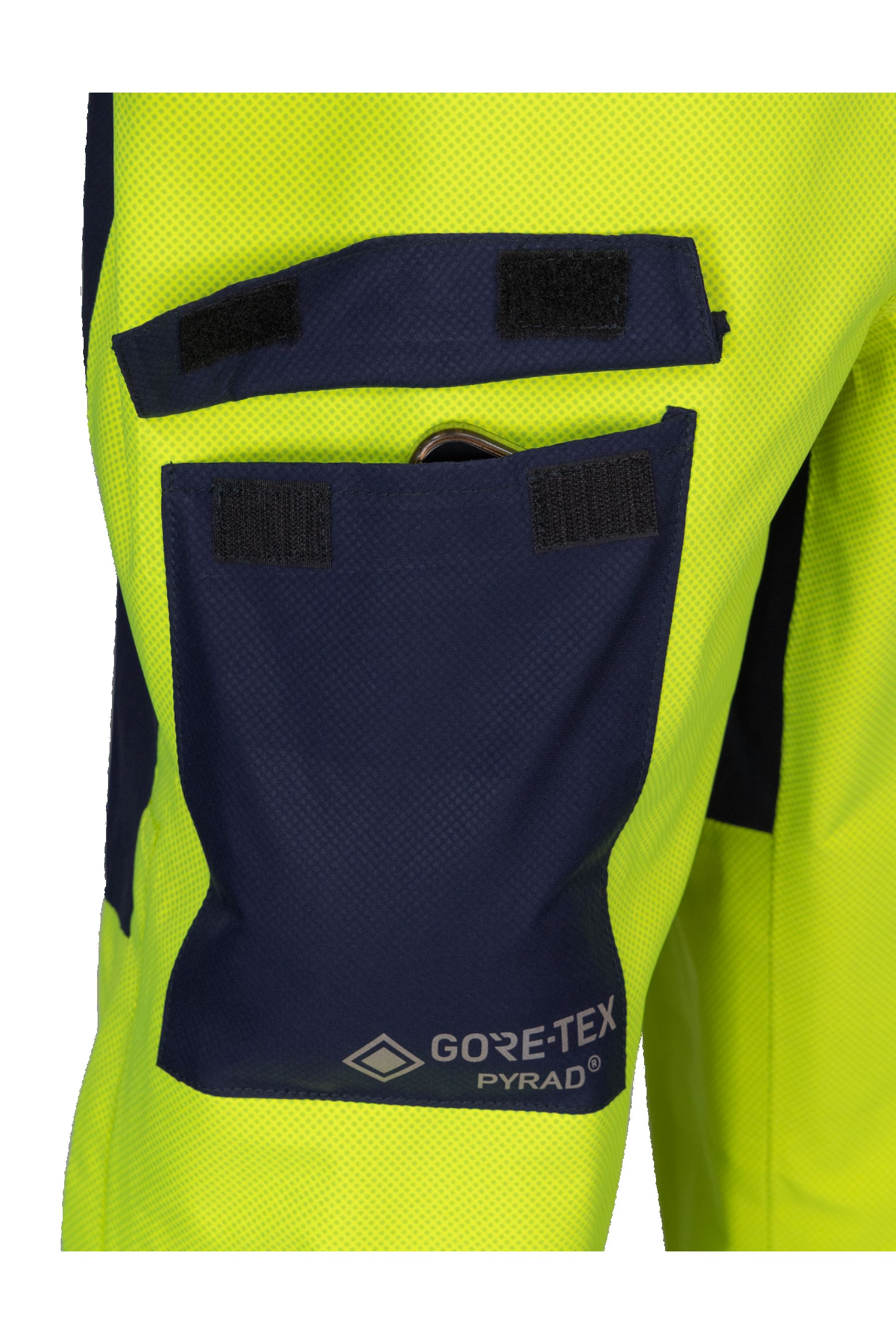

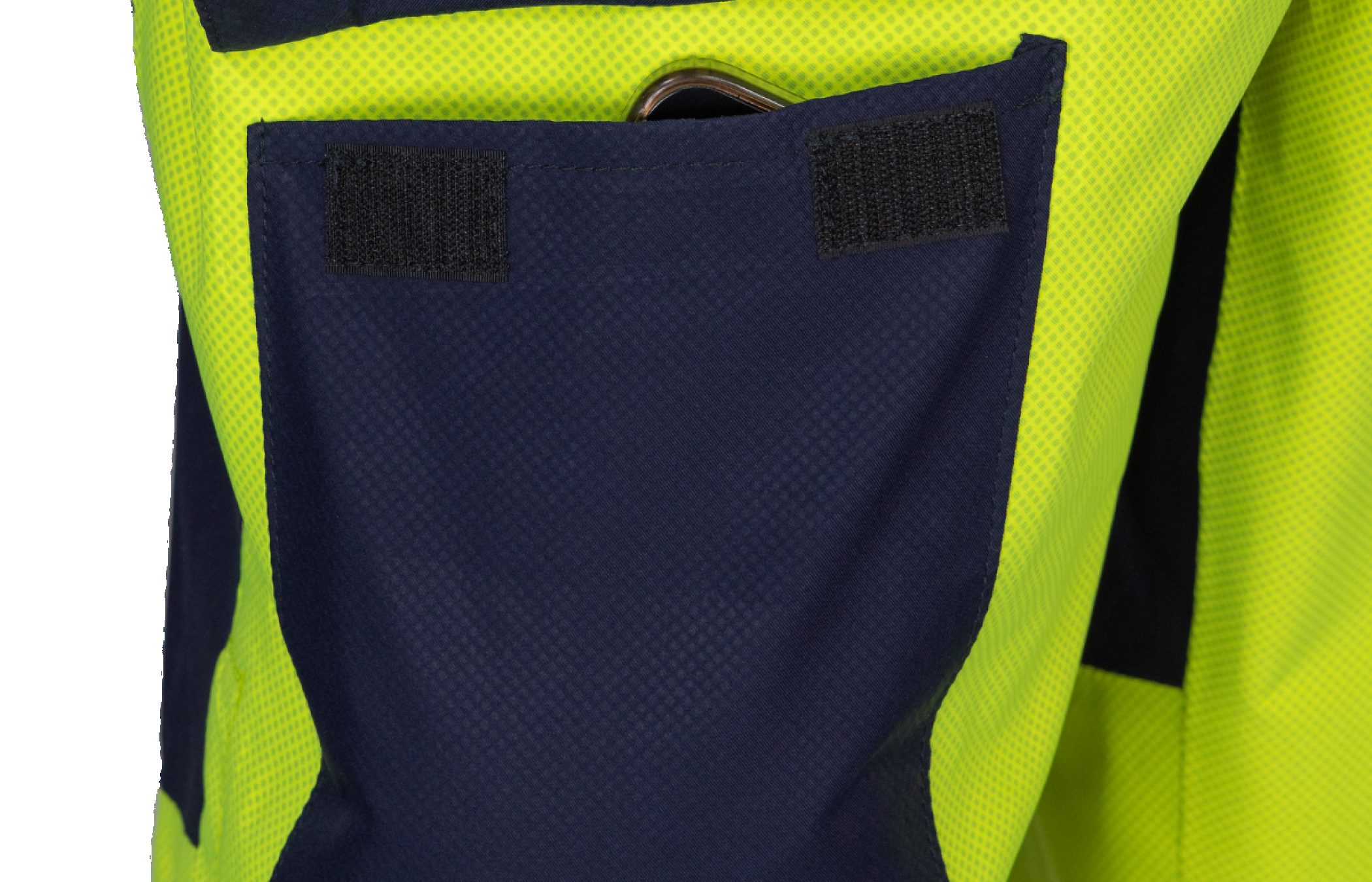

  • Secure Storage: The front patch pocket features a hook-and-loop closure designed to keep essentials such as mobile phones and small tools safe, secure and within easy reach.
  • Sizes: SM - 3X, RG | MD - TL.
  • MOQ - Subject to Negotiation.
  • Read the garment label and launder per instructions on garment label.
  • DO NOT use chlorine bleach, hydrogen peroxide, fabric softener or starch.
  • Wash/Laundering Instructions: Wash separately from other garments. Machine wash warm at 120°F (50°C) using a mild detergent. Rinse 4 times (adding extra rinse to standard 3-rinse cycle) to remove all soil and detergent residues. Dawn Dish Liquid is recommended for removal of oil based stains. Pre-treat the area, soak for stubborn stains or mild stain treatments may be used. Ensure contaminants are completely rinsed from the garment before drying.
  • Drying: Turn the garment inside out before drying. Tumble dry using permanent press setting (medium). Tumble drying is recommended to protect the garments water repellent treatment.
  • Wash according to the instructions above to remove any contaminants in order to maintain fabric performance when the garment becomes soiled with dirt, grease or oils.
  • If contaminants cannot be removed after laundering, it is best to discontinue use of the garment.
